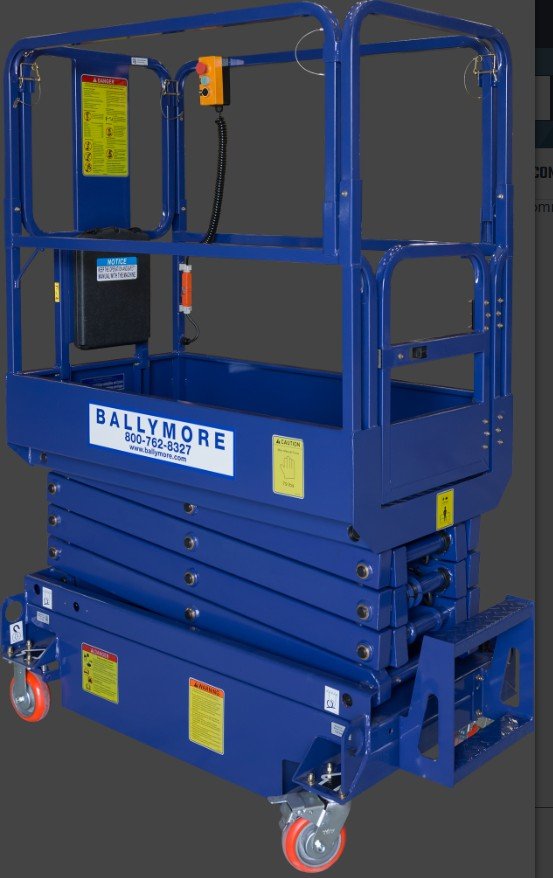

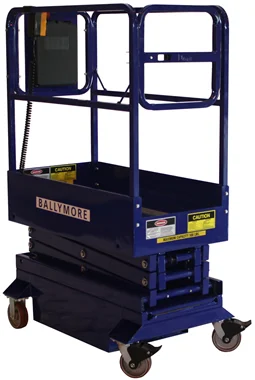

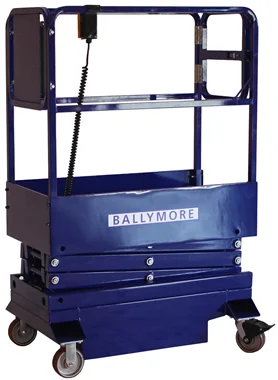

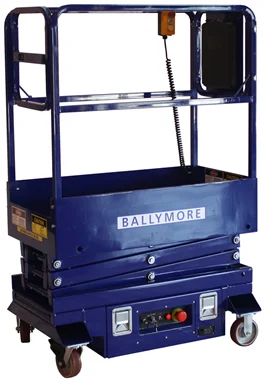

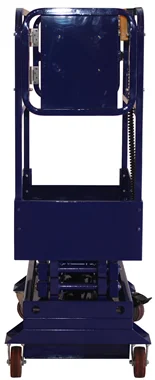

Mini Scissor Lift
Mini Scissor Lift
The Mini Scissor Lift has a slim base that makes it possible to utilize the lift in tight areas.
The lift is easy to operate and all will use instead of a lift stored in a corner used only by a few employees.
Pricing
| Mini - Scissor Lift | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Platform Max Height | Platform Min Height | Min Overall Height | Working Height | Platform [W x L] | Base [W x L] | Weight (lbs.) | Power Options | Price |
| DS-MSL-10 | 9'10" | 2'2" | 5'10" | 16' | 24"x46" | 28"x46" | 787 | 12V DC | $8,309 |
| DS-MSL-12 | 12'9" | 2'2" | 6'2" | 19' | 24"x46" | 28"x46" | 917 | 12V DC | $10,022 |
| All dimensions are in inches | |||||||||
Features
Standard Features of the DS-MSL-10:
500 lb. capacity
Working heights to 16' 0"
Platform height fully lowered is 21"
Maximum raised platform height of 9' 10"
Platform width is 24"
Platform length is 46"
Base size is 28" x 46"
Easy to roll due to a total weight 787 lbs.
12 volt DC powered
Meets/exceeds ANSI safety standards
Standard Features of the DS-MSL-12:
500 lb. capacity
Working heights to 19' 0"
Platform height fully lowered is 26"
Maximum raised platform height of 12' 9"
Platform length is 46"
Counter balanced so no outriggers needed
Base size is 28" x 46"
Platform width is 24"
Easy to roll due to a total weight 917 lbs.
12 volt DC powered
Meets/exceeds ANSI safety standards
Options
Options:
HYD Power Unit 12V DC 4L-PS-140 &150 +$1,614
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Videos:

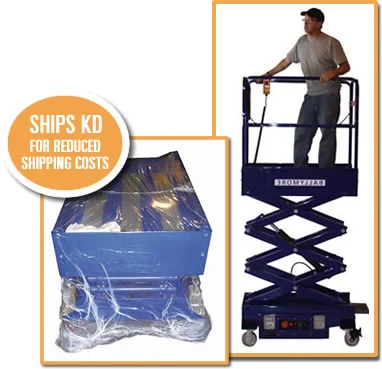

Drivable Mini Scissor Lift
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A MAN LIFT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE MAN LIFT.
