Short Based Lift Ladder
Short Based Lift Ladder
$278.00
The Marine Dock Short Based Lift Ladder has a fixed portion that extends 14 1/2" down from the top of the dock.
The Short Based Lift Ladder can be used in salt water or fresh water.
Pricing
| Short Based Lift - Ladder | |||||
|---|---|---|---|---|---|
| Model Number | # of Steps | Dimensions | Ladder Rung | Weight (lbs.) | Price |
| DS-SBLL-2-3 | 3 | 63x22x5 | 2" | 21 | $278 |
| DS-SBLL-2-4 | 4 | 63x22x5 | 2" | 23 | $284 |
| DS-SBLL-2-5 | 5 | 63x22x5 | 2" | 28 | $300 |
| DS-SBLL-2-6 | 6 | 63x22x5 | 2" | 30 | $307 |
| DS-SBLL-2-7 | 7 | 73x22x5 | 2" | 33 | $318 |
| DS-SBLL-35-3 | 3 | 63x22x7 | 3.5" | 24 | $295 |
| DS-SBLL-35-4 | 4 | 63x22x7 | 3.5" | 26 | $305 |
| DS-SBLL-35-5 | 5 | 63x22x7 | 3.5" | 31 | $319 |
| DS-SBLL-35-6 | 6 | 63x22x7 | 3.5" | 33 | $328 |
| DS-SBLL-35-7 | 7 | 73x22x7 | 3.5" | 36 | $341 |
| All dimensions are in inches | |||||
Features
Standard Features:
Not to be used in chlorine water
Available in 3, 4, 5, 6, and 7 steps
500 lb. capacity
6063 T5 marine grade aluminum
1-1/4” and 1-1/2” tig welded pipe for strength
4 year structural warranty
Ships boxed via UPS
14" diameter handrail
Grated ladder steps

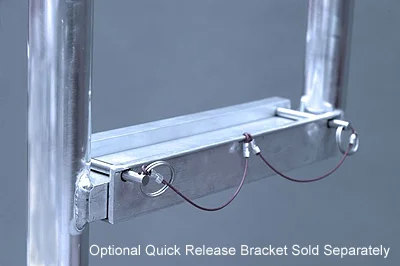

Optional Quick Release Bracket +$115.00
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product.
