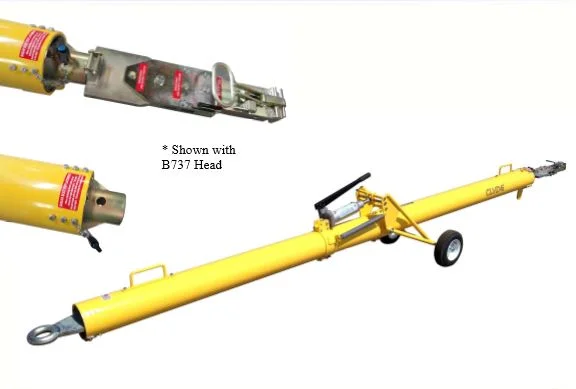

727/737/757/A320 Towbar 15F2515
727/737/757/A320 Towbar 15F2515
High quality and made to last tow bars are a great asset for your airfield.
Fits the following aircrafts:
B727 clamp and pin type**
B757 clamp type
B737 clamp and pin type
Fokker 100 clamp type
A320 clamp type
IATA compliant
Not CE compliant unless certain items are added
Pricing
| Quick Change - Towbar | |||||
|---|---|---|---|---|---|
| Model Number | Dimensions [W x L x H] | Crated Dimensions [W x L x H] | Shipping Weight (lbs.) | Crated Shipping Weight (lbs.) | Price |
| DS-15F2515 | 29" x 212" x 25" | 26" x 212" x 27" | 350 | 730 | $3,570 |
| *Heads sold separately, request a quote with the model of aircraft to be used | |||||
| Added Costs for Packaging -No exceptions - Open shipping brackets $400 - Crating [has to be crated for international shipping] $550 | |||||
Features
Standard Features:
Quick change multi-head, narrow body towbar
8" x 15' high strength aluminum tube
Safety lock system to avoid separation from aircraft
Quality shear bolts for aircraft protection
Durable powder coated finish
Solid tires [optional pneumatic or foam filled tires]
Fully retractable hydraulic undercarriage for adjustable height
Fits Following Aircraft:
B727 Clamp type 15F2518 004 COMPLETE HEAD ASSY. A300/A310, and B727 Head Assy.
B727 Pin type**
B737 Clamp type 15F3364 003 B737 COMPLETE HEAD ASS'Y
B737 Pin type
A318-A321 NEO 15F3365
Fokker 100 Clamp type
A320 Clamp type
**B727 pin type will fit nose gear of the A300
Shipping Options [non negotiable]:
Options that HAVE to be added in order to ship them LTL
Open shipping brackets that are $400 for the set
Enclosed crate (required for all international travel) for $550
If shipping towbars via a dedicated truck they will not need any crating
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
Options:
Pneumatic tires
Foam filled tires
Cushioned lunette assembly
Spliced tube for easy transport
Head Options:
15F2539 727 QC CLAMP HEAD - $2,406
15F2518 A300/A310, B727 PIN TYPE QC HEAD - $2,805
15F3966 737 100-900 QC HEAD ASSY - $1,922
15F3364 BB737 600-900+MAX QC HEAD ASSY - $1,922
15F3365 A320 FAMILY QC HEAD ASSY - $1,922
15F4048 B757 QUICK CHGE. HEAD - $2,210
15F2549 F-100 COMPLETE HEAD ASSEMBLY - $2,558
15F3736 A220 100/300 QC HEAD ASSEMBLY - $2,051
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-15F-2515-Towbar
