B1 Maintenance Stand - Model 15F1900
B1 Maintenance Stand - Model 15F1900
The B1 Aircraft Maintenance Platform plays a vital role in the aviation industry ensuring the utmost safety for the mechanics and are quite popular because they provide an additional 2' of height adjustability.
The Model 15F1900 B1 Maintenance Stand is an updated ground support piece of equipment [B stand] used by the Air Force. NSN 1730-00-390-5618.
ThisB1 Aircraft Maintenance Platform provides your aviation technician with efficient access to service aircraft, improving overall productivity while providing critical fall protection to ensure a safe work environment. The B1 Stand is a versatile adjustable work platform that can be used across all sectors, including aviation [aircraft engine maintenance stands], construction [specialty work platform], engineering [cantilever ladders], and industrial facilities [mobile work platforms]. They may also be used as temporary access stairways for aircraft and industrial arenas. The B1's working height ranges from 5' to to 15'.

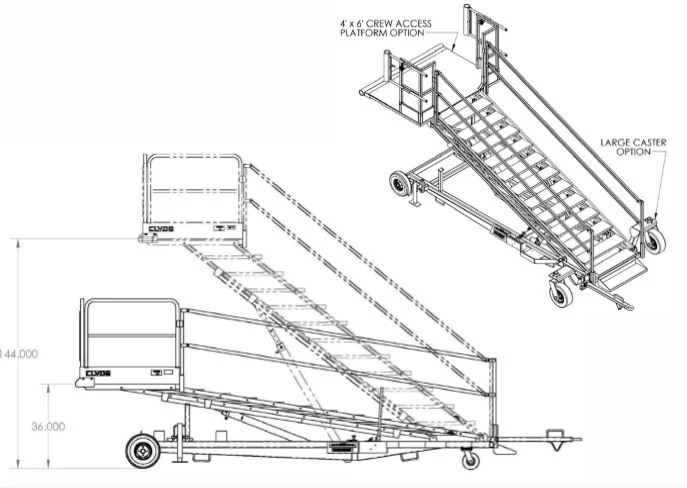

The 15F1900 is more rugged, elevates an additional two feet and has a double acting hydraulic hand pump. The 15F1900 is truly a practical and economic solution for high and overhead maintenance or production jobs that are 6 to 18 feet above the floor. It’s also used as temporary access stairways for aircraft and construction work. The 15F1900 48” x 48” standard work platform can be positioned to any height in its range by means of its self-contained hydraulic system.
A CE certified / EN compliant model is available as shown in the table below.
IATA compliant
NSN 1730-00-390-5618
Pricing
Pricing
| B1 Maintenance Stand - Model 15F1900 | ||||||
|---|---|---|---|---|---|---|
| Model Number | Capacity (lbs.) | Platform Height | Standard Platform Size | Weight of Stand (lbs.) | Shipping Dim. [W x H x L] | Price |
| DS-15F1900 | 500 | 3' to 12' | 4' x 4' | 1560 | 72" x 43" x 17.75' | $10,560 |
| DS-15F1900-CA** | 500 | 3' to 12' | 4' x 6' | 1660 | 88" x 43" x 18.75' | $13,523 |
| **Crew access model with a 4'x6' platform, wide caster assembly, and strut kit | ||||||
Features
Features
Standard Features
Non-slip self-cleaning steps and platform floor
500 lb capacity
Heavy-duty casters and 16" dia. pneumatic tires make it easy to move from job to job
Stair and platform railings can be lifted out and stored on the base
Hand pump activated height adjustability
Articulating stairs that stay parallel at any height within its 3' to 10' feet platform floor range
Base and platform stay parallel at any height position
All steel, welded construction
Adjustable work platform to any height within it 3 to 12 feet platform floor range
Fixed front and swivel rear casters provide ease in maneuverability.
Tow bar
Stand is designed and tested in accordance with ANSI-ASC A14.7-2006
Handrails are removable and may be stored on the base for compact storage and shipping reduction.
Equivalent Stands
Equivalent Stands

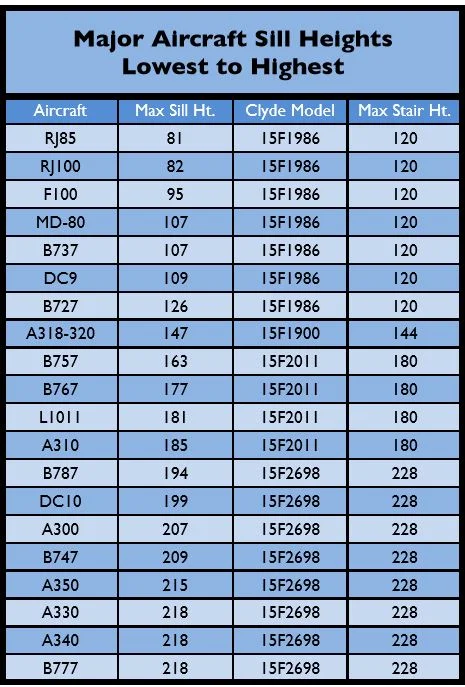

Equivalent Aircraft Stands
RJ85 maintenance stands
RJ100 maintenance
F100 maintenance stand
MD-80 maintenance stand
B737 maintenance stand
DC9 maintenance stand
B727 maintenance stand
A318 - A319 -A320 A321 maintenance stand
Boeing maintenance stand/Boeing C-40A maintenance
P-8A maintenance stand
Poseidon maintenance platform
Lockheed maintenance stand
P-3 maintenance stand
Orion maintenance platform
Options
Options
Options
Air over hydraulic pump - DS-15F2646 $1000

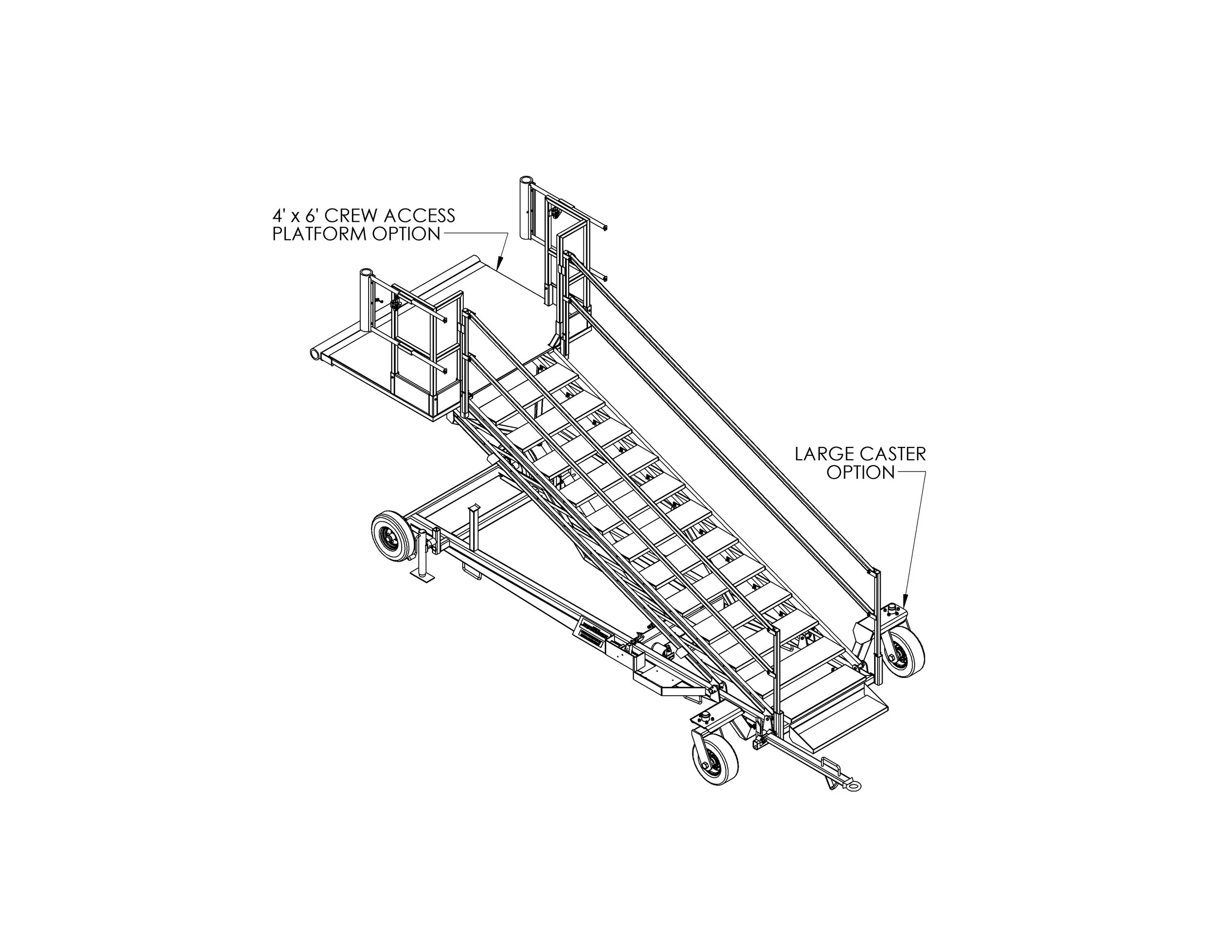

4' x 6' platform with sliding rails - please call for price
Large caster package - DS-15F2496 $990.00
Solid tires - please call for price
Parts
Parts
Parts
15O4471 front swivel wheel replacement $414 each
15F1985 rear wheel replacement $204 each
Replacement hydraulic system 15F2936 $1,225 [See page 7 of the attached manual]
Documentation / Videos
Documentation / Videos
Manual:
DS-15F1900-Manual

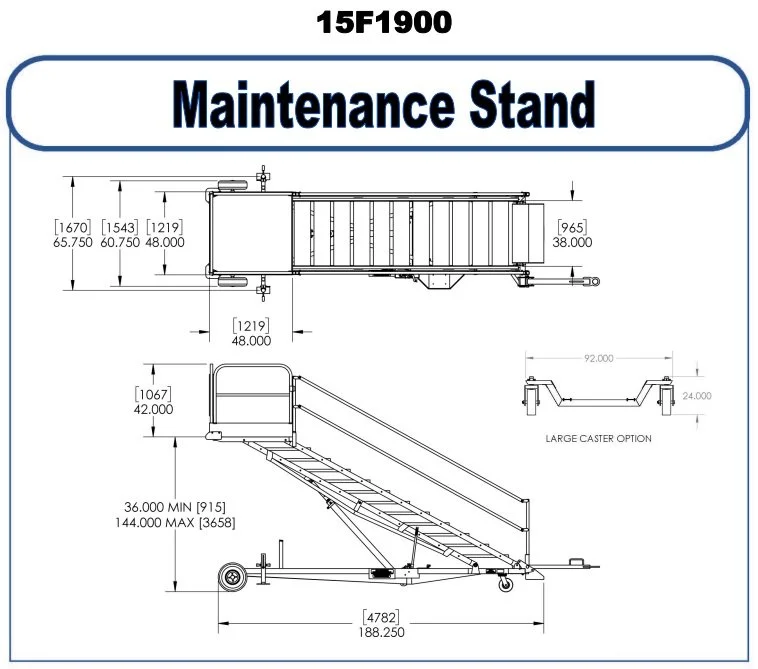

Drawings:
DS-15F-1900
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE AN AIRCRAFT MAINTENANCE PRODUCT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.
