Well Head Platform
Well Head Platform
These platforms are made to fit around the wellheads. Use these platforms for any of your machinery needs. Customize it to fit your application.
With 1,000 lb capacity this platform can hold up to 4 workers at once. Painted yellow steel for safety.
Standard Features

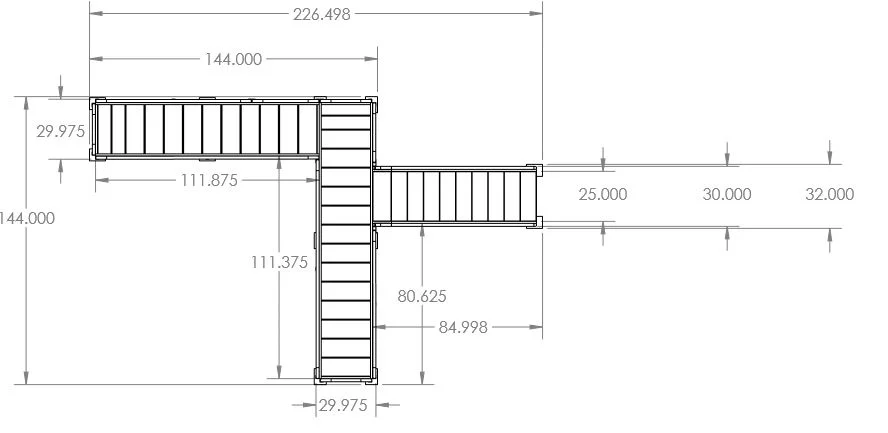

L- shaped platform 144” x 144” with a 30” wide walkway

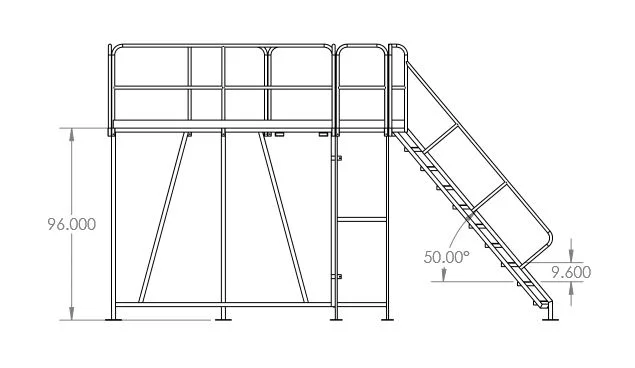

50 degree incline stair with 30” wide grip strut treads

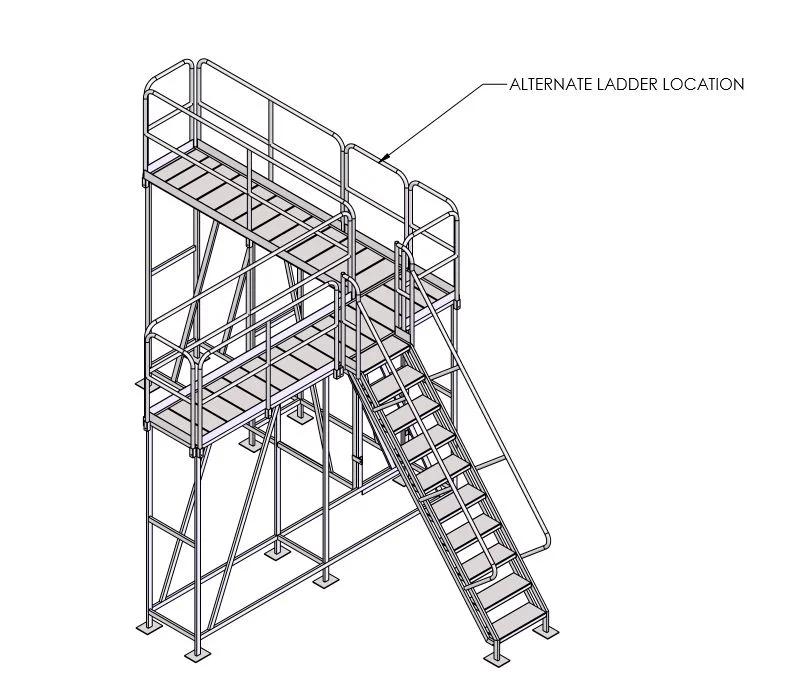

Ladder may be installed on either side of platform

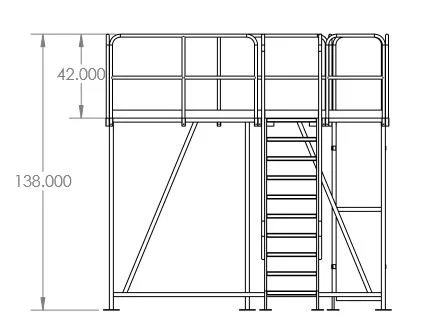

42” guardrails with kick plate
[12] 6” x 8” foot plates

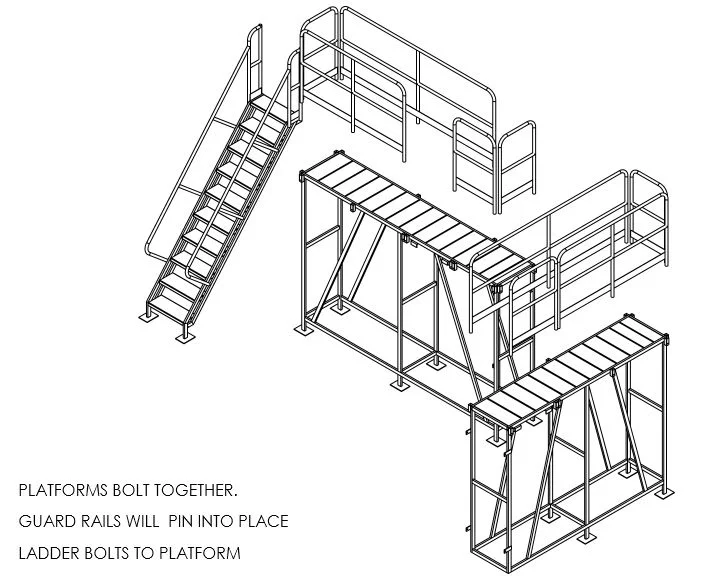

Ships in multiple sections [2] platforms and [1] ladder with hardware included
1000 lb capacity
Painted yellow enamel
Assembly required
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A CUSTOM PLATFORM FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CUSTOM PLATFORM.
| Model # | Platform [WxLxH] |
Weight [lbs] |
Price |
|---|---|---|---|
| DS-AJ-L-WP | 30" x 144" x 96" | 1500 | $19,837 |
