Air-tow Enclosed Trailers
Air-tow Enclosed Trailers
The Air-tow Enclosed Trailer models come with a heavy duty lightweight enclosure made with galvanized Z-bars and sturdy siding.

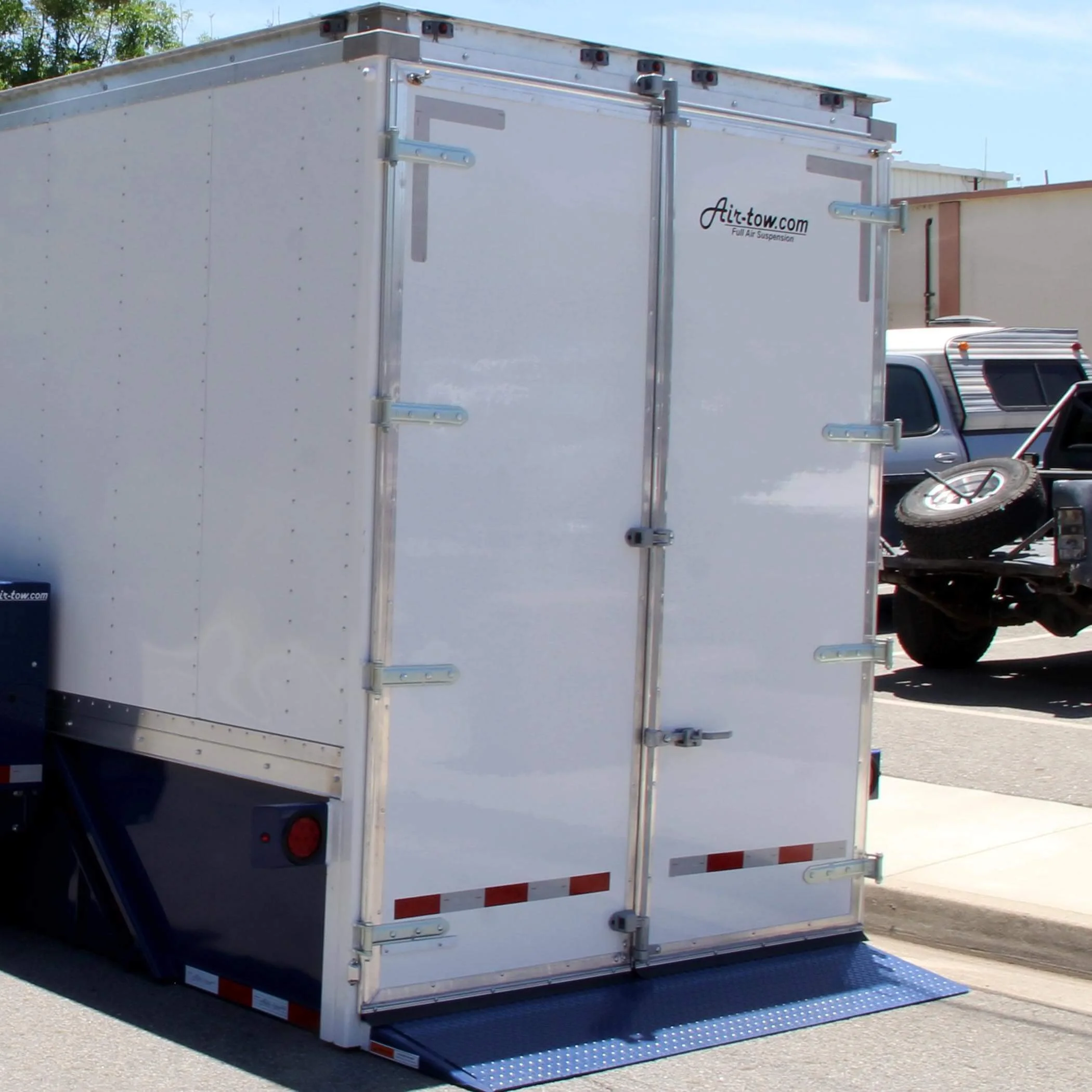

Instead of the cheap and flimsy traditional flaps used on many other enclosed trailers, you will find on these trailers the cam-lock system like you see on commercial semi-trucks. This cam-lock system joins the doors together and to the frame at the top, center, and bottom essentially making it a mobile vault for your equipment or cargo. When the trailer is dropped to the ground you can put a padlock on the front of the storage compartment. This will not allow for the deck to be raised
Pricing
| Model # | Inside Deck Length |
Weight (varies with options) | Price |
|---|---|---|---|
| DS-E-14 | 12' 3" | 4,295 | $42,976 |
| DS-E-16 | 14' 3" | 4,495 | $45,278 |
| DS-E-16XL | 15' 9" | 4,795 | $52,786 |

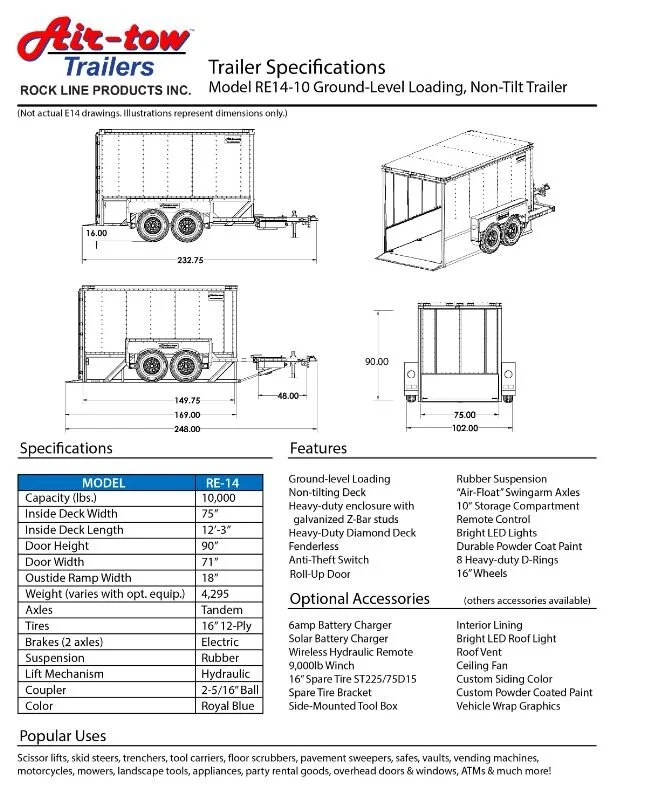

Features
Standard Features:

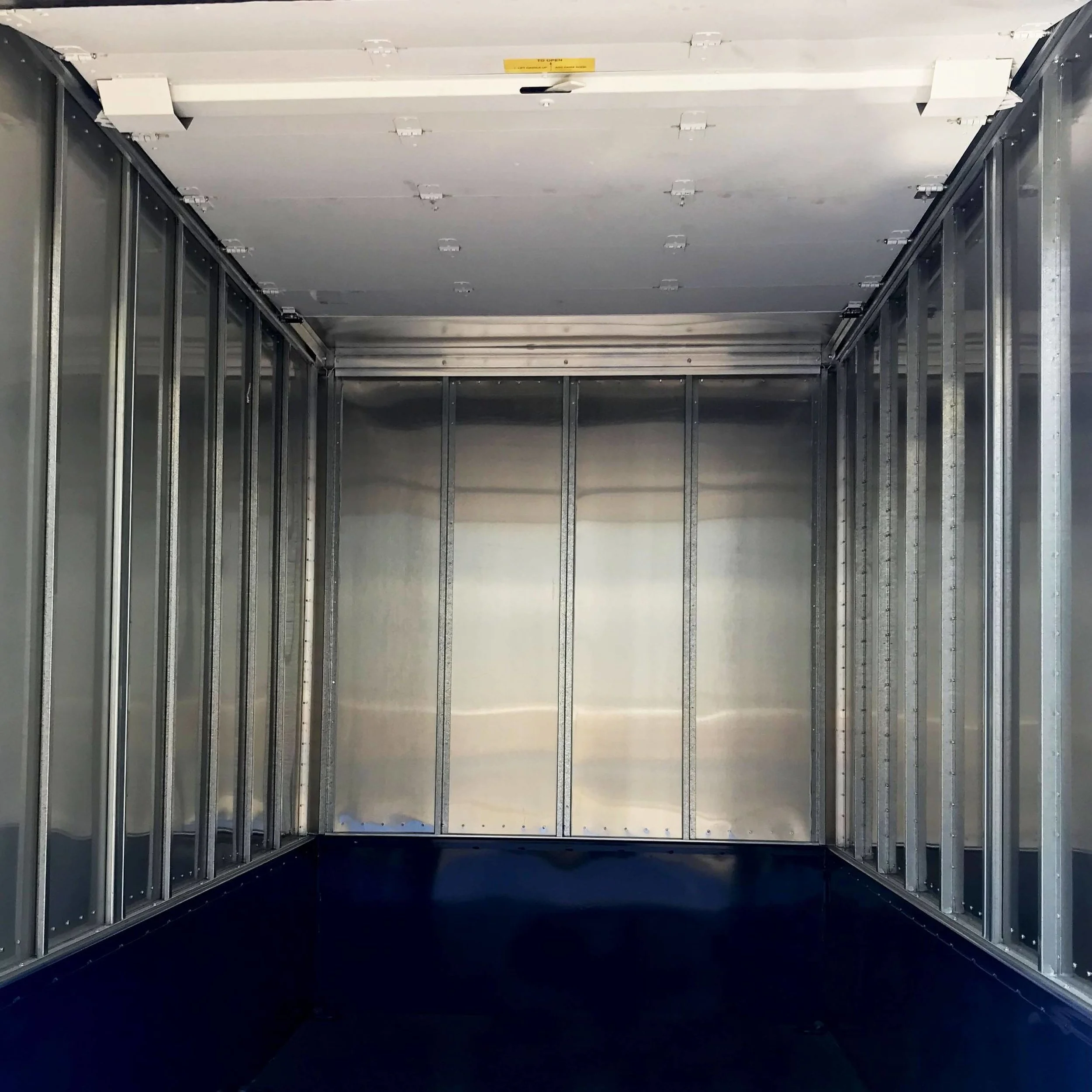

Heavy-Duty Enclosure w/ Galvanized Z-Bar Studs
Cam-Lock Door Lock System
Ground-Level Loading
Hydraulic Lift Mechanism
Heavy-Duty Diamond Deck
10,000 lb. Capacity
92” Door Height
18” Outside Ramp Length
75” Inside Deck Width
120” Overall Outside Width
Tandem Axles
16” Twelve Ply Tires
Electric Brakes
Rubber Suspension
2-5/16” Ball Coupler
The air suspension is for sensitive equipment. This is used for ATM movers, touch screen vending machines, or medical equipment. Recommend the rubber for everything else equipment related, it's a durable long lasting suspension.
The battery option is an upgraded battery which will last longer
Security - when the trailer is dropped to the ground you can throw a padlock on the front of the storage compartment. This will not allow for the deck to be raised.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Model # | Name |
Description | Price |
|---|---|---|---|

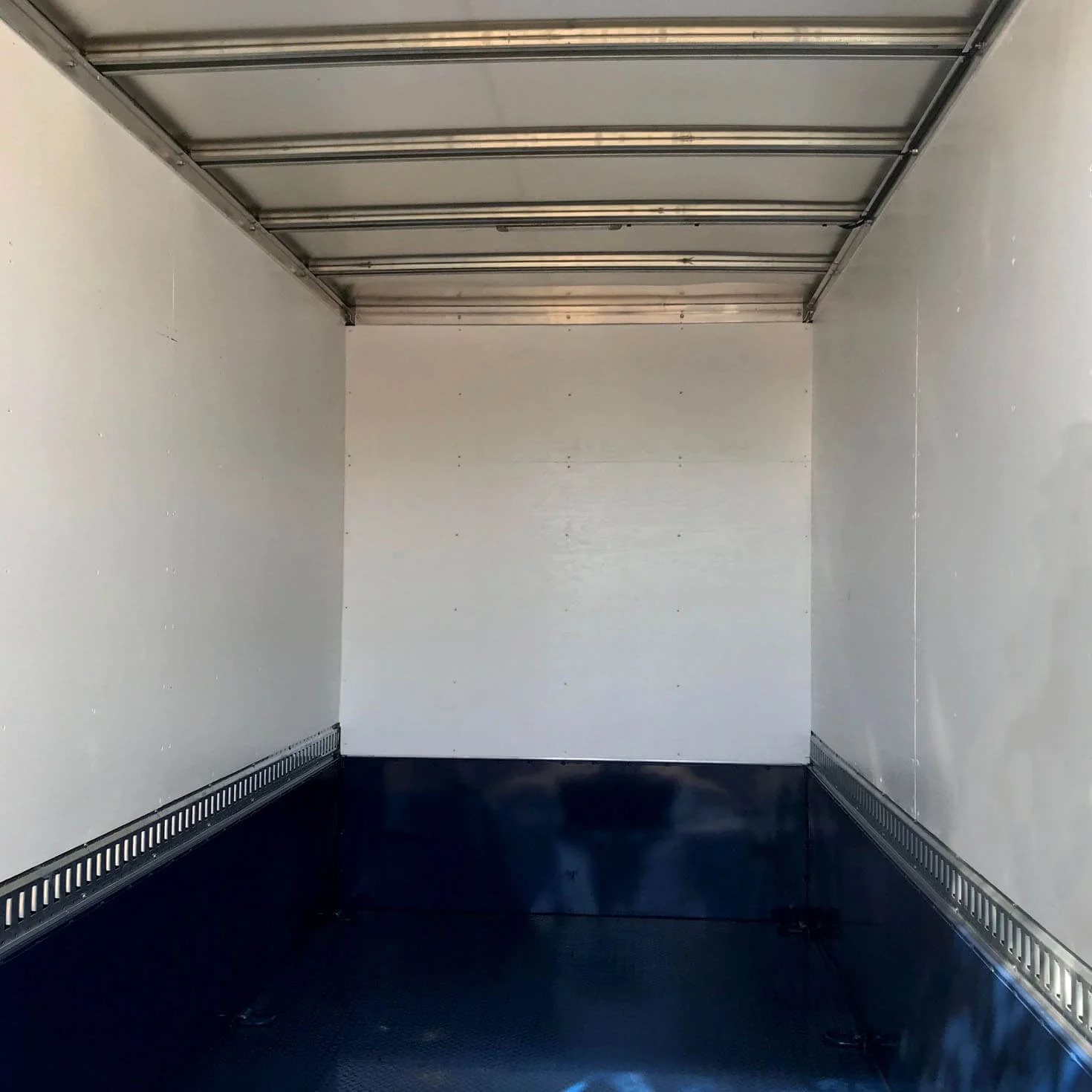

| DS-600019 | Interior Lining | 3/8" Plywood, painted white - front and sides | $1,880 |
| DS-600024 | Nose Cone | Fitting all enclosed models | $1,810 |

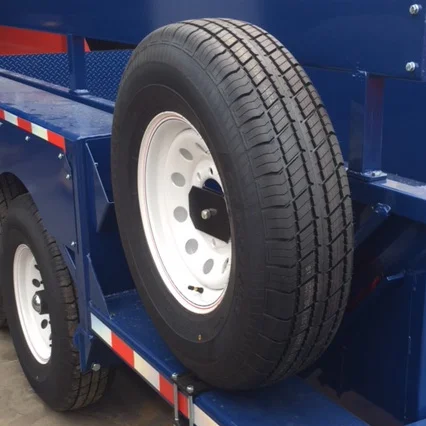

| DS-700038 | Spare Wheel/Tire - 16" | 16" Tires are ST235/85R16-F (12 Ply) | $510 |

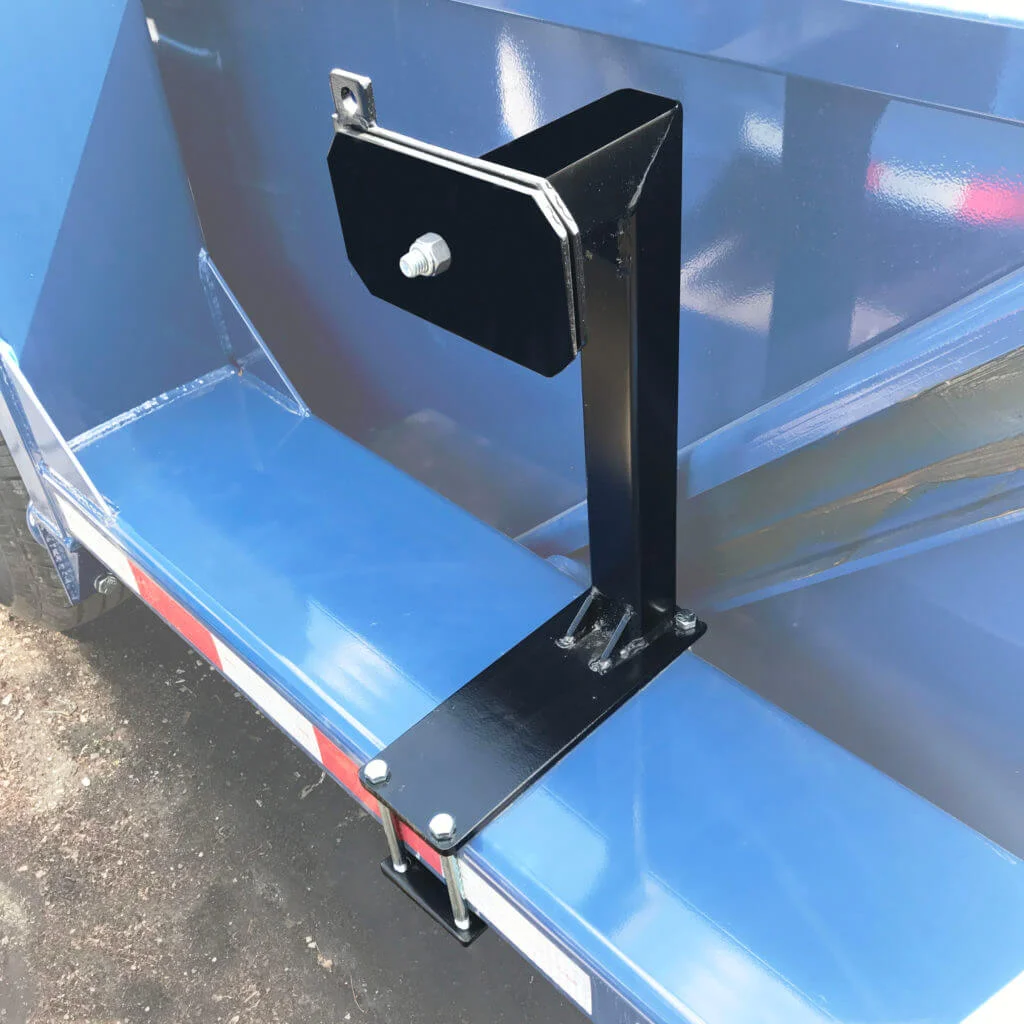

| DS-501003 | Spare Tire Bracket | Mounts on trailer frame/holds tire vertically (Locks with padlock by others) | $309 |
| DS-501007 | Side Mounted Tool Box | Mounts on side frame ( 10" W x 16" H x 24" L) Shock mounted lid w/key lock | $677 |
| DS-700155 | Wireless Pump Control | Wireless remote pump control for raising or lowering trailer deck | $386 |
| DS-700103 | Pintle Hitch - Exchange | Replaces the 2-5/16" ball coupler | $111 |
| DS-700198 | Upgrade to Aluminum Wheels | Aluminum Manba with center cap - ST235/85R16 - 8 lug | $575 |
| DS-600010 | E-track | 28" above floor - attached to both sides (not recessed) | $779 |

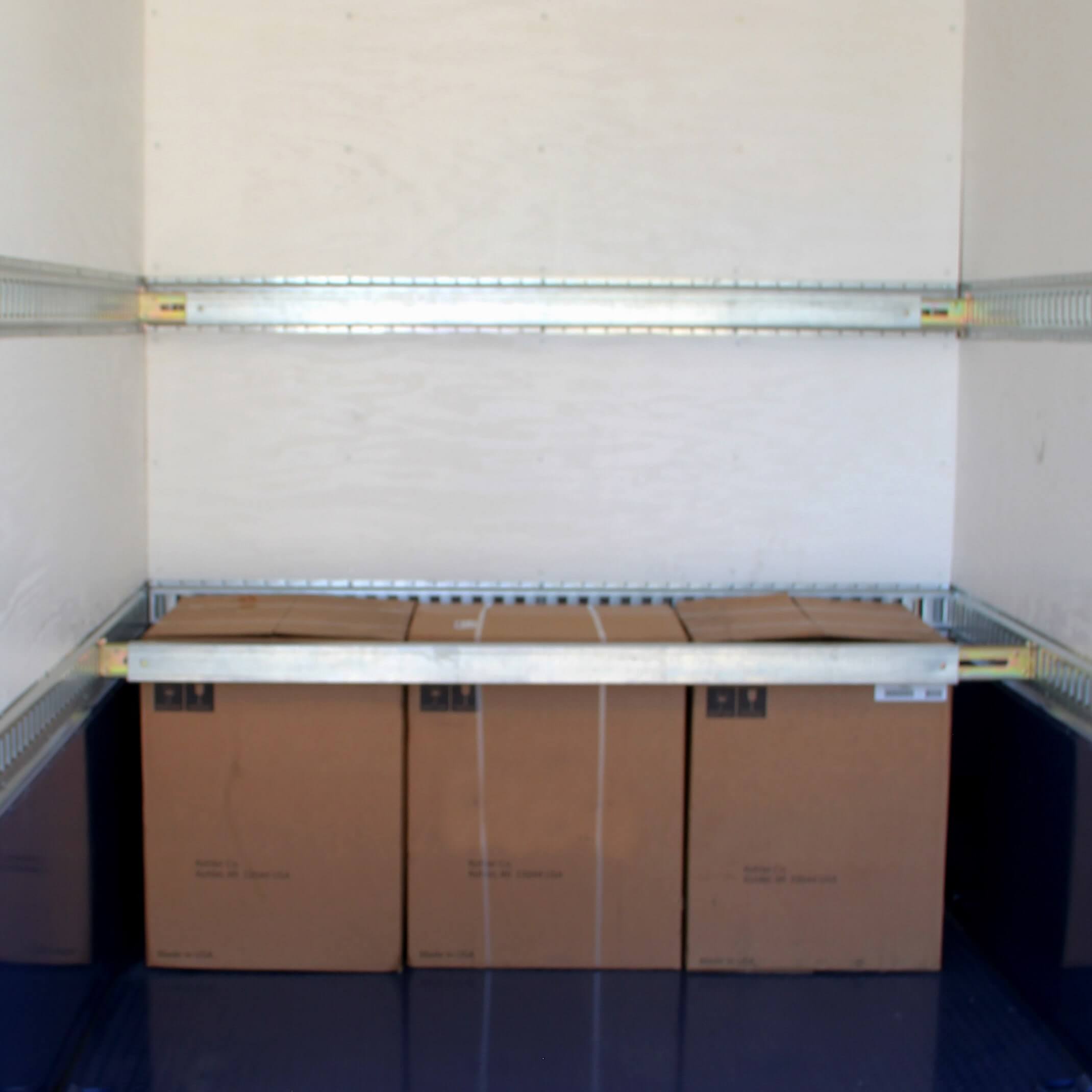

| DS-700169 | "E" Track Shoring Bar | Cross bar that snaps into "E" track to assist in positioning loads | $268 |

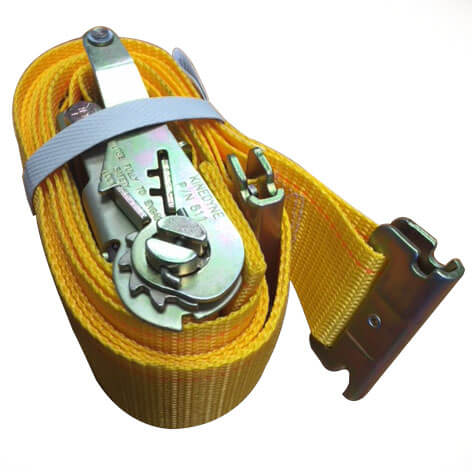

| DS-700168 | "E" Track Straps | 2" x 12' Ratchet strap - Snaps into E-track | $48 |
| DS-501080 | Air Suspension Upgrade Tandem Axle | 2 compressors linked to airbags for equal load distribution and smooth ride | $2,628 |
| DS-700064 | Battery - 12 V - deep cycle | 12 V - deep cycle group-24 battery The battery option is an upgraded battery which will last longer |
$268 |
| DS-501027 | Electric Brakes | Added to second axle | $843 |
| DS-501033 | Surge Brakes (Drum) | Tandem axles (in place of standard electric brakes) | $2,824 |
| DS-600011 | Roof Dome Light | Single light mounted near center of trailer (LED light) | $309 |
| DS-600016 | Roof Vent | Roof mounted near center of trailer | $309 |
| DS-600015 | Roof Vent with Fan | Roof mounted near center of trailer | $624 |
| DS-600012 | Rear Door Switch | To activate light or fan | $229 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Air-tow Enclosed Trailer DS-E-16
Air-tow’s exclusive, proprietary swing-arm axles offer one of the smoothest ride available. The long pivot arm is mounted with large tapered roller bearings giving the greatest torsional effect possible that absorbs both horizontal and vertical stresses. No plastic guides or spring bushings that wear out! The axle has both camber and tow-in adjustments for perfect alignment ensuring minimal least tire wear. These axles will accommodate both rubber and air suspension. They come laser aligned with dynamically balanced tires. These axles are constructed with an automatic robotic welding system for precision and consistency.
THESE TRAILERS MAY NOT BE AVAILABLE FROM PLATFORMSANDLADDERS.COM IN OHIO AND CALIFORNIA.
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
