Fully Powered Ball Conveyor Transfer Table
Fully Powered Ball Conveyor Transfer Table

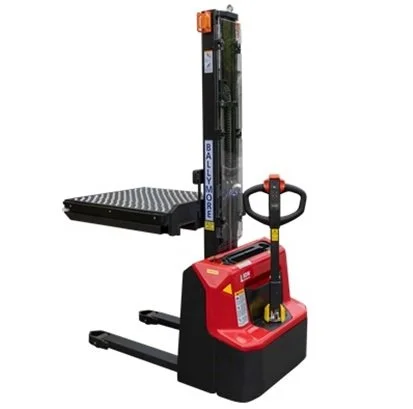

The DS-BALLYPAL-STK72BC-DRV lateral transfer table (also known as Lucy) allows an associate to easily slide (rather than lift) merchandise on or off a shelf anywhere from 12" to 48". Simply roll the merchandise onto the table and rotate to the desired direction. Perfect for palletizing or depalletizing heavy products with its heavy duty 500 lb capacity The multi directional balls retract automatically when the table is lowered to provide a secure surface for transport. Balls can be raised or lowered independently of the table height control. Emergency stop button. Unit is semi electric with powered raise and lower of platform, manual push forward and backward. Included is a 110v charger with cord. Ships assembled.
Pricing
| Fully Powered Ball Conveyor - Transfer Table | |||||
|---|---|---|---|---|---|
| Model Number | Overall Assembled Size [W x L x H] | Capacity (lbs.) | Color | Weight (lbs.)] | Price |
| DS-BALLYPAL-STK72BC-DRV | 34" x 60" x 89" | 500 | Grey | 1,424 | $9,900 |
| All dimensions are in inches | |||||
Features
Standard Features:
This Tool Turns A Lifting Or Lowering Task Into A Lower Risk Push Or Pull.
The Tool Allows An Employee To Slide Product On Or Off A Shelf Anywhere From 12" High To 72" Without Lifting.
Product Can Be Rolled Onto The Table And Rotated To The Desired Direction With Ease.
Can Be Used To Assist In Palletizing / Depalletizing Heavy Product
Key Controlled
Table contains multi-directional ball rollers
The Balls Retract Automatically When The Table Is Lowered To Provide A Secure Surface Or Transport.
Balls Can Be Raised And Lowered Independently Of The Table Height Control If Needed.
500 Lbs load capacity
Table Dimensions - 31. 5" X 36" (leaves ample room in the aisle for customer to pass by)
Specifications:
Assembled L X W X H: 60x34x89
Base W x L: 34 x 60
Category: Material Handling Equipment
Color: Gray
Country of Origin: CN
Eligible for UPS: No
Entrance Chain: No
Final Weight: 1424
Freight Class: 175
Lockstep Type: N/A
Overall Height Fully Lowered: 89
Overall Height Inches: 90
Overall Packaging Height: 94
Overall Packaging Length: 74
Overall Packaging Width: 40
Platform Max: 72
Platform Min: 6.5
Power - Batteries: 24V Lithium
Pushable / Drivable: Drivable
Recommended Freight Method: ABF
Shipping Dims. LxWxH: 74 x 40 x 94
Shipping Weight: 1424
Skid Dims: 74x40x5
Skid Height: 5
Skid Length: 74
Skid Weight: 60
Skid Width: 40
Sub: 1
Subcategory/Type: Fully Powered Ball Transfer Conveyor Table
Table Shelf Dimensions: 31 1/2W X 36D
Tread: N/A
Weight Capacity: 500
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product.
