Powered Drive and Powered Lift Carts
Powered Drive and Powered Lift Carts
Fully powered carts provide users with motorized, variable-speed travel as well as powered lifting capability.

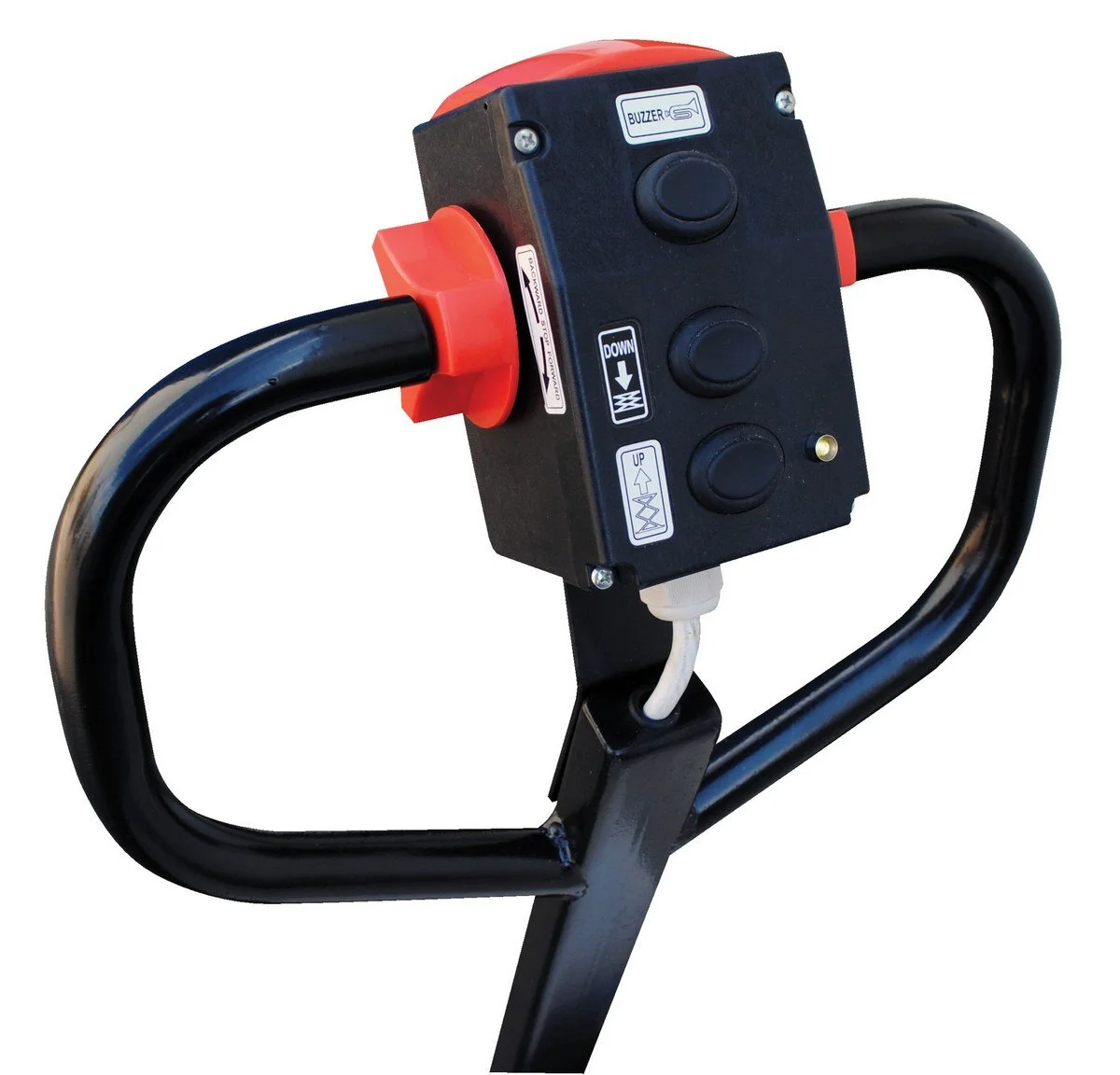

Fully powered carts provide users with motorized, variable-speed travel as well as powered lifting capability. Carts roll smoothly and quietly on poly-on-steel wheels. High torque 24V DC drive and lift motors handle heavy-duty jobs. Standard features: easy-to operate throttle that adjusts forward and reverse speeds over a range of 0-3.7 mph, deck level control buttons (raise and lower), emergency reverse function, automatic braking, horn, key switch, integrated battery charger, and battery charge indicator. These carts use two 12V batteries.
Pricing
| Powered Drive and Powered Lift - Hydraulic Scissor Carts | |||||
|---|---|---|---|---|---|
| Model Number | Scissor Type | Service Range | Uniform Capacity (lbs.) | Weight (lbs.) | Price |

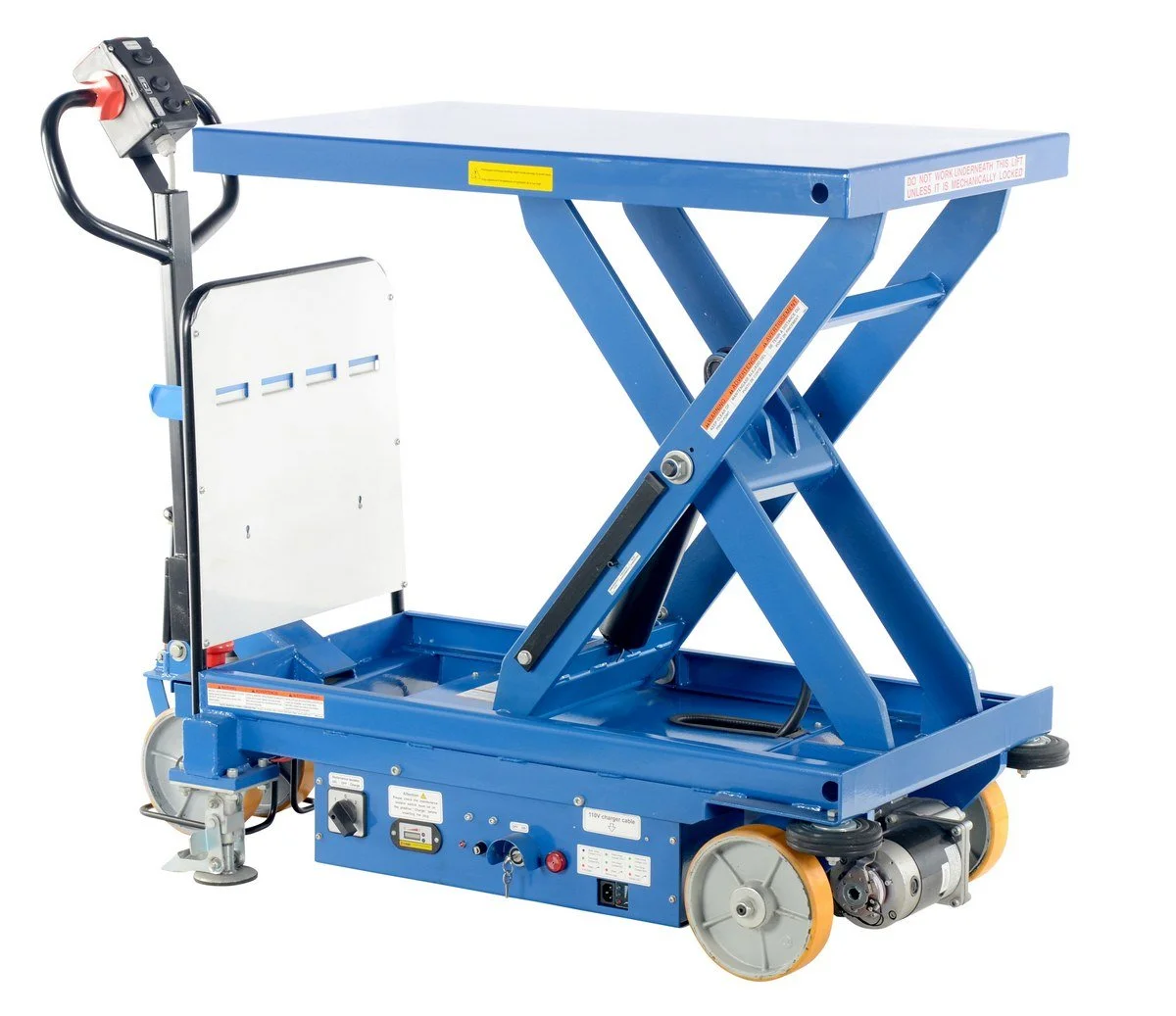

| DS-CART-1000-DC-CTD | Single | 18-1/8" to 42-3/8" | 1000 | 492 | $5,471 |

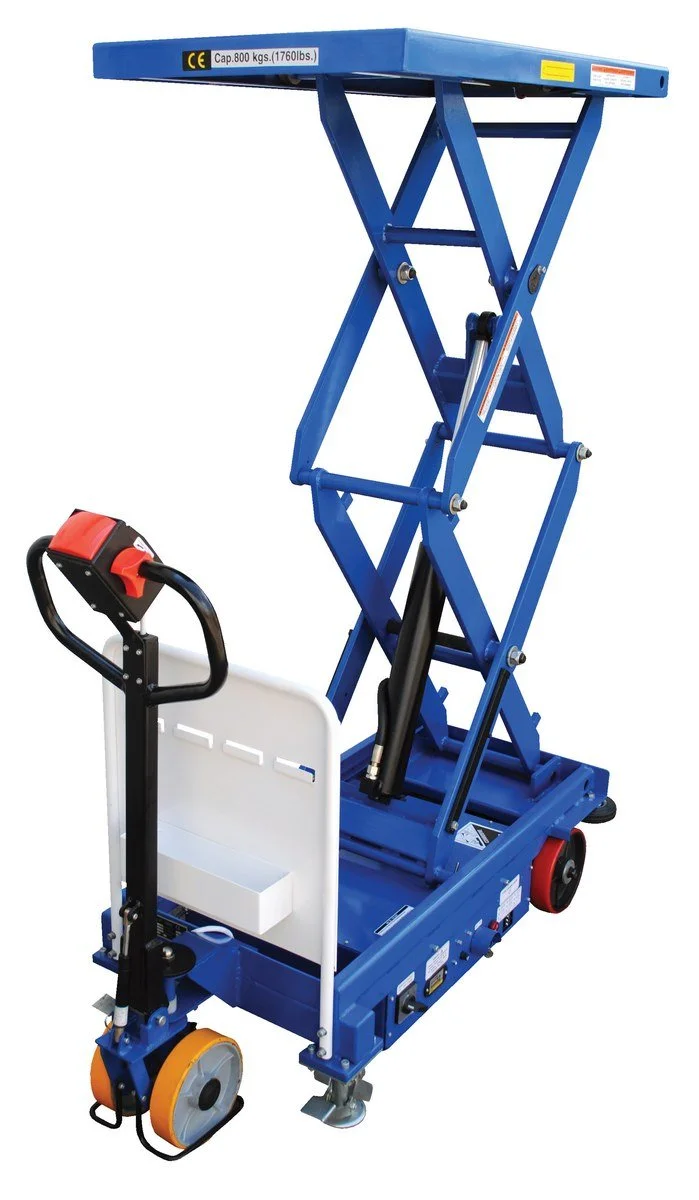

| DS-CART-1000D-DC-CTD | Double | 20-1/2" to 72-13/16" | 1000 | 607 | $5,665 |

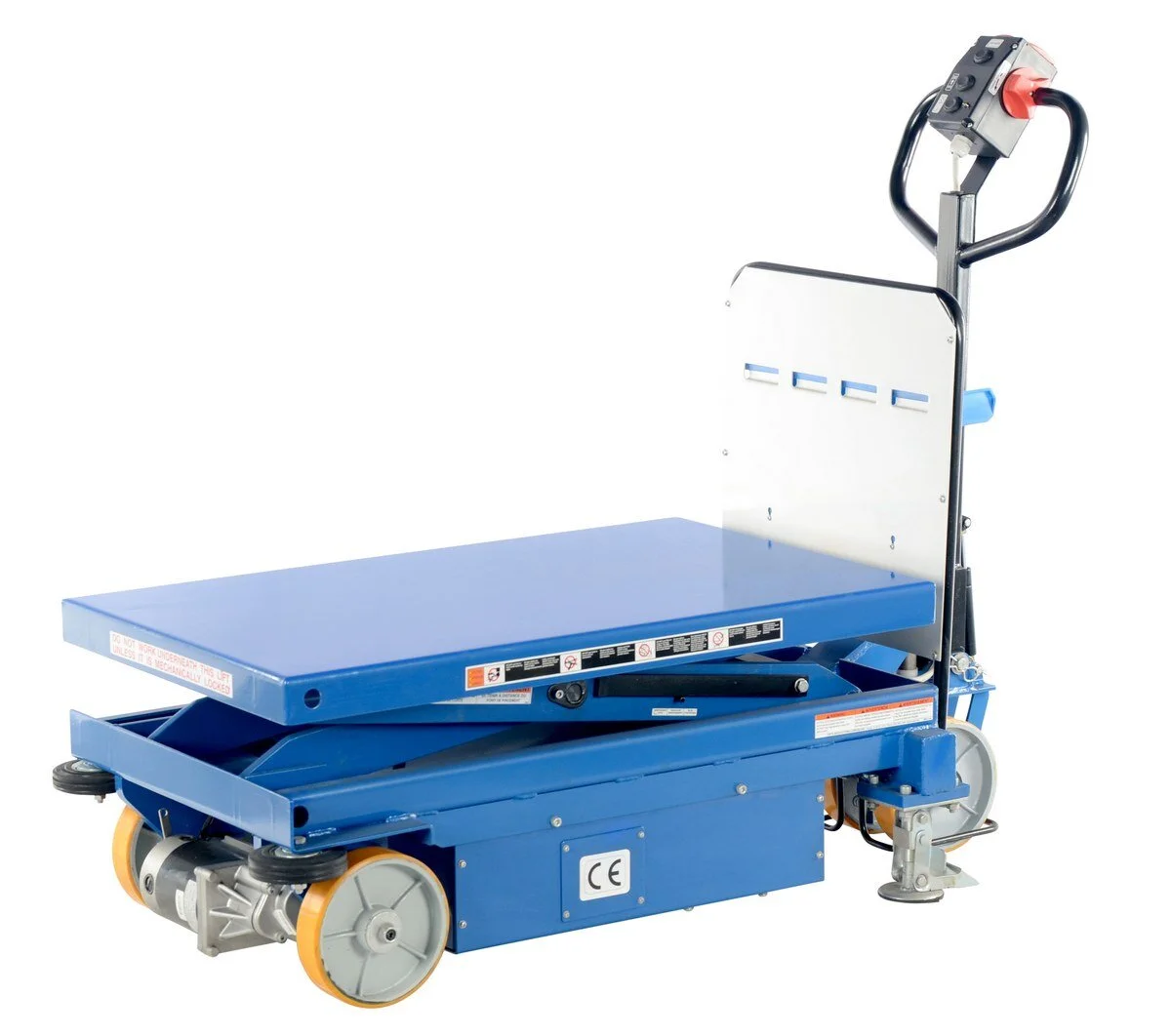

| DS-CART-1500-DC-CTD | Single | 18-1/8" to 42-3/8" | 1500 | 607 | $5,711 |

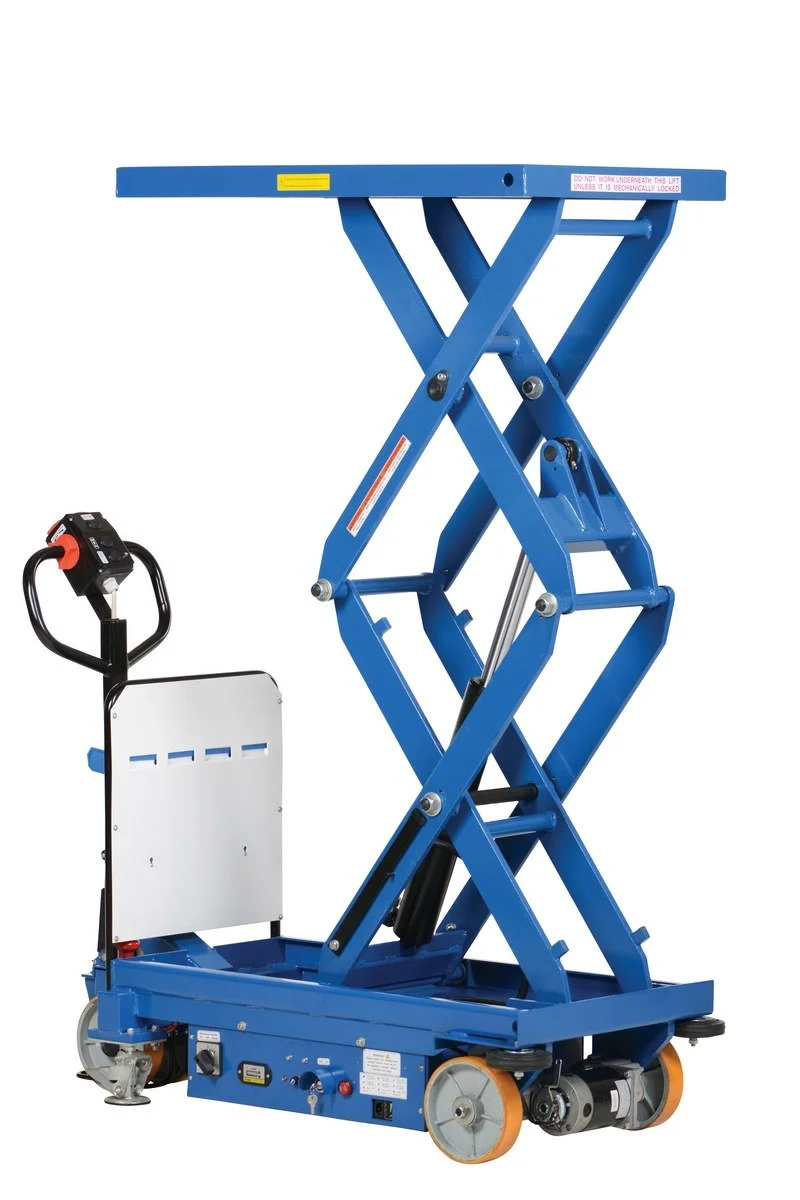

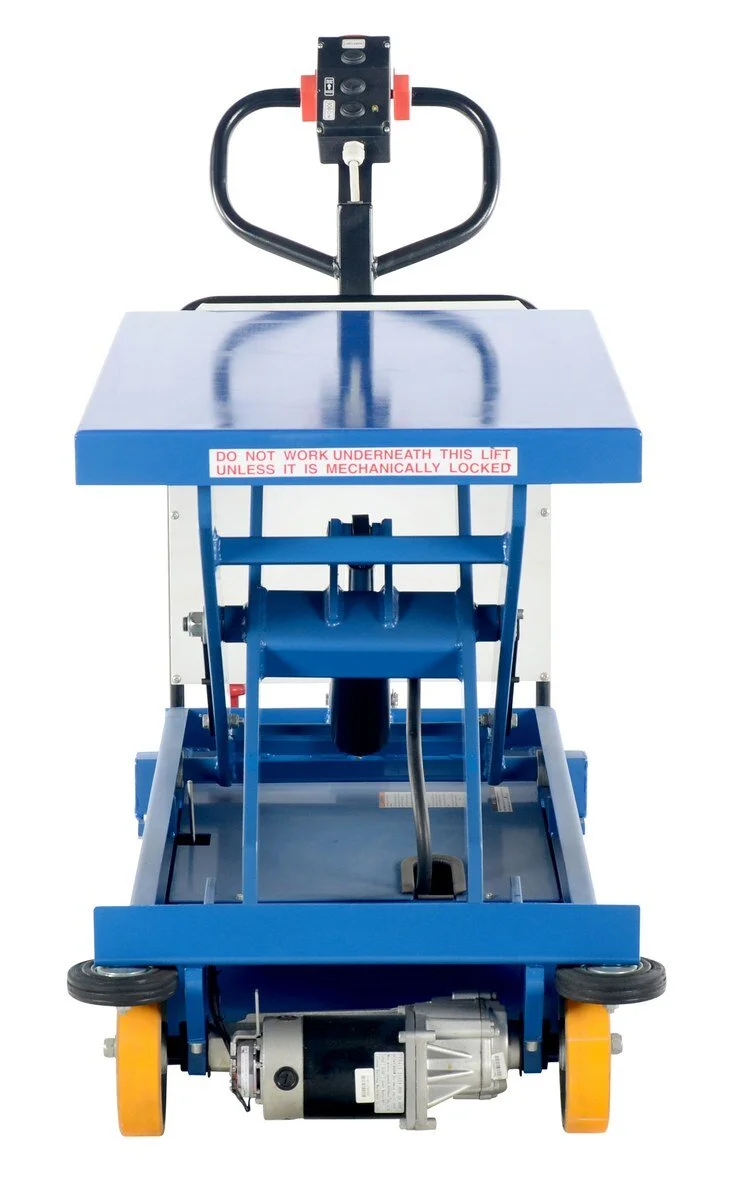

| DS-CART-1500D-DC-CTD | Double | 20-1/2" to 72-13/16" | 1500 | 607 | $5,745 |
| All dimensions are in inches | |||||
Features
Standard Features:
Unique lift design quickly raises & lowers material
Ergonomic cart design improves user safety
Caster construction provides easy portability when loaded
Steel construction offers long lasting rugged use
Poly on steel casters are 7” x 2",
Sizable platform at 24” wide x 40”
DC Motor Voltage : 24
[2] 12 Volt batteries
Single or double scissor available
Forward and Reverse Speeds 0-3.7
Painted blue enamel
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manuals:
DS-CART-1500D-DC-CTD
DS-CART-CTD-MANUAL
DS-CTD-MANUAL
Drawings:
DS-CART-1000-DC-CTD
DS-CART-1000D-DC-CTD
DS-CART-1500-DC-CTD
DS-CART-1500D-DC-CTD
Videos:
Powered Drive and Powered Lift Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
