Movable Crossover Ladder


Movable Crossover Ladder

$9,989.00

This crossover is versatile and mobile for many operations.

These crossovers are mobile and can fit in tighter spaces because of the 75 degree stairs on both ends. The have much to offer to many manufacturing facilities that need to cross over pipes, conveyors or other objects that are permanently blocking areas.

Add To Cart

Pricing

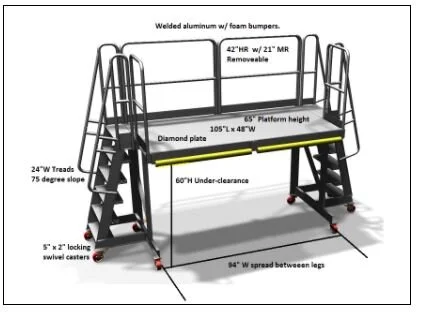

C-5 Style - Crossover
Model #Metal Type# Of StepsPlatform
Height
Vertical
Clearance
Horizontal
Clearance
Price
DS-70CO12-105GA-SPAluminum12102"60"94"$9,989
DS-70CO12-105G-SPSteel12102"60"94"$6,336

Features

Standard Features:

  • Aluminum for lighter weight and easier maneuverability

  • Solid diamond plate treads

  • Removable 42” handrail with 21” mid rails

  • Toe boards

  • Bumpers [an add on option]

  • 5” x 2” swivel locking casters

  • 1000 lb. capacity

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
