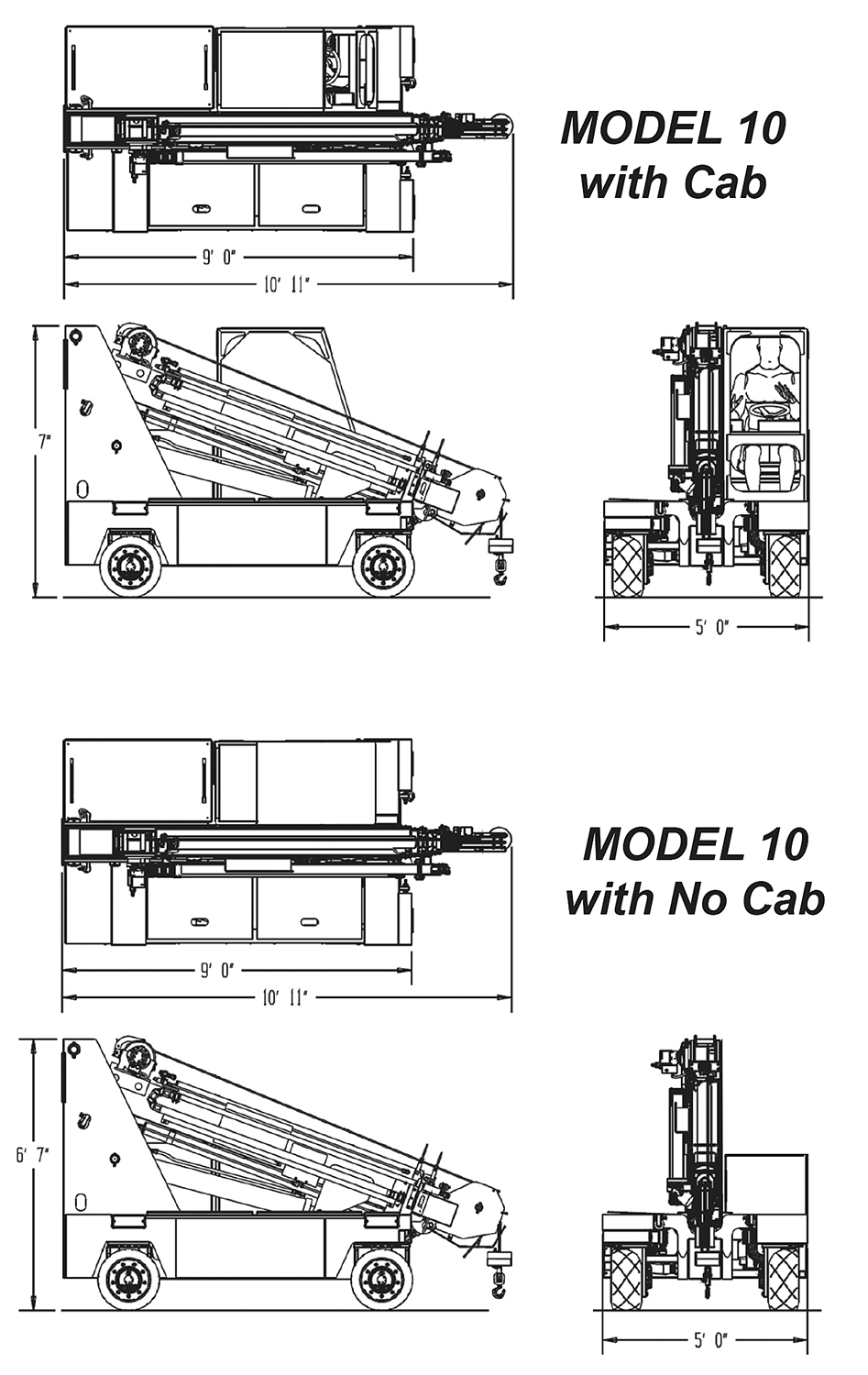

brandon10-size-diagram (1).png
attachments-slide (1).gif
brandon10-size-diagram (1).png

Brandon 10 Mini Crane

$205,000.00

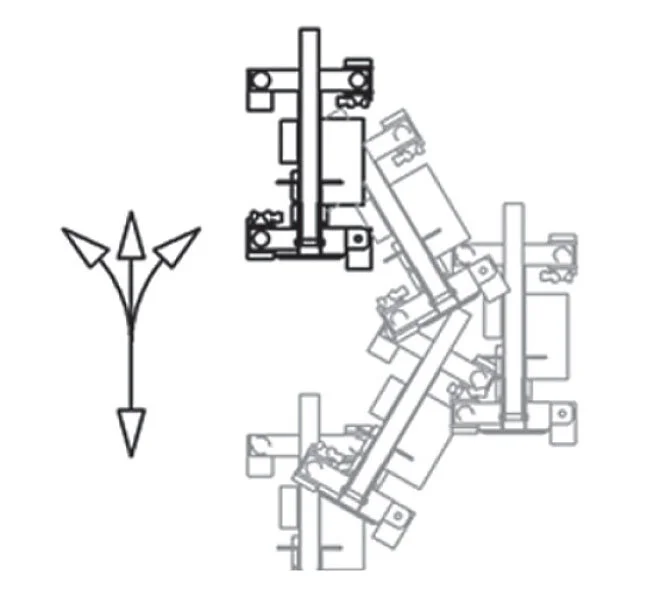

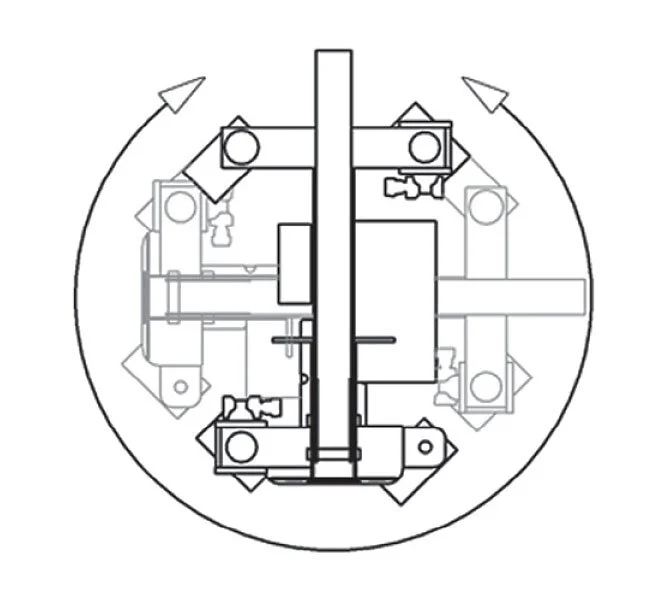

The Brandon 10 is a versatile lifting machine equipped with Omni-Directional Drive enabling the machine to spin and crab steer.

Add To Cart

When converted to hoist mode the Brandon 10 has a hoist capacity of 10,000lbs.

24 Feet (7.33M) of Vertical Reach

  • 32 Feet (9.75M) of Vertical Reach

  • 20 Feet (6M) of Horizontal Reach

  • 10,200 LB (4535Kg) Capacity

  • 10,200 LB (4535Kg) Capacity

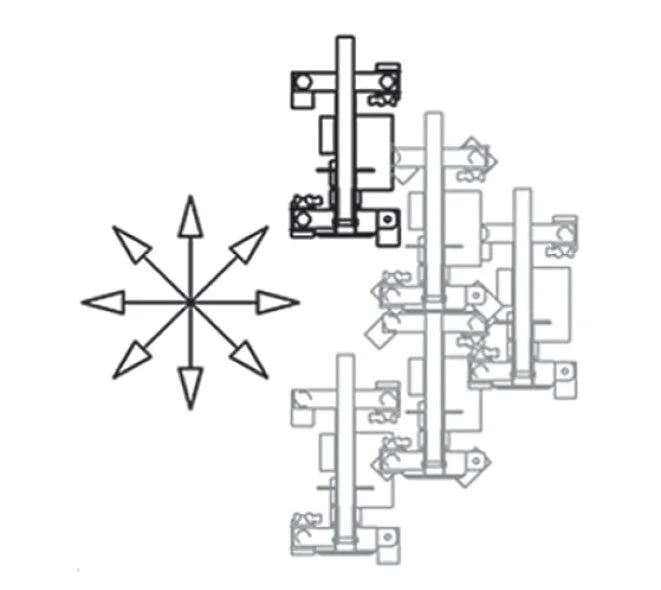

  • 4 Wheel Streering

  • 2 Wheel Drive, 2 Wheel Brakes

  • 35 HP AC Motor

  • 72 Volt Battery Powered

  • Made in the USA

Specifications

Model: Brandon 10 (with cab or no cab)
Capacity: 10,200 lbs
Battery Power: 35 HP AC Motor
Steering: Omni Directional Wheels
Drive: 2 Wheel Drive
Charger: On-board dual 110 Volts AC or optional external 480 Volts 3 Phase

Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom.

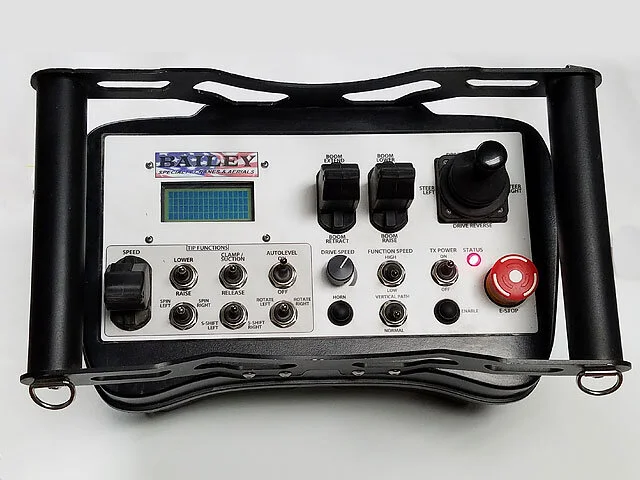

Rated Load Limiter: Displays rated load and actual load. Stops when overload is reached. Detects attachment and adjusts load parameters.Radio Remote Controls For the no cab version
Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom.
Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

$816 /mo

WHEN YOU PURCHASE A TELEHANDLER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE TELEHANDLER.

Brandon 10 Mini Crane
Model Number Weight
Capacity [Lbs]
Power Price
DS-BC10 10,500 Battery Power: 35 HP AC Motor $395,000
ISO 9001 REGISTERED MANUFACTURING COMPANY
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***
Attachments for Brandon 10
Model Number Description
Capacity
[lbs]
Price
DS-TPTA Powered Tip Assembly* n/a $8,594
DS-TRO Robot Lifter[Includes 3 Axis Manipulator] 1,000 $19,465

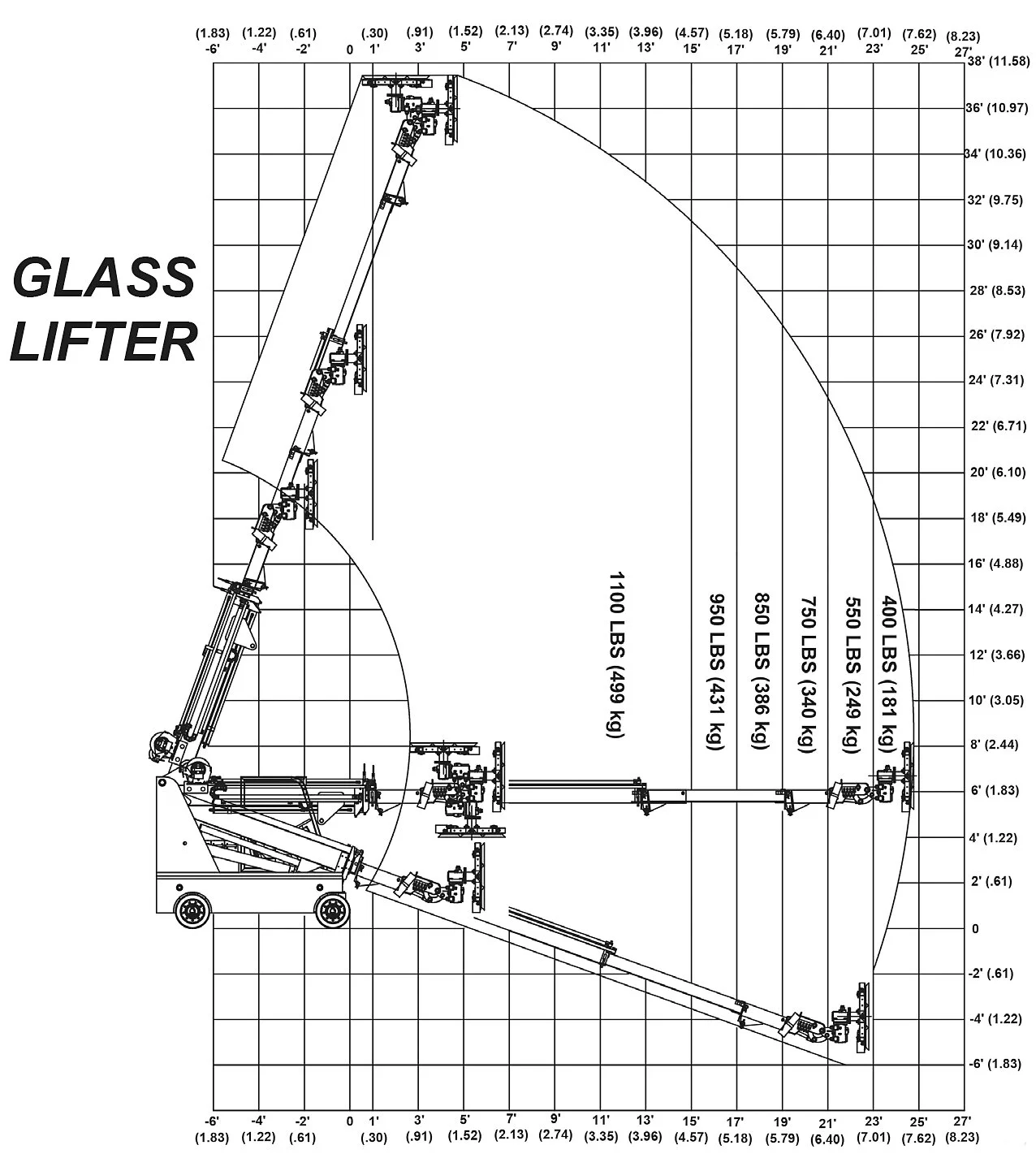

DS-TGL Glass Lifter w/side Shift [Includes 3 Axis Manipulator] 1,100 $28,532

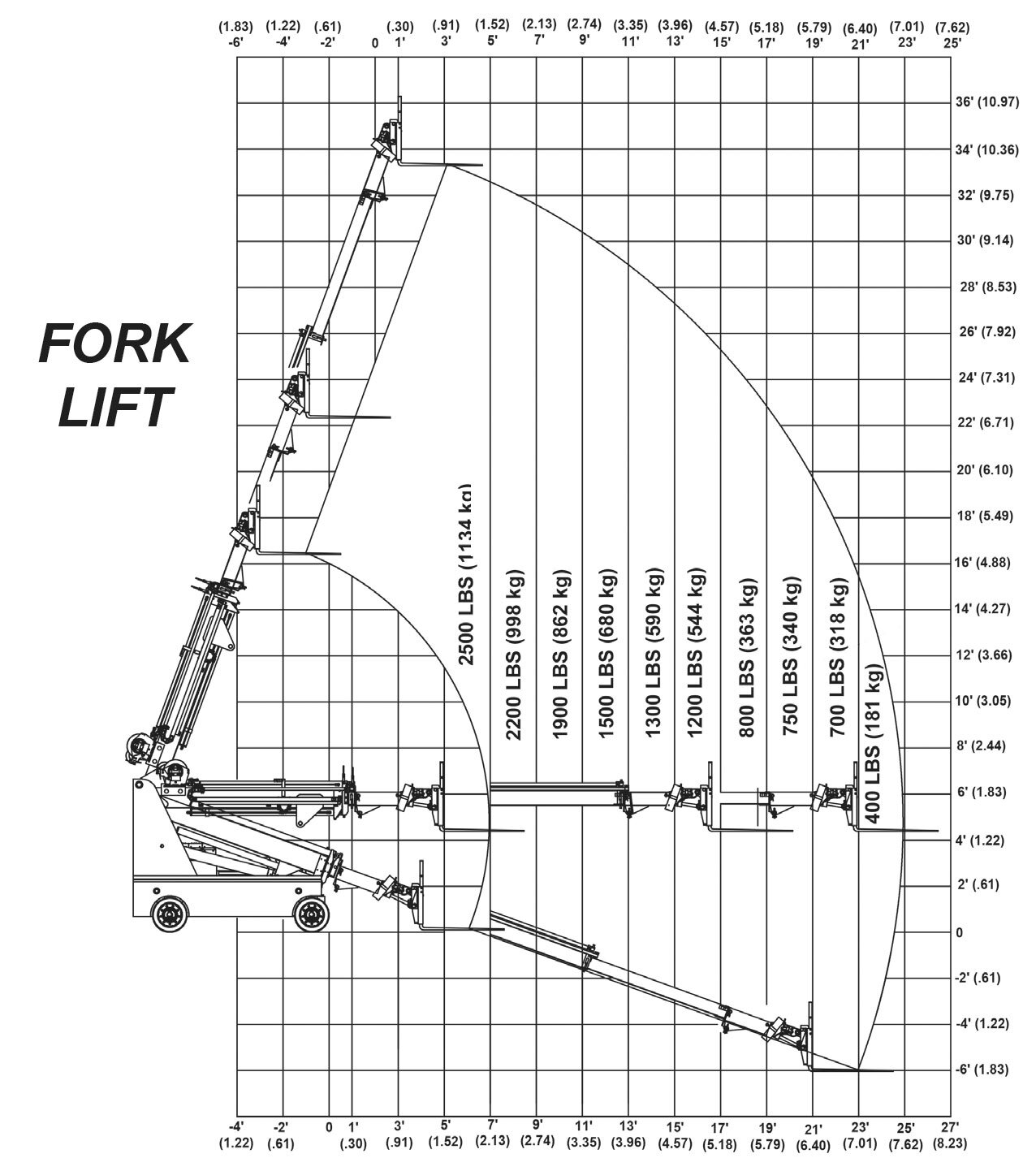

DS-FK* Forks [requires powered tip assembly] 1,500 $3,456

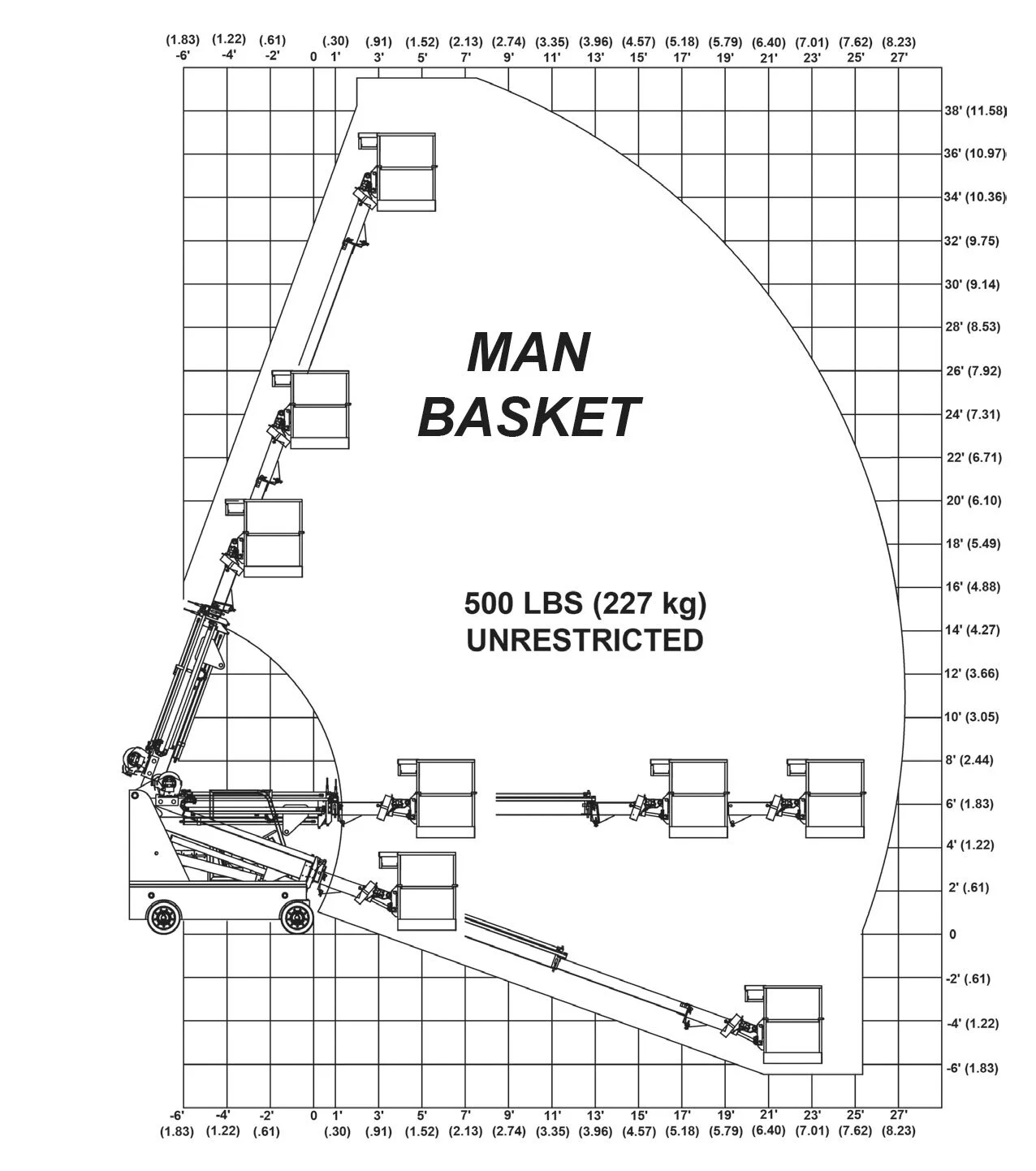

DS-MB* Man Basket [requires powered tip assembly] 500 $6,375

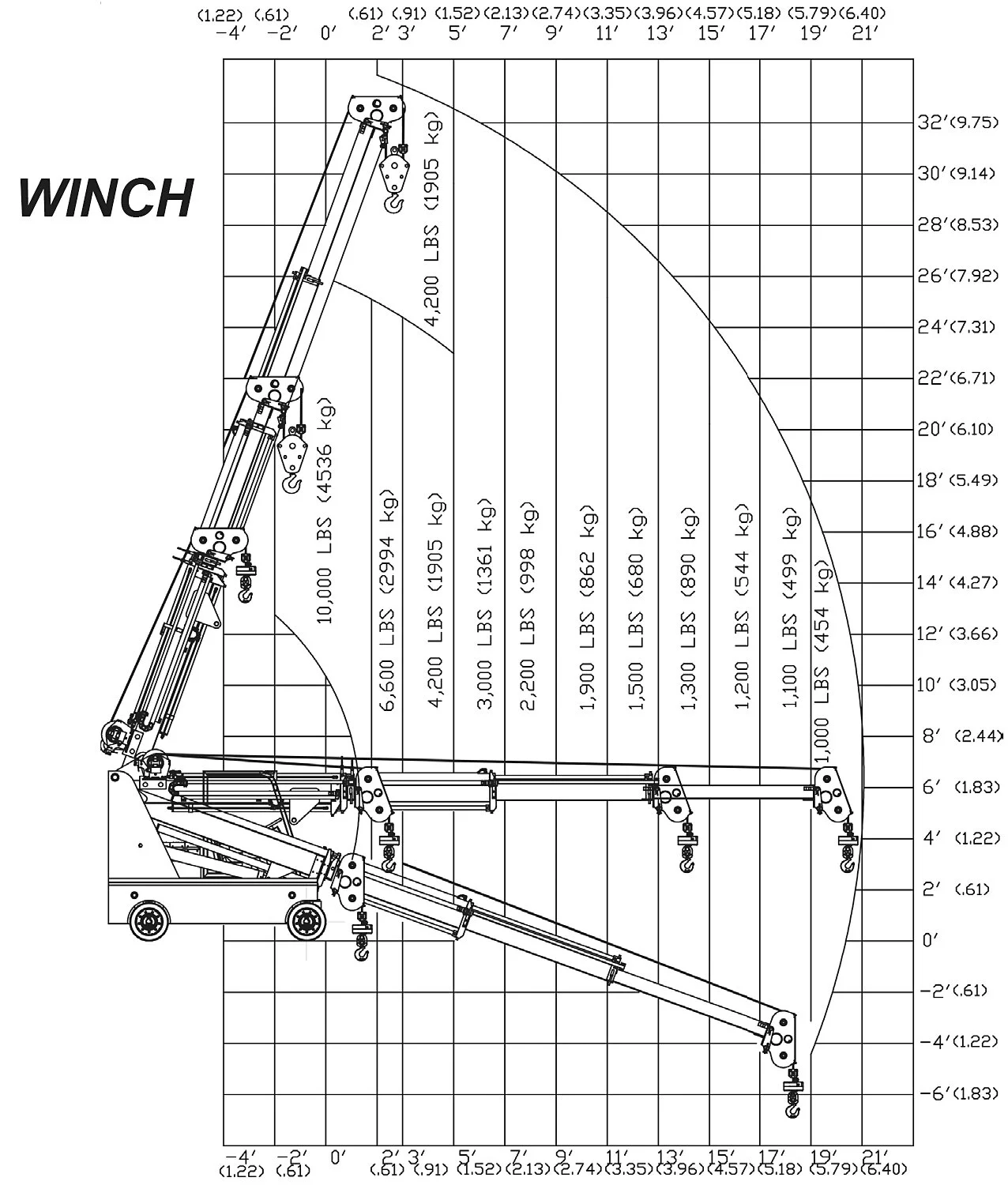

DS-WN Winch 90' of cable 3,000 $13,125
DS-WN-1995 Winch 230' of cable 3,000 $13,525

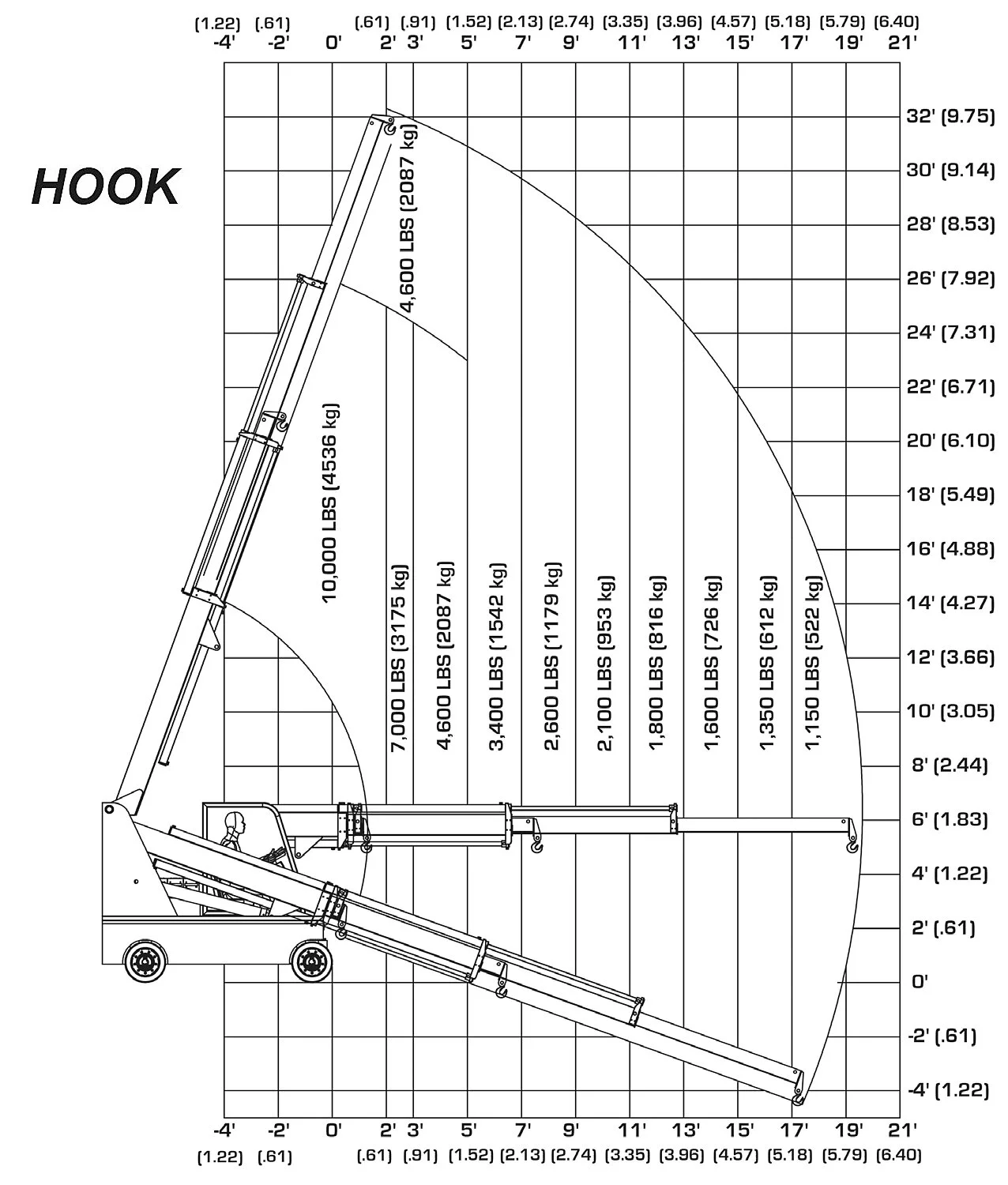

DS-3708 Hook Brandon 6 - 4th stage pull-out boom 5,000 $2,200
*Powered Tip Assembly (Required for Forks, Man Basket or Jib)
SO 9001 REGISTERED MANUFACTURING COMPANY
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***

Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
