DC Powered Tilt Master

TM-22-DC-SS_E (1).jpg
TM-22-DC-SS_E (1).jpg

DC Powered Tilt Master

$3,184.00

The battery operated electric lifter and tilter may give the user an ergonomically correct position to reach loads easily.

Add To Cart

Lift, tilt and transport crates, boxes, and pallets with an open bottom. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" nylon swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". Handle can be turned and locked in position away for the work area. Features include hand control for the tilt and emergency on/off switch. 12V battery and external battery charger included. The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

Standard Features

  • Powered for efficient mobility

  • 2200 uniform capacity

  • Stainless steel constructed model for a smooth finish and cleanliness

  • Tilt angle allows for better ergonomic access

  • Ergonomic push handle folds down when not needed for better access

  • 90 degree maximum tilt

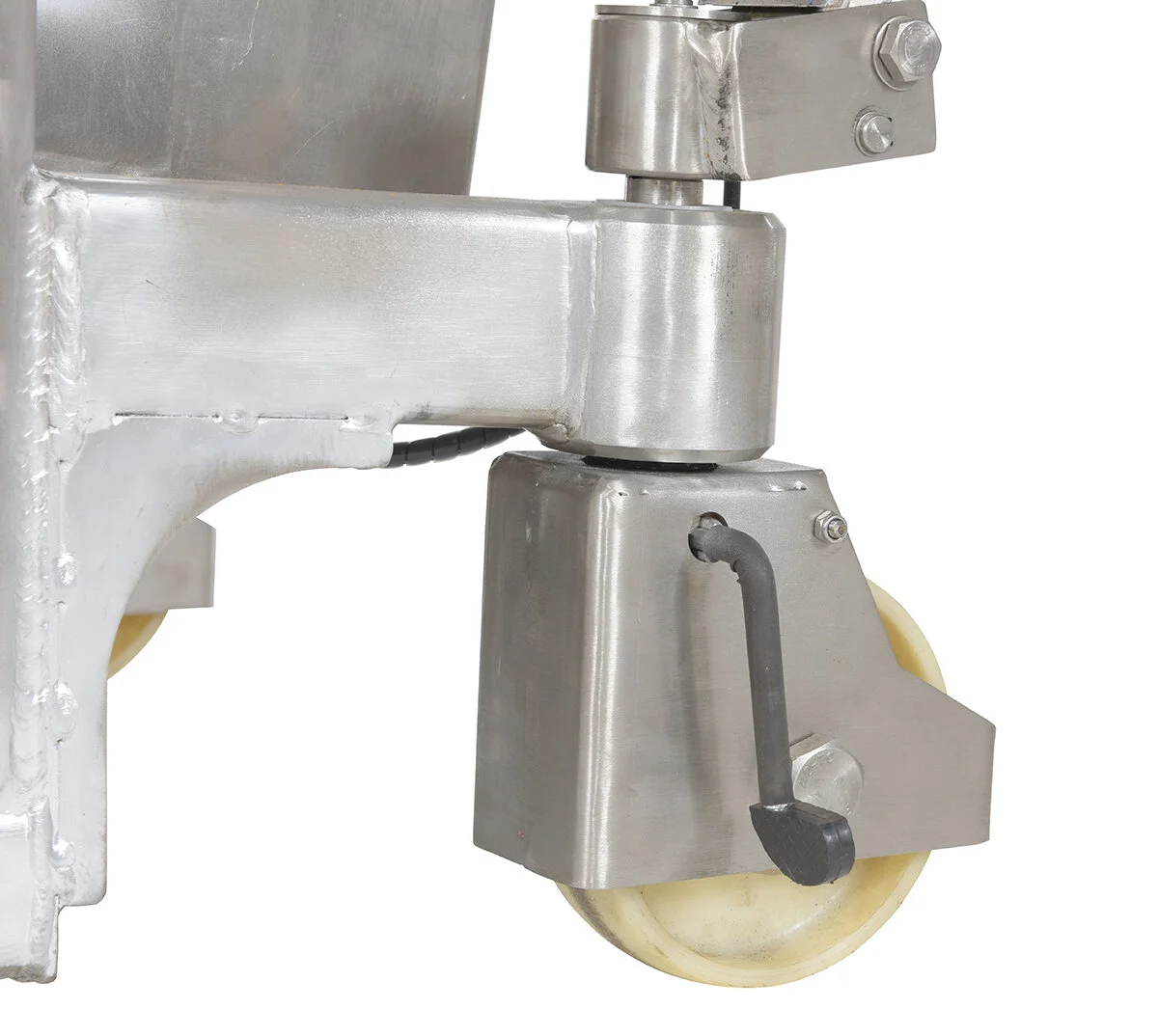

  • 6” x 2” nylon swivel casters with brake and foot protectors

  • 12 Volt battery and eternal battery charger included

  • Hand control

Note:  All products should be inspected frequently to insure safe operation.  Final testing and inspection left to end user after final assembly has been completed.

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

DC Powered - Tilt Master
Model NumberFork Size
[WxL]
Service
Range
Uniform Capacity
[lbs]
Weight
[lbs]
Price
DS-TM-22-DC22" x 31-1/2"3-1/2" to 11-1/4"2,200435$3,794
DS-TM-22-DC-SS (Stainless)22" x 31-1/2"3-1/2" to 59-1/2"2,200455$9,995
All dimensions are in inches

WHEN YOU PURCHASE A PALLET TRUCK FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE PALLET TRUCK.
