Portable Lift Table With Hoist
Portable Lift Table With Hoist

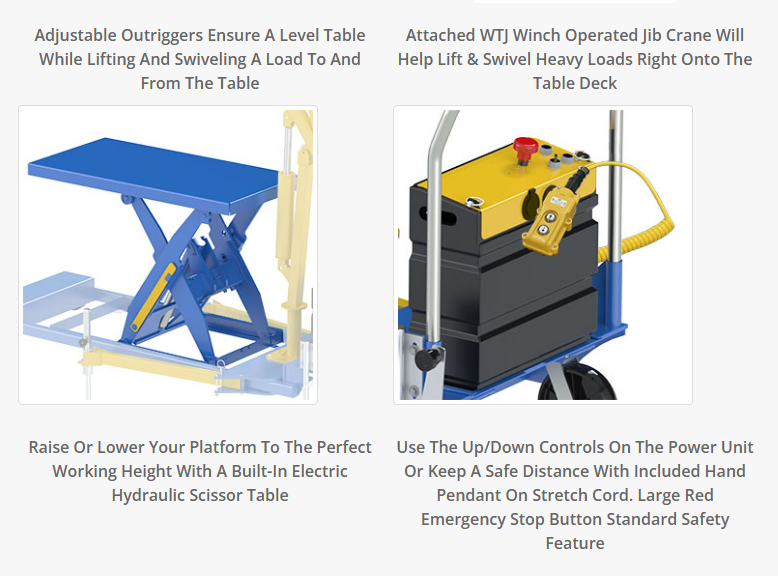

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment, and now with a few upgrades, it's even better! A winch operated jib crane is now included to maneuver, lift, and lower oversized heavy products. This crane is built of a functional design that can be rotated into a specific positon to fit the users' needs. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle also enhances the workability of the unit. The casters, along with a removable handle, make a once stationary unit accessible throughout the entire workplace.
Specifications
Electric toe guard included for pinch point safety
Hand pendent included to keep a safe distance during use
Adjustable outriggers
Emergency safety-stop to ensure user protection
Uniform Capacity (lb.): 2000
Lowered Height (in.): 15
Raised Height (in.): 60
Platform Width (in.): 30-3/8
Platform Length (in.): 60-3/8
Caster Type: (2) Swivel (2) Rigid 4” x 2”
Jib Crane Extended Capacity (lb.): 500
Jib Crane Retracted Capacity (lb.): 1000
Jib Crane Base Plate 10-5/8; wide x 10-5/8” long
Jib Crane Base Plate Mounting Hole Quantity: 8
Jib Crane Base Plate Mounting Hole Diameter (in.): 11/16
Jib Crane Base Plate Thickness (in.): 1/2
Individual Fork Pocket 7-5/8” wide x 2-5/18” high
Fork Pocket Center to Center (in.): 23-3/4
Blue
Voltage: 12
115 Volt 1 Phase
Non Returnable
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
| Model Number | Weight Capacity [Lbs] |
Power | Weigh | Price |
|---|---|---|---|---|
| DS-EHLTP-3060-WTJ-4-DC | 2,000 | 115 Volt 1 Phase | 1230 lbs | $9898 |
