Mechanical Dock Leveler
Mechanical Dock Leveler

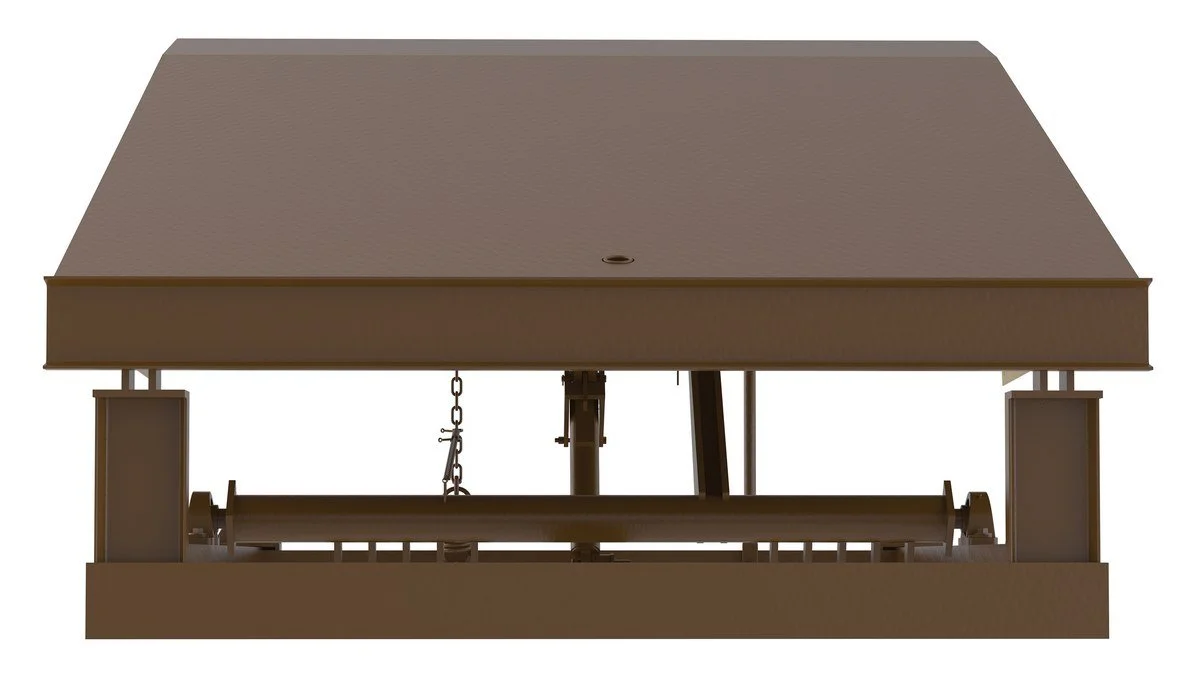

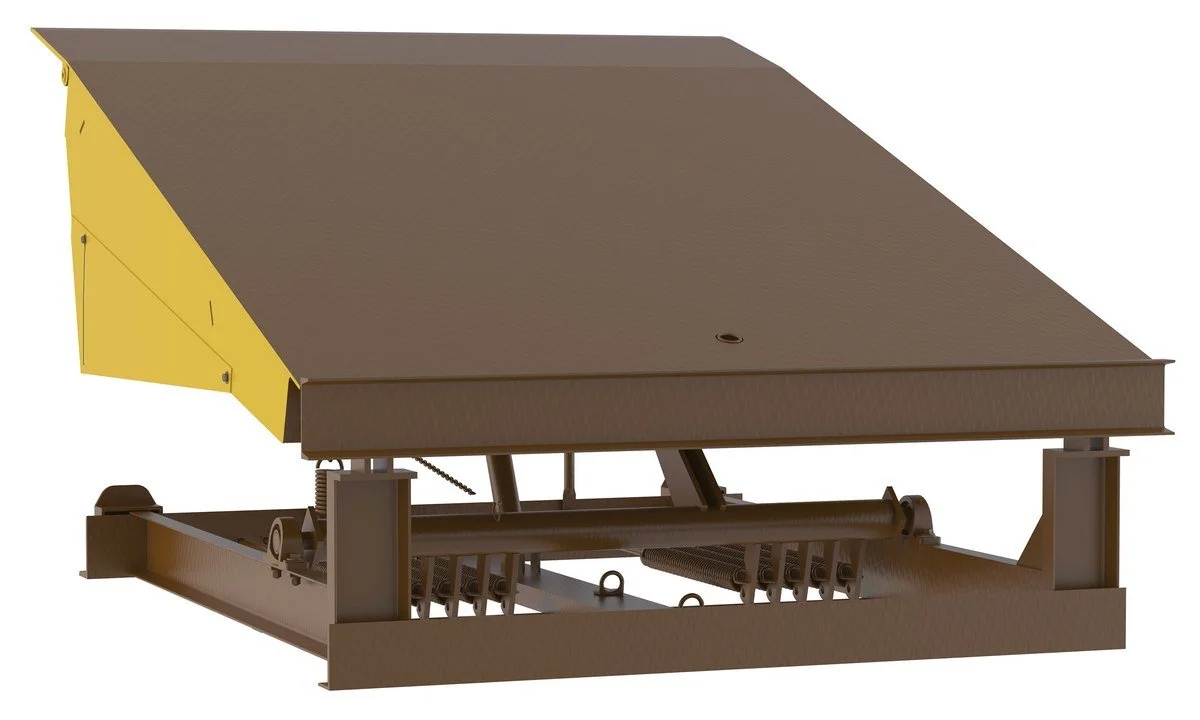

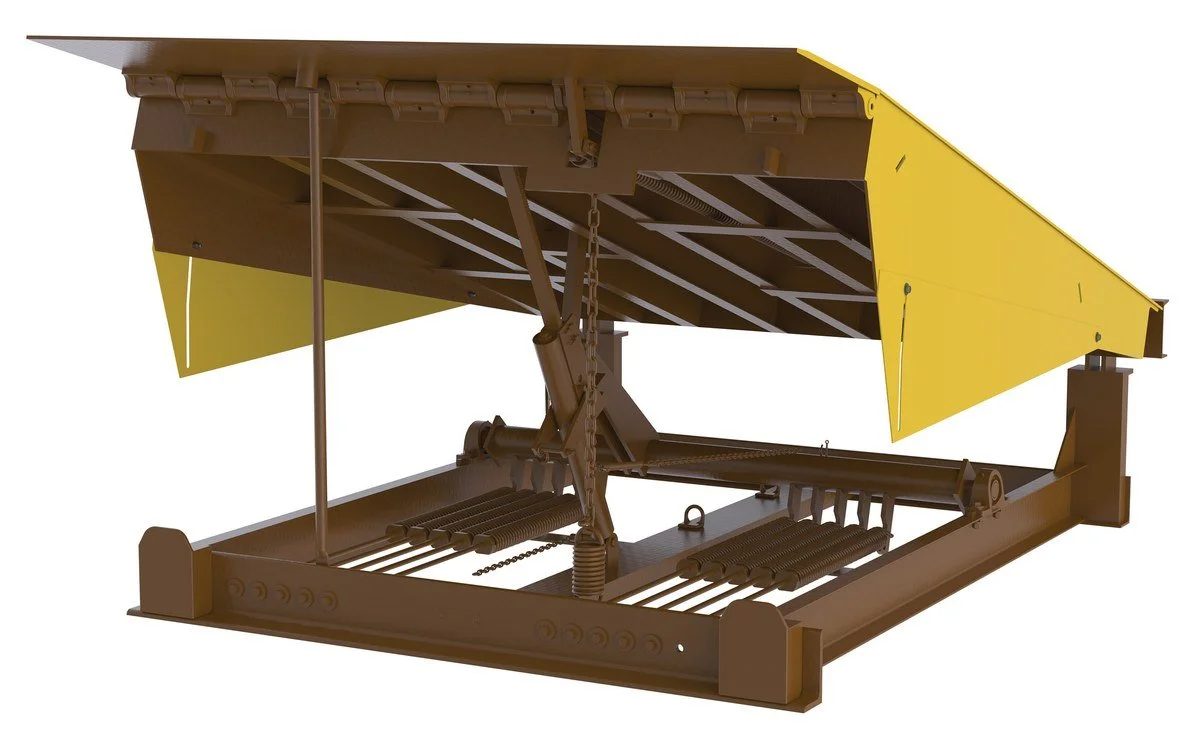

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.
Pricing
| Mechanical - Dock Levelor | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Platform Size | Weight (lbs.) | Price-20 | Price-25 | Price-30 | Price-35 | Price-40 | Price-45 | Price-50 |
| DS-RR-65 | 6'long x 5' wide | 1873 | $5,553 | $5,699 | $5,821 | $6,049 | $6,468 | $6,777 | $7,337 |
| DS-RR-66 | 6'long x 6' wide | 2126 | $6,093 | $6,364 | $6,588 | $6,849 | $7,388 | $7,782 | $8,237 |
| DS-RR-68 | 6'long x 8' wide | 1907 | $6,893 | $7,194 | $7,691 | $7,889 | $7,888 | $8,122 | $8,277 |
| DS-RR-75 | 7 'long x 5' wide | 1866 | $6,108 | $6,374 | $7,161 | $7,599 | $8,098 | $8,452 | $8,917 |
| DS-RR-76 | 7 'long x 6' wide | 2600 | $6,638 | $6,699 | $7,431 | $7,999 | $8,188 | $8,569 | $9,287 |
| DS-RR-78 | 7 'long x 8' wide | 2750 | $6,978 | $7,264 | $7,461 | $8,039 | $8,499 | $8,842 | $9,257 |
| DS-RR-610 | 6 'long x 10' wide | 3060 | $8,658 | $7,794 | $9,349 | $9,809 | $10,098 | $10,262 | $10,417 |
| DS-RR-710 | 7 'long x 10' wide | 3690 | $9,228 | $8,954 | $9,793 | $10,297 | $10,568 | $10,897 | $11,287 |
| All dimensions are in inches | |||||||||
Features
Standard Features:
Pit-mounted dock leveler allows for easy trailer loading and unloading at loading docks
Spring operated mechanical pull-chain makes use easy

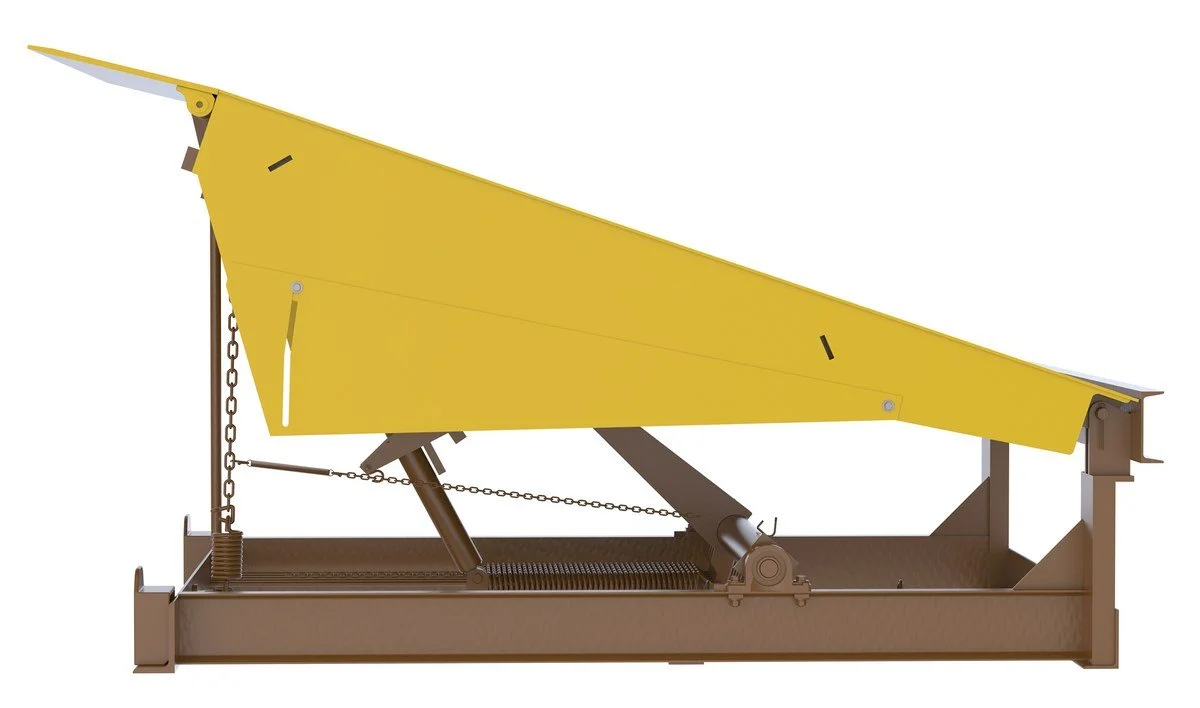

Telescopic side-mounted toe guards cover opening through the entire service range
Complies with CS 202-56, OSHA and ANSI MH14.5
Brown/Yellow
Part numbers are -20 is 20,000 lb capacity, -25 is 25,000 lb capacity, -30 is 30,000 lb capacity, -35 is 35,000 lb capacity, -40 is 40,000 lb capacity, -45 is 45,000 lb capacity and -50 is 50,000 lb capacity [add to the part number]
Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this Survey Sheet
Water is supplied to the internal tank from a standard 3/4" water hose
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product
