Steel Drop Bottom Hopper

DBH-100-3_A (1).jpg
DBH-100-3_A (1).jpg

Steel Drop Bottom Hopper

$1,411.00

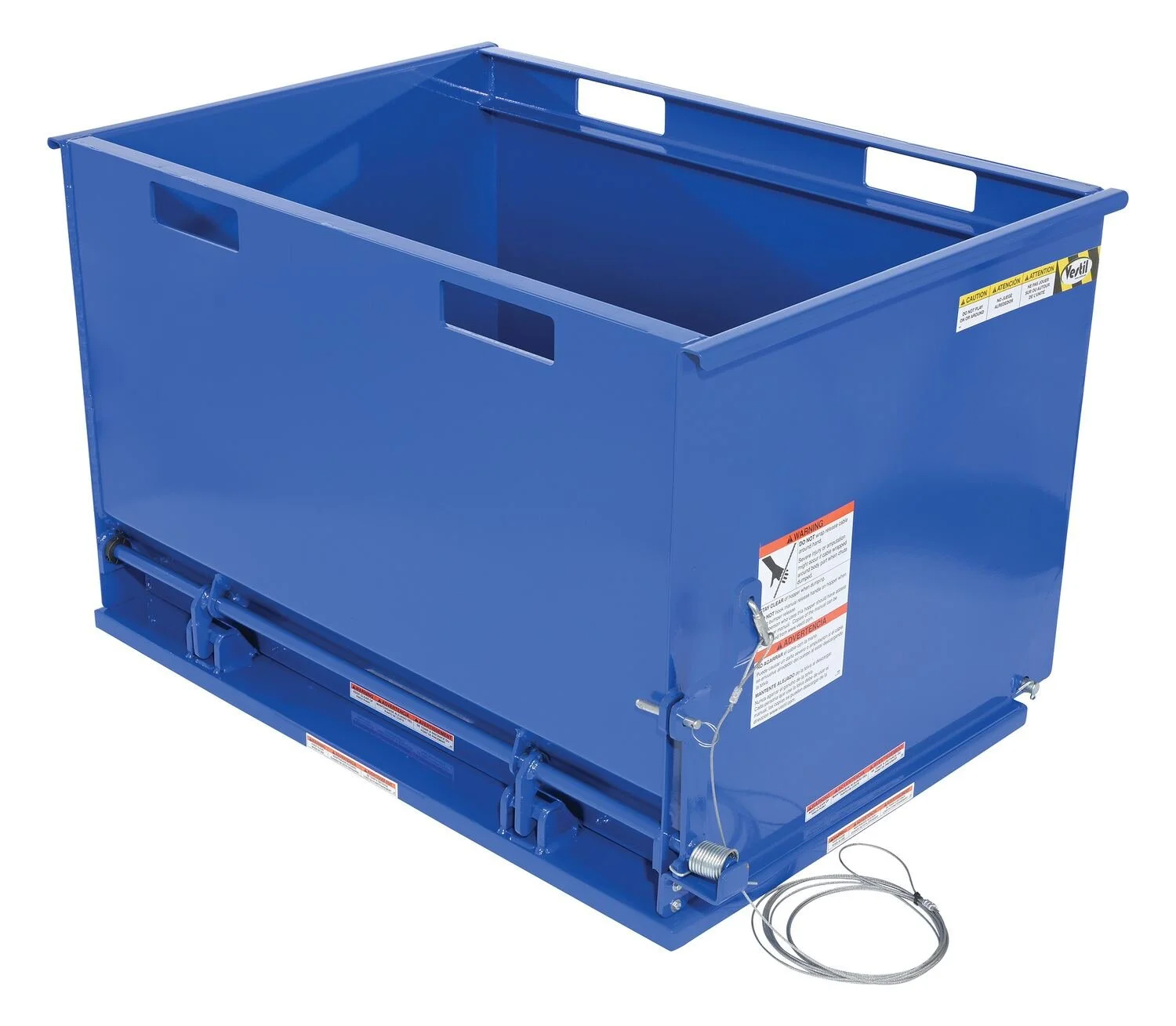

A hopper with a bottom dump feature is a unique design not typical to classic hoppers. With a bottom dump hopper there is limited wasted space. Unlike standard hoppers that have angled sides to encourage the product to flow out, the bottom dump hopper utilizes all of the space in the hopper. There are built-in fork pockets to pick up hopper from the top, allowing the bottom to open and the hopper to be quickly emptied. An attached cable lets the user continue to be seated while opening the bottom hatch, minimizing down time and the need for additional personnel. Blue powder coat finish.

Add To Cart

Pricing

Drop Bottom Hopper
Model Number Size
Cubit Feet
Size
(LxWxH)
Shipping Weight Price
DS-DBH-100-3 1 38"x54"x33" 385 $1411
Lead-time about 70 working days

Features

Standard Features:

  • Must be attached to fork truck when unloading.

  • 3,000 pound capacity

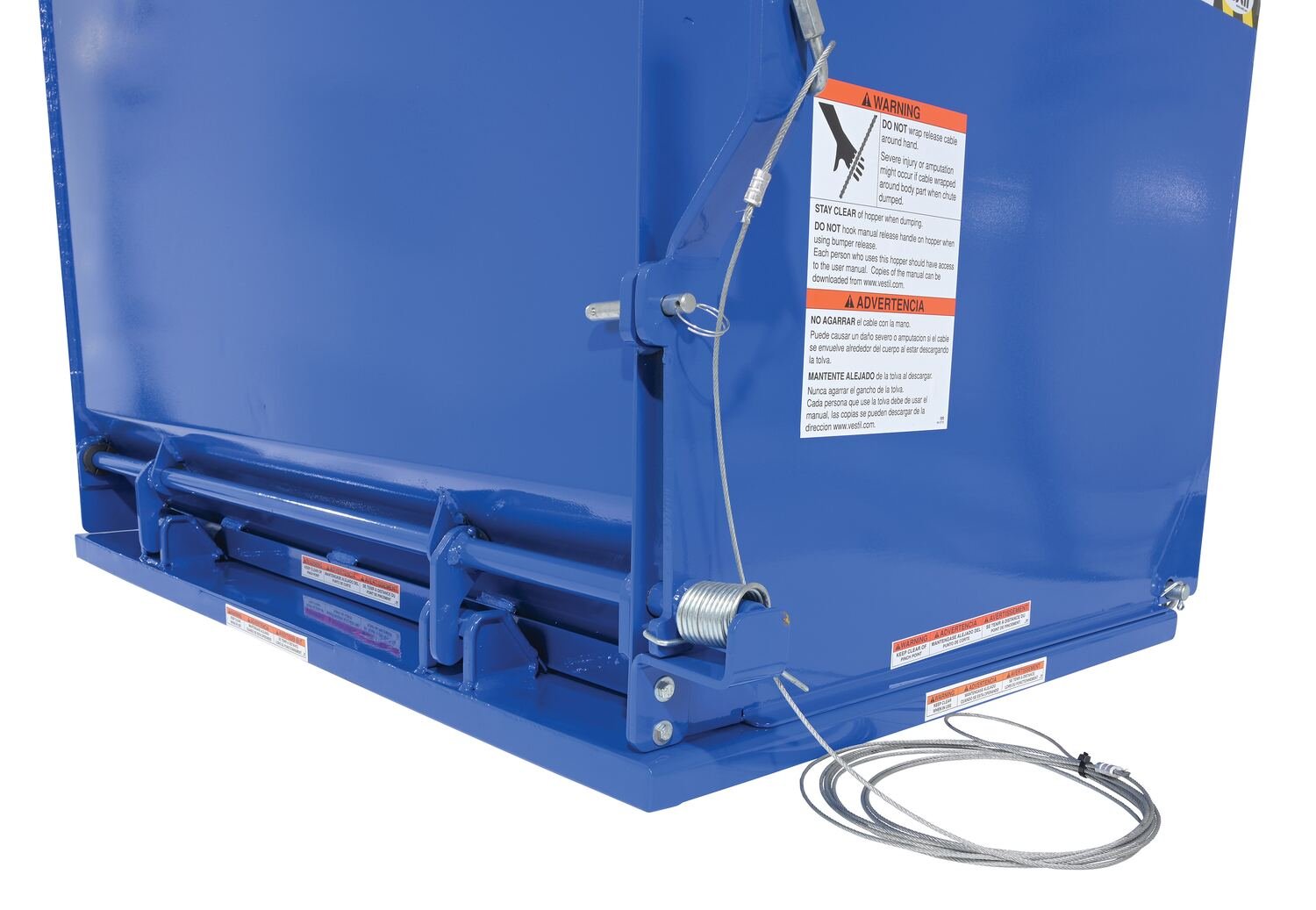

  • Pull chain release for quick dumping

  • Enclosed Fork pockets

  • Open top, no lid design

  • Single bottom door

  • Safety restraint secures hopper to fork truck

  • 8" wide fork pockets

  • Tough baked in powder coated blue finish

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

NEVER EXCEED LOAD CENTER RATING PER FORKTRUCK MANUFACTURERS GUIDELINES. DO NOT USE THIS FORK TRUCK ATTACHMENT IF LOAD WILL EXCEED FORK TRUCK MANUFACTURER’S LOAD CENTER RATIN

Options

No options available for this product

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos

No documentation or videos available for this product
