Industrial Stairway - 36.4 Degrees
Industrial Stairway - 36.4 Degrees
The Industrial Stairway - 36.4 Degrees creates a strong and reliable access to mezzanines and elevated platforms.
All welded construction of these stairways provides more strength and structural rigidity than bolt together units and is designed for a 1,000 lb. moving load. They have 10" channel stringers for stability and 1-1/2" square tube handrails for safety. Stair treads are a 36" wide and have Grip Strut tread for slip resistant footing. Custom rises and widths are available.
Pricing
| Model # | Total Rise | Total Run | # Of Treads | # Of Risers | Hand Rails | Weight Lbs. | Grip Strut |
|---|---|---|---|---|---|---|---|

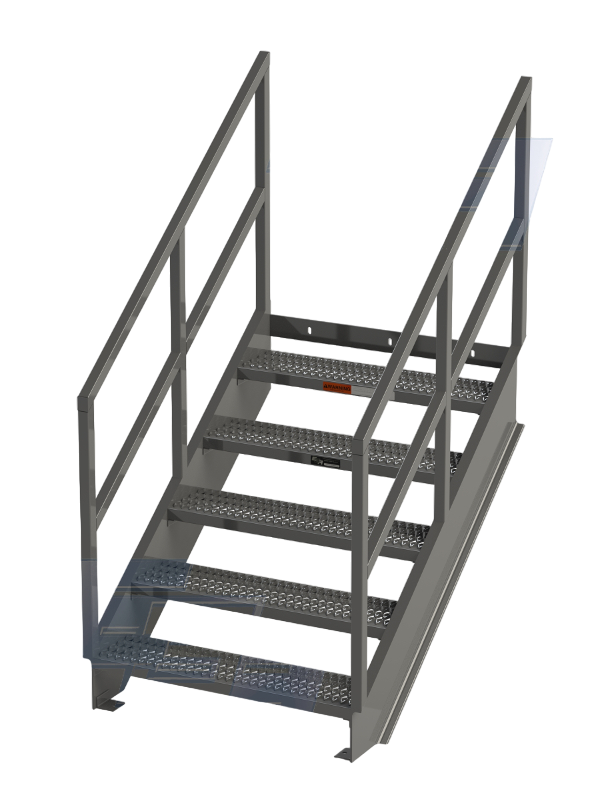

| DS-IS042-36 | 42" | 47.5" | 5 | 6 | Yes | 223 | $1,791 |

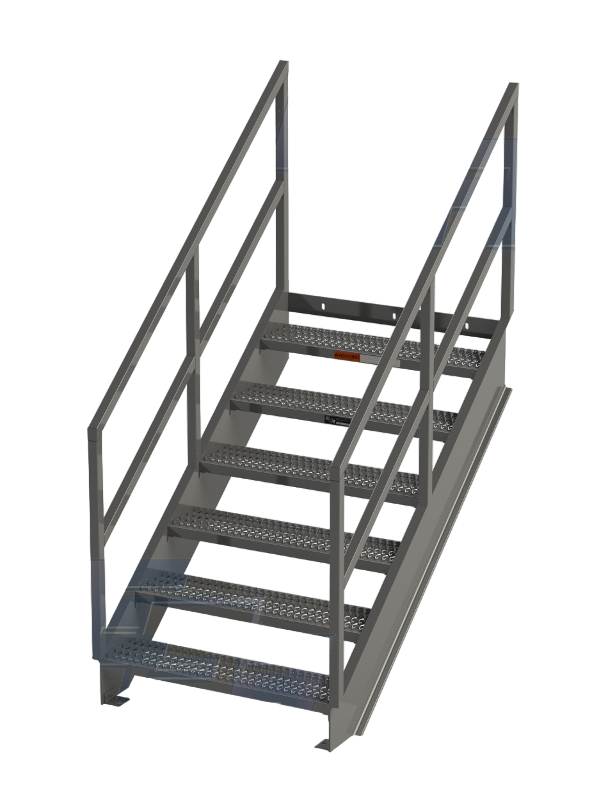

| DS-IS049-36 | 49" | 57.0" | 6 | 7 | Yes | 260 | $1,893 |

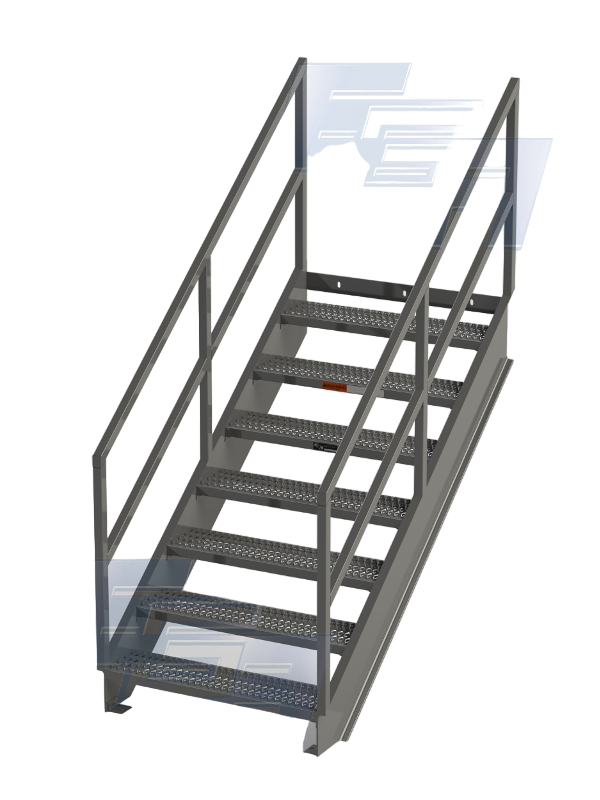

| DS-IS056-36 | 56" | 66.5" | 7 | 8 | Yes | 309 | $2,012 |

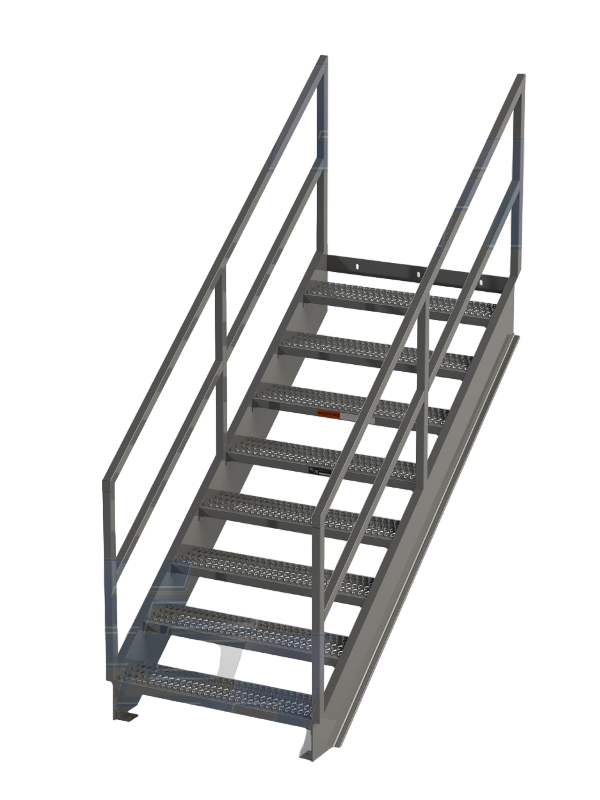

| DS-IS063-36 | 63" | 76.0" | 8 | 9 | Yes | 346 | $2,253 |

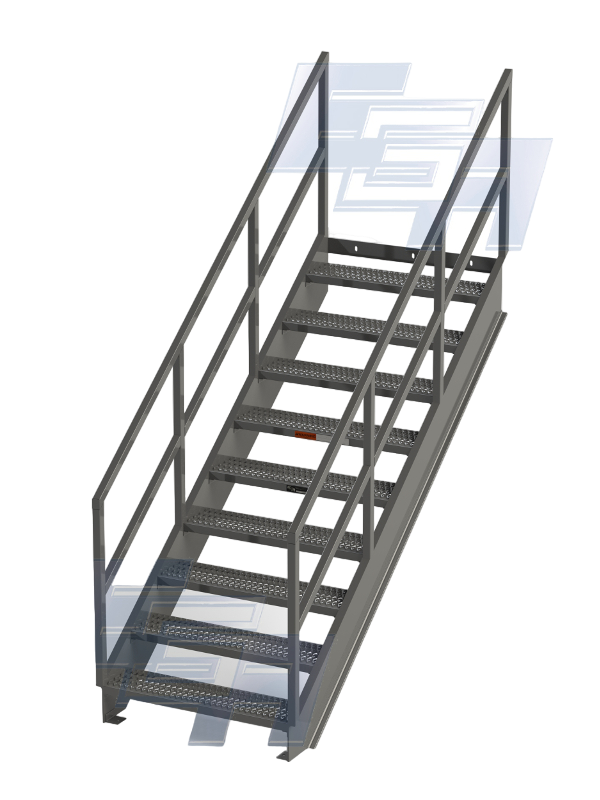

| DS-IS070-36 | 70" | 85.5" | 9 | 10 | Yes | 382 | $2,408 |

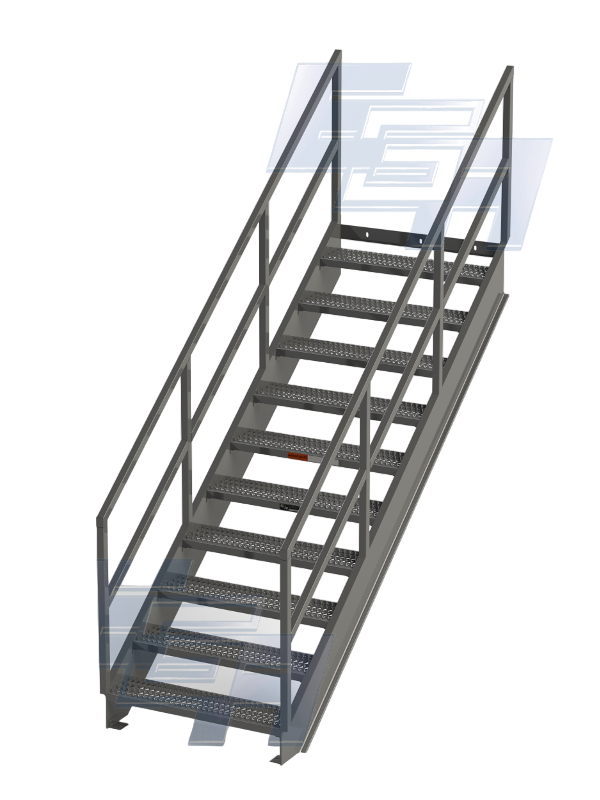

| DS-IS077-36 | 77" | 95.0" | 10 | 11 | Yes | 419 | $2,613 |

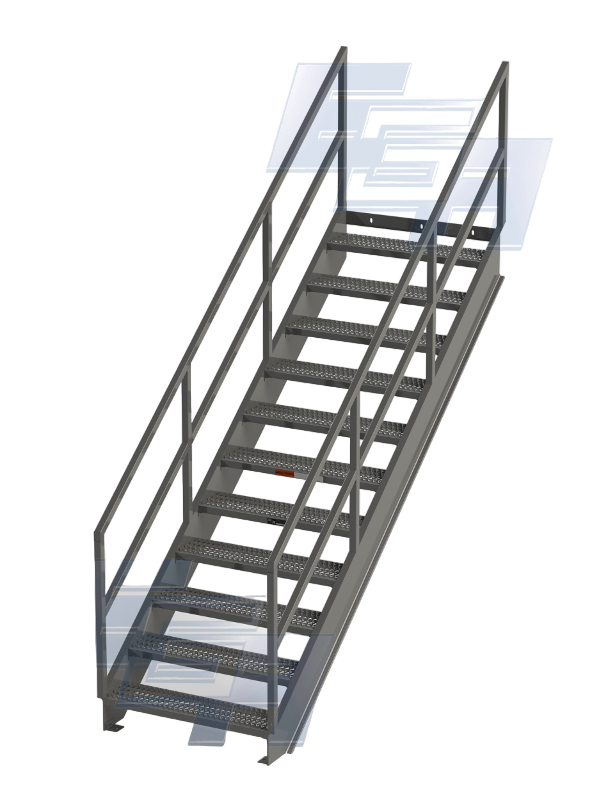

| DS-IS084-36 | 84" | 104.5" | 11 | 12 | Yes | 468 | $2,799 |

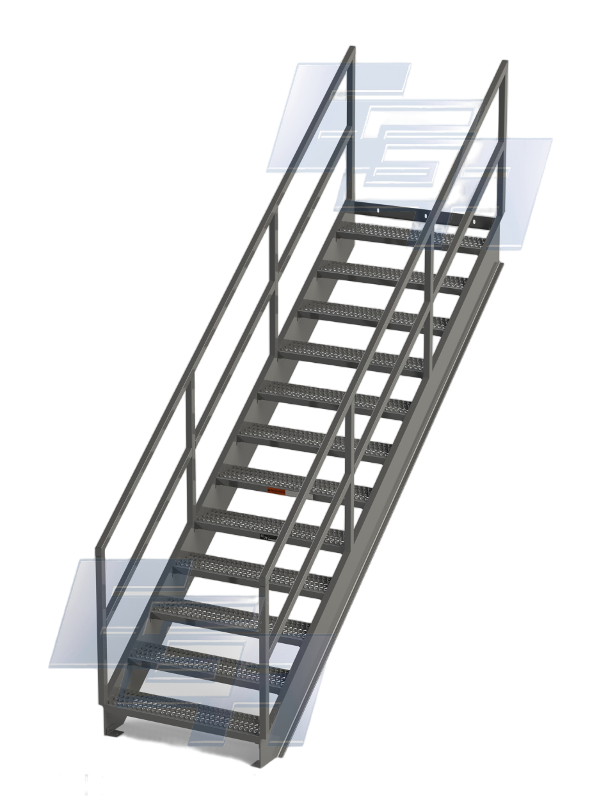

| DS-IS091-36 | 91" | 114.0" | 12 | 13 | Yes | 505 | $2,894 |

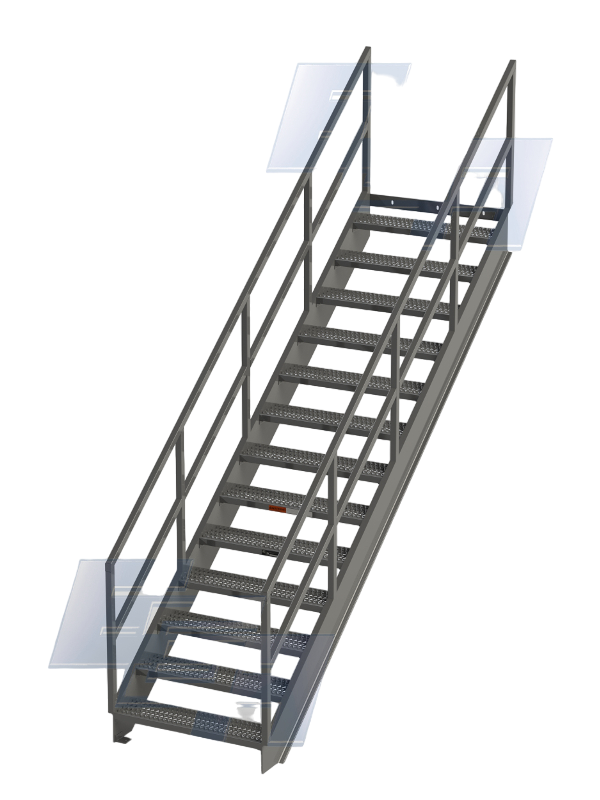

| DS-IS098-36 | 98" | 123.5" | 13 | 14 | Yes | 541 | $3,006 |

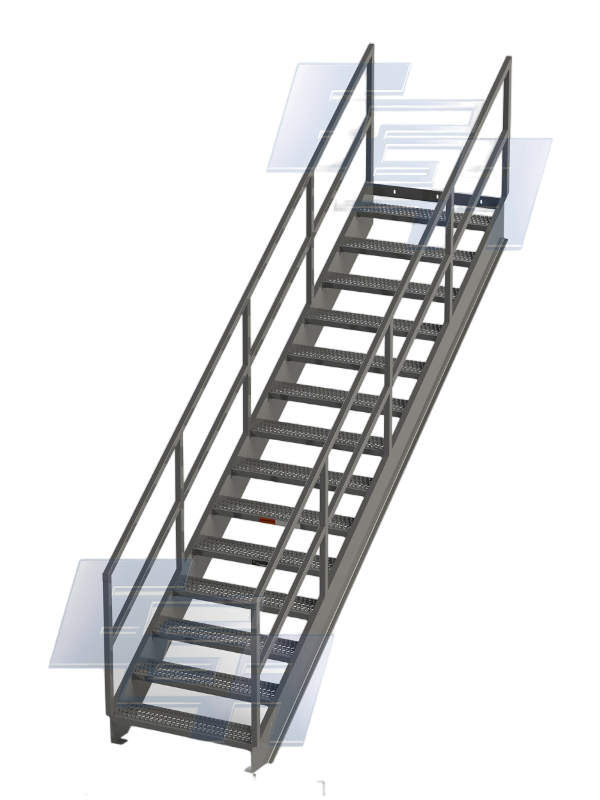

| DS-IS0105-36 | 105" | 133.0" | 14 | 15 | Yes | 577 | $3,300 |

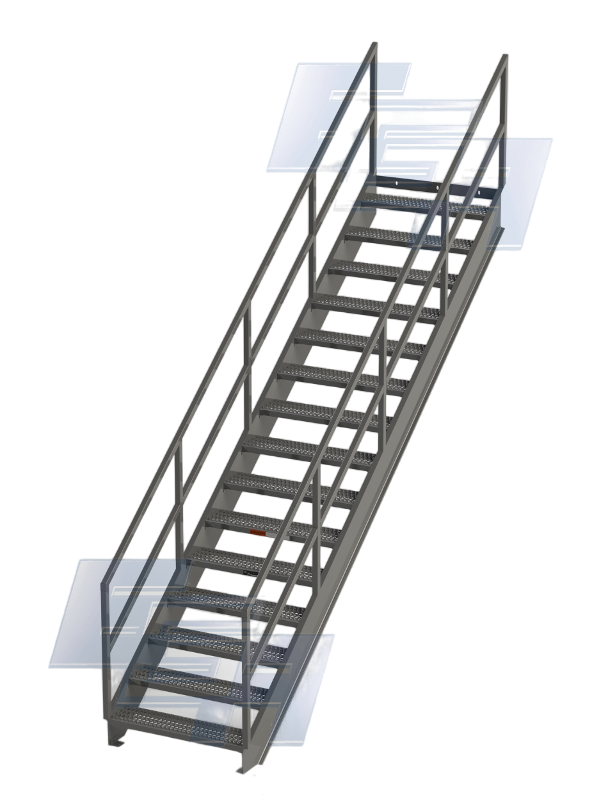

| DS-IS0112-36 | 112" | 142.5" | 15 | 16 | Yes | 626 | $3,332 |

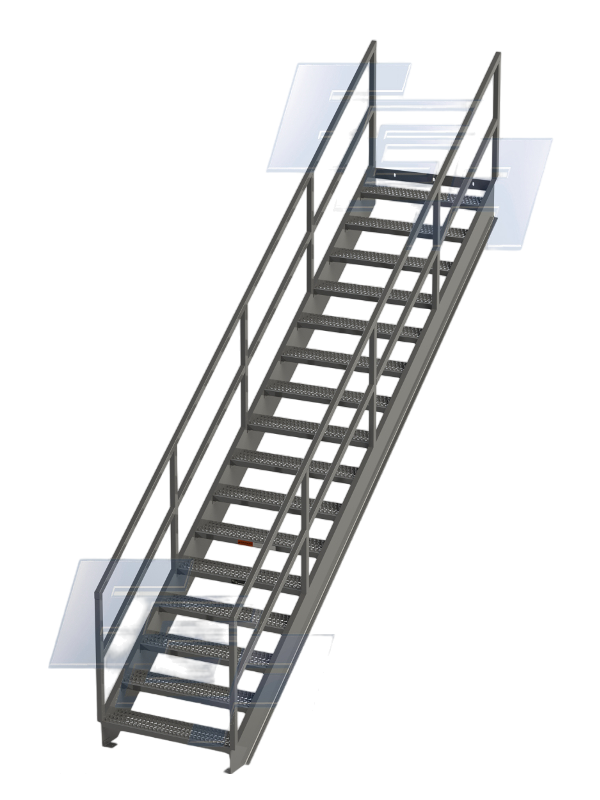

| DS-IS0119-36 | 119" | 152.0" | 16 | 17 | Yes | 663 | $3,354 |
All Dimensions are in inches
Features
Code Compliance:
IS - Industrial Stairways
Industrial Stair product lines are fabricated to be in compliance with OSHA Standards. This product line is falls under 29CFR1910.24 Fixed Industrial Stairs. ALL Stairways are designed to comply w/ OSHA requirements.
Upon request; these units may also be fabricated in compliance with CALOSHA requirements found in Title 8, Section 3234 Fixed Industrial Stairs, of the California Code of Regulations.
Additionally Stairs may comply w/ BOCA (Building Officials Code Administrators) National Building Code, UBC (Uniform Building Code), IBC (International Building Code), or many other Local or State codes.
Local ordinances may require additional features. Check w/ local regulatory officials to ensure a code compliant product.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Tread Types
Documentation / Videos
No documentation or videos available for this product.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A STAIRWAY FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE STAIRWAY.
