Aluminum Stairways for Outdoors
Aluminum Stairways for Outdoors

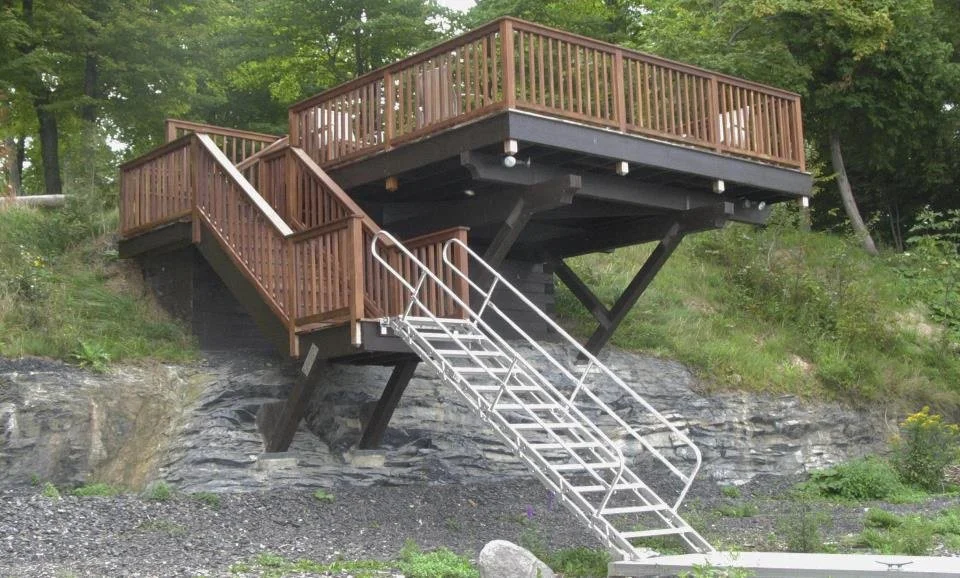

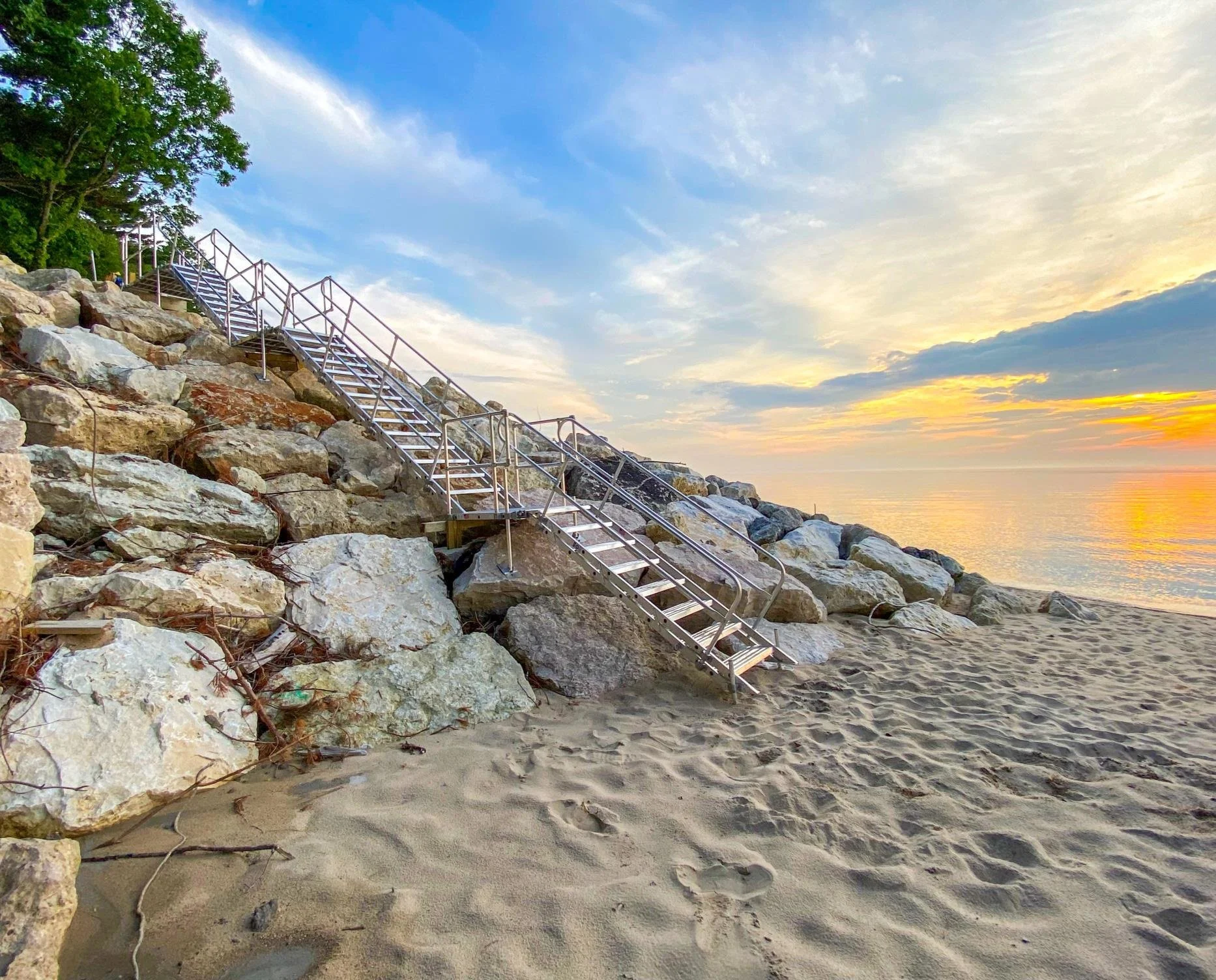

Our virtually maintenance free aluminum marine stairways are for waterfront, rooftop, outdoor and indoor applications and offer portability.
These Aluminum Stairways have been used in waterfront, rooftop, homes, industrial and commercial locations. They are lightweight, durable pre-fabricated all aluminum stairways that do not require painting or finishing. The have sturdy, detachable handrails on both sides and a mounting bracket. We can custom fabricate for specific applications and lengths.
Pricing
| Removable Aluminum Stairways 32" or 36" Overall Width | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model # 32" | Model # 36" | # Of Steps | Approx. Rise (FT) | Approx. Run (FT) | Length of Stair | Inside Width | Riser Height | Approx. Weight | Price 32" | Price 36" |
| DS-AS-4 | DS-AS-4-36 | 4 | 2' 10" | 2' 10" | 4' | 29 1/4" | 8 1/2" | 51 Lbs. | $1,202 | $1,302 |
| DS-AS-5 | DS-AS-5-36 | 5 | 3' 6.5" | 3' 6.5" | 5' | 29 1/4" | 8 1/2" | 61 Lbs. | $1,370 | $1,486 |
| DS-AS-6 | DS-AS-6-36 | 6 | 4' 3" | 4' 3" | 6' | 29 1/4" | 8 1/2" | 70 Lbs. | $1,540 | $1,708 |
| DS-AS-7 | DS-AS-7-36 | 7 | 4' 11.5" | 4' 11.5" | 7' | 29 1/4" | 8 1/2" | 78 Lbs. | $1,640 | $1,872 |
| DS-AS-8 | DS-AS-8-36 | 8 | 5' 8" | 5' 8" | 8' | 29 1/4" | 8 1/2" | 85 Lbs. | $1,736 | $1,898 |
| DS-AS-9 | DS-AS-9-36 | 9 | 6' 4" | 6' 4" | 9' | 29 1/4" | 8 1/2" | 96 Lbs. | $1,933 | $2,072 |
| DS-AS-10 | DS-AS-10-36 | 10 | 7' | 7' | 10' | 29 1/4" | 8 1/2" | 107 Lbs. | $2,062 | $2,198 |
| DS-AS-11 | DS-AS-11-36 | 11 | 7' 9" | 7' 9" | 11' | 29 1/4" | 8 1/2" | 118 Lbs. | $2,079 | $2,376 |
| DS-AS-12 | DS-AS-12-36 | 12 | 8' 6" | 8' 6" | 12' | 29 1/4" | 8 1/2" | 128 Lbs. | $2,354 | $2,540 |
| DS-AS-13 | DS-AS-13-36 | 13 | 9' 2.5" | 9' 2.5" | 13' | 29 1/4" | 8 1/2" | 139 Lbs. | $2,478 | $2,699 |
| DS-AS-14 | DS-AS-14-36 | 14 | 9' 11" | 9' 11" | 14' | 29 1/4" | 8 1/2" | 149 Lbs. | $2,650 | $2,847 |
| DS-AS-15 | DS-AS-15-36 | 15 | 10' 7.5" | 10' 7.5" | 15' | 29 1/4" | 8 1/2" | 160 Lbs | $2,863 | $3,061 |
| DS-AS-16 | DS-AS-16-36 | 16 | 11' 4" | 11' 4" | 16' | 29 1/4" | 8 1/2" | 170 Lbs. | $2,914 | $3,181 |
| DS-AS-17 | DS-AS-17-36 | 17 | 12' 5" | 12' 5" | 17' | 29 1/4" | 8 1/2" | 181 Lbs. | $3,116 | $3,383 |
| DS-AS-18 | DS-AS-18-36 | 18 | 12' 9" | 12' 9" | 18' | 29 1/4" | 8 1/2" | 191 Lbs. | $3,244 | $3,522 |
| DS-AS-19 | DS-AS-19-36 | 19 | 13' 5.5" | 13' 5.5" | 19' | 29 1/4" | 8 1/2" | 202 Lbs. | $3,467 | $3,710 |
| DS-AS-20 | DS-AS-20-36 | 20 | 14' 2" | 14' 2" | 20' | 29 1/4" | 8 1/2" | 212 Lbs. | $3,477 | $3,941 |
| All dimensions are in inches / Models available up to 40' long ask for pricing | ||||||||||

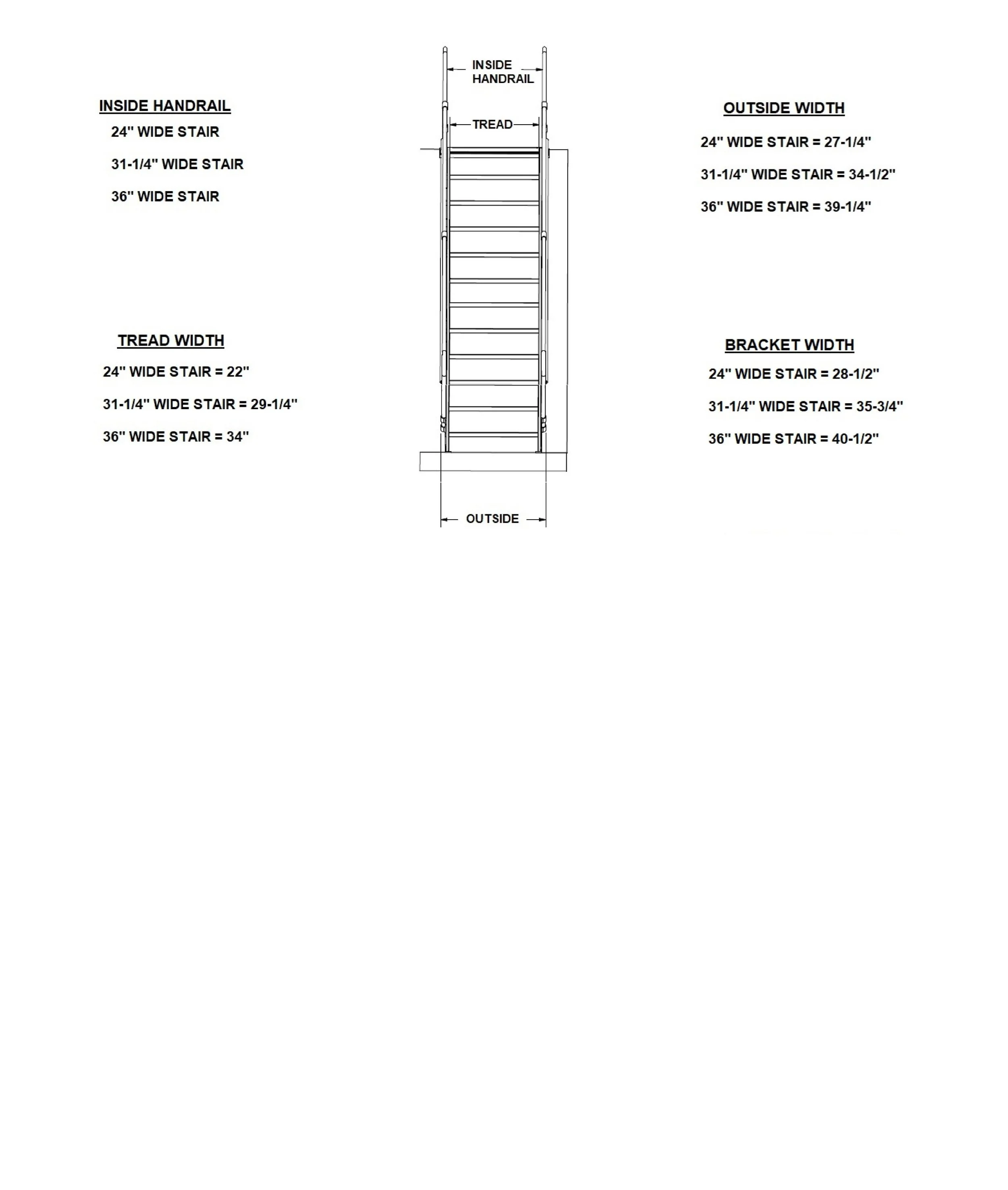

Features
Standard Features:
Choose your Stairway tread width 29-1/4" or 34”
Stairway overall width is 34-1/2" or 36”
Ribbed, non-skid stair tread is 7"
Stair riser height is 8-1/2"
Approach angle is 45°
Handrail height is 24"
1-1/4” OD Handrails w/ mid-rail for added safety
Approach angles available from 35-55 degree
Aluminum stairs can be carried and installed by two individuals. Corrosion-resistant aluminum puts an end to the problems of painting and the danger of rotting. Its lifetime attractiveness will add immeasurably to the value and enjoyment of any waterfront property.
Options
Options:
36IN W X 48IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-36-48 $1,644
48IN W X 48IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-48-48 $2,123
36IN W X 72IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-36-72 $1,707
48IN W X 72IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-48-72 $2,228
36IN W X 42IN L WALL PLATFORM ASSEMBLY, W/HANDRAIL **LEFT SIDE EXIT** - DS-AS-WPA-L - $1,710
36IN W X 42IN L WALL PLATFORM ASSEMBLY, W/HANDRAIL**RIGHT SIDE EXIT** - DS-S-WPA-R - $1,710
LIFTING MECHANISM FOR ALUMISTAIR - DS-AS-LM $1553
ADJUSTABLE LEG, PAIR, W/FASTENERS - DS-AS-AL $156
S.S. FASTENED TREAD UPGRADE, PER STEP - DS-AS-SSF $19
Parts

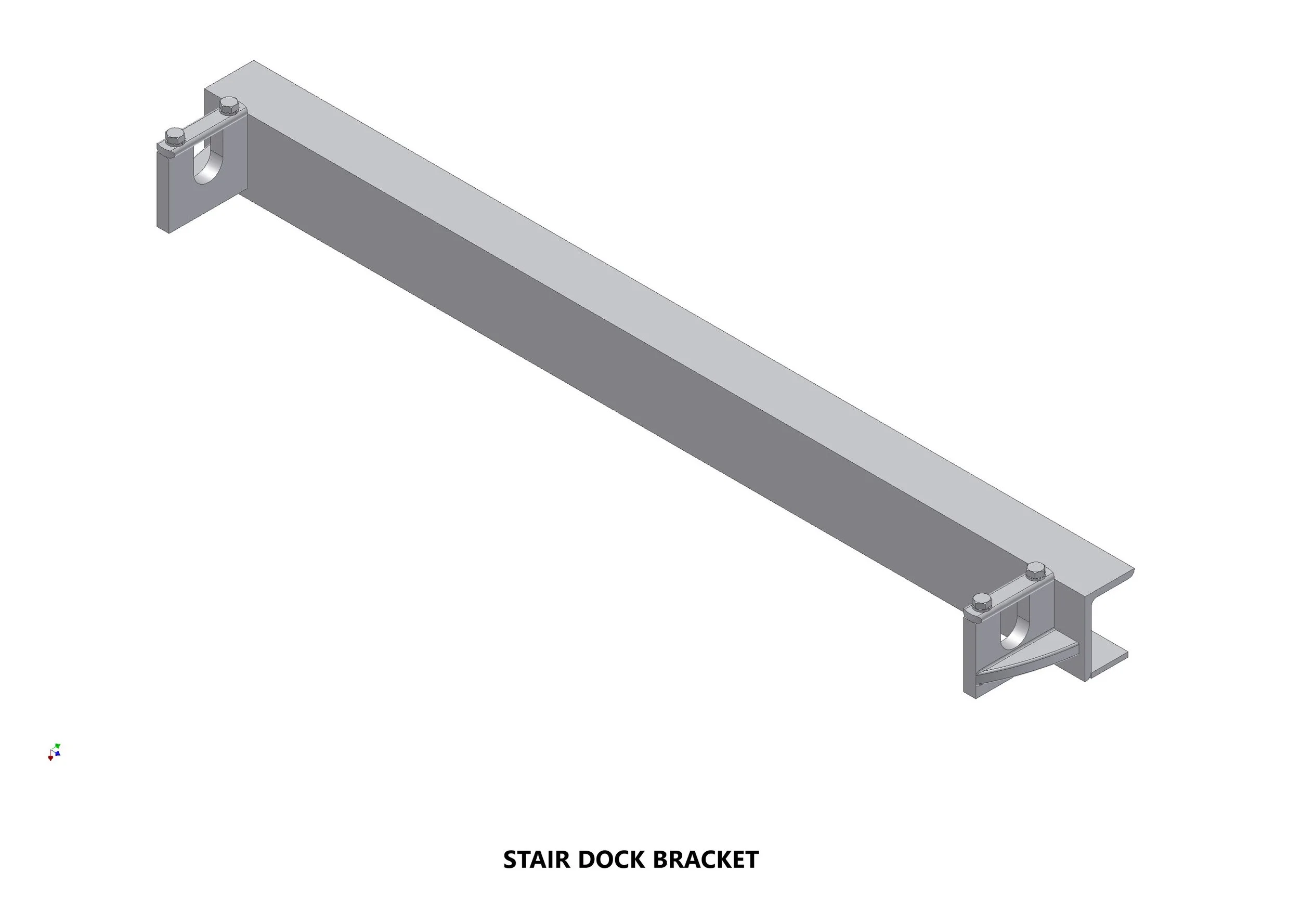

ALUMISTAIR BRACKET, 32IN WIDE - DS-AS-B - $212
ALUMISTAIR BRACKET- 36IN WIDE - DS-AS-B-36 - $224
REPLACEMENT TREAD FOR 32IN ALUMISTAIR W/FASTENERS - DS-AS-RT - $57
REPLACEMENT TREAD FOR 36IN ALUMISTAIR W/FASTENERS - DS-AS-RT-36 - $65
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A MARINE PRODUCT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE MARINE PRODUCT.
