Drivable Mini Boom Vertical Mast Lift

$61,594.00

A self-propelled vertical mast lift designed for use in narrow spaces such as warehouses, supermarkets, hotels, and airports. It features a fully sealed AC system and maintenance-free batteries, making it efficient, waterproof, and safe. The lift has a maximum working height of 36 feet 9 inches, and can be driven at full height. It offers a 9 feet 3 inches horizontal extension, enhancing its reach and flexibility.

Add To Cart

The lifter can be used with the center mounted hook point for balanced lifting capabilities with an overhead hoist or with a forklift by utilizing the attached fork pockets [retaining strap included]. After choosing which lifting style will work best, secure the loops of the bag to the four strap points for safe maneuvering and transporting.

Standard Features

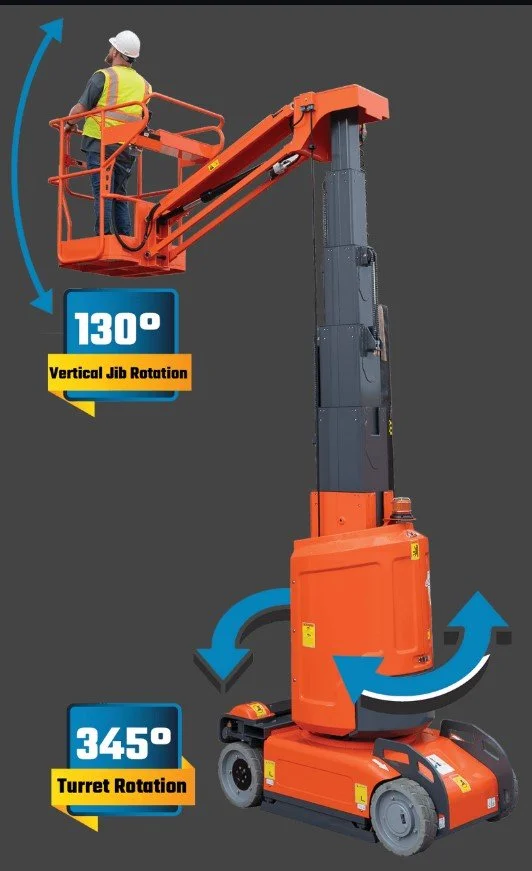

The turret has a rotation range of 345°
The Jib moves within a 130° range
Proportional Joystick Controls
Drivable At Full Height
Two-Wheel Steering
Two-Wheel Drive
Automatic Brake System
Emergency Descent System
Emergency Stop Button
Onboard Diagnostic System
Tilt Sensor With Alarm
All Motion Alarm
Horn
Operating Time Display
Charging Protection System
Flashing LED Beacon
Automatic Pothole Protection
Overload Alarm System

Specifications

Overall Height Inches: 6'6"

Overall Length: 8' 7"
Overall Width: 3'3"
Platform Length: 2' 3"
Platform LxW: 2' 3" X 3' 1"
Platform Max: 30' 2"
Platform Width: 3' 1"
Power - Batteries: 24V/200Ah
Pushable / Drivable: Drivable
Shipping Dims. LxWxH: 8' 7"x3'3"x6'6"
Weight Capacity: 440 lbs
Working Height: 36' 9"

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

Drivable Mini-Boom Vertical Mast Lift

Model Number:

Company Name

First Name

Last Name

Contact Name:

First Name

Last Name

Email Address:

Contact Number:

(###)

###

####

Address

Address 1

Address 2

City

State/Province

Zip/Postal Code

Country

Ship To Zip Code:

Message:

WHEN YOU PURCHASE A FORK TRUCK ATTACHMENT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE FORK TRUCK ATTACHMENT.

 Drivable Mini-Boom Vertical Mast Lift

    Model #
    Capacity
[lbs]
    Weight Lbs.
    Price

    DS-DVML-30RJ
    440
    5000
    $61,594

  Note:  Purchases are for commercial businesses only. We will not ship to personal residence.

Man Lift Safety Guidelines

Man lifts increase productivity across a variety of industries. However, while they can offer tremendous value and add new functionality to your workplace, they can quickly become a liability if not used with safety in mind. The majority of man lift deaths and injuries occur due to falls from work platforms, electrocutions, lift collapses, and tip overs. Many of these mishaps can be avoided.

Here, we have compiled a list of safety protocol points, designed to minimize risk when using a man lift:

Hire responsible individuals, providing them with good training that includes testing.

Ensure the operator stays focused, operating the lift with a clear mind.

Ensure the operator wears hard hats, safety glasses, steel-toe boots, and avoids wearing loose clothes. In addition, make sure that any long hair is restrained and pulled back.

Inspect the lift regularly, in order to ensure it is in optimal operating condition.

Adhere to capacity limits in regards to weight, as well as common sense limits such as never putting scaffolding on the lift platform.

When positioning the man lift, take note and avoid proximity of nearby power lines and wires if applicable.

Never attempt to override the lift’s safety features, or attempt to disable them.

Only use man lifts in areas with good ventilation.

Always wear the proper harness, securing the lanyard to the bucket.

Do not use the lift as a crane, lifting heavy tools, bulky equipment, or other items not intended for the man lift.

Never sit or climb on the edge of the work platform.

Keep people and items clear of the boom’s range of motion.

Only move the lift around the job site in accordance with the manufacturer’s instructions.

Adhering to these safety suggestions will help you and your staff to safely operate your man lift and reduce the potential for injury or death. As with all industrial equipment, making sure that the equipment is in good working order and used properly is key. Encourage your employees to take the above guidelines seriously -- their safety depends on it!

Top Selling Models

We have many great models that are built to cater to your specific needs. Among these is our MRO Telescoping Hydraulic Maintenance Lift which is built to reach high areas. It is easy to move manually and can fit through any standard doorway. It can reach platform heights of up to 28 feet and comes with slip-resistant treads and handrails for extra safety. Our compact Single Person Maintenance Lift offers many of the same features with a 300 lb capacity, and an easy-to-operate hydraulic hand pump.

Our scissor lifts are popular options and come in standard and Mini sizes. The standard Scissor Lift is perfect for large jobs with multiple workers needed in the same area. It has a 1,000 lb or 4 person capacity with a swing in gate for safety while on the job. It also features platform controls, emergency stop features, and it can be locked during closing hours. The Mini Scissor lift is popular for smaller work areas. It has a compact base, is easy to roll, and has a 500 lb. capacity.

Our Drivable Scissor Lift is another popular option. The Drivable Scissor Lift is one of the most versatile lifts, and is perfect for indoor and outdoor use. It is easily maneuverable with a 0 Degree Turning Radius, and it can be driven while fully extended. It offers many safety features such as an automatic braking system, emergency stop button, and a tilt sensor. It is perfect for reaching tall ceilings and for tree maintenance.

At PlatformsandLadders.com we stand behind all of our products because of their high quality, durability, and safety. We have options for every situation from small warehouses with tight spaces to big jobs with tall ceilings and multiple workers. We are always available to answer any questions about our lifts and to help you find the perfect model for your unique needs.

Please call and speak to our helpful, well trained staff for answers to your product questions, get a freight quote to your location or to purchase a Man Lift.
