Electric Order Picker
Electric Order Picker
Manually pushed unit is easy to position. The lift operates with a 12V DC battery. Includes an on-board charger.

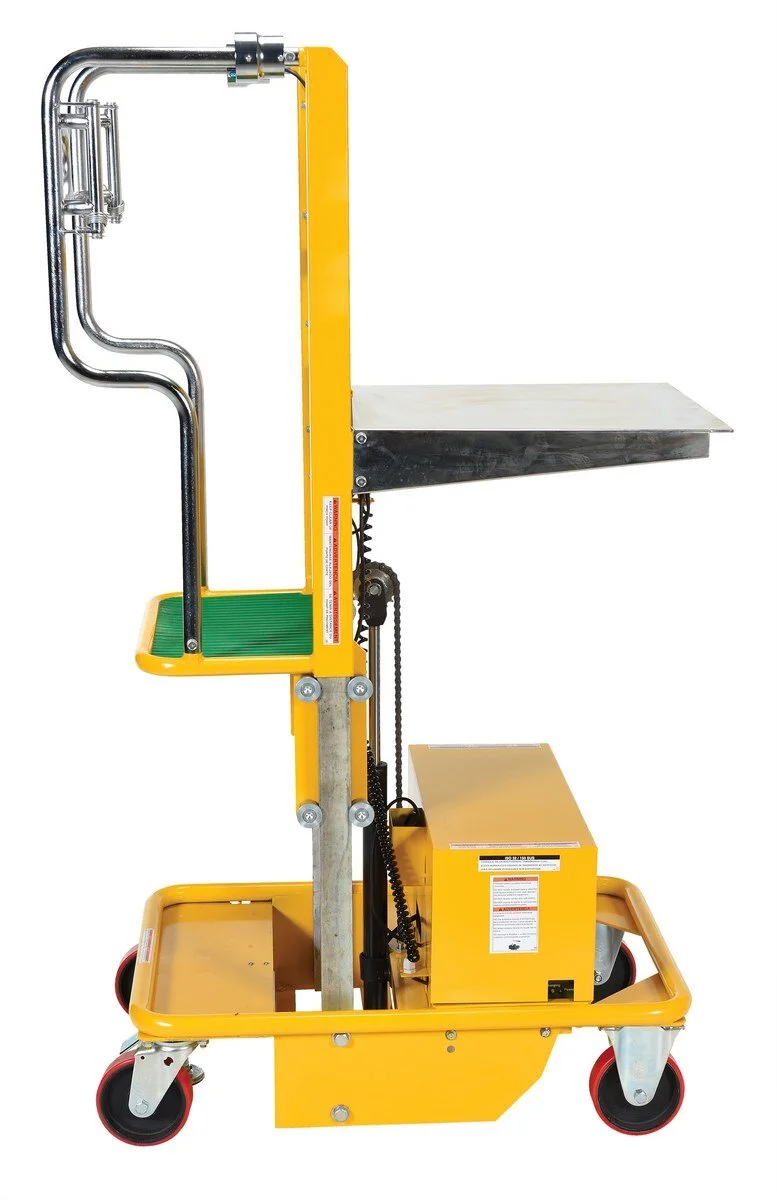

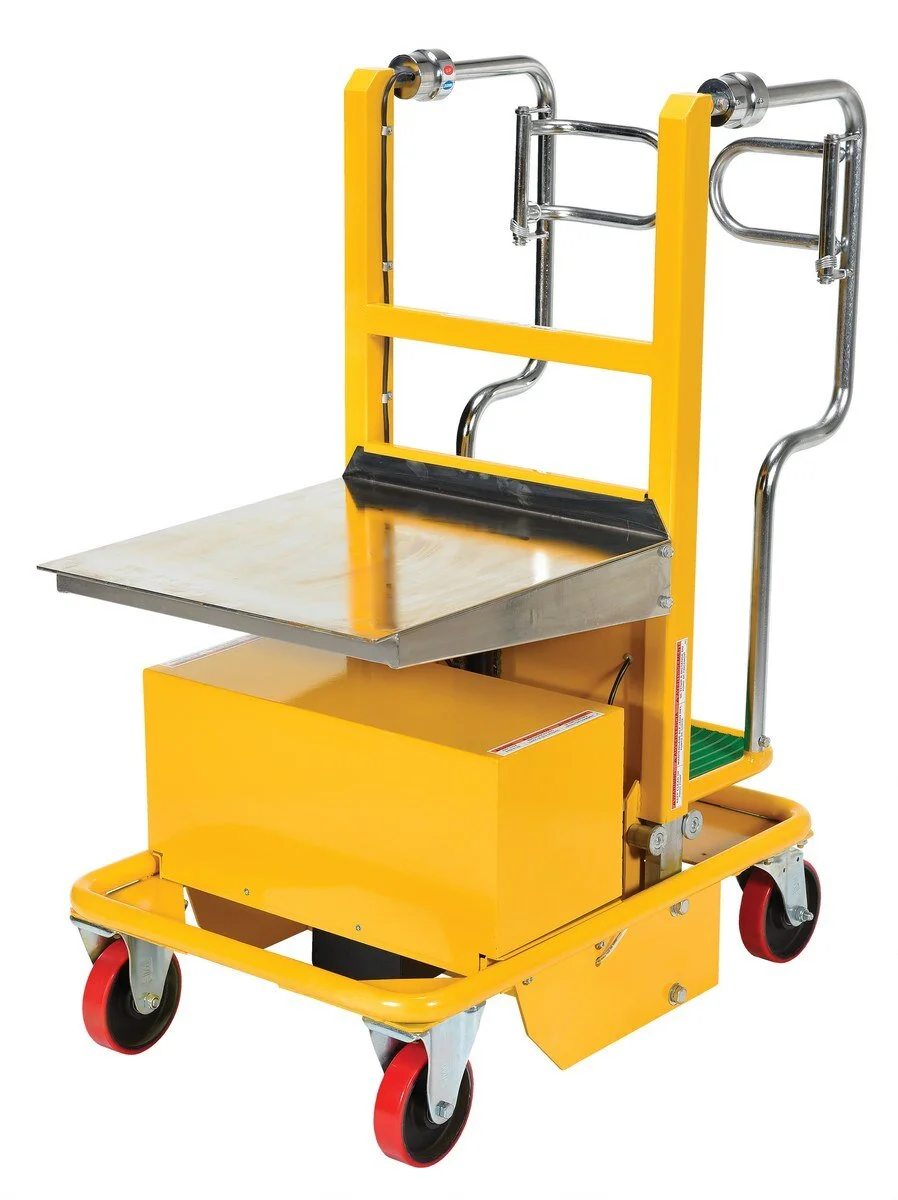

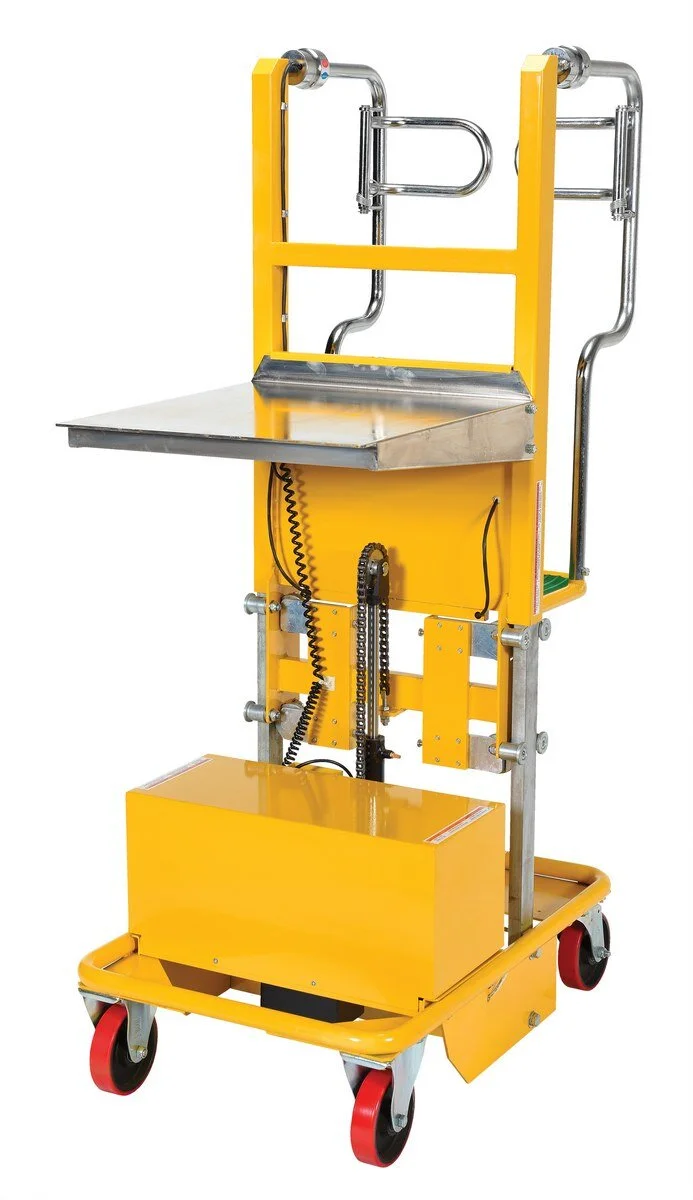

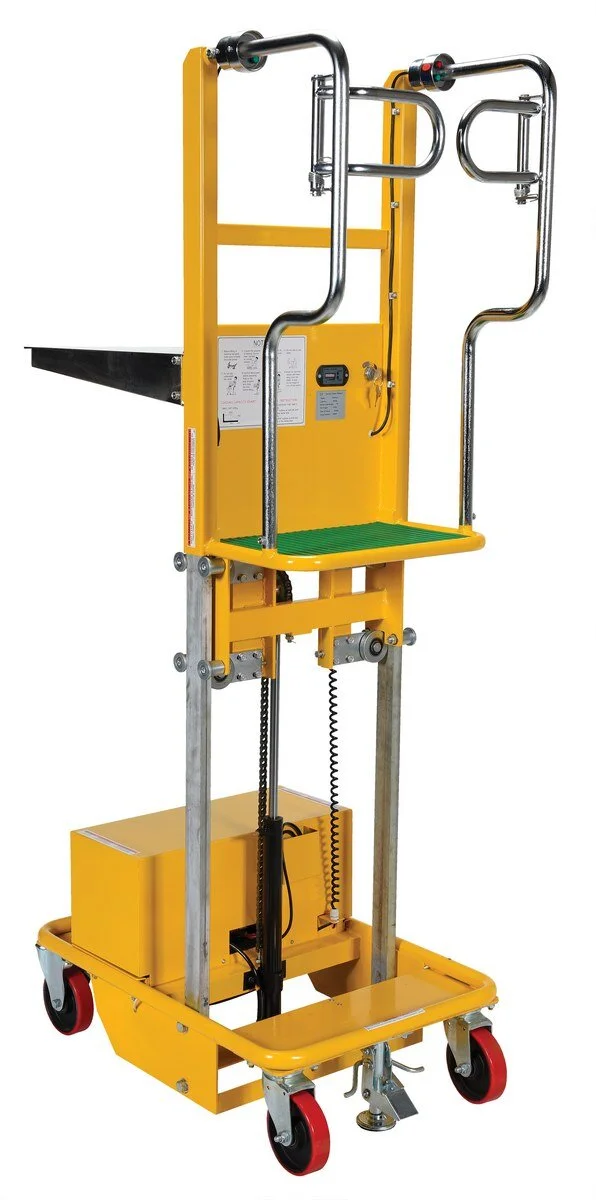

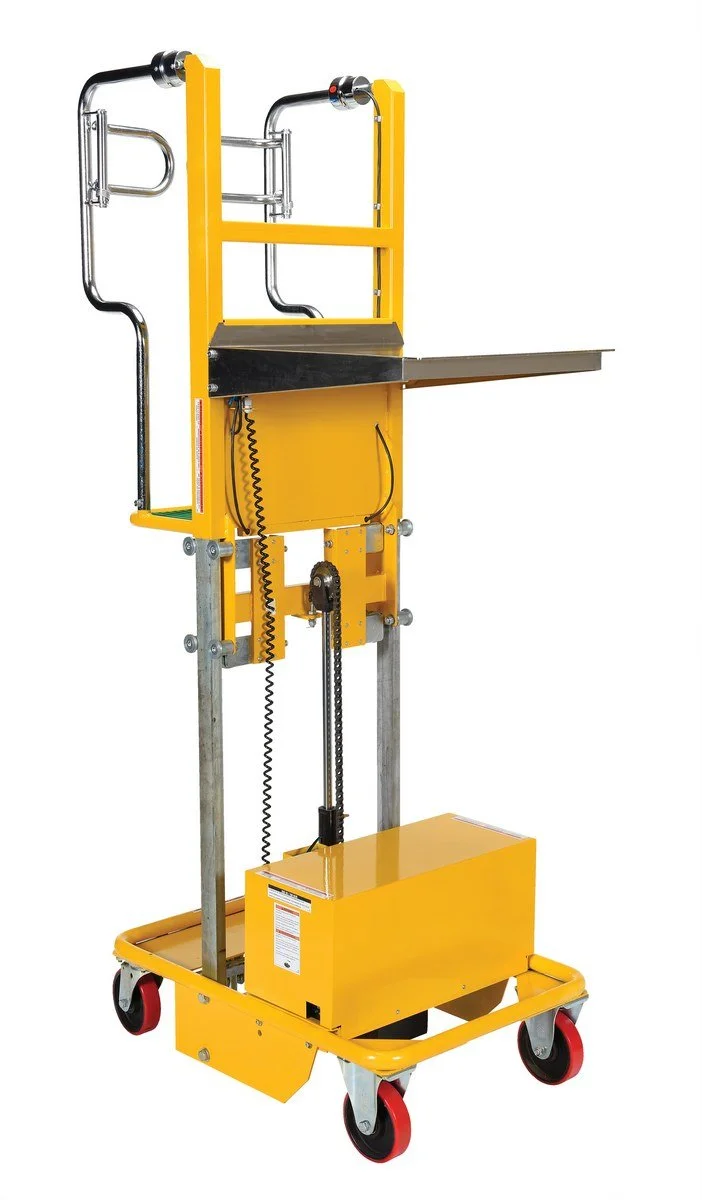

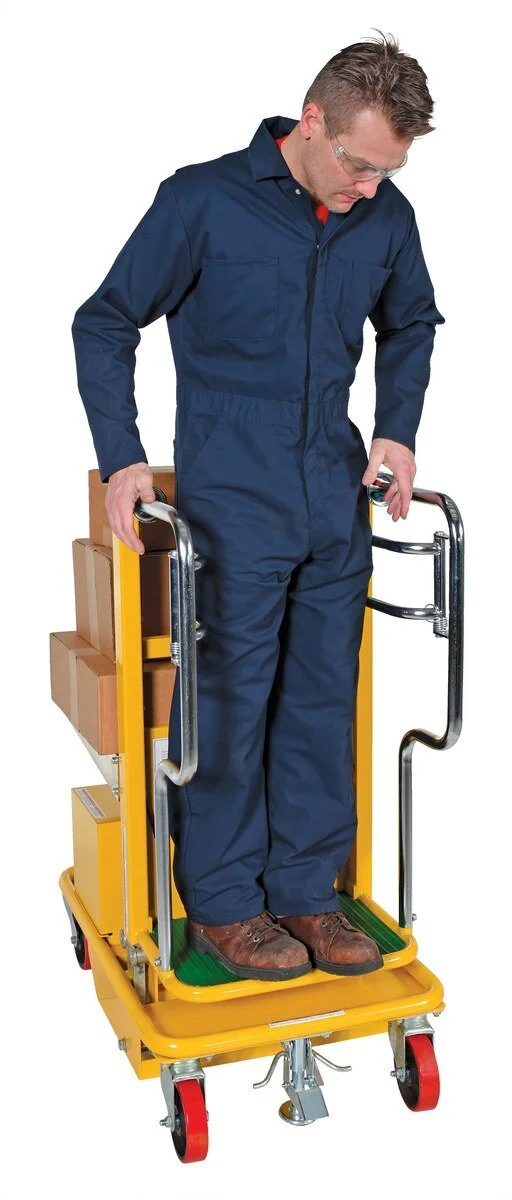

Model DS-EOP-440: Reduce strain while increasing safety and productivity during repeated order picking applications. Manually pushed unit is easy to position. The lift operates with a 12V DC battery. Includes an on-board charger.

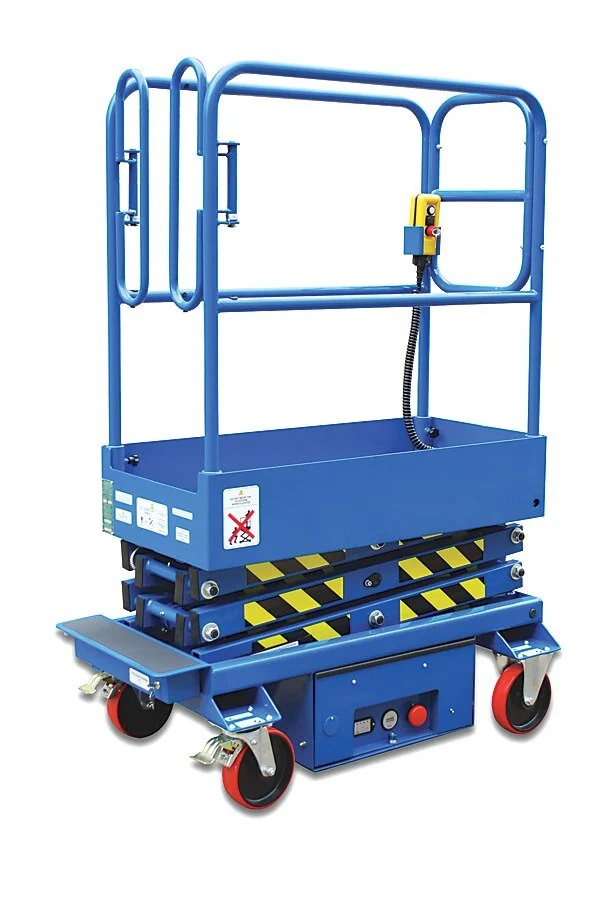

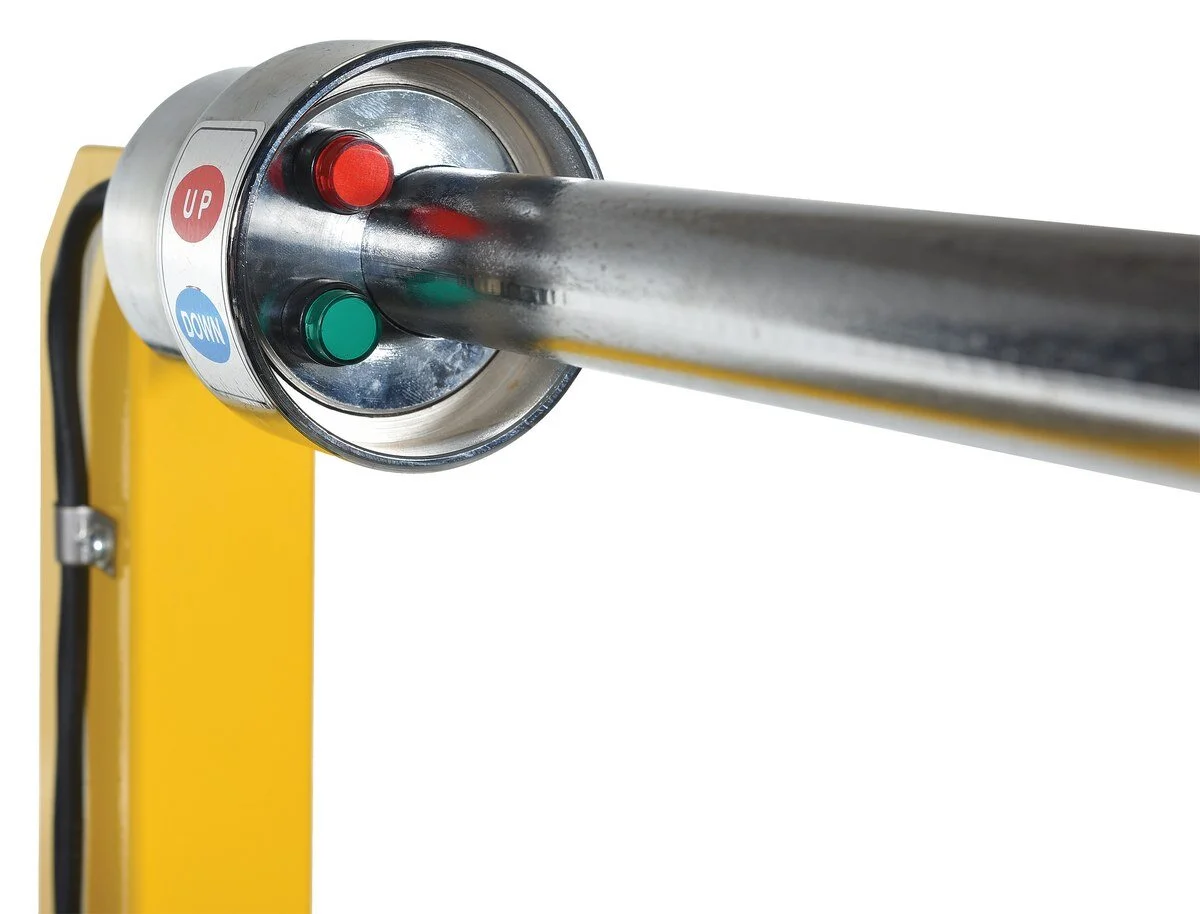

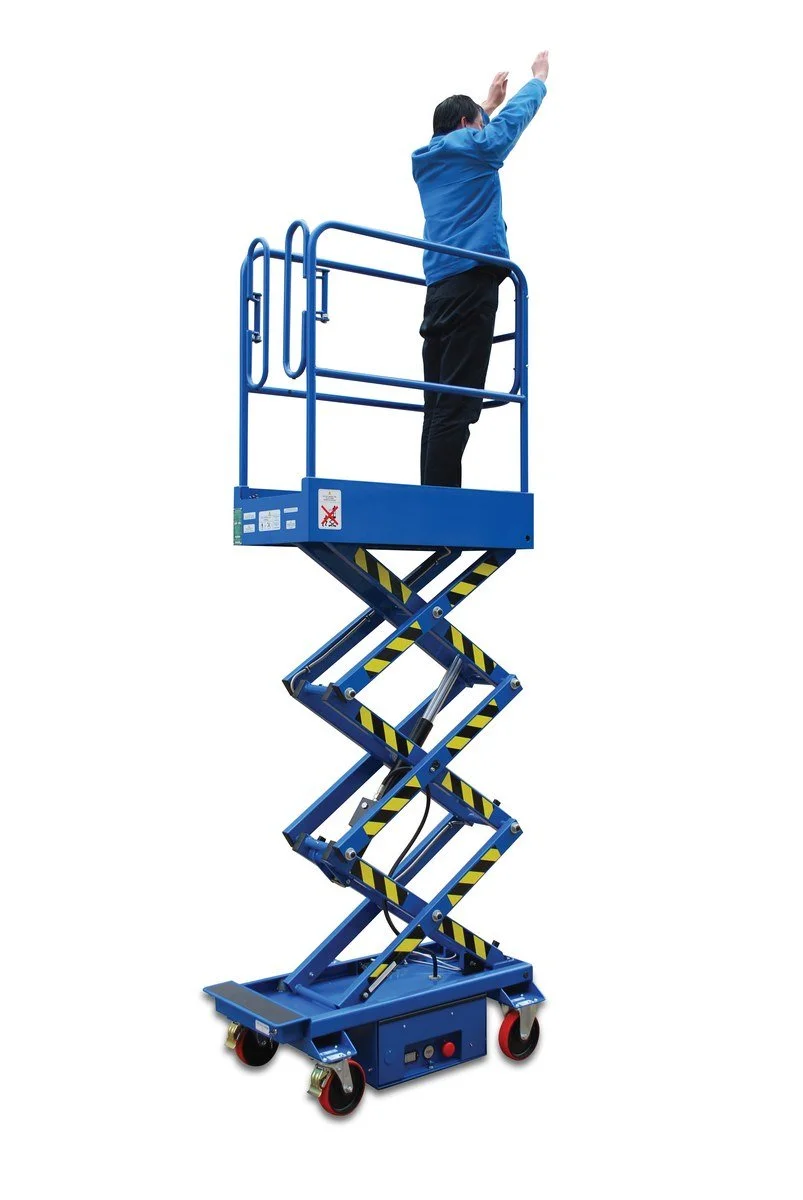

Model DS-EOP-500: All steel, manually-propelled EOP-500 allows personnel to access material stored in elevated locations faster, safer, and more efficiently than traditional means. Features include bubble levels for proper leveling and safety stops to mechanically prevent the platform from lowering during maintenance. Compact, stable lifts are designed to maneuver in tight spaces and to provide simple, push-button elevator activation. Manual platform emergency lowering valve and slip-resistant deck standard. Rolls on 8" polyurethane swivel and fixed casters. Lift time when loaded is about 20 seconds. With the unit unloaded, lift time is about 14 seconds.
Pricing
| Electric - Order Picker | ||||||
|---|---|---|---|---|---|---|
| Model Number | Service Range | Platform Size [WxL] | Overall Size [WxLxH] | Uniform Capacity [lbs] | Weight [lbs] | Price |
| DS-EOP-440 | 26" to 59" | 21-5/8" x 23-9/16" | 23"x41-1/2"x48-3/4" | 440 | 419 | $5,512 |
| DS-EOP-500 | 27" to 118" | 19" x 40" | 30-11/16" x 49-7/16" x7 0-7/8" | 500 | 898 | $9,455 |
| All dimensions are in inches / These lifts typically ship within a week | ||||||
Features
Standard Features:
Reduces strain while increasing safety and productivity
Manually pushed unit is easy to position
Operates with a DC battery and includes an on-board charger
Comes with standard 110V plug for charging
The turning radius of the EOP-440 is 43-38”
Rolls on two 2 swivel casters and 2 rigid casters smooth for maneuverability
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manuals:
DS-EOP-440-MANUAL
DS-EOP-500-MANUAL
Drawings:
DS-EOP-440-DRAWING
DS-EOP-500-DRAWING
Videos:
Electric Order Picker
