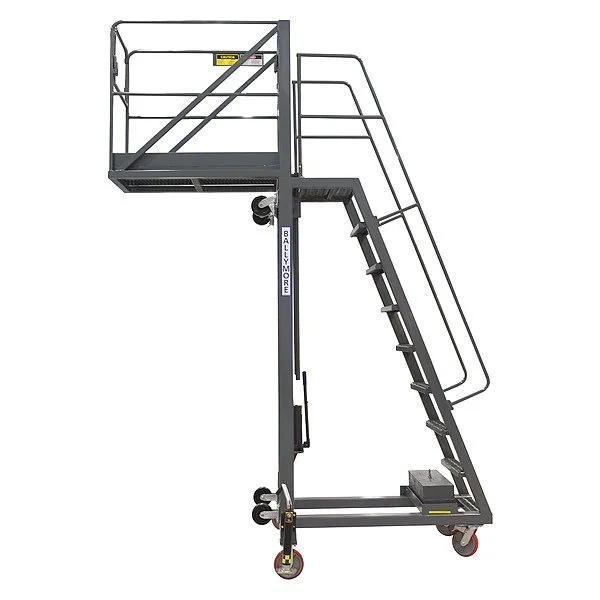

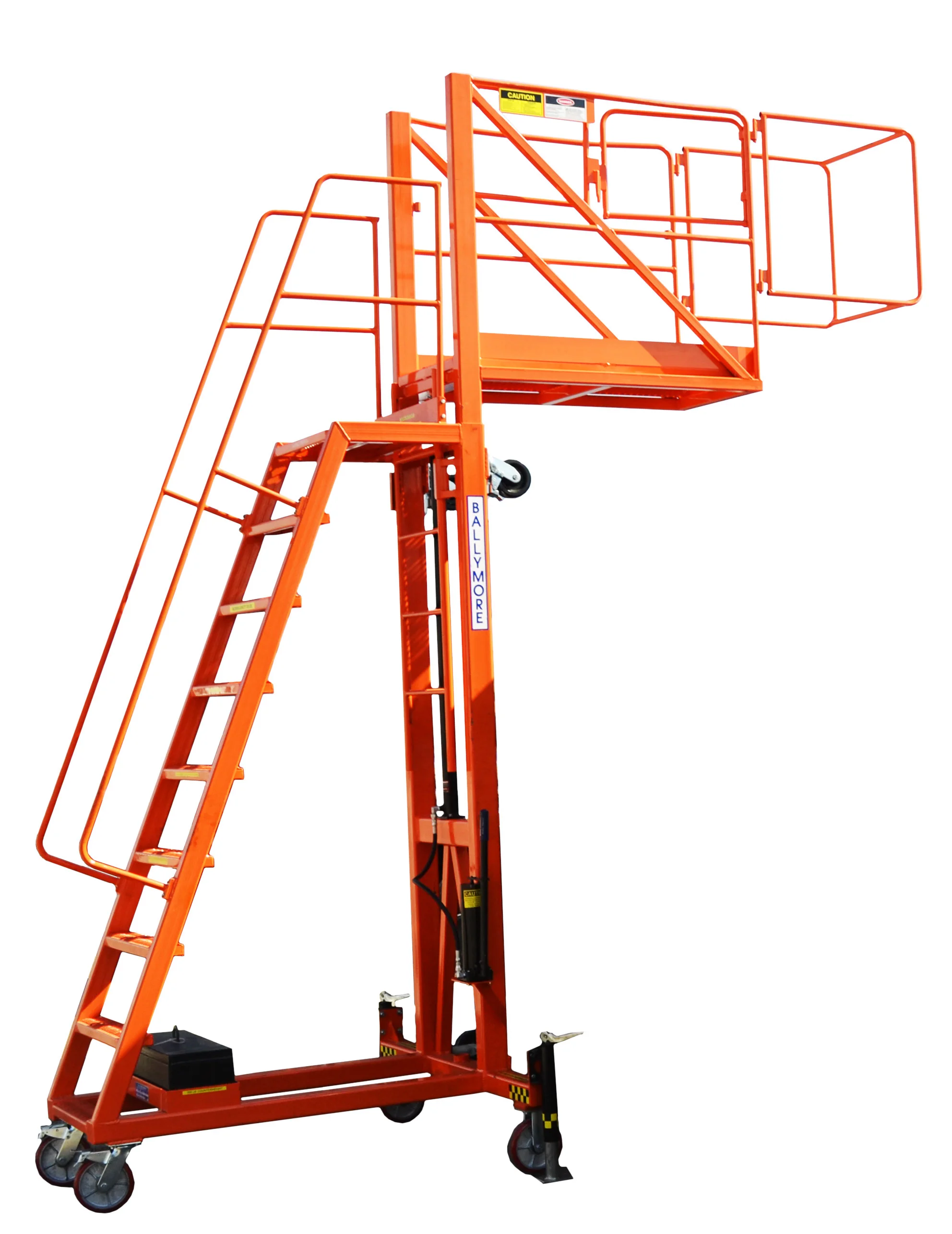

Tank Top Lift

from $8,136.00

The Tank Top Lift reaches over the side of tankers to give top access.  Great to use when you a situation where you need multiple ladders.   This one replaces up to four different rolling ladders.

Model Number:
Quantity:
Add To Cart

Pricing

Tank Top - Lift
Model NumberPlatform
Max Height
Platform
Min Height
Platform
Length
Platform
Width
Platform
W x L
Clearance
Under Height
Clearance
Height Adj.
Weight
(lbs.)
PowerPrice
DS-TT-7-1111'8"7'4"48"16"24"x48"7' to 11'Yes1450Hydraulic$8,928
DS-TT-91313'8"9'4"48"16"24"x48"9' to 13'Yes1525Hydraulic$9,149
DS-TT-11-1515'8"11'4"48"16"24"x48"11' to 15'Yes1625Hydraulic$9,767
DS-TT-913F13'8"9'4"48"19"24"x48"9' to 13'No1450NA$7,533
DS-AJ-1115.515'5"11'48"24"24"x48"10' to 14'Yes1800Hydraulic$12,599
All dimensions are in inches

Features

Standard Features:

  • Gives access to tank trucks, railroad cars and similar cantilevered applications

  • Manually propelled on hard level surfaces

  • 48" long platform

  • Hydraulic hand pump raises and lowers the unit

  • Step and deck tread is open serrated grating

  • Slip resistant rungs give access to the platform when raised

  • Base is 28" wide x 60" long

  • Fixed outriggers spread 69"

  • Handrails on both sides

  • Gates at each end of platform

  • Two swivel and two rigid 8" casters

  • Two adjustable stabilizing jacks

  • 300 lb. capacity

  • Grey enamel paint, powder coat safety orange available at extra cost

How to use the pump: make sure the valve is closed and pump the handle to raise. Open the valve to lower.

Options

Options:

  • Tool tray +$158

  • Fluorescent tube holder +$284

  • Removable 30" extension railing +$483

  • Powder coat safety orange finish (recommended for outdoor applications) +$538

  • To change the tread to Perf or matting on the platform $2400

Parts

Parts:

  • Replacement Ram Part#01500034 $414 [UPS'able]

Please call 1-888-802-3651 for replacement parts
