Steel Roll-Out Shelving
Steel Roll-Out Shelving

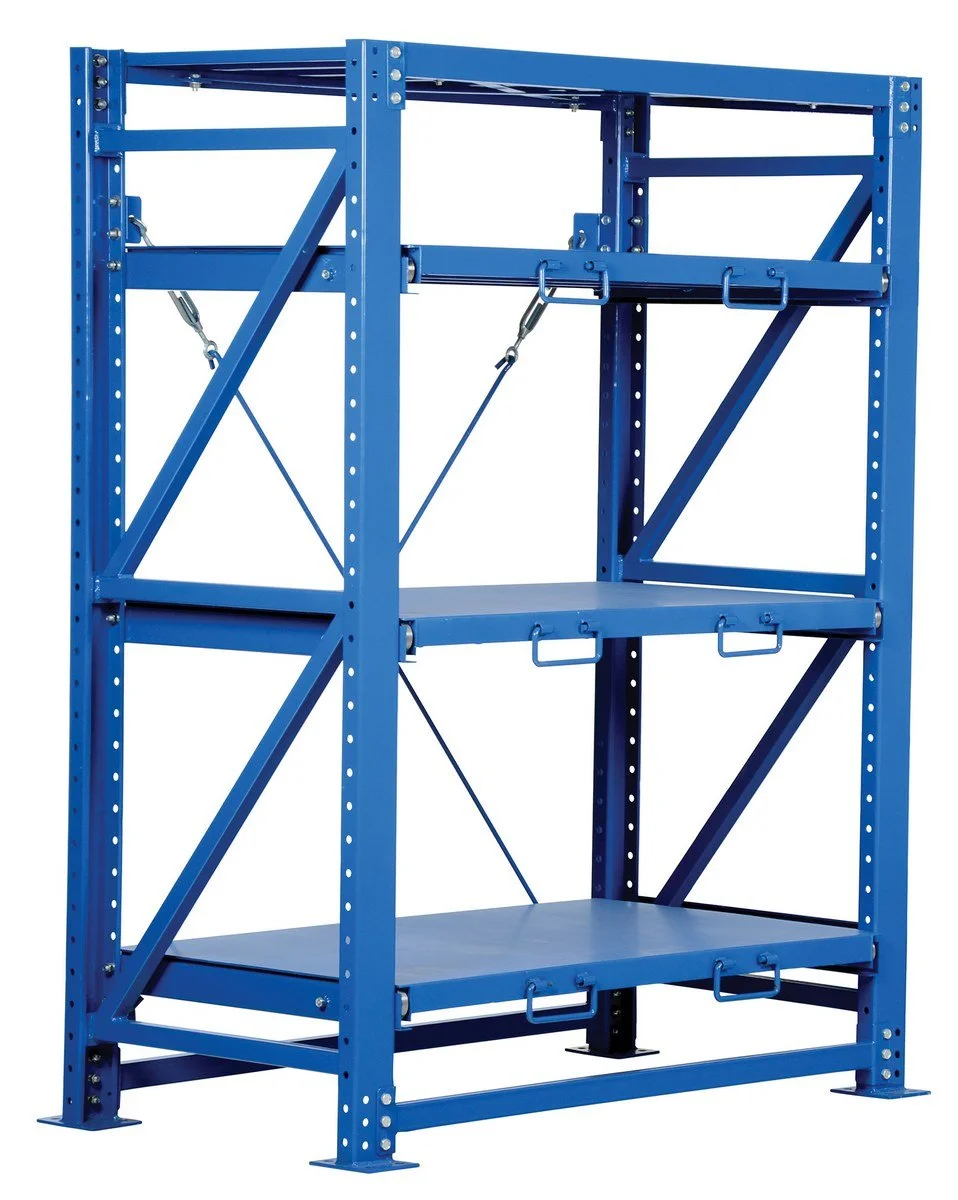

This heavy duty roll-out shelving stores heavy dies, fixtures and machinery. Shelves roll out for convenient loading and retrieving. Can be easily loaded and unloaded with a crane, overhead hoist, forklift or stacker. Individual shelf height are adjustable. Features 3 steel shelves that can be extended 20", one (1) at a time, and locked in the extended position for maximum safety. There is a top fixed non-adjustable shelf. All steel construction with powder coat finish.
Features three 10 gauge steel shelves that can be extended out 20", one at a time, and locked in the extended position for maximum safety. Top shelf is fixed and non adjustable. Add on units and add on shelves are available. The unit has 67 shelf hole heights with mounting holes 2-1/4 in apart. Each shelf needs approximately 6 in to function properly. Capacity is 6,000 per set and 1,500 per shelf. All steel construction with powder coat finish. Ships unassembled.
Pricing
| Model Number | Shelf Size [DxLxH] |
Shelves | Weight [lbs] |
Price |
|---|---|---|---|---|
| DS-VRSOR-60 | 60"W x 32"L x 80"H | 3 | 485 | $2,987 |
| DS-VRSOR-120 | 120"W x 32"L x 80"H | 6 | 830 | $5,185 |
| Model Number | Shelf Size [DxLxH] |
Shelves | Weight [lbs] |
Price |
|---|---|---|---|---|
| DS-VRSOR-A-60 | 57"W x 32"L x 80"H | 3 | 395 | $2,449 |
Features
Standard Features:
1,500 lb. capacity per shelf
3" channel frame is punched to permit 2-1/4" vertical adjustability
Shelves are 10 gauge steel
Shelf extends 20”
Shelf height is adjustable on 2-1/4" centers

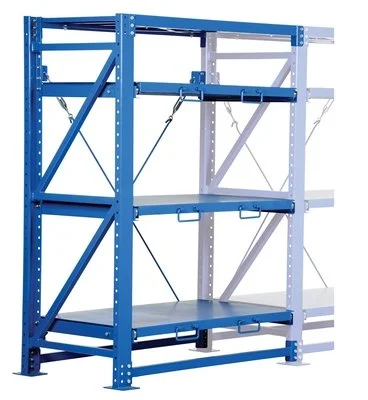

Racks can be expanded with add-on units
Blue powder coated finish
Ships knocked down
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-VRSOR-114-MANUAL
Drawings:
DS-VRSOR-114-DRAWING
