Steel Custom Work Platforms

$405.00

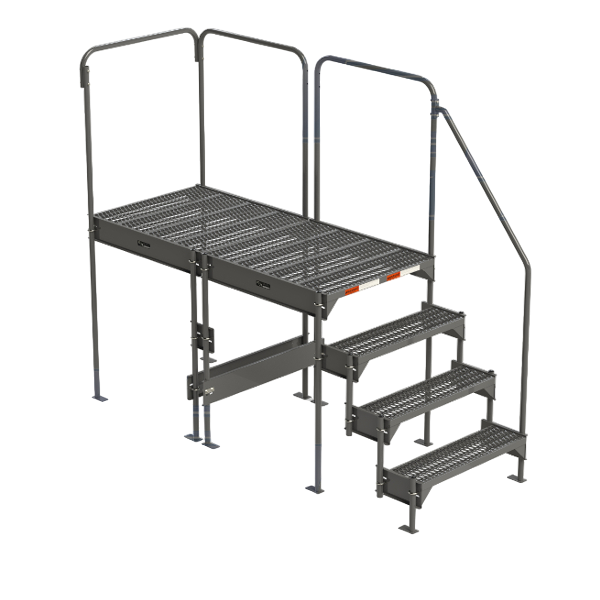

Custom Work Platforms allow you to choose the style, height and configuration that meets your commercial or industrial work space. Select a single platform, or choose an extension unit which allows you to add 3’ to the width of select platform styles. This unit can be at the same height, of function as a step-down area below existing platforms. Multiple options enable you to build a large surface area that surrounds machinery or spans the entire shop, factory or warehouse floor.

Our work platforms have a 500 lb. capacity. All of these custom work platforms, regardless of the dimensions and purpose, meet or exceed OSHA standards. Please call us and we will be happy to help with the layout of your platform system.

Model Number:
Quantity:
Add To Cart

Pricing

Custom Work Platforms - Grip Strut Tread
Model # Style # of
Steps
Overall
Width
Overall
Length
Overall
Height
Platform
Width
Platform
Length
Platform
Height
Weight
Lbs.
Grip Strut

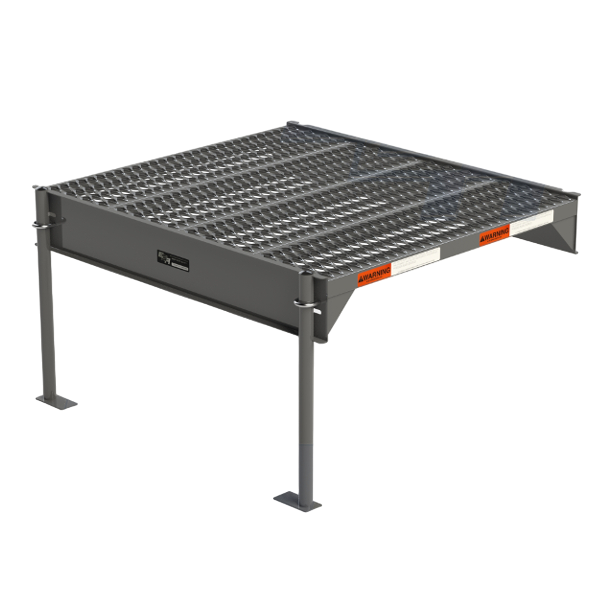

DS-CW0-21-0-3 0 N/A 39" 39" 21" 35" 39" 21" 100 $653

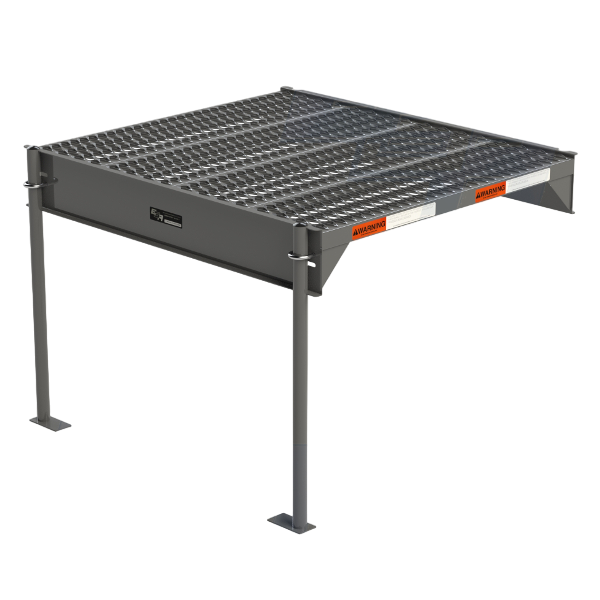

DS-CW0-27-0-3 0 N/A 39" 39" 27" 35" 39" 27" 115 $764

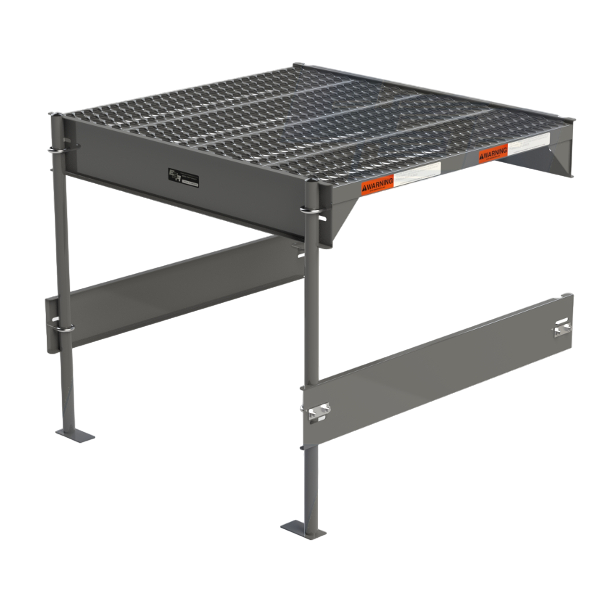

DS-CW0-33-0-3 0 N/A 39" 39" 33" 35" 39" 33" 115 $765

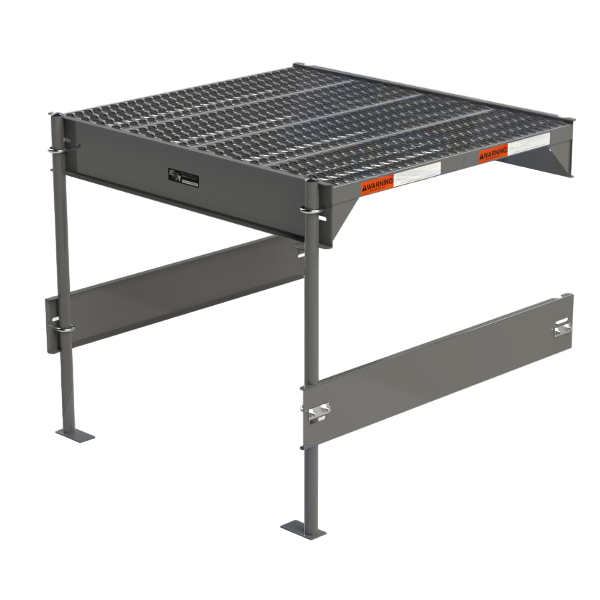

DS-CW0-39-0-3 0 N/A 39" 39" 39" 35" 39" 39" 115 $779

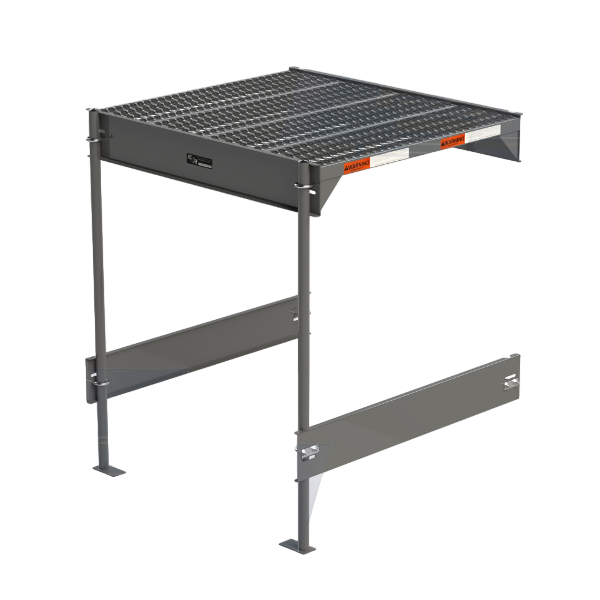

DS-CW0-45-0-3 0 N/A 39" 39" 45" 35" 39" 45" 115 $825

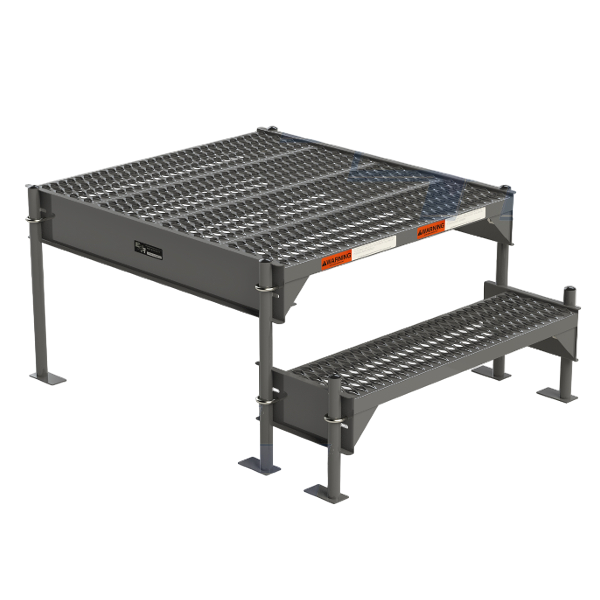

DS-CW1-21-2-3 1 2 39" 57" 21" 35" 39" 21" 120 $1,031

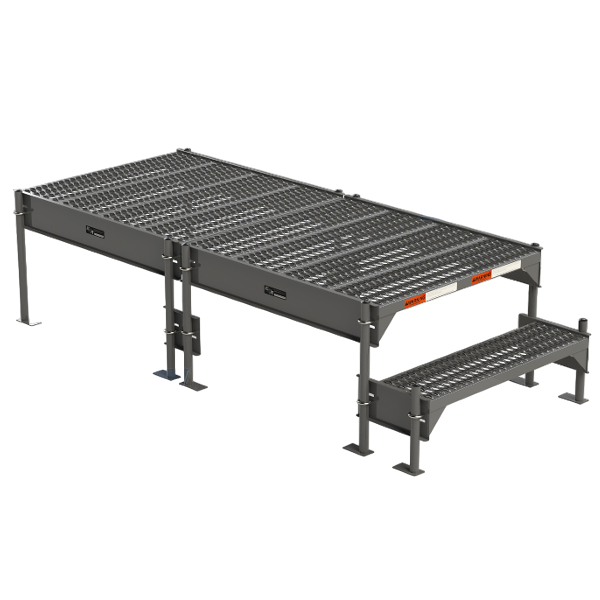

DS-CW1-21-2-6 1 2 39" 95" 21" 35" 77" 21" 187 $1,781

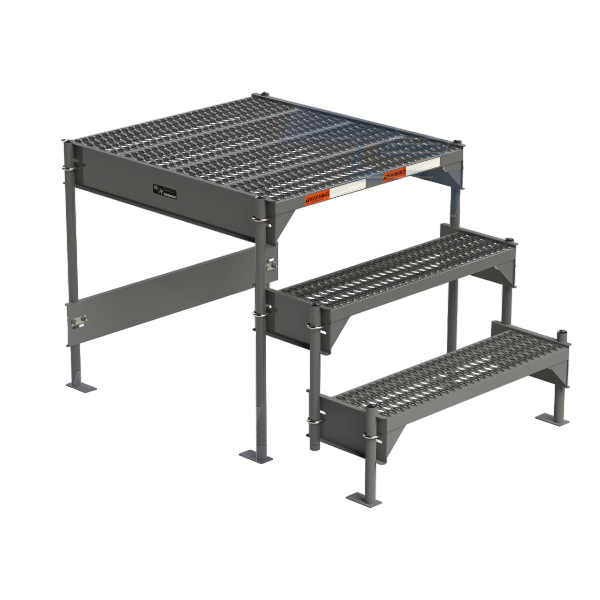

DS-CW1-33-3-3 1 3 39" 57" 33" 35" 39" 33" 140 $1,320

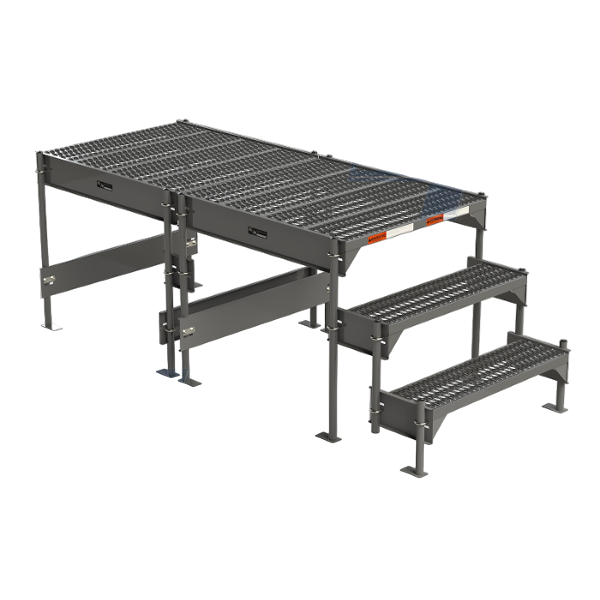

DS-CW1-33-3-6 1 3 39" 95" 33" 35" 77" 33" 230 $2,265

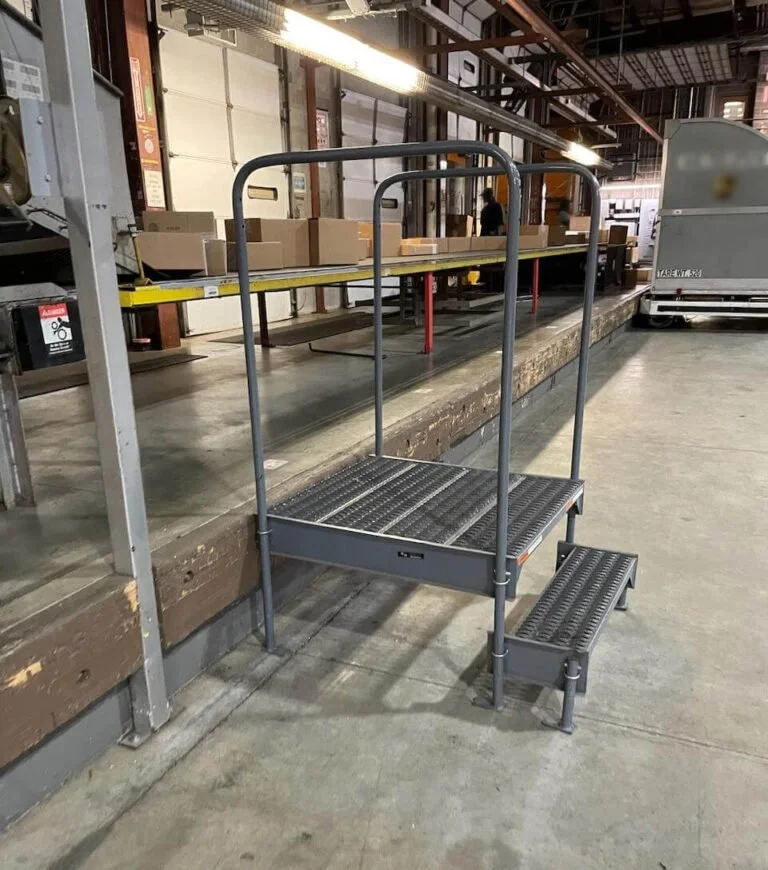

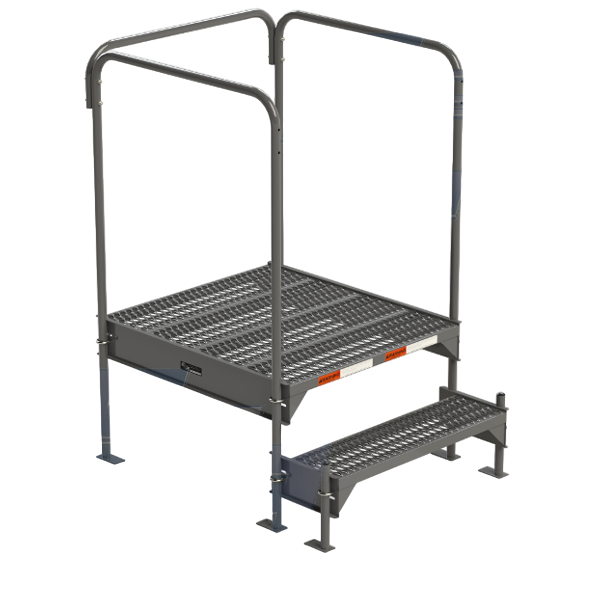

DS-CW2-21-2-3 2 2 39" 48" 55" 35" 39" 21" 150 $1,314

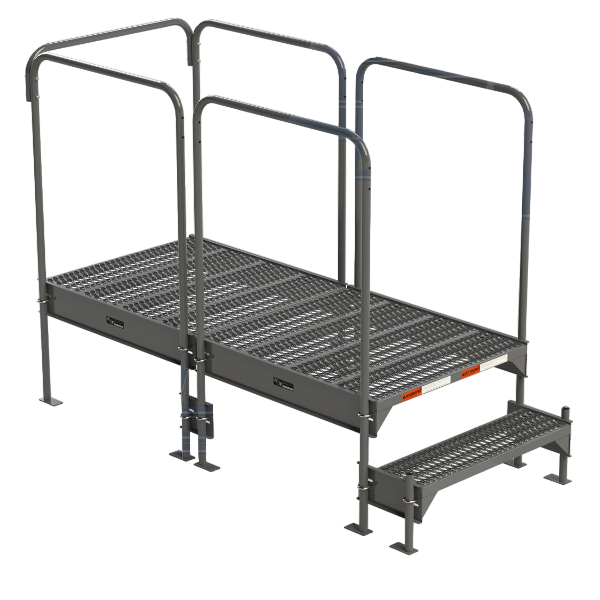

DS-CW2-21-2-6 2 2 39" 86" 55" 35" 77" 21" 235 $2,376

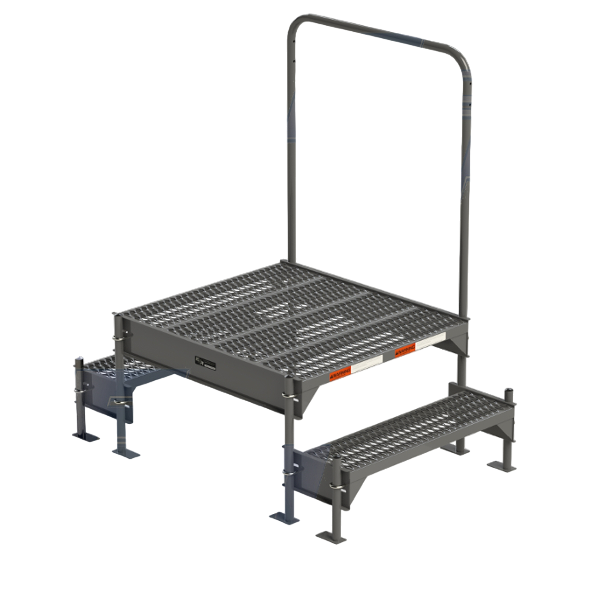

DS-CW3-21-2-3 3 2 39" 57" 55" 35" 39" 21" 150 $1,403

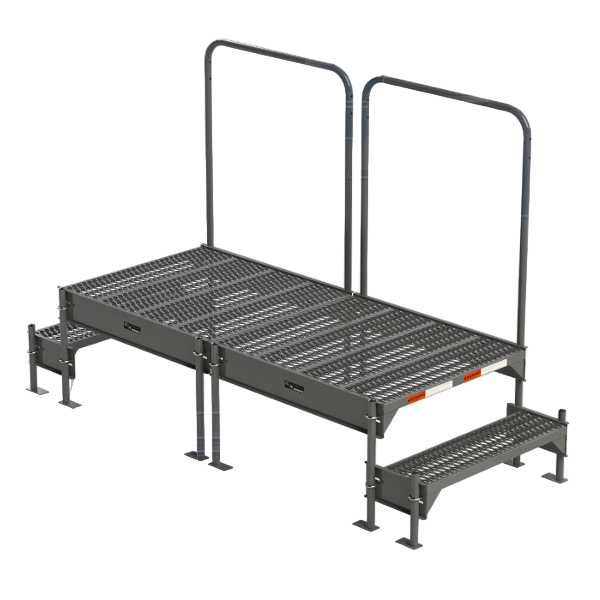

DS-CW3-21-2-6 3 2 39" 95" 55" 35" 77" 21" 225 $2,343

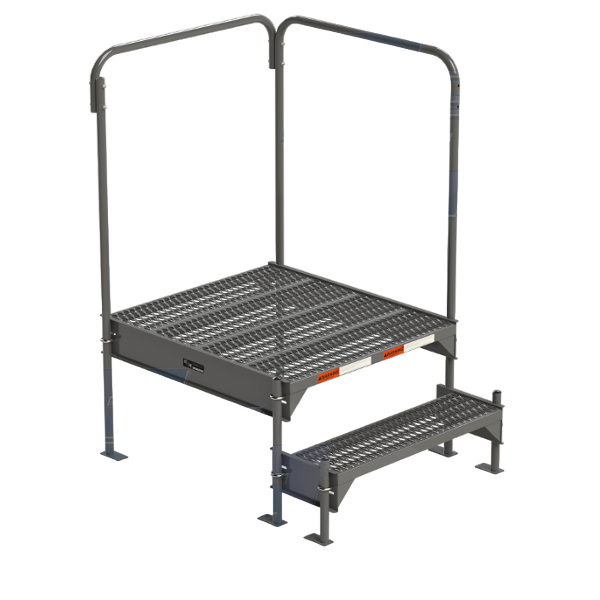

DS-CW4-21-2-3 4 2 39" 48" 55" 35" 39" 21" 145 $1,196

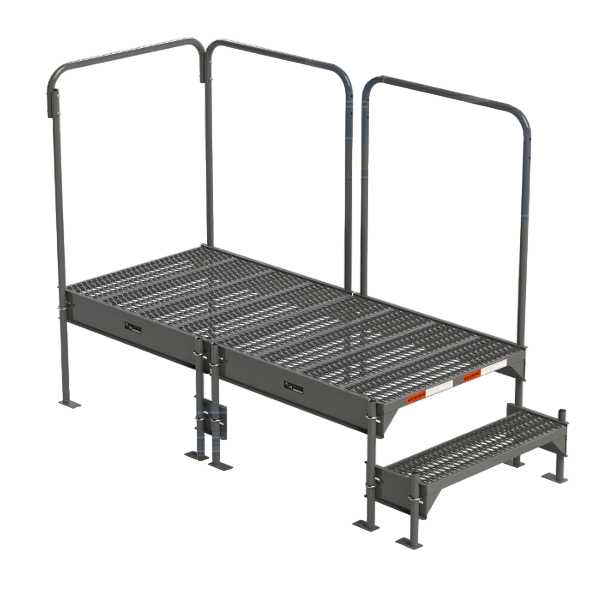

DS-CW4-21-2-6 4 2 39" 86" 55" 35" 77" 21" 225 $2,118

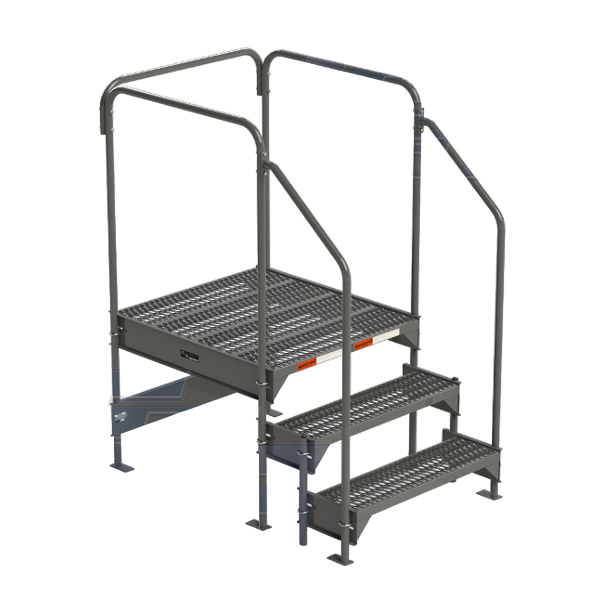

DS-CW5-27-3-3 5 3 39" 57" 61" 35" 39" 27" 185 $1,776

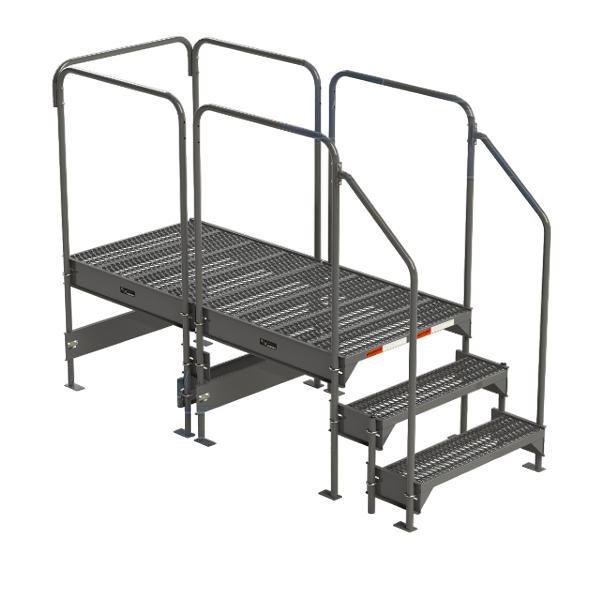

DS-CW5-27-3-6 5 3 39" 95" 61" 35" 77" 27" 285 $3,030

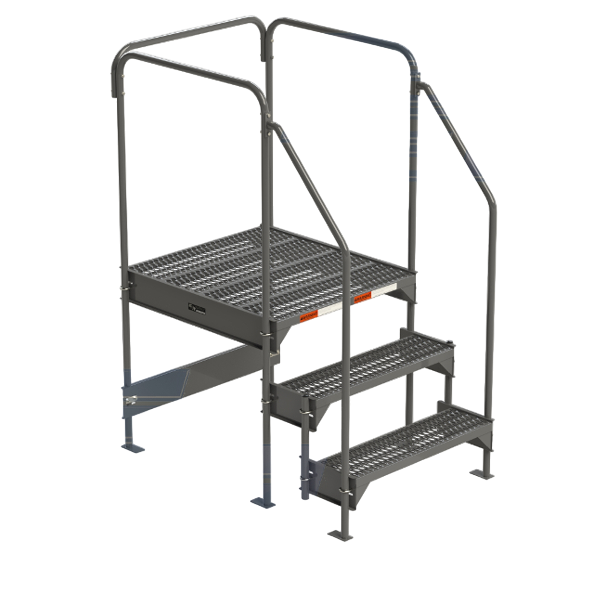

DS-CW5-33-3-3 5 3 39" 57" 67" 35" 39" 33" 185 $1,809

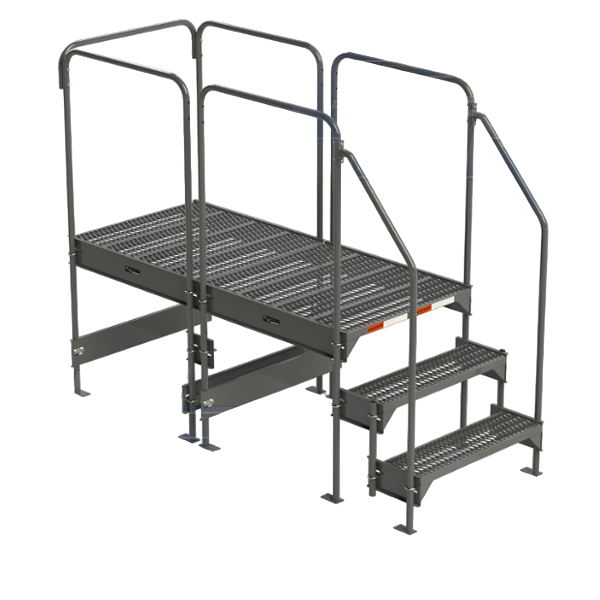

DS-CW5-33-3-6 5 3 39" 95" 67" 35" 77" 33" 290 $3,126

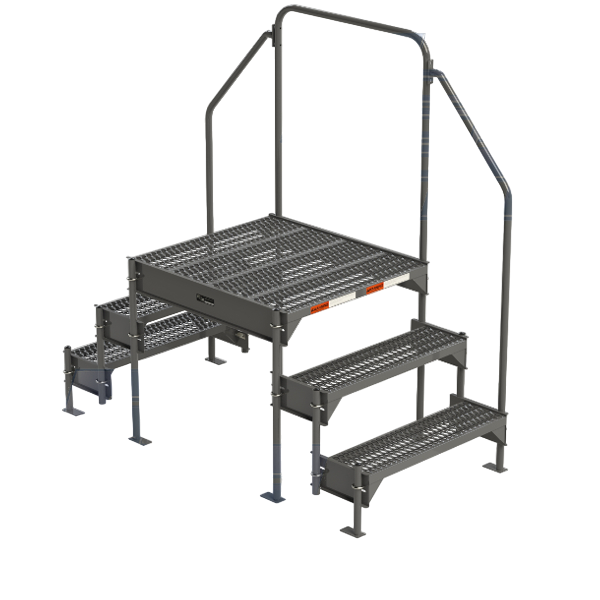

DS-CW6-33-3-3 6 3 39" 75" 67" 35" 39" 33" 207 $2,223

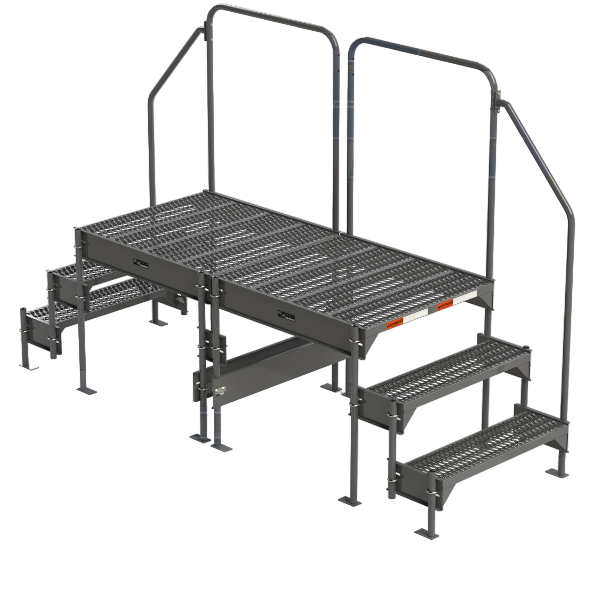

DS-CW6-33-3-6 6 3 39" 113" 67" 35" 77" 33" 290 $3,377

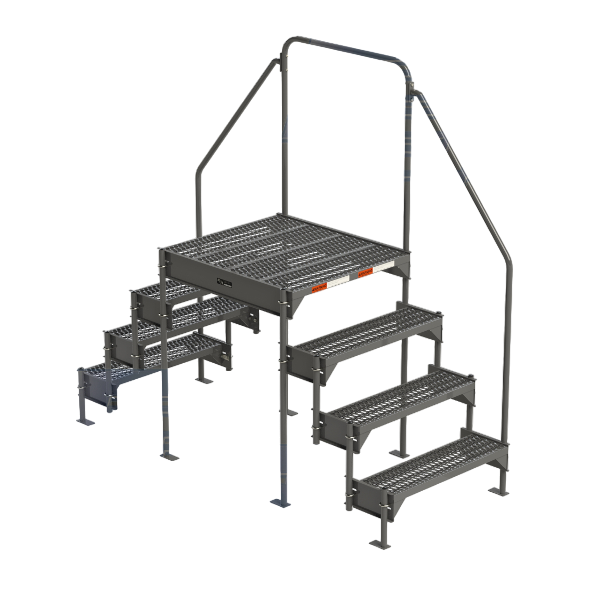

DS-CW6-45-4-3 6 4 39" 93" 79" 35" 39" 45" 245 $2,952

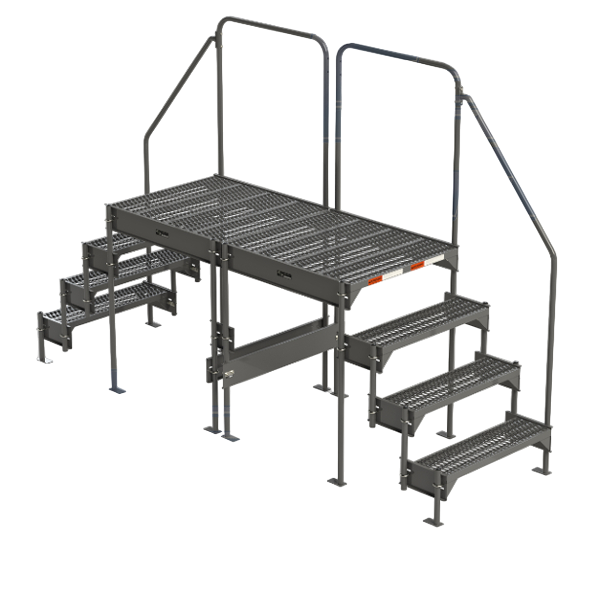

DS-CW6-45-4-6 6 4 39" 131" 79" 35" 77" 45" 335 $4,110

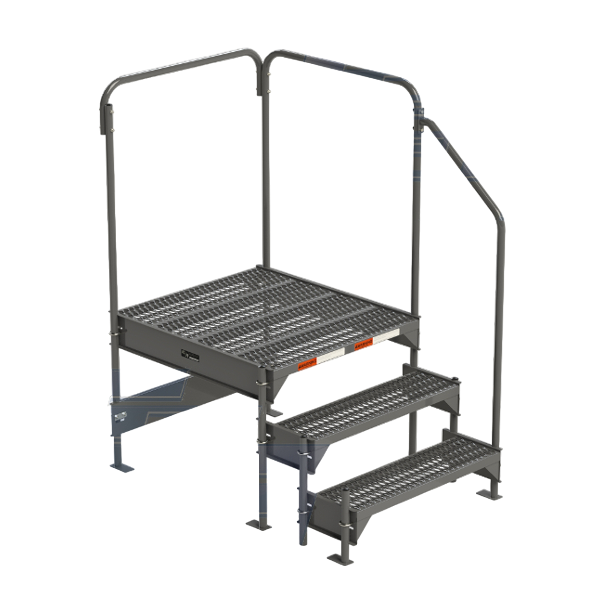

DS-CW7-27-3-3 7 3 39" 57" 61" 35" 39" 27" 180 $1,598

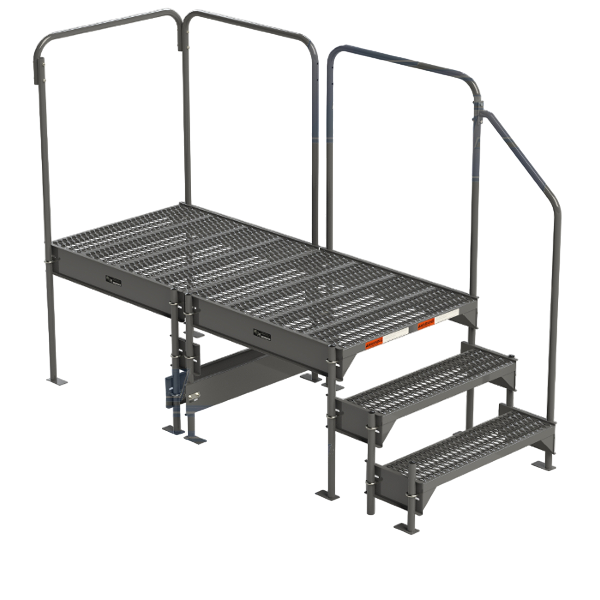

DS-CW7-27-3-6 7 3 39" 95" 61" 35" 77" 27" 260 $2,720

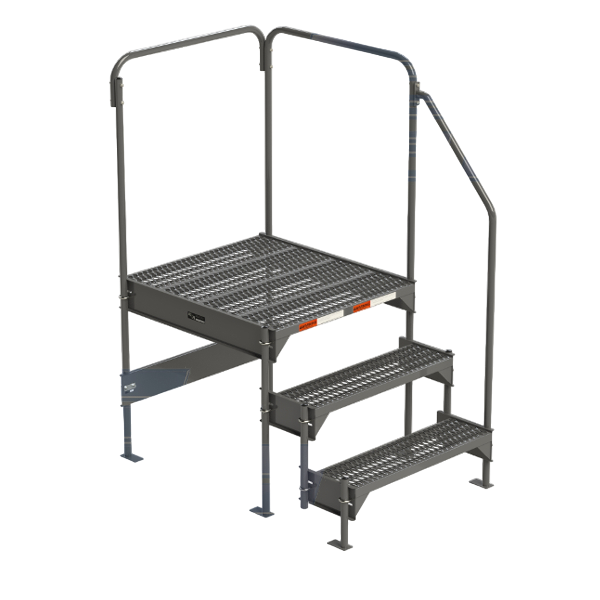

DS-CW7-33-3-3 7 3 39" 57" 67" 35" 39" 33" 175 $1,983

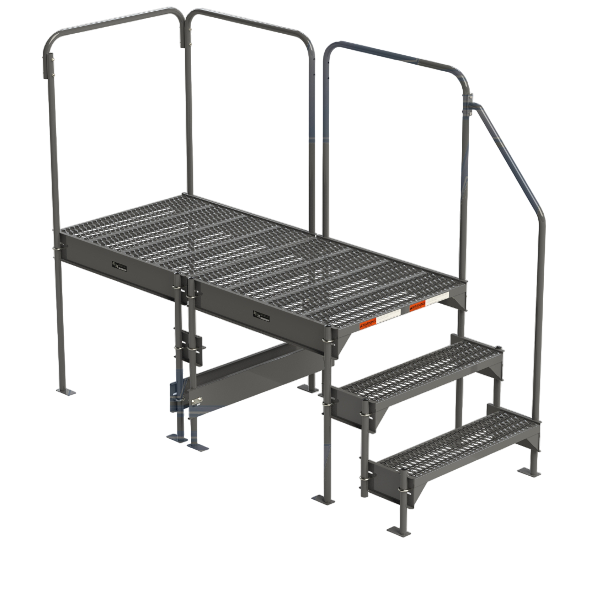

DS-CW7-33-3-6 7 3 39" 95" 67" 35" 77" 33" 265 $3,135

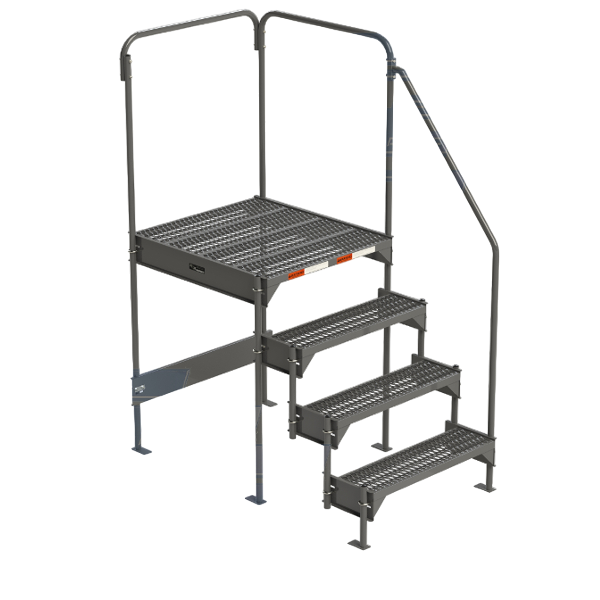

DS-CW7-45-4-3 7 4 39" 66" 79" 35" 39" 45" 200 $2,006
DS-CW7-45-4-6 7 4 39" 104" 79" 35" 77" 45" 290 $3,180

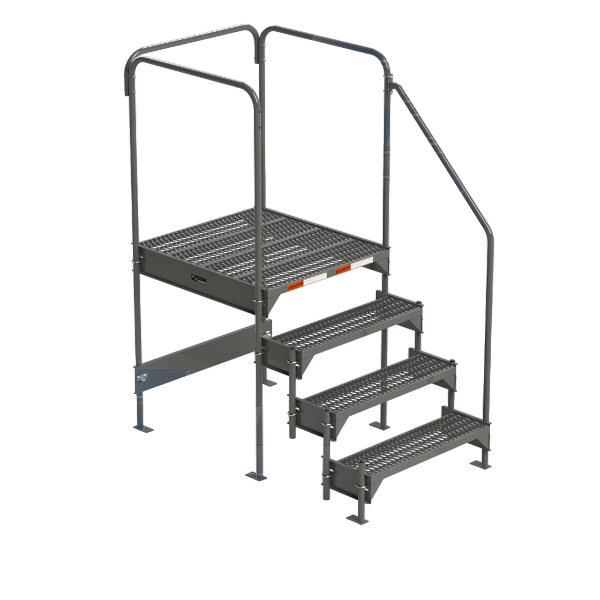

DS-CW8-39-4-3 8 4 39" 66" 73" 35" 39" 39" 205 $2,154

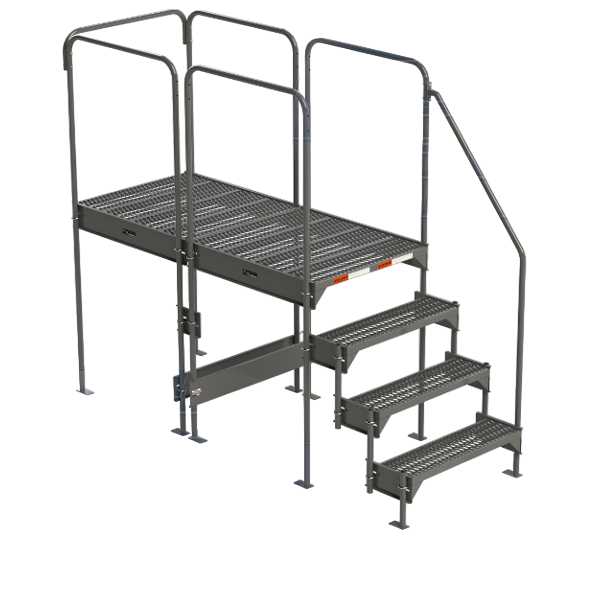

DS-CW8-39-4-6 8 4 39" 104" 73" 35" 77" 39" 310 $3,447

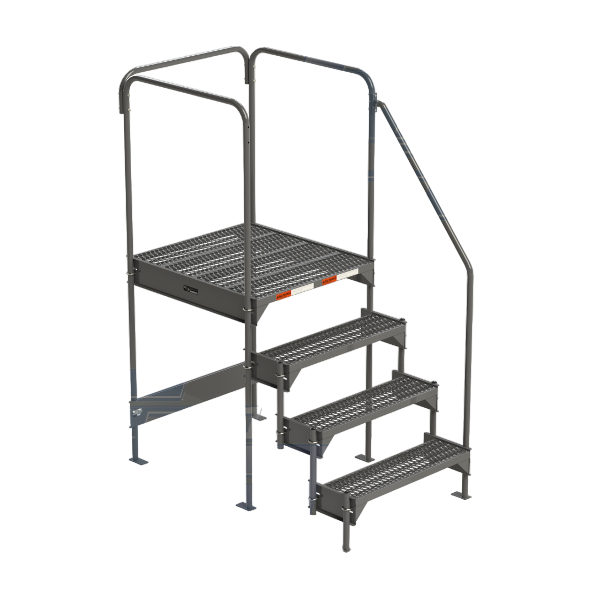

DS-CW8-45-4-3 8 4 39" 66" 79" 35" 39" 45" 205 $2,165
DS-CW8-45-4-6 8 4 39" 104" 79" 35" 77" 45" 310 $3,449

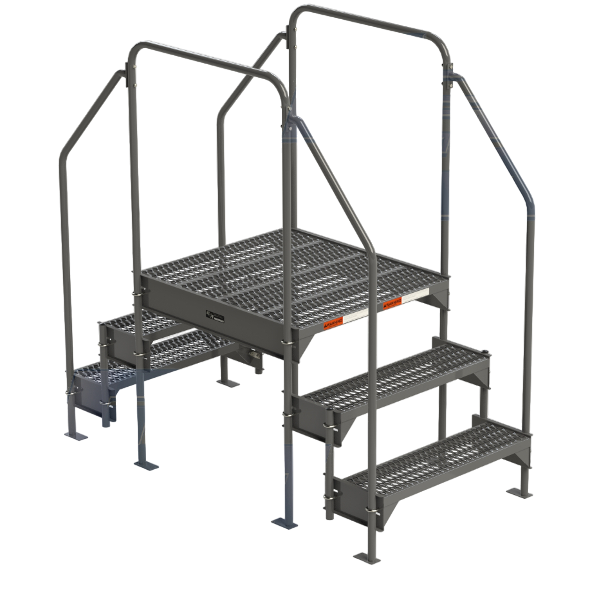

DS-CW9-33-3-3 9 3 39" 75" 67" 35" 39" 33" 235 $2,471

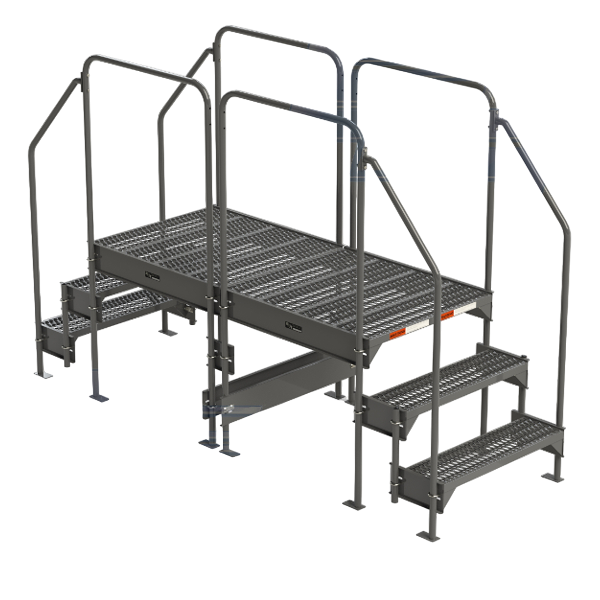

DS-CW9-33-3-6 9 3 39" 113" 67" 35" 77" 33" 340 $3,789
All Dimensions are in inches. 5 day lead-time

Features

Standard Features:

  • Adjust the platform height up to 3″ (ex: a 21″H platform can be adjusted to 18″-21″H)

  • Build large multi height work platforms that surround machinery or span entire factory or warehouse floor spaces

  • Attach same height lift extension units to select platforms that add 3 feet of width

  • Use units of different height to create multi level areas for easier access to work areas

  • Rigid 1-1/4" tubing provides strength and durability

  • Steps are 36" wide and 9 1/2" deep

  • Grip Strut tread for slip resistant footing

Custom Work platform product line is fabricated to be in compliance with OSHA Standards. This product line is best described as a “Special Purpose” Portable Platform Ladder per discussions with OSHA-Technical Support (Chicago) and thus would fall under 29CFR1910 Subpart D Walking-Working Surfaces (paragraphs 1910.21 thru 1910.30) and more specifically 29CFR1910.26

Options

No options available for this product.

Parts

Please call 1-888-802-3651 for replacement parts

Tread Types

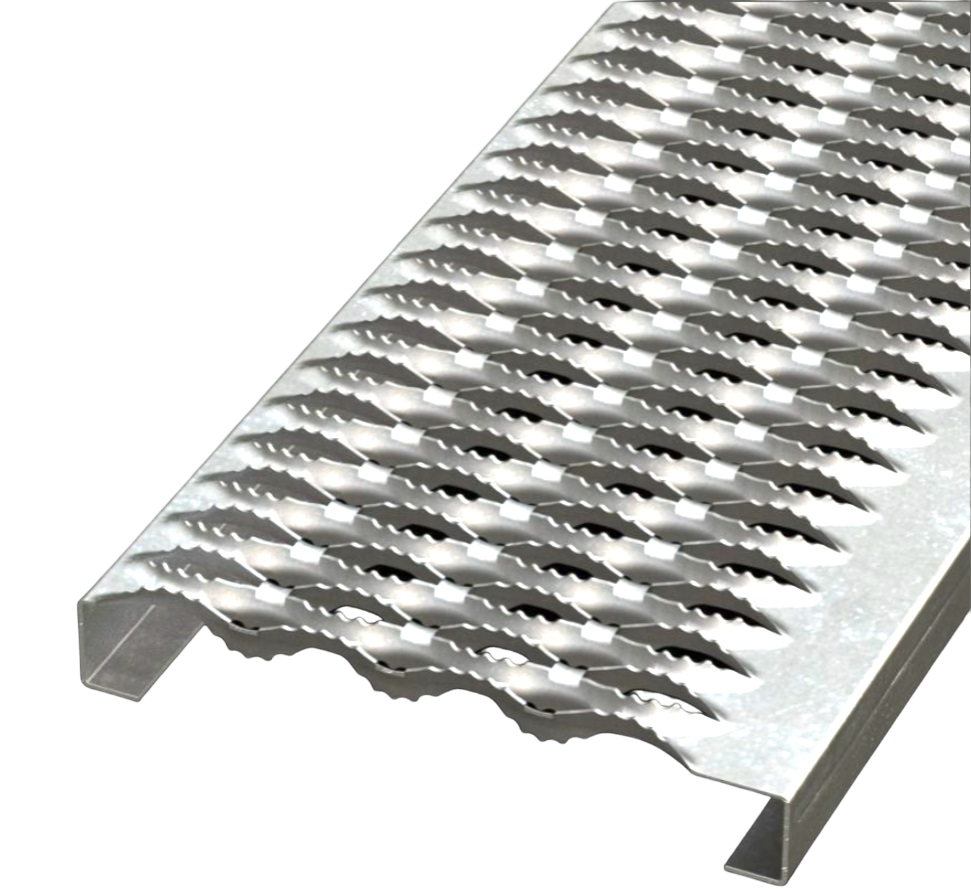

GRIP STRUT TREAD:

  1. Self-Cleaning Properties: The design of Grip Strut tread allows debris to fall through the openings, maintaining a clean and safe walking surface.

  2. Superior Slip-Resistance: Grip Strut tread offers the most aggressive slip-resistance available, making it suitable for any environment where safety is a priority.

  3. Durability: This tread type is known for its toughness and resistance to rust, ensuring longevity even in harsh conditions.

  4. High Load Capacity: Heavy Duty Grip Strut can handle greater loads and longer spans, making it ideal for larger platforms and more demanding applications.

  5. Safety: By providing high-adhesive friction and reducing the risk of slips and falls, Grip Strut treads help to lower company liabilities and enhance worker safety.


GRIP STRUT TREAD
