Truck Scissor Dock Lift
Truck Scissor Dock Lift

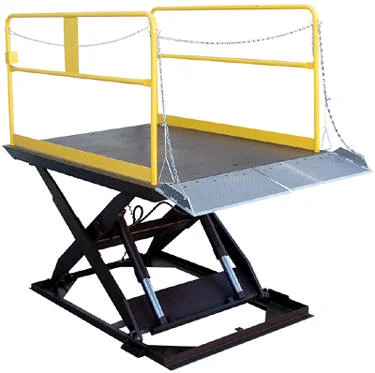

This Truck Scissor Dock Lift may save time by reducing man hours where there is no truck dock.

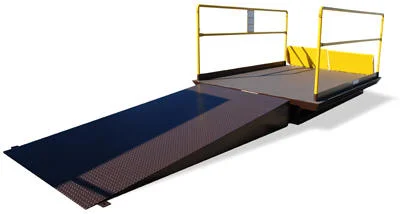

The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. External 6.5 HP 460V, 3-phase, 60Hz motor can be located up to 8 feet away from lift.
Pricing
| Truck Scissor - Dock Lift | ||||||
|---|---|---|---|---|---|---|
| Model # | Platform (W x L) | Service Range | Overall Dim. (W x L x H) | Capacity (lbs.) | Weight (lbs.) | Price |

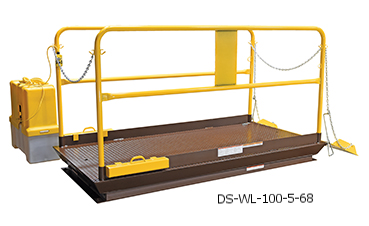

| DS-WL-100-5-48 | 48" x 96" | 8" to 68" | 41" x 93" | 5,000 | 2362 | $9,924 |
| DS-WL-100-5-68 | 72" x 96" | 8" to 68" | 62" x 93" | 5,000 | 2902 | $10,713 |
| DS-WL-100-5-78 | 84" x 96" | 8" to 68" | 62" x 93" | 5,000 | 3059 | $11,464 |
| DS-WL-100-5-88 | 96" x 96" | 8" to 68" | 86" x 93" | 5,000 | 3952 | $12,125 |
| DS-WL-100-5-610 | 72" x 120" | 8" to 68" | 62" x 118" | 5,000 | 3823 | $11,924 |
| DS-WL-100-5-710 | 84" x 120" | 8" to 68" | 62" x 118" | 5,000 | 4027 | $12,451 |
| DS-WL-100-5-810 | 96" x 120" | 8" to 68" | 62" x 118" | 5,000 | 4107 | $12,976 |
| DS-WL-100-6-68 | 72" x 96" | 10" to 70" | 62" x 93" | 6,000 | 3198 | $10,867 |
| DS-WL-100-6-78 | 84" x 96" | 10" to 70" | 62" x 93" | 6,000 | 3496 | $11,894 |
| DS-WL-100-6-88 | 96" x 96" | 10" to 70" | 86" x 93" | 6,000 | 4172 | $12,923 |
| DS-WL-100-6-610 | 72" x 120" | 10" to 70" | 62" x 118" | 6,000 | 3939 | $12,618 |
| DS-WL-100-6-710 | 84" x 120" | 10" to 70" | 62" x 118" | 6,000 | 4038 | $12,937 |
| DS-WL-100-6-810 | 96" x 120" | 10" to 70" | 62" x 118" | 6,000 | 4301 | $13,001 |
| DS-WL-100-8-68 | 72" x 96" | 10" to 70" | 62" x 93" | 8,000 | 4396 | $15,255 |
| DS-WL-100-8-78 | 84" x 96" | 10" to 70" | 62" x 93" | 8,000 | 4592 | $16,039 |
| DS-WL-100-8-88 | 96" x 96" | 10" to 70" | 86" x 93" | 8,000 | 4698 | $16,308 |
| DS-WL-100-8-610 | 72" x 120" | 10" to 70" | 62" x 118" | 8,000 | 4807 | $16,470 |
| DS-WL-100-8-710 | 84" x 120" | 10" to 70" | 62" x 118" | 8,000 | 4193 | $16,973 |
| DS-WL-100-8-810 | 96" x 120" | 10" to 70" | 62" x 118" | 8,000 | 5157 | $17,695 |
| DS-WL-100-10-68 | 72" x 96" | 14" to 72" | 62" x 93" | 10,000 | 5804 | $18,409 |
| DS-WL-100-10-78 | 84" x 96" | 14" to 72" | 62" x 93" | 10,000 | 5991 | $19,432 |
| DS-WL-100-10-88 | 96" x 96" | 14" to 72" | 86" x 93" | 10,000 | 6177 | $19,958 |
| DS-WL-100-10-610 | 72" x 120" | 14" to 72" | 62" x 118" | 10,000 | 6037 | $19,992 |
| DS-WL-100-10-612 | 72" x 144" | 14" to 72" | 62" x 118" | 10,000 | 6504 | $21,205 |
| DS-WL-100-10-710 | 84" x 120" | 14" to 72" | 62" x 118" | 10,000 | 6224 | $20,288 |
| DS-WL-100-10-712 | 84" x 144" | 14" to 72" | 62" x 118" | 10,000 | 6690 | $21,382 |
| DS-WL-100-10-810 | 96" x 120" | 14" to 72" | 62" x 118" | 10,000 | 4562 | $20,904 |
| DS-WL-100-10-812 | 96" x 144" | 14" to 72" | 62" x 118" | 10,000 | 6876 | $24,315 |
| DS-WL-100-12-68 | 72" x 96" | 14" to 72" | 62" x 93" | 12,000 | 6387 | $19,716 |
| DS-WL-100-12-78 | 84" x 96" | 14" to 72" | 62" x 93" | 12,000 | 6573 | $20,775 |
| DS-WL-100-12-88 | 96" x 96" | 14" to 72" | 86" x 93" | 12,000 | 6731 | $20,957 |
| DS-WL-100-12-610 | 72" x 120" | 14" to 72" | 62" x 118" | 12,000 | 66207 | $21,090 |
| DS-WL-100-12-710 | 84" x 120" | 14" to 72" | 62" x 118" | 12,000 | 6807 | $21,574 |
| DS-WL-100-12-810 | 96" x 120" | 14" to 72" | 62" x 118" | 12,000 | 6993 | $22,130 |
| DS-WL-100-12-612 | 72" x 144" | 14" to 72" | 62" x 118" | 12,000 | 7098 | $21,952 |
| DS-WL-100-12-712 | 84" x 144" | 14" to 72" | 62" x 118" | 12,000 | 7225 | $22,360 |
| DS-WL-100-12-812 | 96" x 144" | 14" to 72" | 62" x 118" | 12,000 | 7436 | $25,420 |
| All dimensions are in inches | ||||||
Features
Standard Features:
Electric toe-guard and will electrically stop if there is any obstruction below the lift
Hydraulic cylinders have emergency safety velocity fuse if line breaks
Travel limit switch
Overload relief valve
Push-button control on a 20 foot cord
Removable handrails
When mounting this lift in a pit the removable handrails and toeboards option allows platform to be flush with the floor for fork truck cross traffic. Deduct 7-1/2" from overall width for usable width.
Cold weather applications need to use Immersion Oil Heater. Unit supplied with thermostat for automatic heat control. 208-230V single/three phase power. 250 watts. This option can only be used in steel tanks. Model IOH-230V Same as above; to be used with 460V three phase power unit, 0.75 amps 350 watts
OSHA and ASNI compliant
See below for options
NOTE: REFER TO THE UNIT'S ELECTRICAL DIAGRATVI FOR ELECTRICAL SERVICE REQUIREMENTS -INSTALL TO MEET ALL APPLICABLE STATE & LOCAL CODES FOR YOUR AREA! 5" BEVELED TOE GUARD ARCHITECTURAL REVIEW FOR CORRECTNESS OF PIT AND FOR COMPLIANCE TO LOCAL AND STATE CODES IS RECOMMENDED.
Options
| Options / Accessories | ||
|---|---|---|
| DS-WL-SATB | Split Aluminum Truck Bridge Standard steel bridge can be replaced with aluminum 72" wide x 18" long. Ideal for government applications | $448 |
| DS-WL-SSTB | Split Steel Bridge Additional steel bridge to be added to opposite side of unit. 72" wide x 18" long | $557 |
| DS-WL-ADDSATB | Addition split aluminum bridge | $1,014 |
| DS-WL-RHT | Removable Handrails/Toeboards When mounting this lift in a pit the removable handrails and toeboards option allows platform to be flush with the floor for fork truck cross traffic. Deduct 7-1/2" from overall width for usable width | $201 |
| DS-WL-WB | Warning Beeper & Strobe Sounds and flashes during up/down operation, 80 decibels | $604 |
| DS-WL-HH | Additional Hydraulic Line Order by the foot 8 foot standard | $12 per foot |

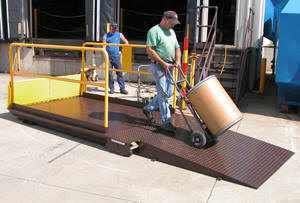

| DS-WL-AR8 | Approach Ramp for 8" lower height lifts 60" wide x 65" long 7 degree ramp angle NOTE: Approach ramps must be anchored to the floor | $858 |
| DS-WL-AR10 | Approach Ramp for 10" lower height lifts 60" wide x 82" long 7 degree ramp angle NOTE: Approach ramps must be anchored to the floor | $1,111 |
| DS-WL-AR14 | Approach Ramp for 14" lower height lifts 60" wide x 116" long 7 degree ramp angle NOTE: Approach ramps must be anchored to the floor | $1,737 |
| DS-WL-SSS | Stop Signal Sign that raises up to let the driver know when to stop for safe loading/unloading. This is only available on surface mount units with fixed toe boards. (reduces usable width by 3”) | $152 |
| DS-WL-KL | Key Lock Operation To avoid unauthorized use of the lift, this option will lock out the controls | $305 |
| DS-WL-RMB | Special Reservoir Mounting Available in a wall mount or a handrail mount (non-removable.) | $129 |
| DS-WL-3HP | 3 HP Single Phase Electric Motor Replace with 208/230V, 1 phase, 60Hz power unit (1-1⁄2 gallons per minute pump speed) | $212 |
| DS-WL-7HP | 7-1/2 Power Unit wired for three phase 208-230/460V 60Hz, unit will pump 6 gallons per minute | $856 |
| DS-WL-10HP | 10 HPPower Unit wired for three phase 208-230/460V 60Hz, unit will pump 8 gallons per minute< | $1,057 |
| DS-WL-TSP | Two Speed Pump. Increase lifting speed ty 55% when lift is unloaded. Ideal for unloading applications | $724 |
| DS-IOH-230V | Immersion Oil Heater For cold weather applications Cold weather applications need to use Immersion Oil Heater. Unit supplied with thermostat for automatic heat control. 208-230V single/three phase power. 250 watts. This option can only be used in steel tanks. Model IOH-230V Same as above; to be used with 460V three phase power unit, 0.75 amps 350 watts | $544 |
| DS-IOH-460V | Immersion Oil Heater For cold weather applications Cold weather applications need to use Immersion Oil Heater. Unit supplied with thermostat for automatic heat control. 460V single/three phase power. 250 watts. This option can only be used in steel tanks. Model IOH-230V Same as above; to be used with 460V three phase power unit, 0.75 amps 350 watts | $821 |
| DS-WL-50 | 50,000 lbs. ROLLOVER CAPACITY (25,000 lbs. per axle) Add'l structural channel and supports for deck. Increases lowered height 2 | $1,591 |
| DS-WL-WK | Mobile Wheel Kit may be used on the 5,000 and 6,000 lbs. capacity units only. System includes casters and detachable handle | $966 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-WL-100-MANUAL
DS-WL-100-WHEEL-KIT-MANUAL
Truck Scissor Dock Lift
Truck Scissor Dock Lift - Approach Ramp
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A SCISSOR DOCK LIFT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE SCISSOR DOCK SCISSOR LIFT.
