520 Pallet Truck With Scale

RAVAS-520_indicator detail.jpg
RAVAS-520_indicator detail.jpg

520 Pallet Truck With Scale

$0.00

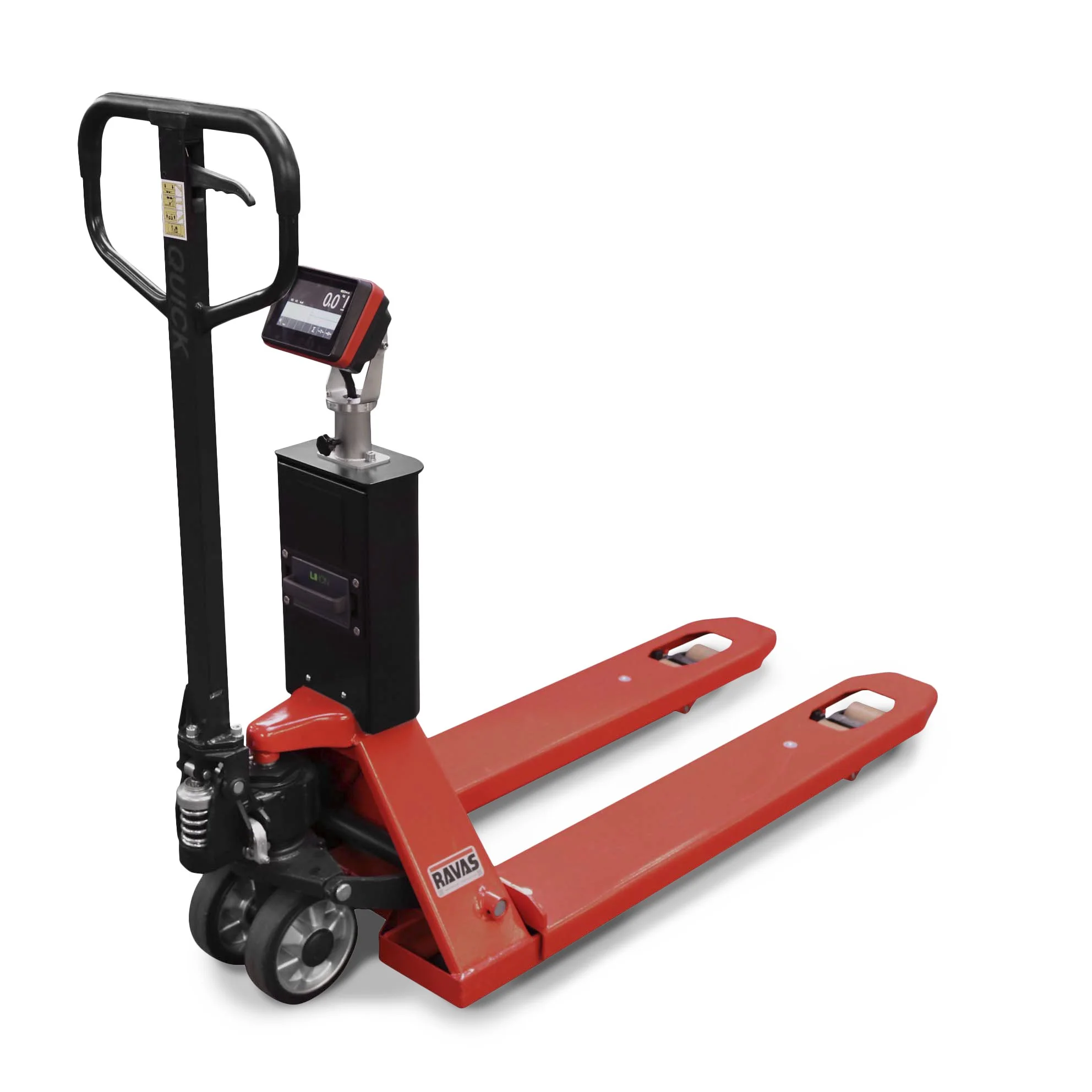

The 520 material handling processes that includes piece counting, dosing, batching, or repeatable steps depend on efficiency and accuracy to manage inventory and order fulfillment properly. The 520 integrates weighing technology with a pallet jack, enabling users to count pieces and weigh them simultaneously. This dual functionality ensures that the quantity and weight of items are captured in a single operation.

Add To Cart

Pricing

520 Pallet Truck - With Scale
Model # Weighing
Capacity
Graduation Maximum
Tolerance
Power
Supply
Fork Dimensions
[L x W]
Weight
[lbs]
Price
DS-520 5,000 lbs 2 lbs graduation at 5,000 lbs 0.1% of the load lifted Li-ion battery pack 14.8V/5Ah, charger included 48" X 7.1" 340 $3,472

Features

Standard Features:

Incl. 12V Li-ion rechargeable battery and NTEP approval

Accurate

The 520 provides accurate weights and automates the counting process, reducing the risk of human error and improving overall accuracy.

Touch Screen Display

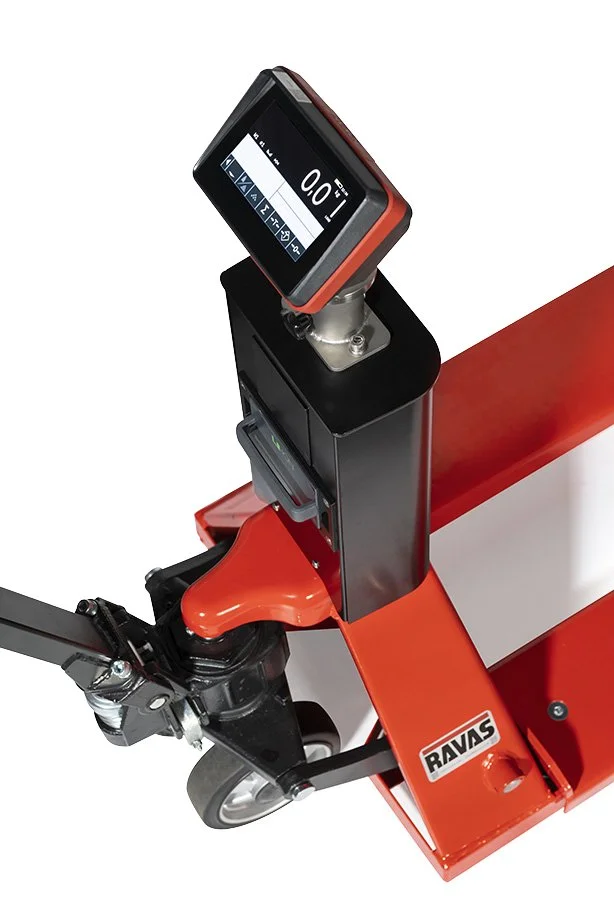

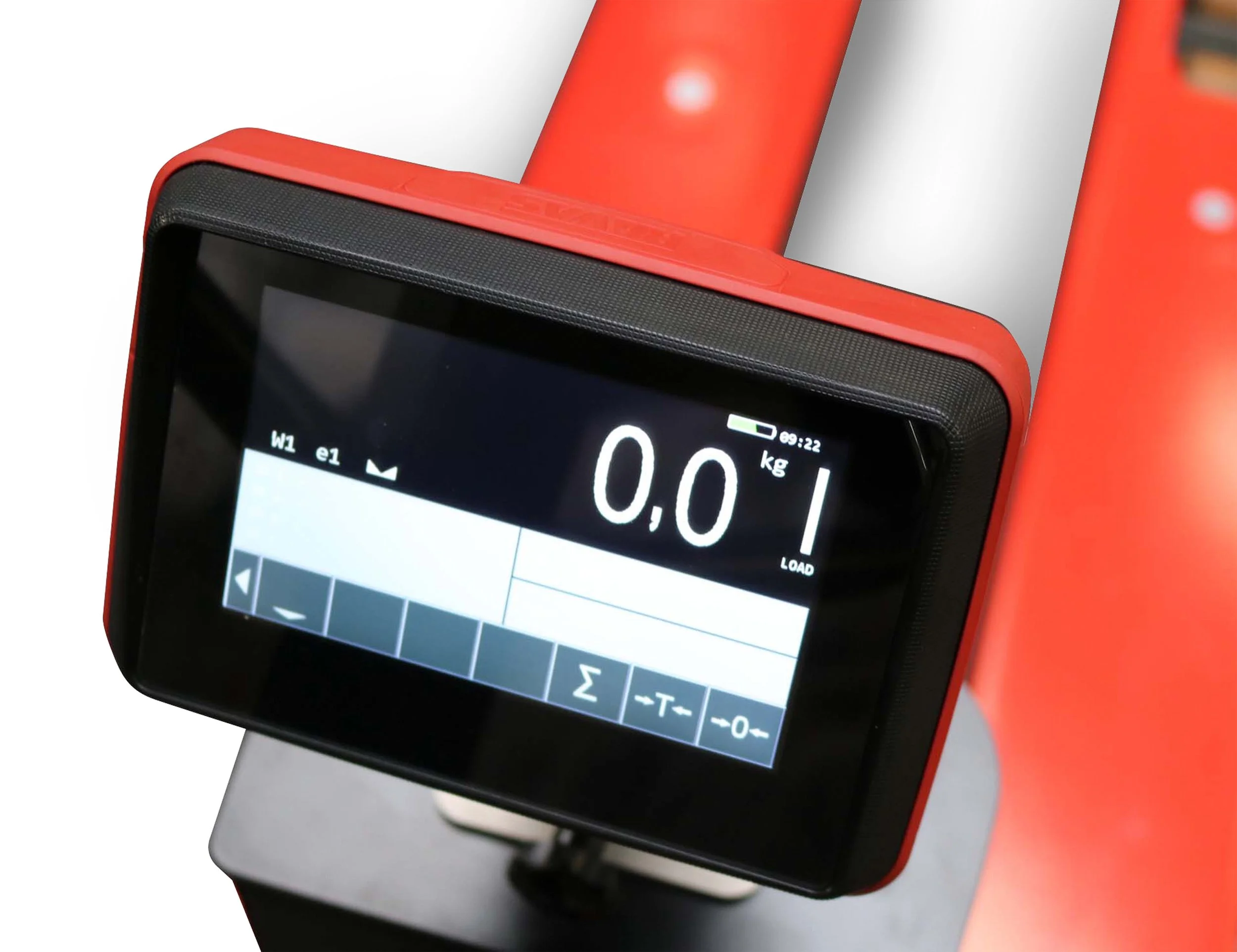

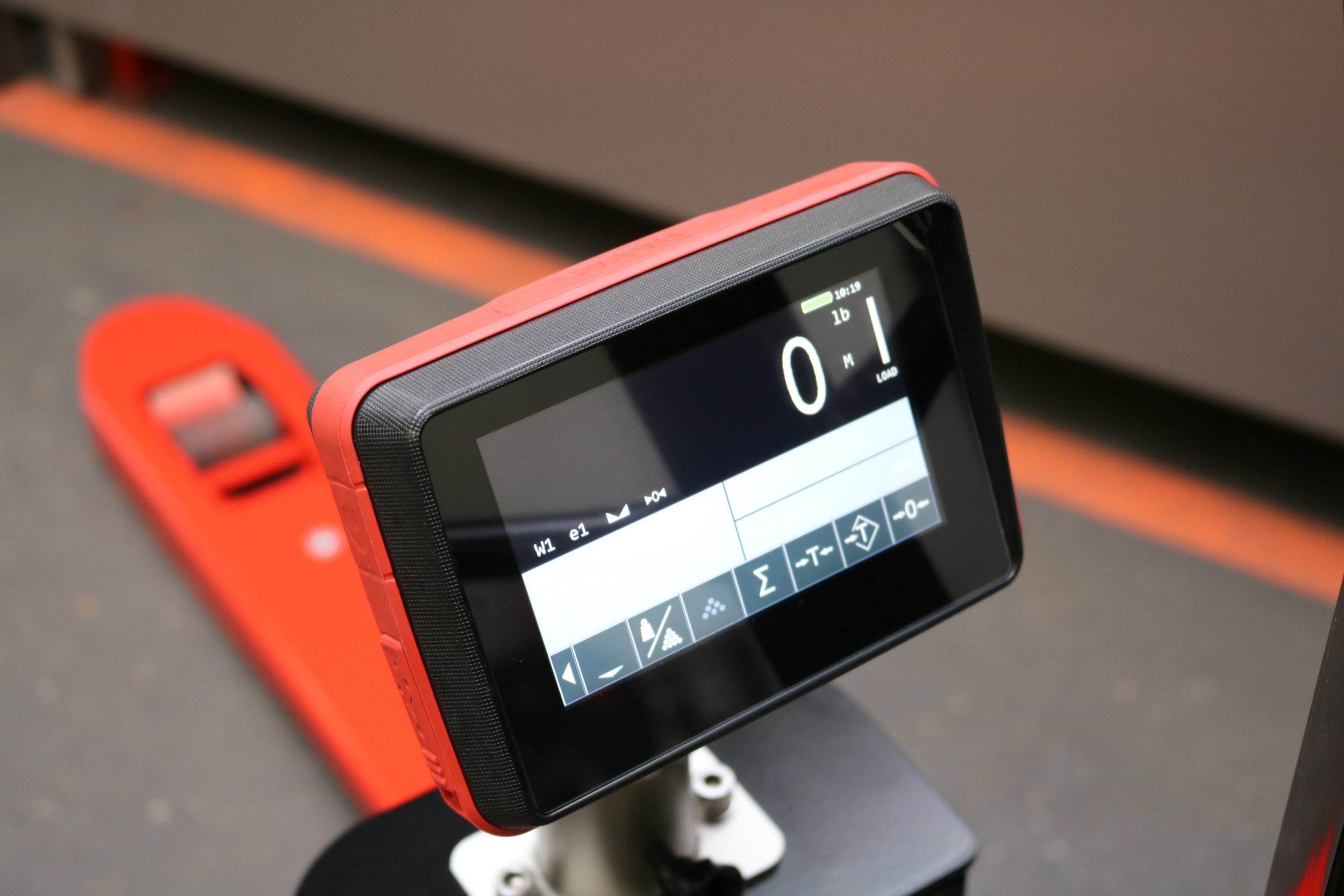

The display has an intuitive 5-inch touch screen with 0.98-inch-high digits. Only the active keys are visible, making it extremely easy to use. Operators can monitor and record weights on the spot, contributing to efficient logistics processes, inventory management, and piece counting.

Data Management

The indicator offers several advanced scale functions, including a piece-counting program. It is also programmable for customer-specific routines. Multiple types of data transfer connectivity are also included, such as the RS232 interface, USB output, and advanced connectivity via Bluetooth or WiFi.

NTEP-certified

The 520 comes standard with an NTEP-certified legal-for-trade scale for when you invoice by weight. It can also be equipped with a built-in printer that outputs data such as weights, a numerical ID, date/time, and article or order number.

Note:  All products should be inspected frequently to insure safe operation.  Final testing and inspection left to end user after final assembly has been completed.

Options

Options:

  • $Call - Reference scale via RS232 (for more accurate piece counting)

  • $Call - Parking brake

  • $Call - 1D USB bar-code scanner, not in combination with legal for trade

  • $205 - Bluetooth or WiFi outputAdditional Li-ion battery pack

  • $Call - Stainless steel chassis

  • $Call - RDC, Data Collector Software

  • $Call - RIS, Integration Software

  • $Call - NTEP version (2nd half of 2020)

  • $Call - Bluetooth or WiFi output

  • $416 - Thermal or matrix printer 12V

  • $297 - width over forks 22"

  • $1,099 - fork length 36"

  • $1,574 - fork length 54"

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Manual:

sometext

DS-500-series-manual

sometext

DS-500-Series-Service-Manual



Technical Specs:

sometext

DS-500-series Technical-Specs
