Compact LiftStik
Compact LiftStik
Ideal solution for stockrooms, assembly areas, work cells, laboratories, offices, retail stores, manufacturing, food processing and pharmaceutical facilities.
Lightweight aluminum construction in a compact design powered lifting and superior maneuverability make this a solution for any and all industries.
Standard Features
- Lightweight aluminum construction for easy handling
- Load is carried directly over wheels for excellent stability

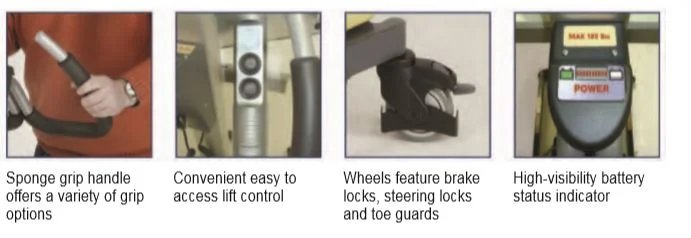

- Ergonomic handle with easy access fingertip lift control switch
- Fast lifting speed - 4-3/4" per second
- Over 48" of vertical travel to position loads at any height up to 53"
- Four swivel casters - large rear casters have foot operated locks
- Choose 17-3/4" x 15-3/4" wood laminate or 19-1/2" x 19-1/2" HDPE platform
- 24VDC power unit
- 115 Volt battery charger
Optional Attachments [check with sales for pricing]
- Lifting arm with lift bolt
- Reel mandrel
- Reel rotator with expanding mandrel
- V-cradle, stainless steel, 360 degree rotating platform
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A COMPACT LIFTSTIK FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LIFTER/TRANSPORTER.
| Model # | Service Range Lowered/Raised |
Dimensions [WxLxH] |
Platform [WxL] |
Lifting Speed |
Capacity [lbs] |
Weight [lbs] |
Price |
|---|---|---|---|---|---|---|---|
| DS-PLS53-150W | 4-1/2" to 53" | 18" x 27" x 60" | 17-3/4" x 15-3/4" | 4-3/4" per sec | 150 | 100 | $3,325 |
| DS-PLS53=150P | 4-1/2" to 53" | 19-1/2" x 31" x 60" | 19-1/2" x 198-1/2" | 4-3/4" per sec. | 150 | 100 | $2,964 |
