PowerCart H-Series Electric Cart


PowerCart H-Series Electric Cart

$0.00

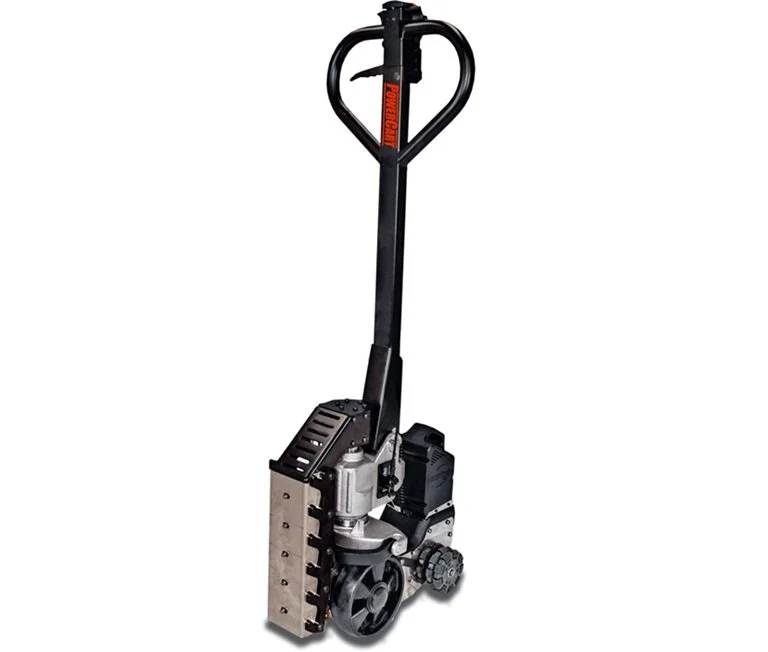

The POWERCART H-SERIES is a compact, highly maneuverable industrial cart mover. It combines the hydraulic lift system of a manual jack with a unique, quick-connect hitching system and the POWERPALLET 2000 drive system … together creating a fast, powerful, easy-to-use and highly maneuverable cart mover. Connecting via the mating cart hitch (attached to each cart) it allows a single operator to effortlessly move wheeled loads weighing up to 3,500lbs.

Model Number:
Quantity:
Add To Cart

Pricing

PowerCart H-Series - Electric Cart Mover
Model # Load Moving
Capacity		 Max
Speed		 Drive
Motor		 Amp Hours
Voltage		 Recharge
Time		 Weight
Lbs.		 Price
DS-86258 3,500 3.7 MPH Brushless DC 5AH/51.8V 2 Hrs/80% Depletion 100 $2,869
DS-86155 3,500 3.7 MPH Brushless DC 5AH/51.8V 2 Hrs/80% Depletion 125 $3,029

Features

Standard Features:

  • Maximum Capacity: 3,500 LBS

  • Comes standard with quick change 5Ah Li-Ion battery (2 hour charge time), battery charger

  • 1 cart hitch attachment included (5.28"W x 3.94"H) that can be welded or bolted to steel cart frame, extras can be ordered for additional carts - see options below

  • Brushless DC drive motor with a max. speed of 3.7 mph

  • Ergonomic handle with infinite throttle for forward and reverse

  • 180° directional rotation at the hitch

  • Less than 11" wide footprint at full turn

  • 40mm wide wheel | (2) 44mm wide wheels for model 86155

  • Cart mover comes with burden hitch attached

  • Weight: 200 LBS

Options

Options:

DS-86069 Cart Side Hitch, Cart Hitch Weldment $54.10

DS-85140 Battery Pack (Li-ion), Battery Pack, Li-Ion, 5.0AH 2 $533.50

DS-86735 Battery Powered (Li-ion) Charger Base (included as kit with DS-86735), Lithium-Ion Charger Base $183.50

DS-86735 Battery Powered (Li-ion) Charger Block (included as kit with DS-86735), Lithium-Ion Charger Block

DS-86735 Power Cable/American Standard Plug (included as kit with DS-86735) 125v 10amps, Lithium-Ion

DS-80559 Battery Pack (NiMH) 46v 5ah, Battery Pack, NiMH, 5.0AH $423.50

DS-82499 Battery Powered (NiMH) Charger, Charger, Fan-Cooled, PowerPallet $82.50

DS-66050 Power Cable/American Standard Plug 125v 10amps, Power Cord $5.83

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Technical Specifications:

sometext

PowerCart H-Series



CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A CART FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CART.
