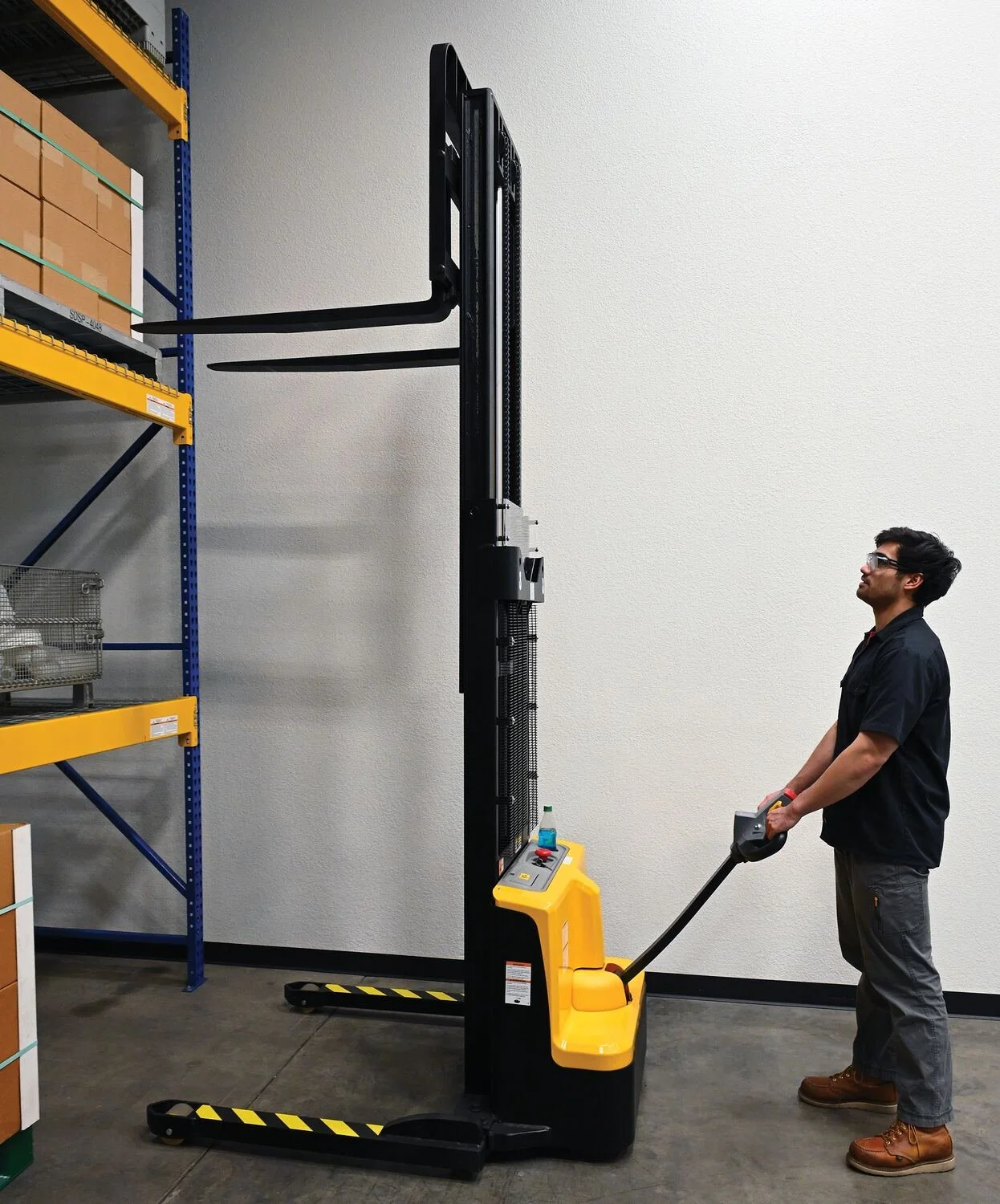

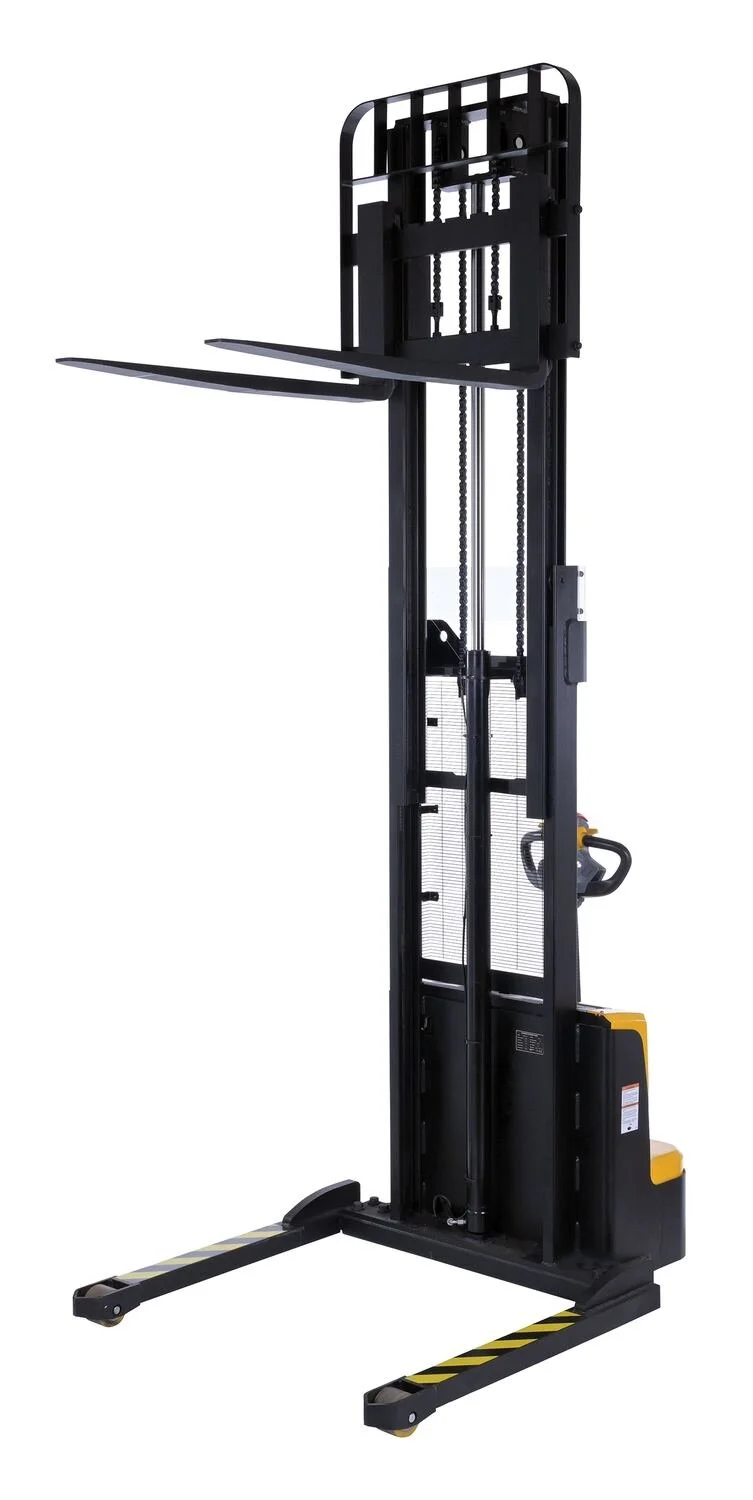

Variable Speed Drive Double Mast Stacker
Variable Speed Drive Double Mast Stacker
The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and a battery level gauge.
Standard Features:
Adjustable forks and legs
Variable speed drive
Automatic shut off is applied when handle disengaged
Rolls smoothly on poly-on-steel steer and load wheels
Uniform Capacity (Lbs.): 2,200
Variable Speed Drive?: Yes
Fork Width (in.): 8-5/16 to 26-3/4
Fork Length (in.): 42
Lowered Height (in.): 2-9/16
Raised Height (in.): 118
Battery: (2)12V
Steer/Load Wheels Material: Poly-On-Steel
Drive Motor: DC 24V
Lift Motor: DC 24V
Operation at Full Charge (hrs.): 3-4
Operation at intermittent use (hrs.): 8
Style: Adjustable Forks / Adjustable Support Legs (works with pallets & skids)
Width Between Straddle Legs (in.): 40 to 50
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A STACKER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE STACKER.
| Model # | Service Range |
Capacity (lbs.) | Weight (lbs.) | Price |
|---|---|---|---|---|
| DS-S2-118-AA-VS | 2" to 118" | 2,200 | 1575 | $13,974 |
