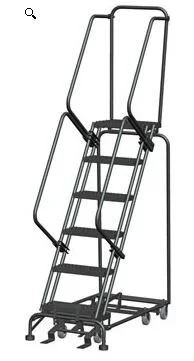

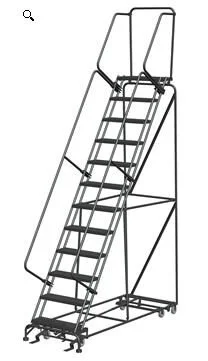

All Directional Rolling Ladder
All Directional Rolling Ladder
The All Directional Rolling Ladder is one of our easiest to maneuver ladders and designed for tight spaces or narrow aisles.
These ladders roll on 6 swivel casters, they can turn in its own radius giving the ladder the ability to move easily into tight corners and close spaces. Moves laterally to fit in tight corners and close to shelves.
Pricing
Pricing
| . All Directional Rolling Ladder - 16" Wide Step | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | # Of Steps | Top Step Height | Overall Height | Handrails | Base [W x L] | Weight (lbs.) | G Tread | R Tread | P Tread | XTread |
| DS-PIP-6 | 6 | 60" | 93" | Yes | 24"x49" | 110 | $1,026 | $860 | $783 | $860 |
| DS-PIP-7 | 7 | 70" | 103" | Yes | 24"x55" | 125 | $1,105 | $918 | $843 | $918 |
| DS-PIP-8 | 8 | 80" | 113" | Yes | 24"x61" | 140 | $1,312 | $1,094 | $1,000 | $1,094 |
| . All Directional Rolling Ladder - 24" Wide Step | ||||||||||
| Model Number | # Of Steps | Top Step Height | Overall Height | Handrails | Base [W x L] | Weight (lbs.) | G Tread | R Tread | P Tread | XTread |
| DS-PIP-6-32 | 6 | 60" | 93" | Yes | 32"x49" | 133 | $1,119 | $935 | $856 | $935 |
| DS-PIP-7-32 | 7 | 70" | 103" | Yes | 32"x55" | 154 | $1,207 | $1,006 | $918 | $1,006 |
| DS-PIP-8-32 | 8 | 80" | 113" | Yes | 32"x61" | 171 | $1,387 | $1,155 | $1,056 | $1,155 |
| DS-PIP-9 | 9 | 90" | 123" | Yes | 32"x68" | 186 | $1,487 | $1,238 | $1,119 | $1,238 |
| DS-PIP-10 | 10 | 100" | 133" | Yes | 32"x74" | 204 | $1,609 | $1,338 | $1,231 | $1,338 |
| DS-PIP-11 | 11 | 110" | 143" | Yes | 32"x80" | 214 | $1,758 | $1,465 | $1,325 | $1,465 |
| DS-PIP-12 | 12 | 120" | 153" | Yes | 32"x87" | 231 | $1,879 | $1,564 | $1,420 | $1,564 |
| All dimensions are in inches | ||||||||||
Features
Features
Standard Features
Turns in its own radius
Easy to use foot pedal activated lockstep
14" deep top step
450 lb. capacity
Gray powder coat finish
Built to OSHA and ANSI standards
CAL OSHA available
4 treads to choose from for your ladder
All-Directional Option can be added to almost any ladder
Options
Options
| Options / Accessories | ||
|---|---|---|
| 21" Deep Top Step | 6-12 Step Ladders | $198 |
| 28" Deep Top Step | 6-12 Step Ladders | $235 |
| Wooden Skid Shipping | 6-7 Step Ladders | $102 |
| Wooden Skid Shipping | 8-12 Step Ladders | $164 |
| No Rear Guard Rail | (Includes Wooden Skid) | $223 |
| Side Exit | Requires 28" Deep Top Step at Additional Cost | $223 |
| Employee Only Sign | Includes Chain | $127 |
| Skid Plate | Replaceable Skid Plate | $105 |
| Fold down Handrails | Fold down Handrails | $246 |
| CAL OSHA | 6-9 Steps | $106 |
| CAL OSHA | 10-12 Steps | $164 |
Parts
Parts
Parts
Note: All parts are replaceable so if you bend or destroy any piece of this platform ladder we can replace the part.
Tread Types
Tread Types
What is the Rule of Thumb when Choosing a Tread Type?
P Tread has holes in the metal and offer a non-aggressive, non-slip option to be used inside in a dry, non-dusty environment. This would be a good fit for warehouse, office, storefront and anywhere tennis shoes or street shoes are the norm.
G Tread is the most aggressive tread and will not allow slipping of any kind. Best used inside or outside in wet, oily or very dusty situations. This tread has a lot of grip and will allow snow and rain to fall thru the tread. You will want this type of tread in a work boot type environment.
X Tread is a great alternative tread to perforated. This is a tread that can be used in most any situation. This tread does not provide the grip of the serrated tread, but will allow dirt and water to fall thru the tread easily. Nothing will settle on the stairs. This tread is best suited for all shoe types with the exception high heels. The heels would catch in the tread and cause tripping.
R Tread would be the tread of choice in office or clean retail environments where wearing heels and street shoes are the norm. There is maintenance on this tread because of the wear and tear which will require you to replace the grip tape [which can be easily acquired at most hardware stores]. Depending on usage, it could be years in between replacement of the tape.
Feel free to contact our qualified sales team at (888) 802-3651 and let us answer any questions you may have regarding tread types or any other questions you may have regarding industrial maintenance ladders, platforms or stairways.
Documentation / Videos
Documentation / Videos
Videos
