ESD Safe Warehouse Ladder


ESD Safe Warehouse Ladder

$1,092.00

This Ladder is for ESD [anti-static] applications and must be used on conductive floors to comply with ESD properties.

Add To Cart

Pricing

ESD Safe Warehouse Ladders
Model # # Of Steps Top Step Height Hand Rails Weight Lbs. Price
DS-LAD-PW-26-2-G-ESD 2 20 Y 103 $731
DS-LAD-PW-26-4-G-ESD 4 40 Y 154 $793
DS-LAD-PW-26-6-G-ESD 6 60 Y 227 $1,093
DS-LAD-PW-26-8-G-ESD 8 80 Y 261 $1,178
DS-LAD-PW-26-10-G-ESD 10 100 Y 308 $1,268
DS-LAD-PW-26-12-G-ESD 12 120 Y 370 $1,441
All dimensions are in inches
Polyurethane (Sirius - Electrostatic Dissipating) Casters
Model # Caster Size Description Capacity
lbs.
Overall
Height
Top Plate
Size
Weight Lbs. Price
DS-CST-F-4X2ESD-R 4" x 2" Rigid 1000 5.75" 4" x 4-1/2" 3.4 $47
DS-CST-F-5X2ESD-R 5" x 2" Rigid 1200 6.5" 4" x 4-1/2" 3.95 $50
DS-CST-F-6X2ESD-R 6" x 2" Rigid 1500 7.5" 4" x 4-1/2" 4.42 $60
DS-CST-F-8X2ESD-R 8" x 2" Rigid 2000 9.375" 4" x 4-1/2" 5.65 $75
DS-CST-F-4X2ESD-S 4" x 2" Swiveel 1000 5.75" 4" x 4-1/2" 4.15 $51
DS-CST-F-5X2ESD-S 5" x 2" Swivel 1200 6.5" 4" x 4-1/2" 4.72 $58
DS-CST-F-6X2ESD-S 6" x 2" Swivel 1500 7.5" 4" x 4-1/2" 5.21 $64
DS-CST-F-8X2ESD-S 8" x 2" Swivel 2000 9.375" 4" x 4-1/2" 6.55 $79
DS-CST-F-4X2ESD-SWB 4" x 2" Swivel W/ Brake 1000 5.75" 4" x 4-1/2" 4.51 $52
DS-CST-F-5X2ESD-SWB 5" x 2" Swivel w/ Brake 1200 6.5" 4" x 4-1/2" 5.095 $56
DS-CST-F-6X2ESD-SWB 6" x 2" Swivel w/ Brake 1500 7.5" 4" x 4-1/2" 5.58 $69
DS-CST-F-8X2ESD-SWB 8" x 2" Swivel w/ Brake 2000 9.375" 4" x 4-1/2" 6.95 $83

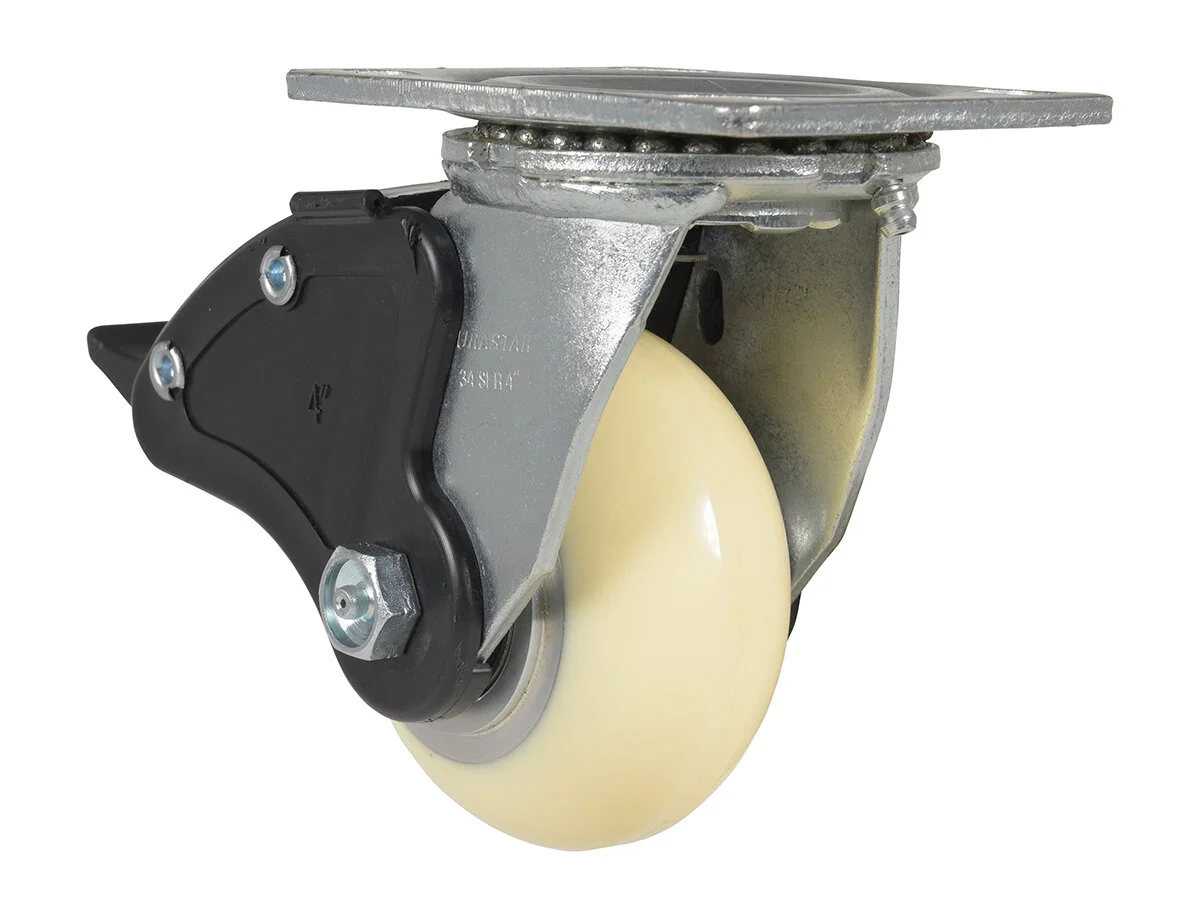

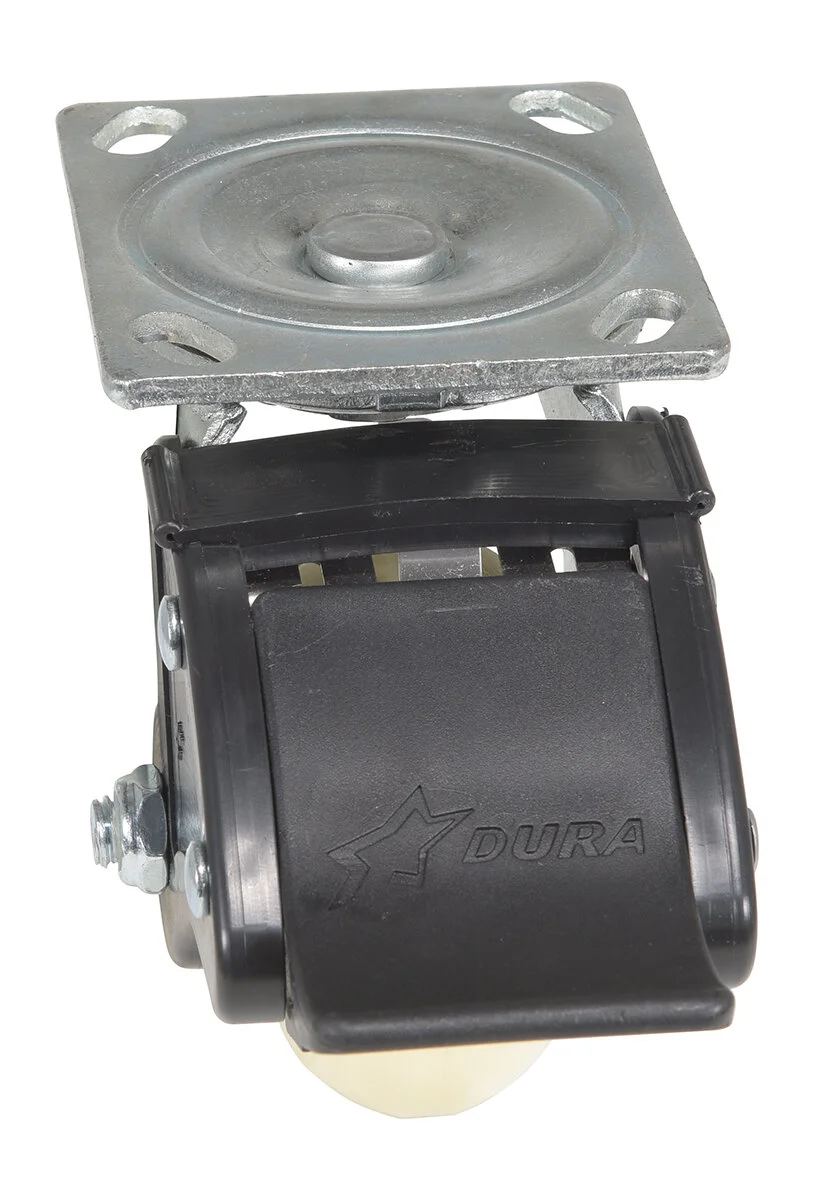

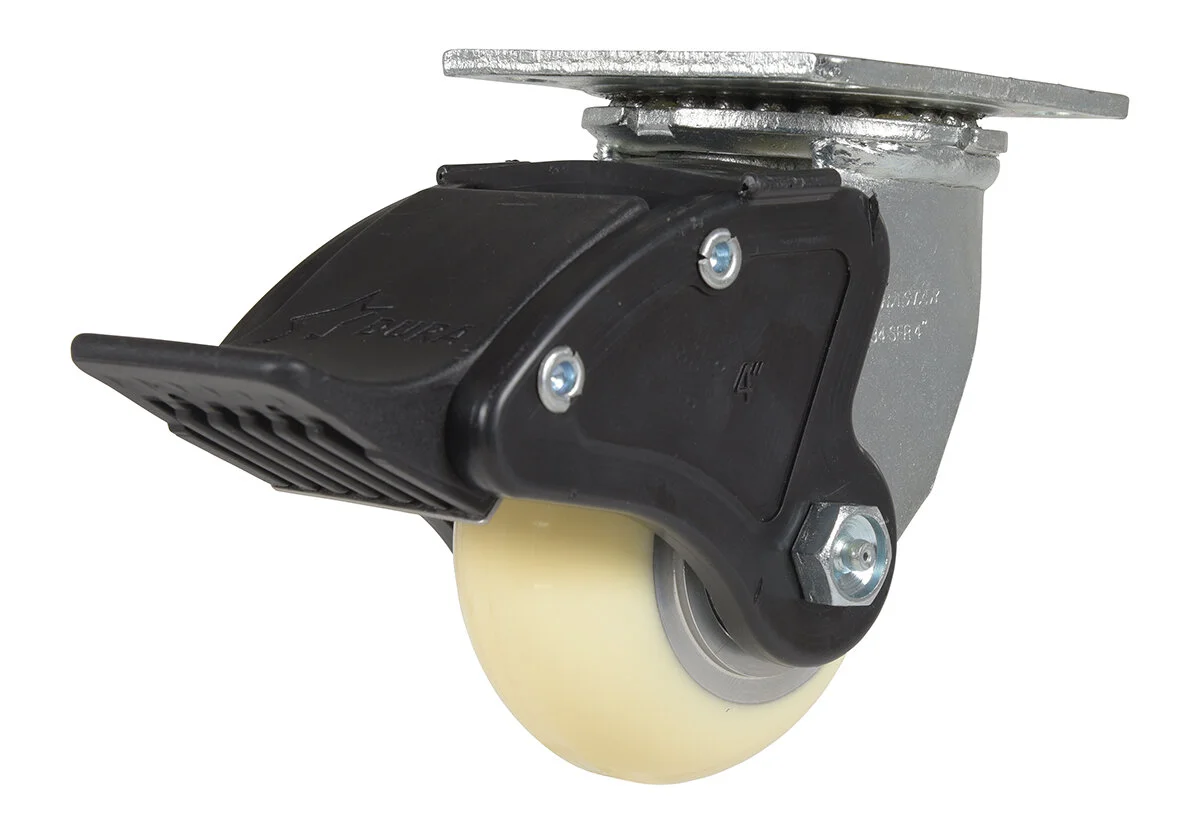

DS-CST-F-4X2ESD-SWTB1 4" x 2" Swivel w/ Total Lock Brake 1000 5.75" 4" x 4-1/2" 4.67 $58
DS-CST-F-5X2ESD-SWTB1 5" x 2" Swivel w/ Total Lock Brake 1200 6.5" 4" x 4-1/2" 5.3 $63
DS-CST-F-6X2ESD-SWTB1 6" x 2" Swivel w/ Total Lock Brake 1500 7.5" 4" x 4-1/2" 5.84 $74
DS-CST-F-8X2ESD-SWTB1 8" x 2" Swivel w/ Total Lock Brake 2000 9.375" 4" x 4-1/2" 7.24 $88
All dimensions are in inches

Features

Standard Features

Portable warehouse ladder for special ESD applications

1.      Drag chain with resistor attached to base of ladder frame

a.      Resistor: 1 megohm, i.e. within defined range of “dissipative” work surfaces; dissipative materials disperses charge slowly enough to prevent spark generation).

b.      Chain: Fabricated from nickel-plated steel, which is conductive and therefore offers no resistance to the charge slowly released by the resistor to discharge onto the ground.

2.      Powder coat: Static dissipative coating, i.e. surface resistivity between 105 and 1010 Ohms.

3.      Casters/wheels: All 4 wheels/caster are electrostatic conductive to eliminate static charges.



  • Conductive special semi-gloss black powder coated ESD finish [anti-static]

  • Conductive wheels, gray rubber tread on polyolefin core [anti-static]

  • Grounding drag chain with resistor, nickle-plated brass construction [anti-static]

  • weight on bottom step lifts casters for safe use when climbing

  • Rubber feet provided for floor protection

  • 350 pound capacity

  • Handrails all around

  • Top step is 23" wide x 14" deep platform

  • 23" wide grip strut treads

  • Ships fully assembled

  • Complies with OSHA 1910.29 - ANSI A14.7 - ANSI s20:20 standards

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

Options

Options

  • DS-ESD-WGW User grounding strap, elastic adjustable wrist strap $54

  • DS-ESD-HGW User grounding heel strap $44

  • DS-ESD-GW-15 Ladder tethered grounding strap, 15' -20' coil cord $77

Parts

Parts

Tread Types

Tread Types

Documentation / Videos

Documents / Videos

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A LADDER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.

WHEN YOU PURCHASE A LADDER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.

CONSTRUCTED OF PREMIUM GRADE POLYURETHANE. PROTECTS AGAINST ELECTROSTATIC DISCHARGE THAT CAN BE GENERATED BY TRANSPORT. THE MATERIAL ALLOWS STATIC ELECTRICITY TO FLOW THROUGH THE CASTER WHEEL TREAD AND RELEASE INTO CONDUCTIVE FLOORING, WHICH IS PERFECT FOR UNITS USED WITHIN MANUFACTURING PLANTS OR DISCHARGE-SAFE AREAS WHERE ELECTROSTATIC BUILD-UP IS AN ISSUE. WHITE TREAD COLOR. 87 (+/-5) SHORE A. WHEEL CORE IS CONSTRUCTED OF WATER RESISTANT ALUMINUM. WHEEL MADE IN TAIWAN.

  • OHMIC RESISTANCE IS EQUAL TO OR GREATER THAN 10^5 OHMS BUT LESS THAN 10^12 OHMS

  • NON-MARKING

  • SMOOTH RIDE PERFORMANCE

  • QUIET OPERATION

  • ERGONOMIC DONUT TREAD

  • DEBRIS REJECTING

  • PREMIUM PRECISION SEALED BALL BEARINGS
