Retractable Stairway Manual and Powered
Retractable Stairway Manual and Powered
Our Retractable Stairs can resolve a mezzanine access problem caused by limited space in a high traffic area.
Pricing
| Retractable - Stairway | ||||
|---|---|---|---|---|
| Model # | Powered Racheted | Height | Weight Lbs. | Price |
| DS-LAD-FM-60 | Ratchet | 60" | 257 | $1,332 |
| DS-LAD-FM-60-PSO | 115Vac Pwr | 60" | 257 | $2,021 |
| DS-LAD-FM-72 | Ratchet | 72" | 282 | $1,513 |
| DS-LAD-FM-72-PSO | 115Vac Pwr | 72" | 282 | $2,123 |
| DS-LAD-FM-84 | Ratchet | 84" | 307 | $1,691 |
| DS-LAD-FM-84-PSO | 115Vac Pwr | 84" | 307 | $2,267 |
| DS-LAD-FM-96 | Ratchet | 96" | 332 | $1,767 |
| DS-LAD-FM-96-PSO | 115Vac Pwr | 96" | 332 | $2,345 |
| DS-LAD-FM-108 | Ratchet | 108" | 357 | $1,841 |
| DS-LAD-FM-108-PSO | 115Vac Pwr | 108" | 357 | $2,483 |
| DS-LAD-FM-120 | Ratchet | 120" | 382 | $2,105 |
| DS-LAD-FM-120-PSO | 115Vac Pwr | 120" | 382 | $2,599 |
| All dimensions are in inches / These ladders have a 1/4" +/- tolerance / 6-8 Weeks Lead Time / Max Height 11' | ||||
Features
General Description:
The mezzanine ladders are used to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Steps are 24-1/4" wide. Collapsed distance from wall is approximately 15-1/2" for all models. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required. Survey sheet available for mezzanine heights of 60" to 120".Simply ratchet up this stairway ladder out of the way of floor traffic when not in use. When mezzanine access is required, ratchet down the stairway ladder into place. Wheels on the ground roll and the handrails rise and lower as the ratchet mechanism is used. When in the retracted position, this ladder is about 16" deep. A mounting bracket is included with this ladder for both bolt on and welded installations. Anchoring hardware is not included.

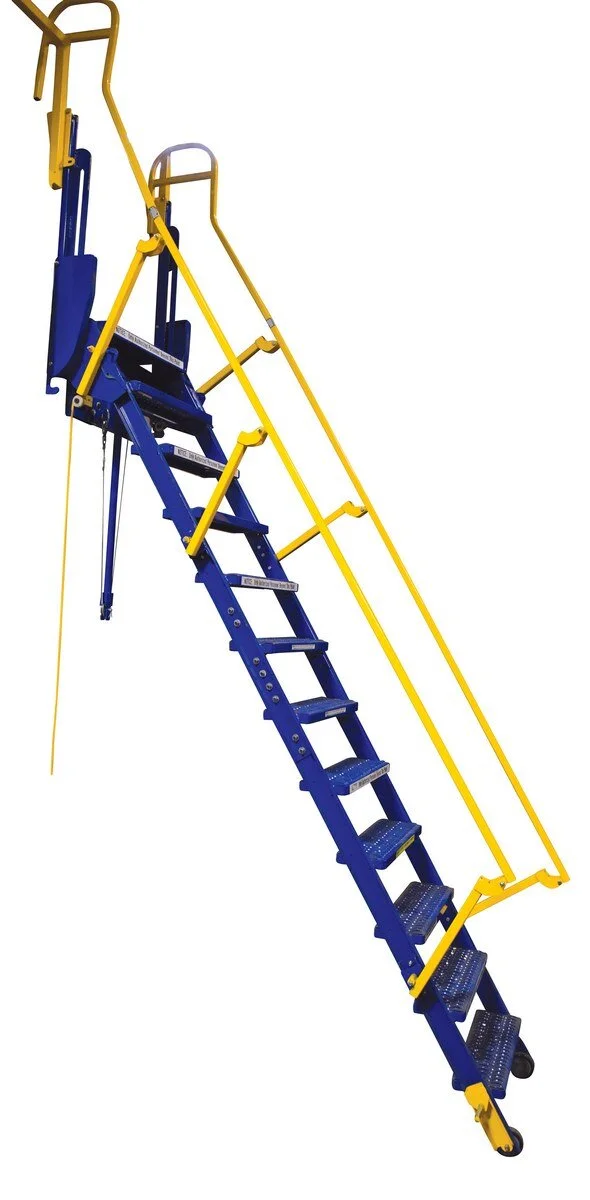

The Powered Mezzanine Ladders are used to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness.
Standard Features:
Serrated steel stair treads are 24" wide
Tread depth is 7"
31.4" high handrails
58 degree slope
Powder coat finish [Blue body and Yellow handrails]
350 lb. capacity
Overall width is 31.25"
Mounting bracket
Ships knocked down
Powered stairs use 115 Vac Pwr
Meets OSHA requirements
Powder coated yellow and blue
Minimum mezzanine height is 60"
Maximum mezzanine height is 128"
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manuals:
DS-LAD-FM-PSO-MANUAL
DS-LAD-FM-MANUAL
DS-LAD-FM-60-DRAWING
DS-LAD-FM-60-PSO-DRAWING
DS-LAD-FM-72-DRAWING
DS-LAD-FM-72-PSO-DRAWING
Drawings:
DS-LAD-FM-84-DRAWING
DS-LAD-FM-84-PSO-DRAWING
DS-LAD-FM-96-DRAWING
DS-LAD-FM-96-PSO-DRAWING
DS-LAD-FM-108-DRAWING
DS-LAD-FM-108-PSO-DRAWING
DS-LAD-FM-120-DRAWING
DS-LAD-FM-120-PSO-DRAWING
Survey Sheet:
DS-LAD-FM-PRODUCT SURVEY SHEET
Videos:
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
