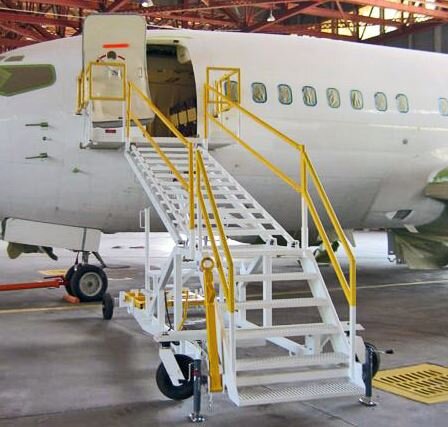

B7 Aircraft Maintenance Stand - Model 15F2011
B7 Aircraft Maintenance Stand - Model 15F2011
The Model DS-15F2011 B7 Aviation Maintenance Platform is an updated, improved version of the long time standard B-7 used by the Military. NSN 1730-01-6621582
The adjustable work platform, B7 aircraft maintenance stand is an efficient solution for high and overhead maintenance, construction, manufacturing or production jobs that are 7' to 15' off the ground. It’s also used as temporary access stairway for aircraft and construction work. The 15F2011 features a 4' by 7' work platform that may be positioned to any height in its range by means of its self-contained hydraulic system.
IATA compliant
Not CE compliant
Pricing
| B7 Maintenance Stand - Model 15F2011 | ||||||
|---|---|---|---|---|---|---|
| Model Number | Capacity (lbs.) | Working Height | Platform Size | Weight of Stand (lbs.) | Dimensions [L x W x H] | Price |
| 15F2011 | 500 | 7' - 15' | 48" x 84" | 2,070 | 255" x 93" x 104" | $11,766 |
| Leadtime 6-8 weeks | ||||||
Features
Standard Features:
500 lb. platform capacity
Adjustable to any height within its 7' to 15' platform floor range
Double acting hydraulic hand pump
Hydraulic restrictors in case of pressure failure
Safety strut with pin
Non-slip, self-cleaning steps and platform floor
Heavy-duty casters and 16” dia. pneumatic tires
Hand adjustable screw jacks for stability
Stair and platform railings can be lifted out and stored on the base
Base, stairs, and platform stay parallel at any height position
4” O.D. non-marring rubber bumper at the leading edge of the platform
Durable powder coat finish
NSN: 1730-01-662-1582. This NSN 1730-01-662-1582 is an updated and improved version of past NSN 1730-01-009-0446
This B7 Aircraft Maintenance Platform provides a vital role for the aviation technician with safe access to service aircraft, improving overall productivity while providing critical fall protection ensuring a safer work environment. The B7 Stands are a popular choice because they may be utilized to service any aircraft within their 7' to 15' height range and one stand may replace the need for several different types of platforms and ladders.
The B7 Aircraft Platform is compatible with: A310, A318, A319, A320, B767, B757, B737, B727, DC9, MD80, L1011, F100, RJ100, Boeing P-8A Poseidon, P-8,LRIP-1, P-3 Orion, P-8A Poseidon, Boeing C-40A, and RJ85.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
Options:
Air/Hydraulic Pump 15F2646 +$2,380
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos

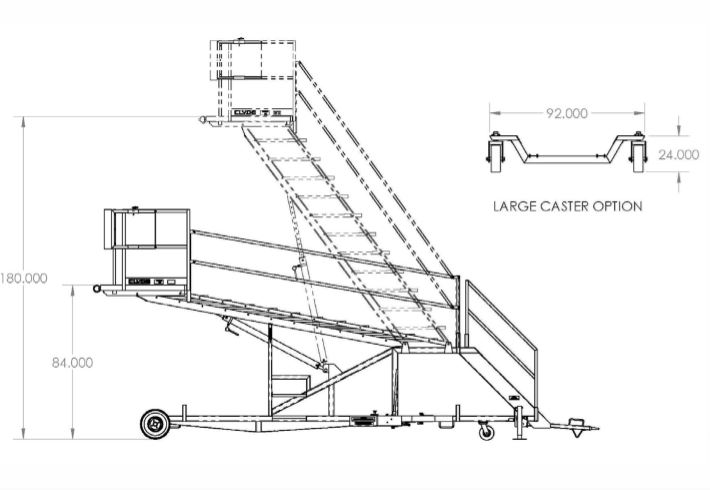

Drawings:
DS-15F2011-Maintenance-Stand
