B5 Maintenance Stand - Model 15F3065

B5 Maintenance Stand
B5 Maintenance Stand Model 15F3065
made in USA.JPG
B5 Maintenance Stand
B5 Maintenance Stand Model 15F3065
made in USA.JPG

B5 Maintenance Stand - Model 15F3065

$7,657.00

The Model 15F3065 B5 Maintenance Stand is an updated, improved version of the longtime standard B-5 used by the military.

IATA compliant

Not CE compliant

Add To Cart

Pricing

B5 Maintenance Stand - Model 15F3065
Model NumberCapacity
(lbs.)
Working
Height
Platform
Size
Weight of
Stand (lbs.)
Dimensions
[L x W x H]
Price
15F306550088" - 138"30" x 76"1,250105" x 63" x 101"$7,657
All dimensions are in inches / Leadtime 6-8 weeks

Features

Standard Features:

  • An updated, improved version of the long time standard B-5 used by the Military

  • 500 lb. capacity

  • Working height of 88”-138”

  • Foot actuated hydraulic pump

  • 8” Heavy duty swivel casters with brakes and swivel locks

  • Platform size of 30” x 76”

  • Drop down pole to tow stand

  • Durable powder coat finish

  • Compliance Codes ARP 1247, IATA AHM910, and OSHA 1910

NSN: 1730-00-294-8884, 1730-01-594-5373

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

Options

No options available for this product

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Manual:

sometext

DS-15F3065-Manual

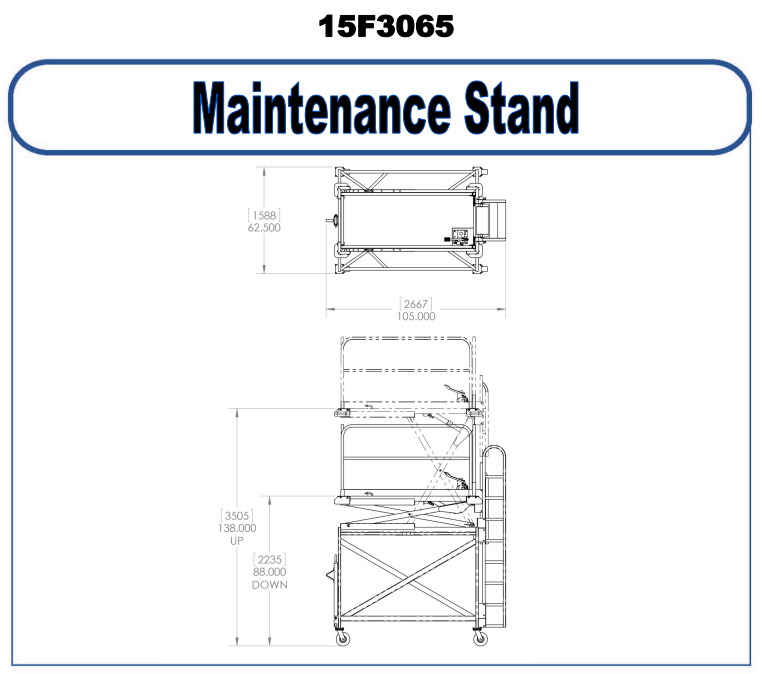

Drawings:

sometext

DS-15F-3065-Maintenance-Stand
