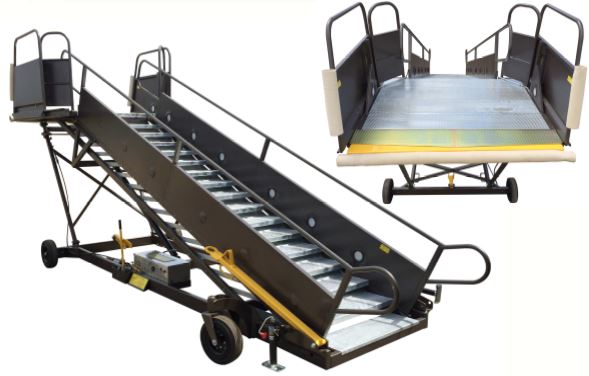

Towable Passenger Stair 15F2820

$18,225.00

These passenger stairs go from 88” to 161” high and are able to service over 9 different aircrafts with the adjustable platform.

IATA compliant

Not CE compliant

Add To Cart

Pricing

Towable Passenger Stair - 15F2820
Model NumberCapacity
(lbs.)
Platform
Size [W x L]
Weight of
Stand (lbs.)
Shipping Dimensions
[L x W x H]
Price
DS-15F28201000/550050" x 76"3,340288" x 96" x 100"$19,888
All dimensions are in inches / Leadtime 10-12 weeks

Features

Standard Features:

  • 88” x 161” operational height

  • 76” long x 50” wide platform size

  • Step width: 48”

  • Galvanized steps and platforms

  • Swivel platform bumper adjusts +/- 5 degrees

  • Adjustable platform height using hand pump

  • Modesty panels on all steps and platform handrails

  • Battery powered LED lighting system with adjustable timer

  • Onboard battery charger

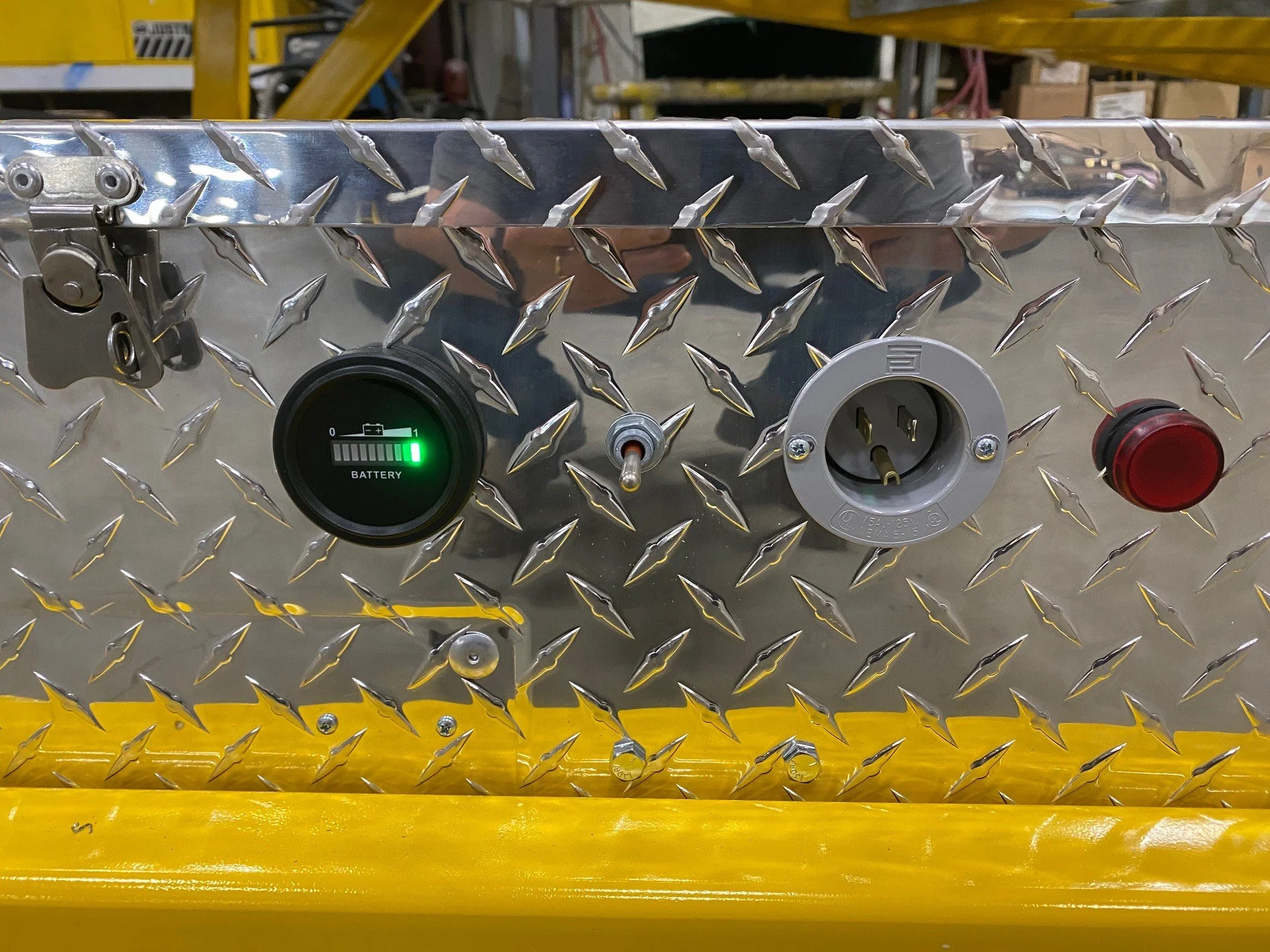

  • Battery level indicator

  • Stabilizer jacks

  • Sliding handrails to clear aircraft door

  • Non-marring soft rubber bumpers

  • Platform capacity, 1000 lbs.

  • Full stairway capacity, 3500 lbs.

  • Services various passenger door sill heights, 88” to 161”

  • “Group 24” deep cycle battery

  • Equipped with towbar - folding with 3” dia. Eye

  • Epoxy powder coated per customer

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

Fits The Following Aircrafts

Services The Following Aircraft’s:

• DC-9 • MD80 • B727

• B737 • B757 • A318

• A319 • A320 • A321

Options


Picture Model Number Description Price
DS-15F3348 Lighted Canopy $4,950

Parts

Please call 1-888-802-3651 for replacement parts
