Towable Passenger Stair 15F2850
Towable Passenger Stair 15F2850
Used towable aircraft passenger stairs for safely and securely boarding and off-loading passengers at adjustable heights. Able to service over 16 air crafts with the adjustable platform.
Aircraft stairs are very important not only for the passengers but the maintenance personnel. A good set of air stairs allows for a safe and easy entry and exit from the aircraft. Aircraft stairs may also be called airstairs, aircraft steps, passenger boarding stairs, crew stairs, maintenance stairs, or simply boarding stairs. In any case, the stairs provide a mobile means to traverse between aircraft doors and the ground and since aircraft come in all sizes a variety of height adjustable and towable aircraft stairs are available to meet your needs for both passenger and crew use. This fully manual aircraft passenger stair unit allows for easy maneuverability and placement. The service height of these stairs is 58” to 93”. These stairs have so much to offer to make your life easier.
IATA compliant
Not CE compliant
Pricing
| Passenger Stair - Model 15F2850 | |||||
|---|---|---|---|---|---|
| Model Number | Capacity (lbs.) | Platform Size [W x L] | Weight of Stand (Lbs.) | Dimensions [L x W x H] | Price |
| 15F2850 | 500/2500 | 50" x 78" | 2,500 | 185" x 91" x 103" | $13,860 |
| All dimensions are in inches / Leadtime 10-12 weeks | |||||
Features
Standard Features:
58” x 93” operational height
76” long x 50” wide platform size
Step width: 48”
Adjustable platform height using hand pump
Modesty panels on all steps and platform handrails
Battery powered LED lighting system with adjustable timer
Onboard battery charger
Battery level indicator
Stabilizer jacks
Sliding handrails to clear aircraft door
Non-marring soft rubber bumpers
Platform capacity, 500 lbs.
Full stairway capacity, 2500 lbs.
Services various passenger door sill heights, 58” to 93”
“Group 24” deep cycle battery
Equipped with towbar - folding with 3” dia. Eye
Epoxy powder coated per customer
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Fits The Following Aircrafts
Services The Following Aircraft’s:
• BAC1-11 • RJ70 • AN22 • BA HS74B
• RJ100 • RJ85 • BA ATP J61 • YAK-40
• AN12B • SAAB SF-340 • F28 • F100
• F70 • CL-65 • CRJ100-200 • EMBRAER120
Options
Options:
Solar Package To charge lift batteries 15F2958 $1,105
Electric Power Lift Kit 15F3093 $1,473
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos

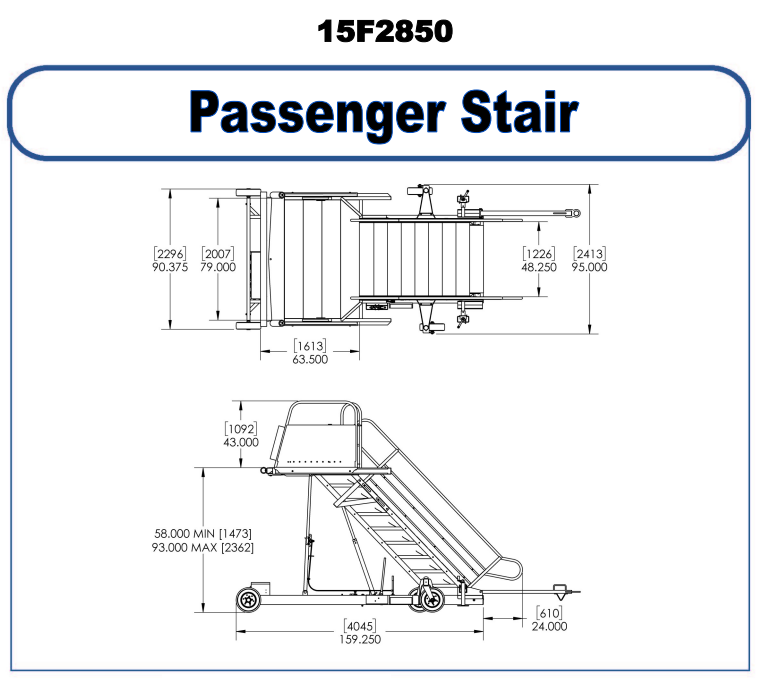

Drawing:
DS-15F2850-Passenger-Stair
