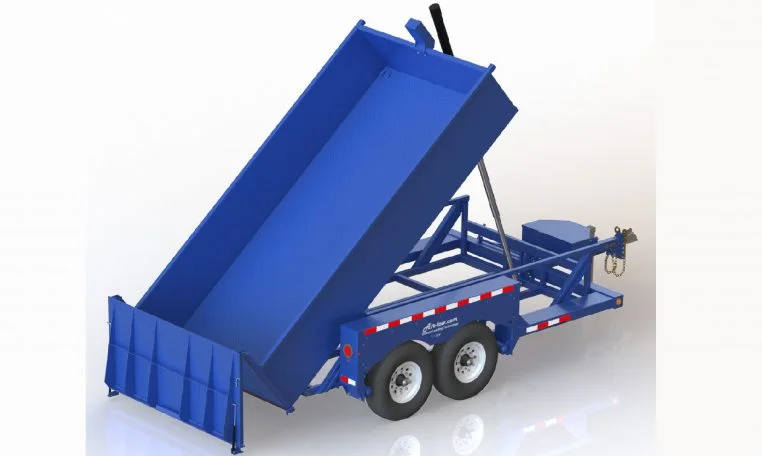

Air-tow Drop-Deck/Dump Trailer
Air-tow Drop-Deck/Dump Trailer

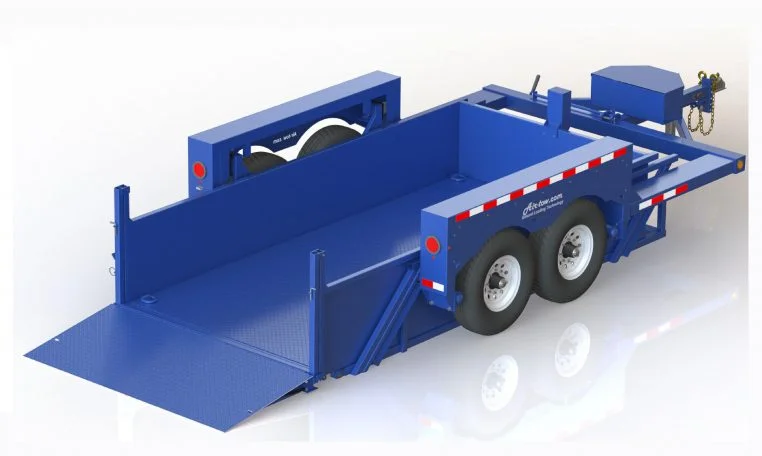

The multi purpose, two-in-one Drop-Deck & Dump Trailer model offers the dual purpose flexibility of being both a drop-deck and a dump trailer.

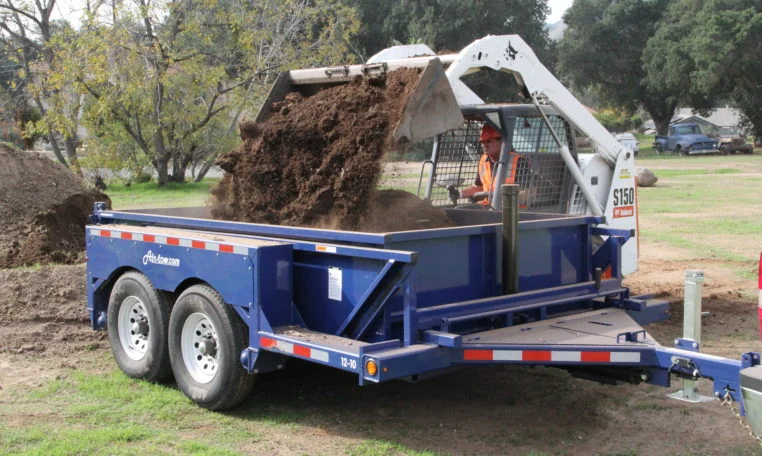

The features of the Air-tow line are now available in a drop-deck and dump model. The 149″ internal deck length and 74″ deck width combined with a 10,000 lb. equipment capacity (8,000 dump capacity) allows you to handle many different job scenarios, both large and small. Drop-deck and dump trailers are not for everyone. They do have several advantages such as they take up half the yard space of two separate equipment and dump trailer combinations. When traveling to the job site, only one truck can bring both work equipment and dump trailer capabilities. You also have only one trailer instead of two trailers to service and maintain.
Pricing
| Model # | Deck Length |
Weight (varies with options) | Price |
|---|---|---|---|
| DS-3D-12 | 149" | 4,695 | $31,252 |
Features
Standard Features:

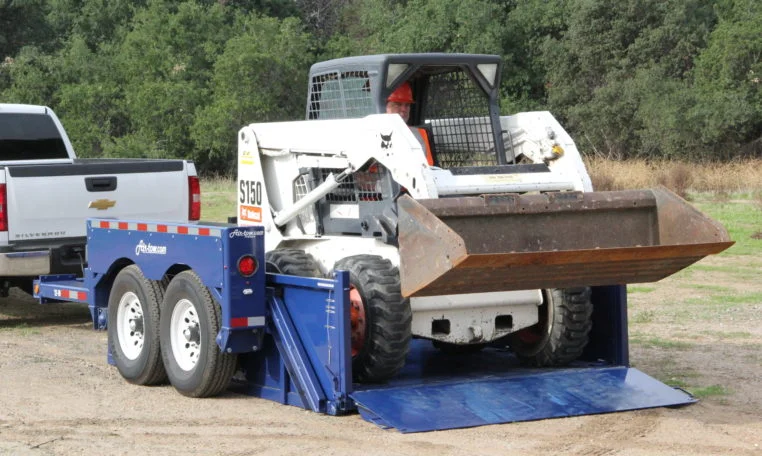

Ground-Level Loading
Hydraulic Lift Mechanism
Heavy-Duty Diamond Deck
4 Heavy-Duty D-Rings
10,000 lb. Towing Capacity
8,000 lb. Dumping Capacity

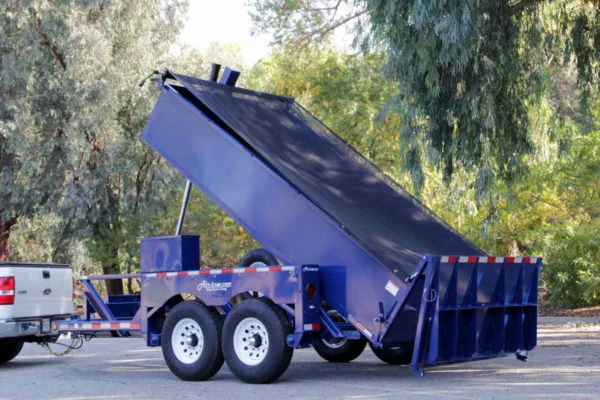

45 Degree Full Dump Angle
24” Inside Bed Depth
149” Inside Bed Length
74” Inside Bed Width
101” Overall Outside Width

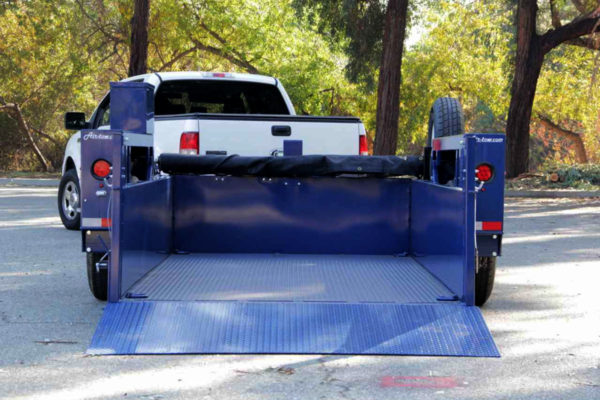

Dual Acting Tailgate Ramp
Tandem Axles
16” Twelve Ply Tires
Electric Brakes
Rubber Suspension
2-5/16” Ball Coupler
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Model # | Name |
Description | Price |
|---|---|---|---|

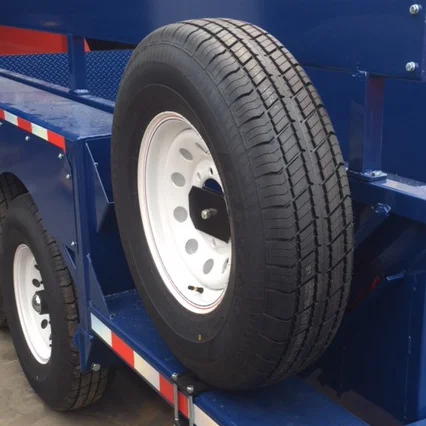

| DS-700038 | Spare Wheel/Tire - 16" | 16" Tires are ST235/85R16-F (12 Ply) | $510 |
| DS-501003 | Spare Tire Bracket | Mounts on trailer frame | $309 |
| DS-501007 | Side Mounted Tool Box | Mounts on side frame ( 10" W x 16" H x 24" L) Shock mounted lid w/key lock | $677 |
| DS-700155 | Wireless Pump Control | Wireless remote pump control for raising or lowering trailer deck | $386 |
| DS-700198 | Upgrade to Aluminum Wheels | Aluminum Manba with center cap- ST235/85R16 - 8 lug | $575 |
| DS-501010 | Battery - Trickle Charger | Weatherproof 6 amp charger mounted in power compartment for 110V outlet | $362 |
| DS-501080 | Air Suspension Upgrade Tandem Axle | 2 compressors linked to airbags for equal load distribution and smooth ride | $2,627 |
| DS-700064 | Battery - 12 V - deep cycle | 12 V - deep cycle group-24 battery | $268 |
| DS-501027 | Electric Brakes | Added to second axle | $843 |
| DS-501033 | Surge Brakes (Drum) | Tandem axles (in place of standard electric brakes) | $2,824 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Specification Sheet:
DS-3D-12
Videos:
Air-tow’s exclusive, proprietary swing-arm axles offer one of the smoothest ride available. The long pivot arm is mounted with large tapered roller bearings giving the greatest torsional effect possible that absorbs both horizontal and vertical stresses. No plastic guides or spring bushings that wear out! The axle has both camber and tow-in adjustments for perfect alignment ensuring minimal least tire wear. These axles will accommodate both rubber and air suspension. They come laser aligned with dynamically balanced tires. These axles are constructed with an automatic robotic welding system for precision and consistency.
THESE TRAILERS MAY NOT BE AVAILABLE FROM PLATFORMSANDLADDERS.COM IN OHIO AND CALIFORNIA.
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
