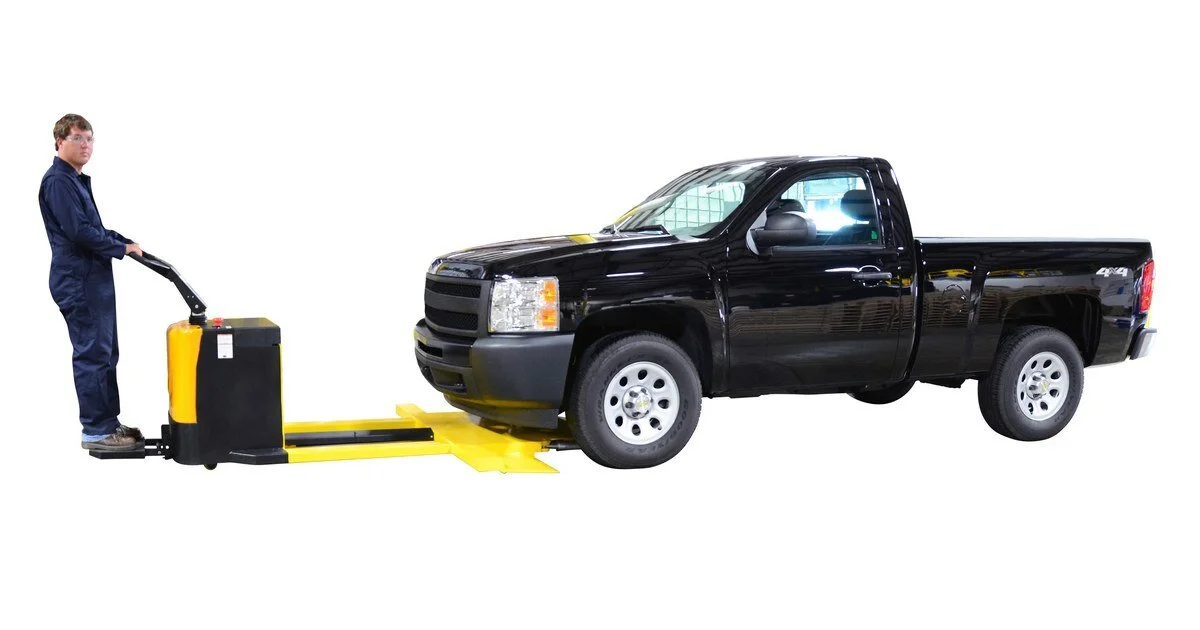

Electric Car Mover
Electric Car Mover
The Electric Car Mover is ideal for the maintenance industries. The Electric design allows for smooth quiet movement from workstation to workstation. The mover is constructed for a single person use when personnel is limited. To use, simply place the mover directly in line and secure the wheels of the product in place. Once product is secured, the unit can be moved to the desired position. Includes four (4) 6V batteries.
The mover is constructed for a single person use when personnel is limited. To use, simply place the mover directly in line and secure the wheels of the product in place. Once product is secured, the unit can be moved to the desired position. Includes four (4) 6V batteries..
Standard Features
Constructed of steel for utmost strength
7,500 lb capacity
Drive motor: 1.5KW/24V
Electromagnetic brake
Battery: (4) 6V
Battery charger: 24V/12amp
Turning radius: 88 5/8" (R2250mm)
Displacement of gear pump: 1.2 ml/r
Travel speed without load: 4 m/h
Grade ability without load: 10%
Grade ability with load 5%
Bright yellow color for clear discernibility from long distances
Tough baked in powder coated black & yellow
Unit stands at an ergonomic height to minimize bending and twisting
Ideal for areas of limited maneuvering space
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A LIFT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LIFT.
| Electric - Car Mover | |||||
|---|---|---|---|---|---|
| Model Number | Overall Size (W x L) | Lowered Height | Capacity [lbs.] | Weight [lbs.] | Price |
| DS-ECM-7635-75 | 76-3/4"x104-3/4"x54-1/2" | 4-1/2" | 7,500 | 1948 | $16,497 |
| DS-AGM-UPG-4-6V | AGM Battery Upgrade Purchase With New Unit | 80 | $3,294 | ||
| All dimensions are in inches / 30+ day lead-time | |||||
