Fork Mounted Trash Can Dumpers


Fork Mounted Trash Can Dumpers

$1,149.00

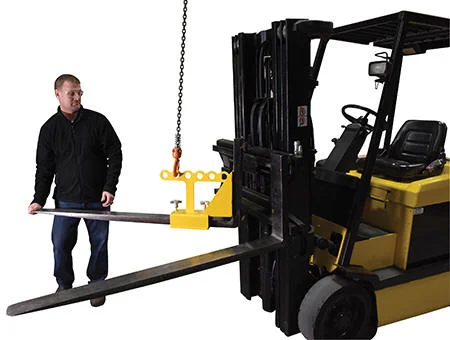

Save time and possibly reduce injuries using a Fork Mounted Trash Can Dumper to lift, carry and dump trash cans with a fork truck.

This innovative product will allow a worker to lift and dump refuse containers weighing up to 1,000 lbs. using a fork truck. Align the trash can with dumper and lock into place. Once locked in place, transport trash can to refuse container, align and pull chain to dump refuse container contents.

Add To Cart

Pricing

Fork Mounted - Trash Can Dumper
Model NumberDescriptionCapacity
(lbs.)
Weight
(lbs.)
Price
DS-FM-T-DUMPFork Mounted Dumper1,000254$1,341
DS-TCD-FM-EFork Mounted No Moving PartsDumper500158$506
All dimensions are in inches

Features

Standard Features for DS-FM-T-Dump:

  • 1,000 lb. capacity

  • Secures to the truck with safety chain and cable to the driver

  • Only for use with 64 gallon trash can series DS-TH-64

  • Usable fork pockets are 2-5/8" high x 7-5/8" wide

  • Overall size: 49-5/8" wide x 39-9/16" long x 41-15/16" high

  • Trash Cans come in Green-GRN, Gray -GY or Blue -BLU

  • Painted blue enamel steel

Standard Features for DS-TCD-FM-E:

  • Simple design with no moving parts

  • 500 lb. capacity

  • Sloped guides to center container as it rotates

  • Pick-up hooks adjust from 4-1/4" to 8-1/4"

  • Fork pockets [ID] 5-5/16" wide x 2-5/8" high on 30" centers

  • Overall size: 36-5/8" wide x 58-3/8" long x 9-1/16" high

  • Welded steel construction

  • Powder coated finish

  • Addition trash cans available

*****Never exceed load center rating per fork truck manufacturer's guidelines.  Do not use this fork truck attachment if load will exceed fork truck manufacturer's load center rating.*****

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

Options

No options available for this product.

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Manual:

sometext

DS-FM-T-Dump-Manual



Drawings:

sometext

DS-FM-T-DUMP-Drawing



Videos:

Fork Truck Mounted Trash Can Dumper



Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.


CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A FORK TRUCK ATTACHMENT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE FORK TRUCK ATTACHMENT.
