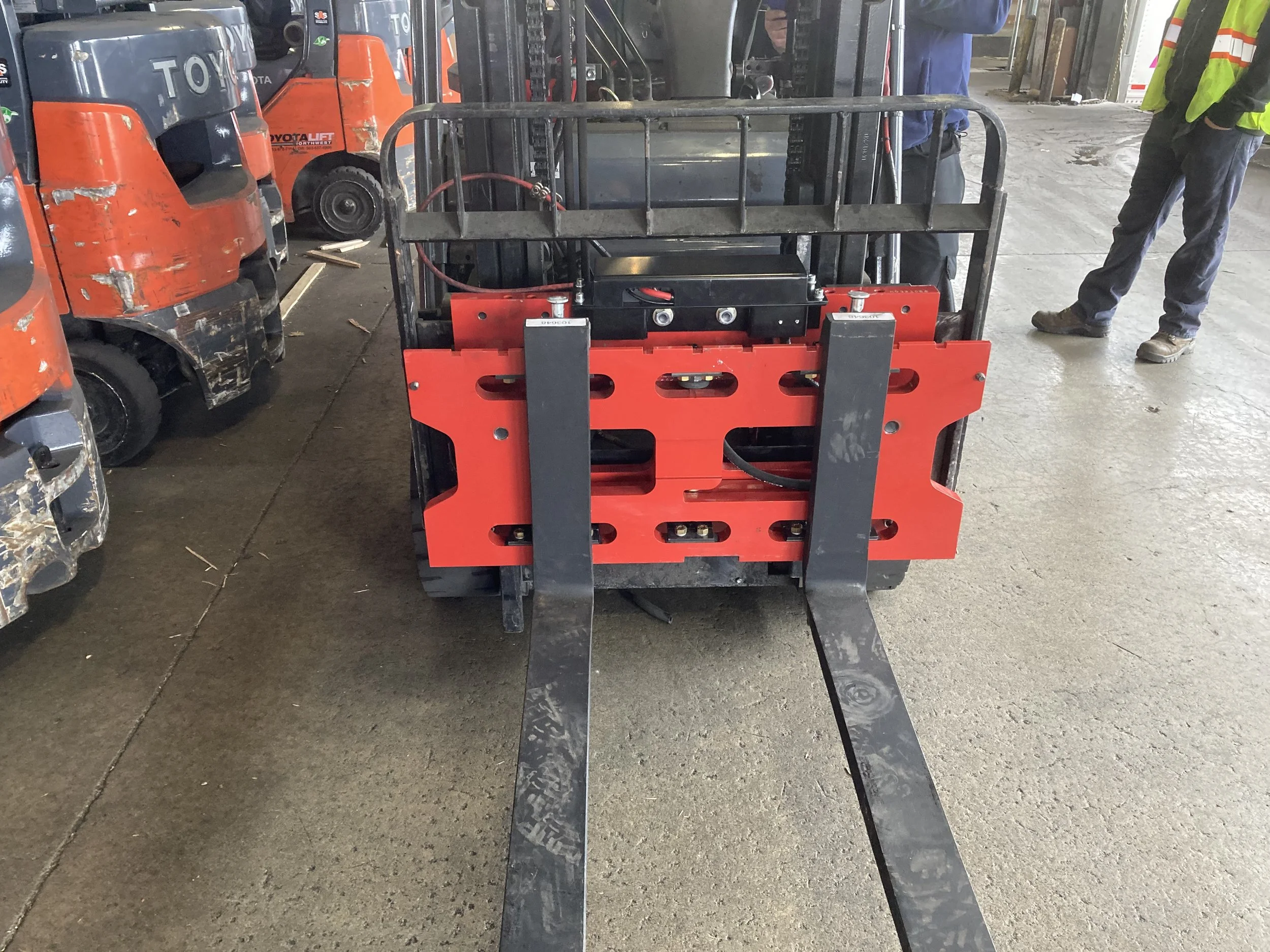

iCP in field.JPG

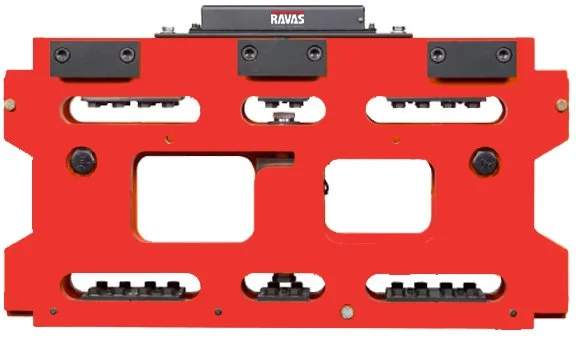

iCP RAVAS 2.jpg

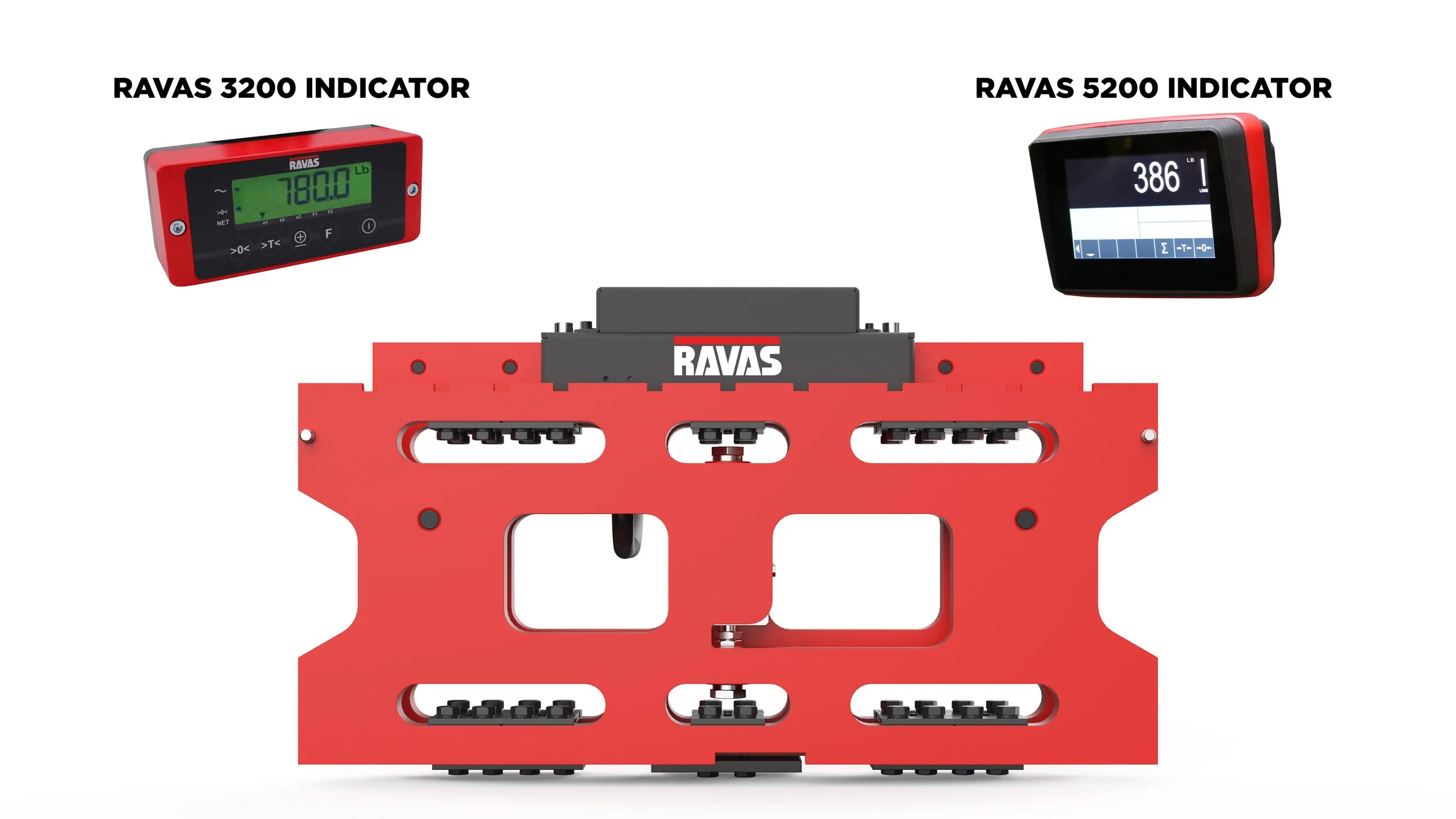

RAVAS iCP with 3200 & 5200 Indicator.jpg

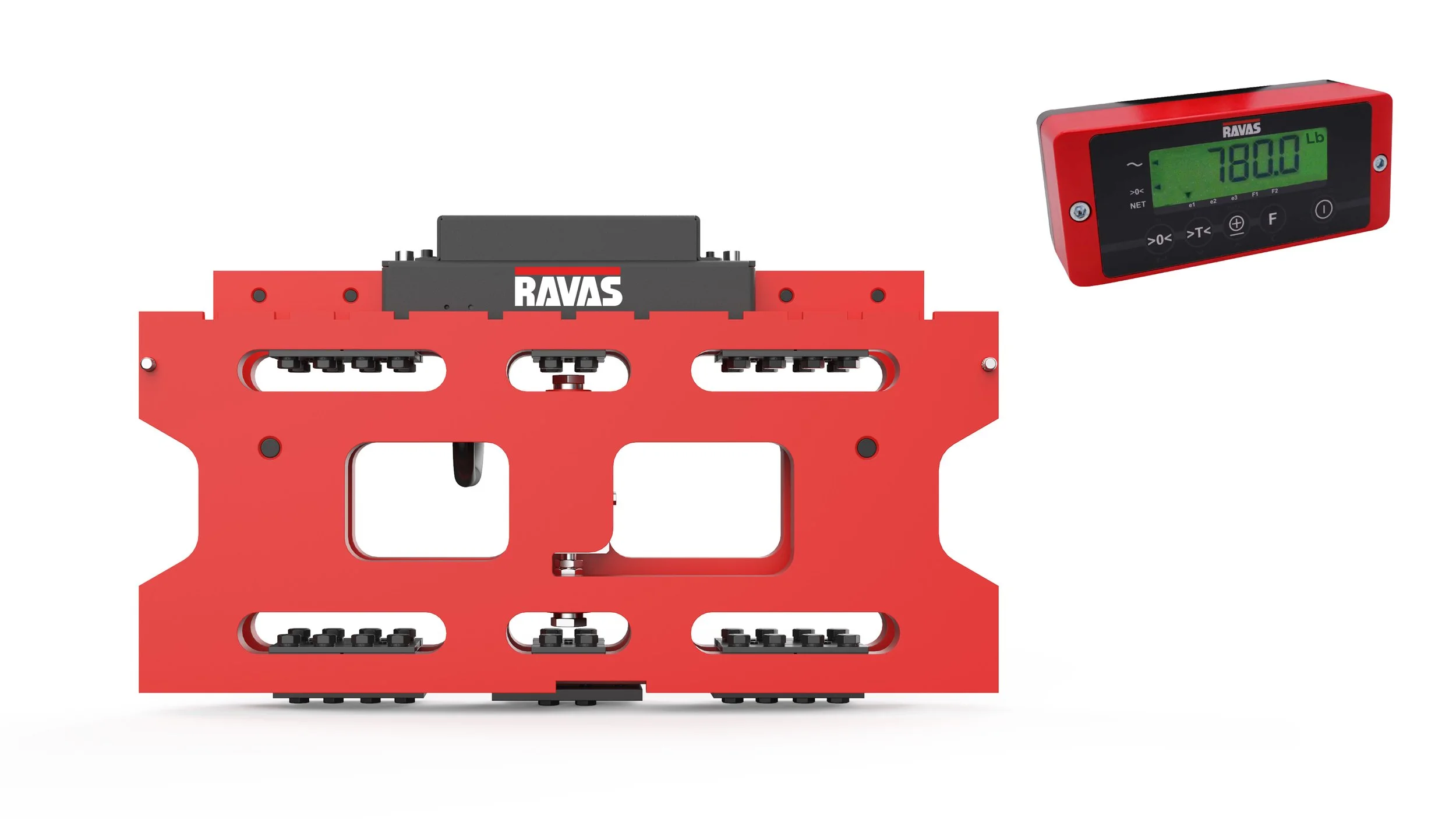

RAVAS iCP with 3200 Indicator.jpg

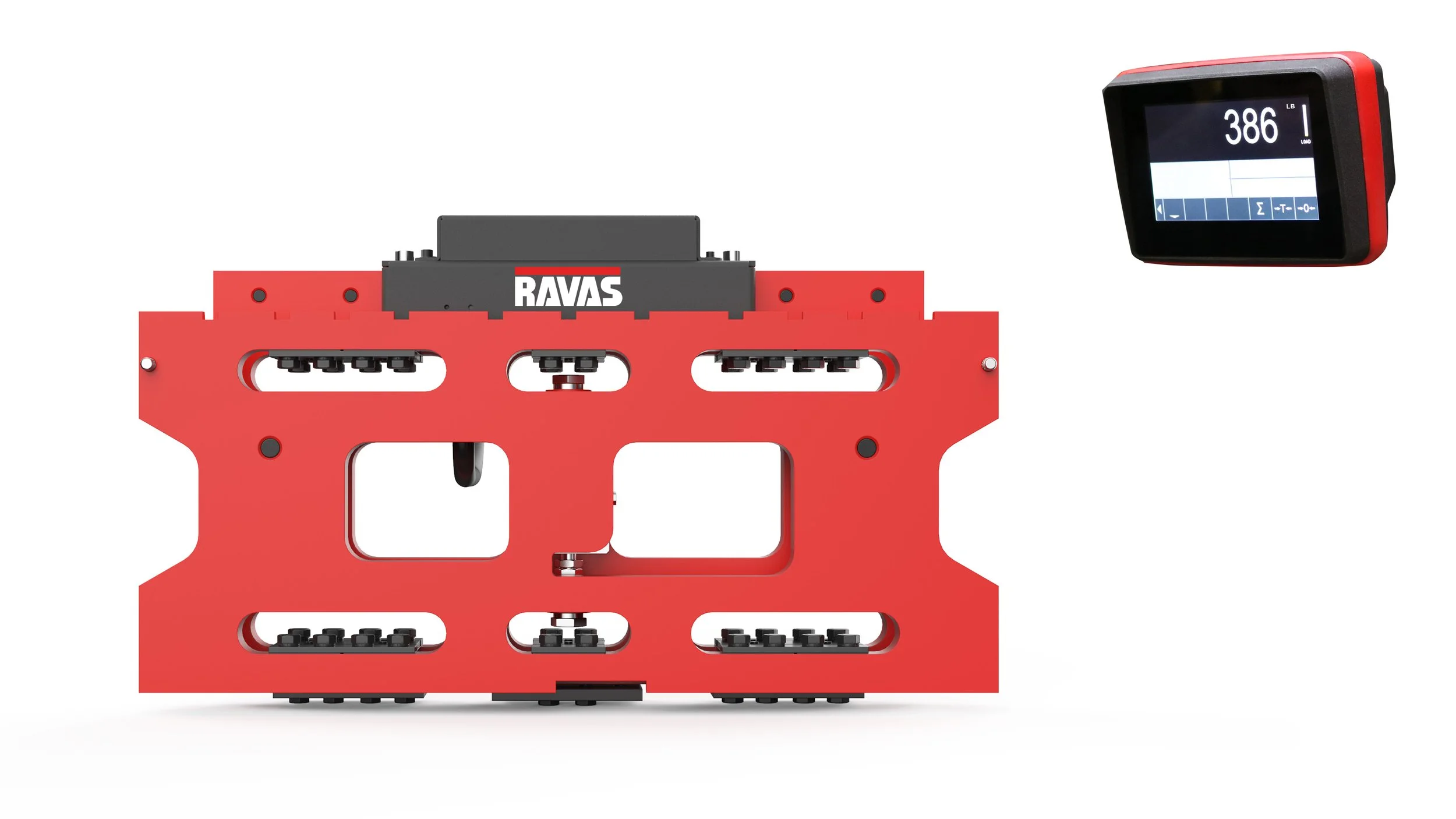

RAVAS iCP with 5200 Indicator.jpg
iCP carriage plate scale_wireless (1).jpg
iCP carriage plate scale_wireless (2).jpg
iCP carriage plate scale_wireless (3).jpg
iCP carriage plate scale_wireless (4).jpg
iCP in field.JPG
iCP RAVAS 2.jpg
RAVAS iCP with 3200 & 5200 Indicator.jpg
RAVAS iCP with 3200 Indicator.jpg
RAVAS iCP with 5200 Indicator.jpg

iCP - Intelligent Weighing Fork Board

$382.00

The iCP, an integrated mobile weighing system, weighs pallet loads while being unloaded or transported with a forklift. The onboard indicator collects critical data and can share it wirelessly via built-in Bluetooth.

Add To Cart

Pricing

Intelligent Weighing Fork Board - iCP
Model # Weighing
Capacity
Graduation System
Tolerance
Power Supply
Indicator
Protection
Class
Weight
[lbs]
Price Order
Form
DS-iCP-Class II NTEP (Legal for Trade) 5,000 lbs.
Non NTEP: 6,000 lbs.
2 lbs. at 5,000 lbs. 0.2% of the
load lifted
From truck battery,
via regulator
IP65/NEMA 4 390 $8,228
DS-iCP-Class III NTEP (Legal for Trade) 10,000 lbs.
Non NTEP: 15,000 lbs.
5 lbs. at 10,000 lbs. 0.2% of the
load lifted
From truck battery,
via regulator
IP65/NEMA 4 660 $10,538
DS-iCP-Class IV NTEP (Legal for Trade) 12,000 lbs.
Non NTEP: 20,000 lbs.
20 lbs. at 20,000 lbs. 0.2% of the
load lifted
From truck battery,
via regulator
IP65/NEMA 4 900 $25,375

Features

Standard Features:

  • NON-NTEP MAXIMUM CAPACITY

  • Class II: 5,000 lbs.

  • Class III: 10,000 lbs.

  • Class IV: 15,000 lbs.

  • NTEP CAPACITY

  • Class II: 5,000 lbs.

  • Class III: 10,000 lbs.

  • Class IV: 12,000 lbs.

  • GRADUATION

  • 5 lbs. at 5,000 lbs

  • 10 lbs. at 10,00 lbs

  • 20 lbs. at 20,000 lbs

  • SYSTEM TOLERANCE

  • 0.2% of load lifted

Efficient

With the iCP, lifting, weighing, counting, accumulating, and transporting are accomplished as a single efficient operation. This streamlines workflow by eliminating the time-consuming task of taking shipments to remote platform scales.

Flexible

Compatible with most forklift truck carriages, the iCP requires no modification as it does not connect to the truck’s hydraulic system. The multiple flexures have no moving parts and absorb the shock caused when transferring the weight to the load cells.

Accurate

The iCP’s unique single-load cell design provides superior load-sample linearity and maintains 0.1% accuracy from heel-to-toe and fork-to-fork. Also, the iCP is NTEP certified to ensure your legal-for-trade requirements are met.

Safety

Manufactured with two rugged grade-8 steel bolts to prevent damage to the load cells and secure the scale base for service or if the flexures fail due to unintentional abuse. The load cell rating is set to withstand an overload of 300% without damaging the cell.

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed

Options

Options:

• NTEP Certified (Legal for Trade)

• WiFi to ERP/WMS

• Cabled or Cableless

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Manual:

sometext

DS-iCP-Owners-Manual

sometext

DS-iCP-Technical-Manual



Technical Specifications:

sometext

DS-iCP-Technical-Specs



Videos:

iCP - Intelligent Weighing Fork Board



Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
