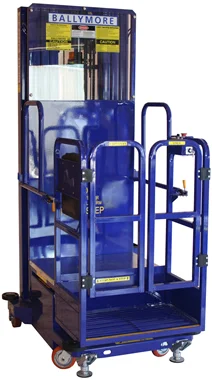

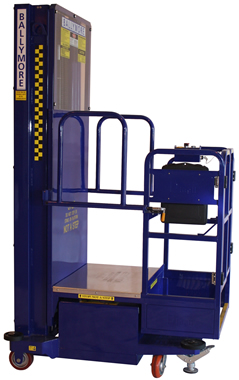

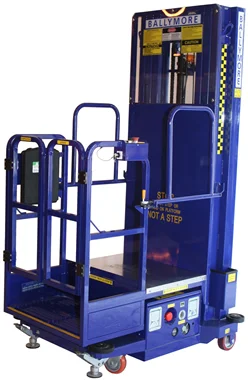

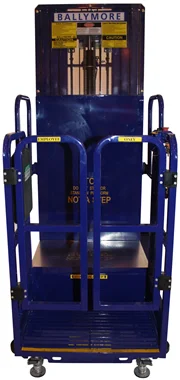

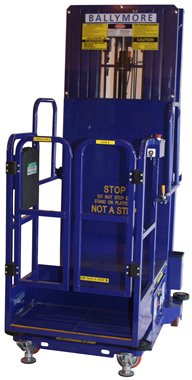

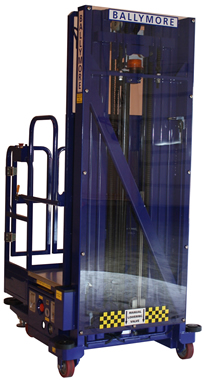

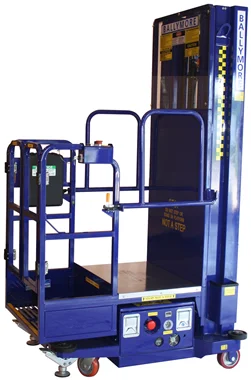

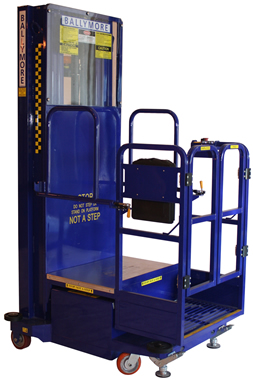

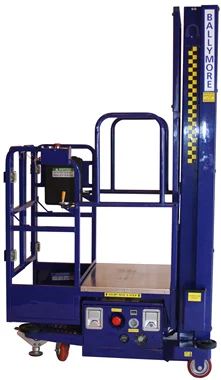

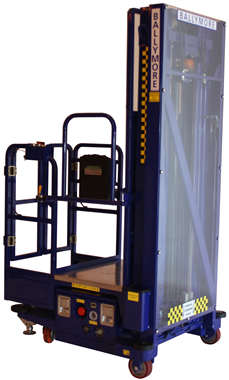

Power Stocker Lift
Power Stocker Lift
The Power Stocker Lift puts warehouse stock in range of the warehouse person.
Pricing
| Power Stocker - Lift | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Merchandise Deck Max Height | Platform Min Height | Min Overall Height | Working Height | Platform [W x L] | Base [W x L] | Weight (lbs.) | Power Source | Price |
| DS-PS-10 | 8'2" | 10" | 76" | 14' | 23.5"x18" | 36"x54" | 1040 | 12V DC | $6,568 |
| DS-PS-12 | 13' | 11" | 95" | 17' | 23.5"x18" | 42"x54" | 1134 | 12V DC | $9,853 |
| DS-PS-15 | 14'9" | 10" | 90" | 20' | 23.5"x18" | 43"x54" | 1434 | 12V DC | $13,428 |
| DS-PS-12D | 13' | 11" | 95" | 17' | 23.5"x18" | 42"x54" | 1600 | 2-12V DC | $11,885 |
| All Dimensions are in inches | |||||||||
Features
Standard Features:
Ground entry
Manually propelled
Hydraulic order picker
Floor locks secure in place for models DS-PS-10 AND DS-PS-12
450 lb. total capacity on the DS-PS-10 (operator and inventory)
650 lb. total capacity on the DS-PS-12 & DS-PS-15 (operator and inventory)
Turning radius is approximately 69"
12 volt DC power with mounted 110 volt charger included
High quality controls requires both hands to operate
80 to 100 raise and lower cycles between charges
Key lock prevents unauthorized use
Removable guardrails for easy loading and unloading
Meets/exceeds ANSI safety standards
Options
Options:
The optional Safety Sensing System will detect intrusions up to approximately 2 feet from the lift. As the lift platform is raised more than two feet, the system activates and scans the area for objects within two feet of the lift. During this activation process, it will not alarm for any objects it detects. Any intrusion into the safety zone will trigger the alarm.
Safety Sensing System (PS-12 and PS-15 only) creates a 2 foot safety zone around lift, alerting operator of activity below lift +$1,075
A light will flash
The beeper will sound
The lift will not descend
Safety Sensing System Option add $1,204
After the safety zone is clear of the intrusion for 5 seconds, the system will automatically reset.
DS-PS-12D is the DRIVABLE VERSION
