Our Heavy Duty Cantilever Racks offer durability with easy assembly and configuration for your storage space.
The Heavy Duty Cantilever Racks are easily configured with bolt together assembly of welded components and provide rugged support and durability. Uprights, arms and braces are sold separately allowing the purchase of the most appropriate components necessary for the application. The required assembly hardware is included.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Pricing
| Single Sided Cantilever Uprights - Heavy Duty | ||||||
|---|---|---|---|---|---|---|
| Model Number | Height | Base | Arms To Use | Capacity (lbs.) | Net Weight (lbs.) | Price |
| DS-HU-C-8-18 | 96" | 31" | 18" | 24,700 | 260 | $770 |
| DS-HU-C-8-24 | 96" | 37" | 24" | 21,500 | 270 | $784 |
| DS-HU-C-8-36 | 96" | 49" | 30"/36" | 18,300/16,000 | 290 | $831 |
| DS-HU-C-8-48 | 96" | 61" | 42"/48" | 14,200/12,800 | 312 | $877 |
| DS-HU-C-10-18 | 120" | 31" | 18" | 24,700 | 288 | $945 |
| DS-HU-C-10-24 | 120" | 37" | 24" | 21,500 | 307 | $996 |
| DS-HU-C-10-36 | 120" | 49" | 30"/36" | 18,300/16,000 | 328 | $1,031 |
| DS-HU-C-10-48 | 120" | 61" | 42"/48" | 14,200/12,800 | 350 | $1,062 |
| DS-HU-C-12-18 | 144" | 31" | 18" | 24,400 | 340 | $1,040 |
| DS-HU-C-12-24 | 144" | 37" | 24" | 20,900 | 348 | $1,089 |
| DS-HU-C-12-36 | 144" | 49" | 30"/36" | 17,800/15,600 | 370 | $1,106 |
| DS-HU-C-12-48 | 144" | 61" | 42"/48" | 13,900/12,500 | 390 | $1,128 |
| DS-HU-C-14-18 | 168" | 31" | 18" | 23,400 | 380 | $1,140 |
| DS-HU-C-14-24 | 168" | 37" | 24" | 20,200 | 390 | $1,169 |
| DS-HU-C-14-36 | 168" | 49" | 30"/36" | 17,600/15,400 | 410 | $1,205 |
| DS-HU-C-14-48 | 168" | 61" | 42"/48" | 13,700/12,400 | 430 | $1,231 |
| All dimensions are in inches | ||||||

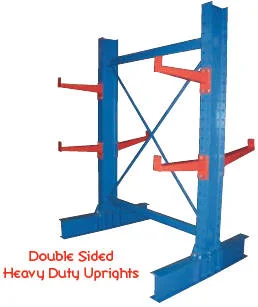

| Double Sided Cantilever Uprights - Heavy Duty | ||||||
|---|---|---|---|---|---|---|
| Model Number | Height | Base | Arms To Use | Capacity (lbs.) | Net Weight (lbs.) | Price |
| DS-HDU-C-8-18 | 96" | 53" | 18" | 49,400 | 275 | $821 |
| DS-HDU-C-8-24 | 96" | 65" | 24" | 43,000 | 307 | $875 |
| DS-HDU-C-8-36 | 96" | 82" | 30"/36" | 36,600/32,000 | 350 | $985 |
| DS-HDU-C-8-48 | 96" | 106" | 42"/48" | 28,400/25,600 | 390 | $1,097 |
| DS-HDU-C-10-18 | 120" | 53" | 18" | 49,200 | 300 | $940 |
| DS-HDU-C-10-24 | 120" | 65" | 24" | 42,600 | 335 | $984 |
| DS-HDU-C-10-36 | 120" | 82" | 30"/36" | 36,400/31,600 | 386 | $1,111 |
| DS-HDU-C-10-48 | 120" | 106" | 42"/48" | 28,200/25,200 | 418 | $1,241 |
| DS-HDU-C-12-18 | 144" | 53" | 18" | 48,800 | 350 | $1,092 |
| DS-HDU-C-12-24 | 144" | 65" | 24" | 41,800 | 385 | $1,140 |
| DS-HDU-C-12-36 | 144" | 82" | 30"/36" | 35,600/31,200 | 430 | $1,267 |
| DS-HDU-C-12-48 | 144" | 106" | 42"/48" | 27,800/25,000 | 470 | $1,357 |
| DS-HDU-C-14-18 | 168" | 53" | 18" | 46,800 | 390 | $1,400 |
| DS-HDU-C-14-24 | 168" | 65" | 24" | 40,400 | 426 | $1,466 |
| DS-HDU-C-14-36 | 168" | 82" | 30"/36" | 35,200/30,800 | 468 | $1,602 |
| DS-HDU-C-14-48 | 168" | 106" | 42"/48" | 27,400/24,800 | 510 | $1,722 |
| Cantilever Straight Arms - Heavy Duty | ||||
|---|---|---|---|---|
| Model Number | Arm Length | Uniform Capacity Per Arm (lbs.) | Weight (lbs.) | Price |
| DS-HSA-C-18 | 18" | 2,500 | 16 | $50 |
| DS-HSA-C-24 | 24" | 2,000 | 19 | $59 |
| DS-HSA-C-30 | 30" | 1,500 | 22 | $64 |
| DS-HSA-C-36 | 36" | 1,200 | 24 | $69 |
| DS-HSA-C-42 | 42" | 1,100 | 27 | $78 |
| DS-HSA-C-48 | 48" | 1,000 | 30 | $82 |
| All dimensions are in inches | ||||
| 10 Degree Inclined Cantilever Arms - Heavy Duty | ||||
|---|---|---|---|---|
| Model Number | Arm Length | Uniform Capacity Per Arm (lbs.) | Weight (lbs.) | Price |
| DS-HIA-C-18 | 18" | 2,500 | 16 | $55 |
| DS-HIA-C-24 | 24" | 2,000 | 19 | $56 |
| DS-HIA-C-30 | 30" | 1,500 | 21 | $65 |
| DS-HIA-C-36 | 36" | 1,200 | 24 | $68 |
| DS-HIA-C-42 | 42" | 1,100 | 27 | $80 |
| DS-HIA-C-48 | 48" | 1,000 | 30 | $96 |
| All dimensions are in inches | ||||
| Heavy Duty and Extra Heavy Duty - Cantilever Arms | ||||
|---|---|---|---|---|
| Model Number | Arm Length | Uniform Capacity Per Arm (lbs.) | Weight (lbs.) | Price |
| DS-HDSA-C-36 | 36" | 2,175 | 26 | $67 |
| DS-XHDSA-C-36 | 36" | 3,400 | 25 | $93 |
| DS-HDSA-C-42 | 42" | 1,865 | 29 | $79 |
| DS-XHDSA-C-42 | 42" | 2,900 | 29 | $105 |
| DS-HDSA-C-48 | 48" | 1,630 | 31 | $86 |
| DS-HDSA-C-48M | 48" | 2,000 | 33 | $94 |
| DS-XHDSA-C-48 | 48" | 2,500 | 31 | $114 |
| All dimensions are in inches | ||||
| Brace Sets - Heavy Duty | ||||
|---|---|---|---|---|
| Model Number | Upright Height | Length | Weight (lbs.) | Price |
| DS-HB-C-8-3 | 96"-120" | 36" | 29 | $85 |
| DS-HB-C-8-4 | 96"-120" | 48" | 35 | $125 |
| DS-HB-C-8-5 | 96"-120" | 60" | 42 | $210 |
| DS-HB-C-8-6 | 96"-120" | 72" | 54 | $230 |
| DS-HB-C-8-7 | 96"-120" | 84" | 61 | $245 |
| DS-HB-C-8-8 | 96"-120" | 96" | 69 | $276 |
| DS-HB-C-14-3 | 144"-168" | 36" | 44 | $127 |
| DS-HB-C-14-4 | 144"-168" | 48" | 54 | $235 |
| DS-HB-C-14-5 | 144"-168" | 60" | 64 | $284 |
| DS-HB-C-14-6 | 144"-168" | 72" | 84 | $308 |
| DS-HB-C-14-7 | 144"-168" | 84" | 95 | $327 |
| DS-HB-C-14-8 | 144"-168" | 96" | 107 | $347 |
| All dimensions are in inches | ||||
Features
Standard Features:
Steel construction
Baked blue finish
Warning stickers
Owner's manual
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
