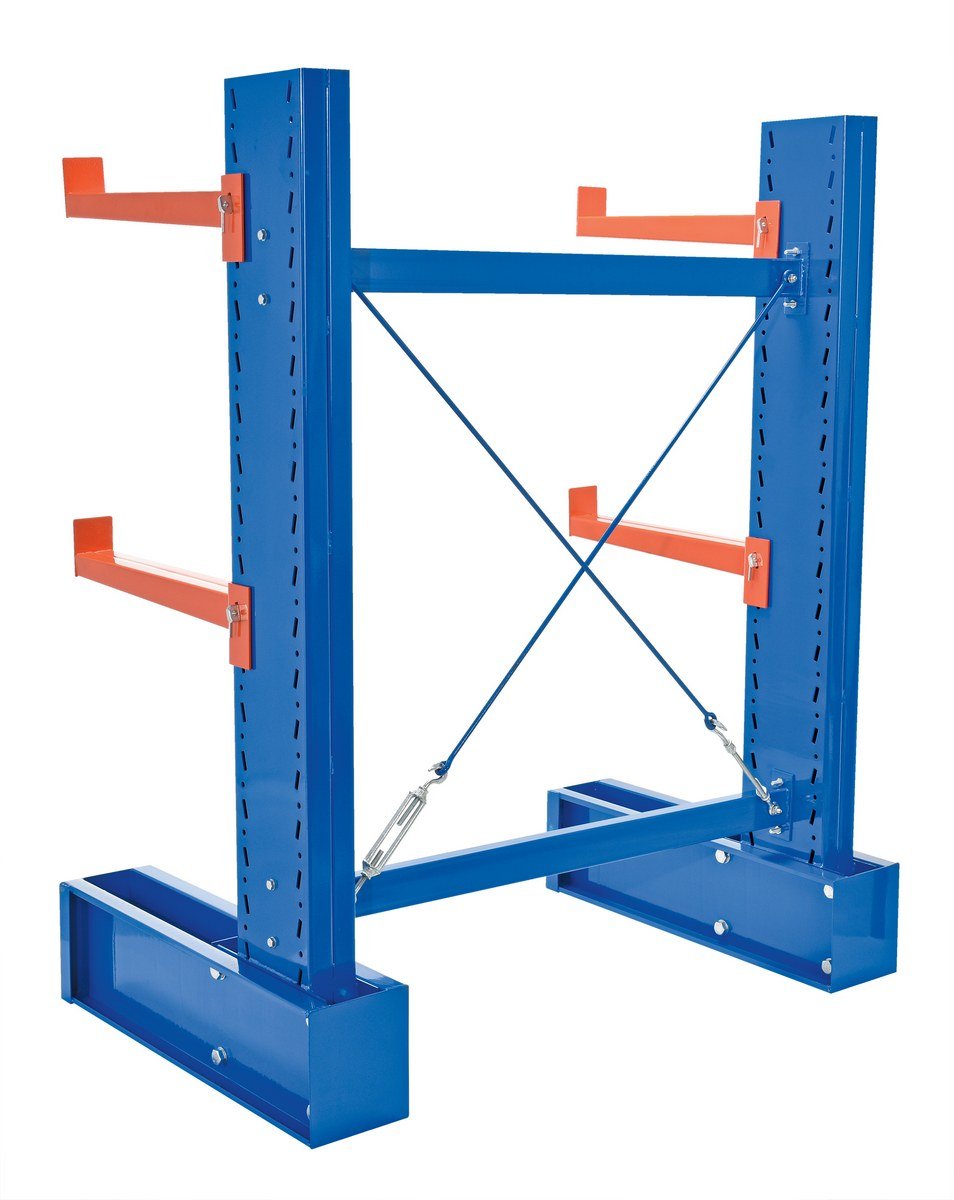

Medium Duty Cantilever Racks
Medium Duty Cantilever Racks

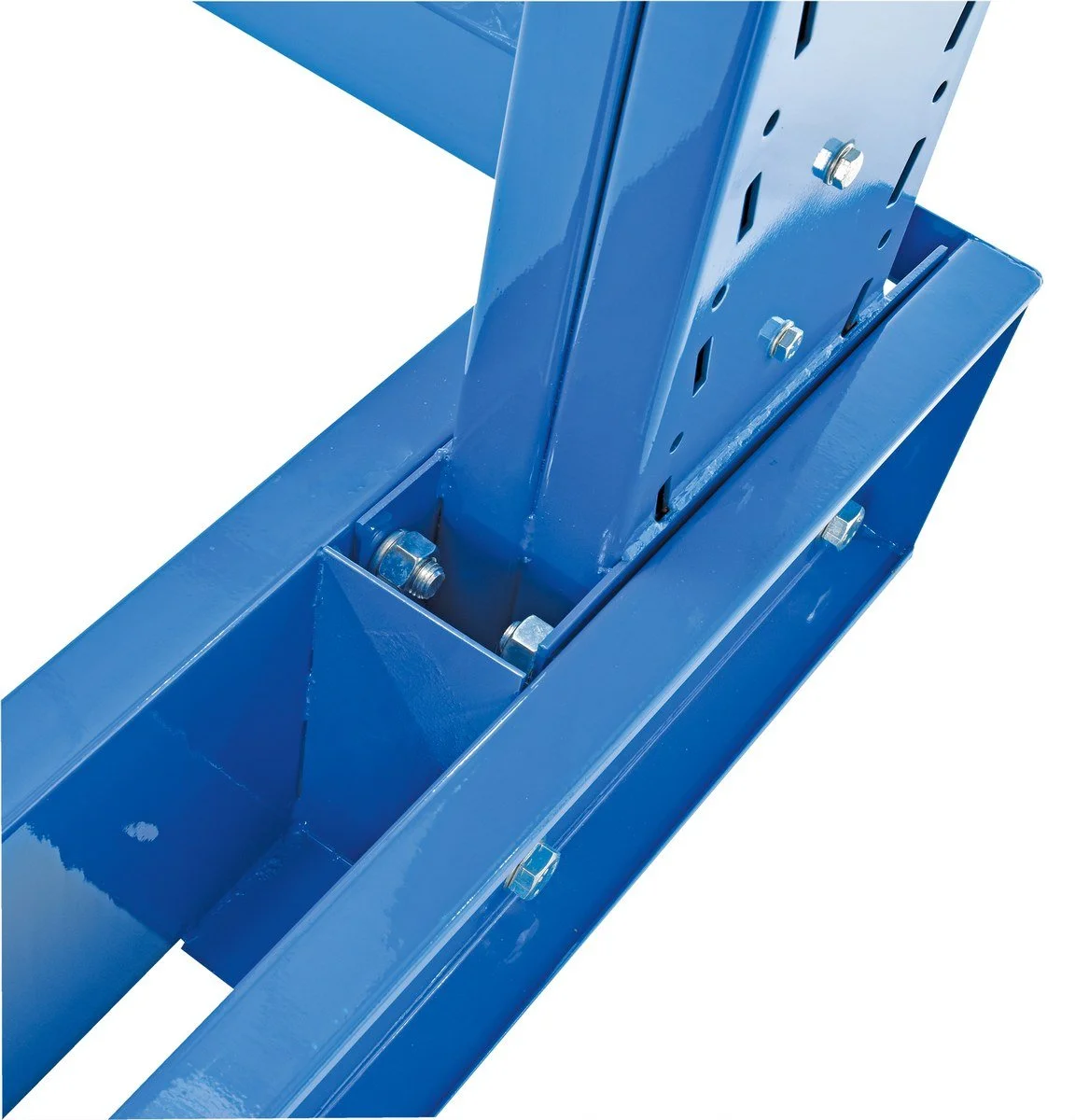

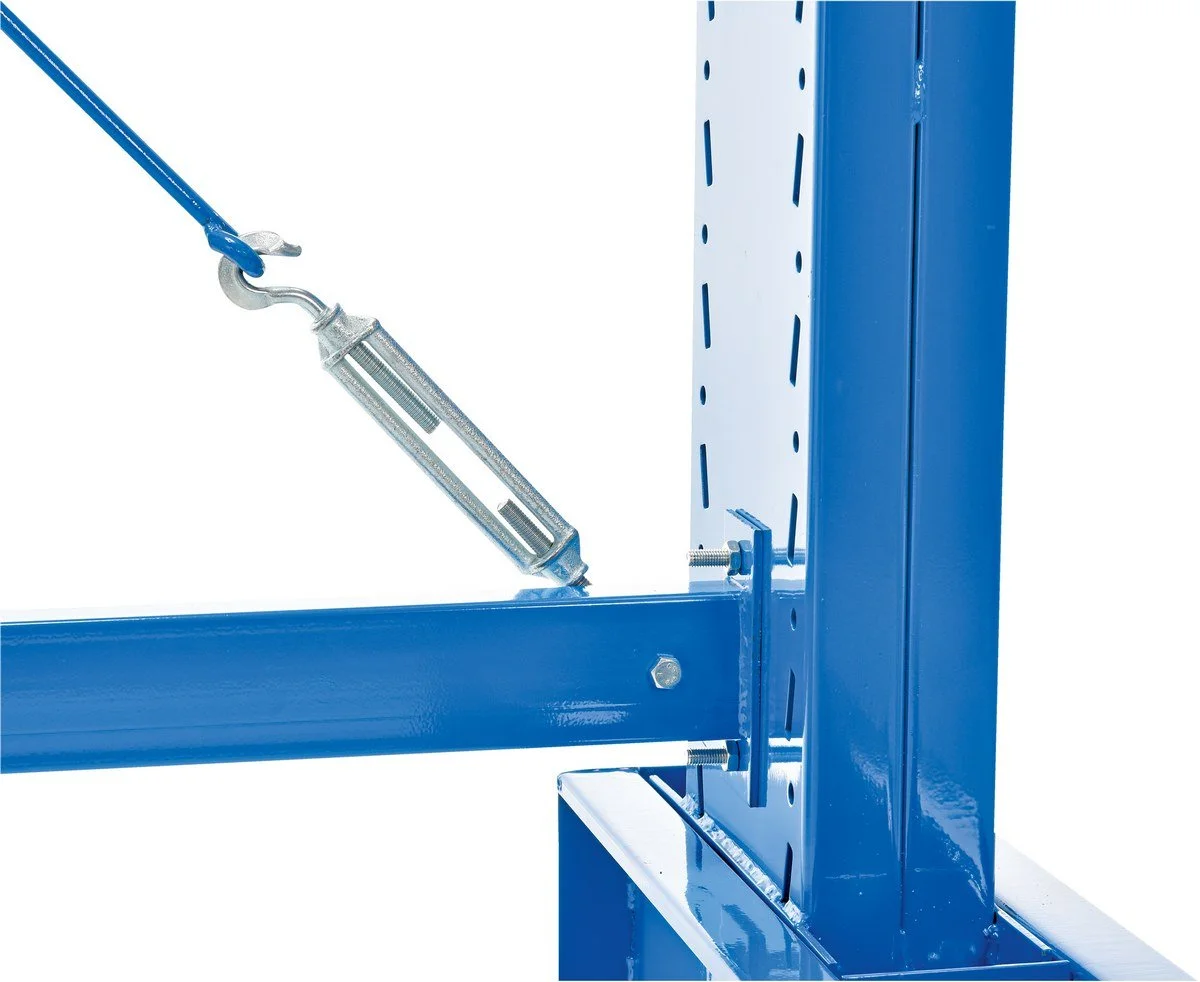

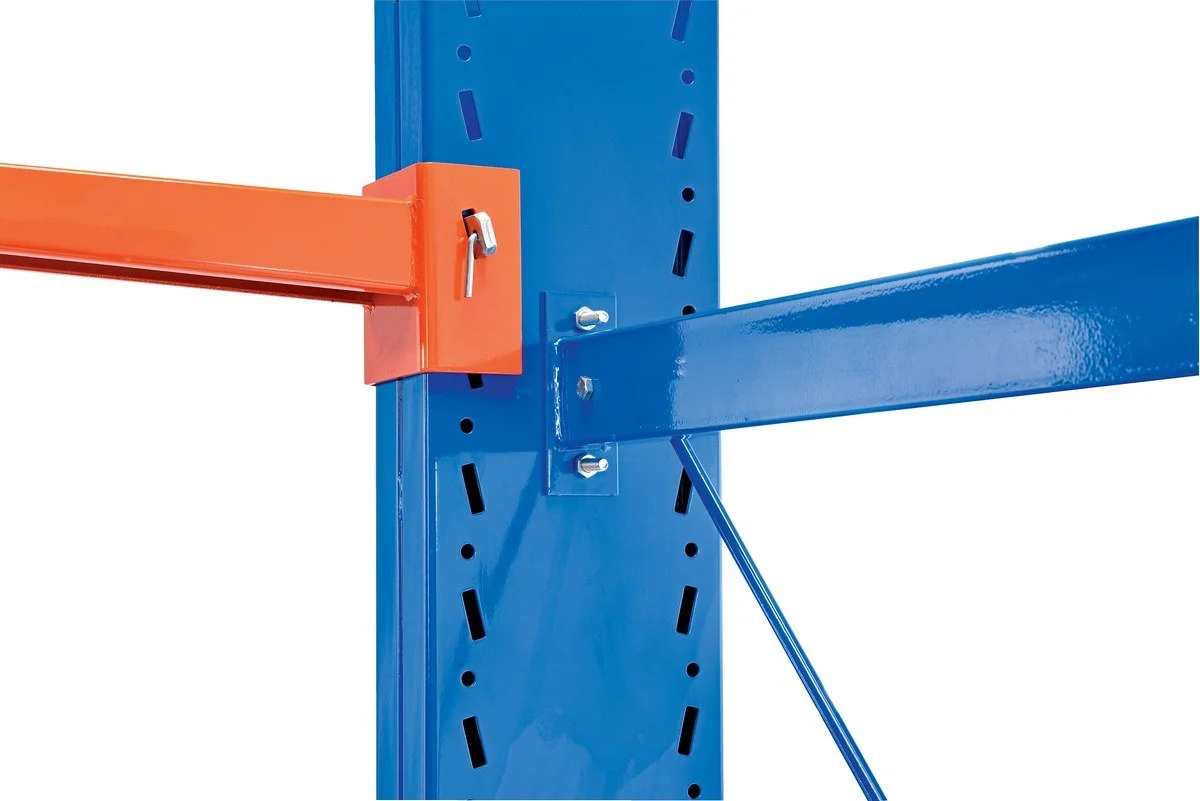

Medium Duty Cantilever Racks feature bolt together assembly of welded components to easily match your available storage space.
The Medium Duty Cantilever Racks are easily configured, easily assembled and durable. Uprights, arms and braces are sold separately which allows one to purchase the appropriate components required for the application. The necessary assembly hardware is included.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Pricing
| Single Sided Cantilever Uprights - Medium Duty | ||||||
|---|---|---|---|---|---|---|
| Model # | Height | Base | Arms to Use | Capacity (lbs.) | Net Weight (lbs.) | Price |
| DS-MU-C-6-12 | 6' | 25 3/8" | 12" | 8,100 | 130 | $427 |
| DS-MU-C-6-18 | 6' | 31" | 18" | 6,600 | 135 | $429 |
| DS-MU-C-6-24 | 6' | 37" | 24" | 5,500 | 142 | $461 |
| DS-MU-C-6-36 | 6' | 49 3/8" | 30"/36" | 4,700/4,100 | 150 | $496 |
| DS-MU-C-8-12 | 8' | 25 3/8" | 12" | 7,600 | 150 | $527 |
| DS-MU-C-8-18 | 8' | 31" | 18" | 6,300 | 155 | $572 |
| DS-MU-C-8-24 | 8' | 37" | 24" | 5,300 | 160 | $579 |
| DS-MU-C-8-36 | 8' | 49 3/8" | 30"/36" | 4,500/4,000 | 170 | $606 |
| DS-MU-C-10-12 | 10' | 25 3/8" | 12" | 7,100 | 170 | $626 |
| DS-MU-C-10-18 | 10' | 31" | 18" | 5,900 | 175 | $650 |
| DS-MU-C-10-24 | 10' | 37" | 24" | 5,000 | 180 | $669 |
| DS-MU-C-10-36 | 10' | 49 3/8" | 30"/36" | 4,400/3,800 | 190 | $775 |
| Double Sided Cantilever Uprights - Medium Duty | ||||||
| Model # | Height | Base | Arms to Use | Capacity (lbs.) | Net Weight (lbs.) | Price |
| DS-MDU-C-6-12 | 6' | 34" | 12" | 16,200 | 165 | $443 |
| DS-MDU-C-6-18 | 6' | 46" | 18" | 13,200 | 175 | $470 |
| DS-MDU-C-6-24 | 6' | 58" | 24" | 11,000 | 185 | $498 |
| DS-MDU-C-6-36 | 6' | 82" | 30"/36" | 9,400/8,200 | 210 | $601 |
| DS-MDU-C-8-12 | 8' | 34" | 12" | 15,200 | 185 | $519 |
| DS-MDU-C-8-18 | 8' | 46" | 18" | 12,600 | 195 | $573 |
| DS-MDU-C-8-24 | 8' | 58" | 24" | 10,600 | 205 | $624 |
| DS-MDU-C-8-36 | 8' | 82" | 30"/36" | 9,000/8,000 | 230 | $655 |
| DS-MDU-C-10-12 | 10' | 34" | 12" | 14,200 | 145 | $584 |
| DS-MDU-C-10-18 | 10' | 46" | 18" | 11,800 | 155 | $667 |
| DS-MDU-C-10-24 | 10' | 58" | 24" | 10,000 | 165 | $762 |
| DS-MDU-C-10-36 | 10' | 82" | 30"/36" | 8,800/7,600 | 190 | $789 |
| All dimensions are in inches | ||||||
| Straight Arms - Medium Duty | ||||
|---|---|---|---|---|
| Model # | Arm Length | Uniform Capacity Per Arm (lbs.) | Weight (lbs.) | Price |
| DS-MSA-C-12 | 12" | 1,000 | 10 | $33 |
| DS-MSA-C-18 | 18" | 750 | 12 | $35 |
| DS-MSA-C-24 | 24" | 600 | 15 | $37 |
| DS-MSA-C-30 | 30" | 500 | 17 | $45 |
| DS-MSA-C-36 | 36" | 400 | 21 | $46 |
| 10 Degree Inclined Arms - Medium Duty | ||||
| Model # | Arm Length | Uniform Capacity Per Arm (lbs.) | Weight (lbs.) | Price |
| DS-MIA-C-12 | 12" | 1,000 | 11 | $37 |
| DS-MIA-C-18 | 18" | 750 | 13 | $38 |
| DS-MIA-C-24 | 24" | 600 | 14 | $42 |
| DS-MIA-C-30 | 30" | 500 | 17 | $53 |
| DS-MIA-C-36 | 36" | 400 | 19 | $54 |
| Brace Sets - Medium Duty | ||||
| Model # | Upright Height | Length | Net Weight (lbs.) | Price |
| DS-MB-C-6-36 | 72" | 35" | 26 | $100 |
| DS-MB-C-6-48 | 72" | 47" | 38 | $106 |
| DS-MB-C-6-60 | 72" | 59" | 44 | $114 |
| DS-MB-C-6-72 | 72" | 71" | 50 | $148 |
| DS-MB-C-6-96 | 72" | 95" | 64 | $165 |
| DS-MB-C-8-36 | 96" | 35" | 28 | $114 |
| DS-MB-C-8-48 | 96" | 47" | 42 | $115 |
| DS-MB-C-8-60 | 96" | 59" | 48 | $118 |
| DS-MB-C-8-72 | 96" | 71" | 52 | $142 |
| DS-MB-C-8-96 | 96" | 95" | 66 | $167 |
| DS-MB-C-10-36 | 120" | 35" | 30 | $114 |
| DS-MB-C-10-48 | 120" | 35" | 44 | $118 |
| DS-MB-C-10-60 | 120" | 35" | 50 | $121 |
| DS-MB-C-10-72 | 120" | 35" | 54 | $148 |
| DS-MB-C-10-96 | 120" | 35" | 68 | $175 |
| All dimensions are in inches | ||||
Features
Standard Features:
Steel construction
Baked blue finish
Warning stickers
Owner's manual
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-MDU-Manual
DS-MU-C-Manual
Drawings:
DS-MU-C-10-24
Videos:
Medium Duty Cantilever Racks
