Mobile Work Platform
Mobile Work Platform

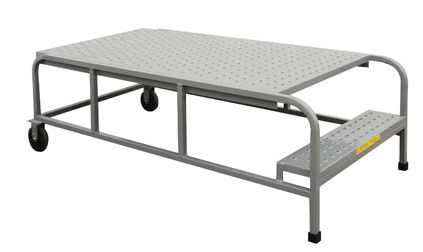

Our mobile work platform utilizes a tilt and roll design for quick and easy placement to the areas you need them.
These platforms provide a safe and stable elevated working surface for hard to reach tasks in your shop or factory.
Pricing
| Mobile Work Platforms - 2 To 5 Steps | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model # | # Of Steps | Platform Height | Platform Width | Platform Depth | Base W x D | Hand Rails | Lbs. | Perforated | Serrated |
| DS-2SWP2421 | 2 | 20" | 24" | 21" | 26"x27" | No | 46 | $240 | $330 |
| DS-2SWP2428 | 2 | 20" | 24" | 28" | 26"x34" | No | 52 | $312 | $408 |
| DS-2SWP2435 | 2 | 20" | 24" | 35" | 26"x41" | No | 58 | $330 | $420 |
| DS-2SWP2442 | 2 | 20" | 24" | 42" | 26"x48" | No | 64 | $372 | $480 |
| DS-2SWP2449 | 2 | 20" | 24" | 49" | 26"x55" | No | 69 | $390 | $510 |
| DS-2SWP2456 | 2 | 20" | 24" | 56" | 26"x62" | No | 76 | $420 | $540 |
| DS-2SWP3021 | 2 | 20" | 30" | 21" | 32"x27" | No | 59 | $300 | $372 |
| DS-2SWP3028 | 2 | 20" | 30" | 28" | 32"x34" | No | 68 | $372 | $438 |
| DS-2SWP3035 | 2 | 20" | 30" | 35" | 32"x41" | No | 77 | $408 | $498 |
| DS-2SWP3042 | 2 | 20" | 30" | 42" | 32"x48" | No | 85 | $432 | $540 |
| DS-2SWP3049 | 2 | 20" | 30" | 49" | 32"x55" | No | 92 | $480 | $582 |
| DS-2SWP3056 | 2 | 20" | 30" | 56" | 32"x62" | No | 102 | $498 | $618 |
| DS-3SWP2421 | 3 | 30" | 24" | 21" | 26"x33" | No | 59 | $330 | $420 |
| DS-3SWP2428 | 3 | 30" | 24" | 28" | 26"x40" | No | 66 | $360 | $450 |
| DS-3SWP2435 | 3 | 30" | 24" | 35" | 26"x47" | No | 73 | $390 | $498 |
| DS-3SWP2442 | 3 | 30" | 24" | 42" | 26"x54" | No | 78 | $420 | $540 |
| DS-3SWP2449 | 3 | 30" | 24" | 49" | 26"x61" | No | 84 | $450 | $570 |
| DS-3SWP2456 | 3 | 30" | 24" | 56" | 26"x68" | No | 91 | $480 | $618 |
| DS-3SWP3021 | 3 | 30" | 30" | 21" | 35"x33" | No | 67 | $372 | $480 |
| DS-3SWP3028 | 3 | 30" | 30" | 28" | 35"x40" | No | 76 | $408 | $540 |
| DS-3SWP3035 | 3 | 30" | 30" | 35" | 35"x47" | No | 84 | $450 | $582 |
| DS-3SWP3042 | 3 | 30" | 30" | 42" | 35"x54" | No | 90 | $492 | $618 |
| DS-3SWP3049 | 3 | 30" | 30" | 49" | 35"x61" | No | 97 | $516 | $642 |
| DS-3SWP3056 | 3 | 30" | 30" | 56" | 35"x68" | No | 106 | $540 | $690 |
| DS-4SWP2421 | 4 | 40" | 24" | 21" | 26"x39" | No | 73 | $390 | $498 |
| DS-4SWP2428 | 4 | 40" | 24" | 28" | 26"x46" | No | 80 | $420 | $540 |
| DS-4SWP2435 | 4 | 40" | 24" | 35" | 26"x53" | No | 87 | $450 | $582 |
| DS-4SWP2442 | 4 | 40" | 24" | 42" | 26"x60" | No | 93 | $510 | $630 |
| DS-4SWP2449 | 4 | 40" | 24" | 49" | 26"x67" | No | 98 | $540 | $660 |
| DS-4SWP2456 | 4 | 40" | 24" | 56" | 26"x74" | No | 110 | $570 | $702 |
| DS-4SWP3021 | 4 | 40" | 30" | 21" | 35"x39" | No | 82 | $456 | $570 |
| DS-4SWP3028 | 4 | 40" | 30" | 28" | 35"x46" | No | 90 | $492 | $630 |
| DS-4SWP3035 | 4 | 40" | 30" | 35" | 35"x53" | No | 99 | $528 | $660 |
| DS-4SWP3042 | 4 | 40" | 30" | 42" | 35"x60" | No | 106 | $558 | $690 |
| DS-4SWP3049 | 4 | 40" | 30" | 49" | 35"x67" | No | 113 | $600 | $780 |
| DS-4SWP3056 | 4 | 40" | 30" | 56" | 35"x74" | No | 126 | $660 | $840 |
| DS-5SWP2421R | 5 | 50" | 24" | 21" | 26"x45" | Yes | 87 | $528 | $660 |
| DS-5SWP2428R | 5 | 50" | 24" | 28" | 26"x52" | Yes | 94 | $540 | $690 |
| DS-5SWP2435R | 5 | 50" | 24" | 35" | 26"x59" | Yes | 102 | $570 | $720 |
| DS-5SWP2442R | 5 | 50" | 24" | 42" | 26"x66" | Yes | 108 | $660 | $810 |
| DS-5SWP2449R | 5 | 50" | 24" | 49" | 26"x73" | Yes | 113 | $690 | $840 |
| DS-5SWP2456R | 5 | 50" | 24" | 56" | 26"x80" | Yes | 125 | $720 | $900 |
| DS-5SWP3021R | 5 | 50" | 30" | 21" | 35"x45" | Yes | 96 | $570 | $720 |
| DS-5SWP3028R | 5 | 50" | 30" | 28" | 35"x52" | Yes | 105 | $600 | $780 |
| DS-5SWP3035R | 5 | 50" | 30" | 35" | 35"x59" | Yes | 115 | $660 | $840 |
| DS-5SWP3042R | 5 | 50" | 30" | 42" | 35"x66" | Yes | 121 | $720 | $900 |
| DS-5SWP3049R | 5 | 50" | 30" | 49" | 35"x73" | Yes | 128 | $780 | $960 |
| DS-5SWP3056R | 5 | 50" | 30" | 56" | 35"x80" | Yes | 142 | $840 | $1,020 |
| All Dimensions are in inches | |||||||||
Features
Standard Features:
57 degree slope
24" or 30" wide steps
Tilt & Roll design
5" rigid casters
Non-marring rubber tips on the legs
Platform depths from 21" to 56" or longer if you need it
500 lb. load rating
1" square tube construction
Gray enamel finish
To add handrails to the platform only $90
To add a full set of handrails on stairs and platforms $155
To make is a full CalOsha compliant $180
Options
No options available for this product.
Parts
Parts:
Replacement 1” square rubber feet - DS-1RFeet are $7.50 each
Documentation / Videos
No documentation or videos available for this product.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A MOBILE PLATFORM FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE MOBILE PLATFORM.
