320 Pallet Truck With Scale

$0.00

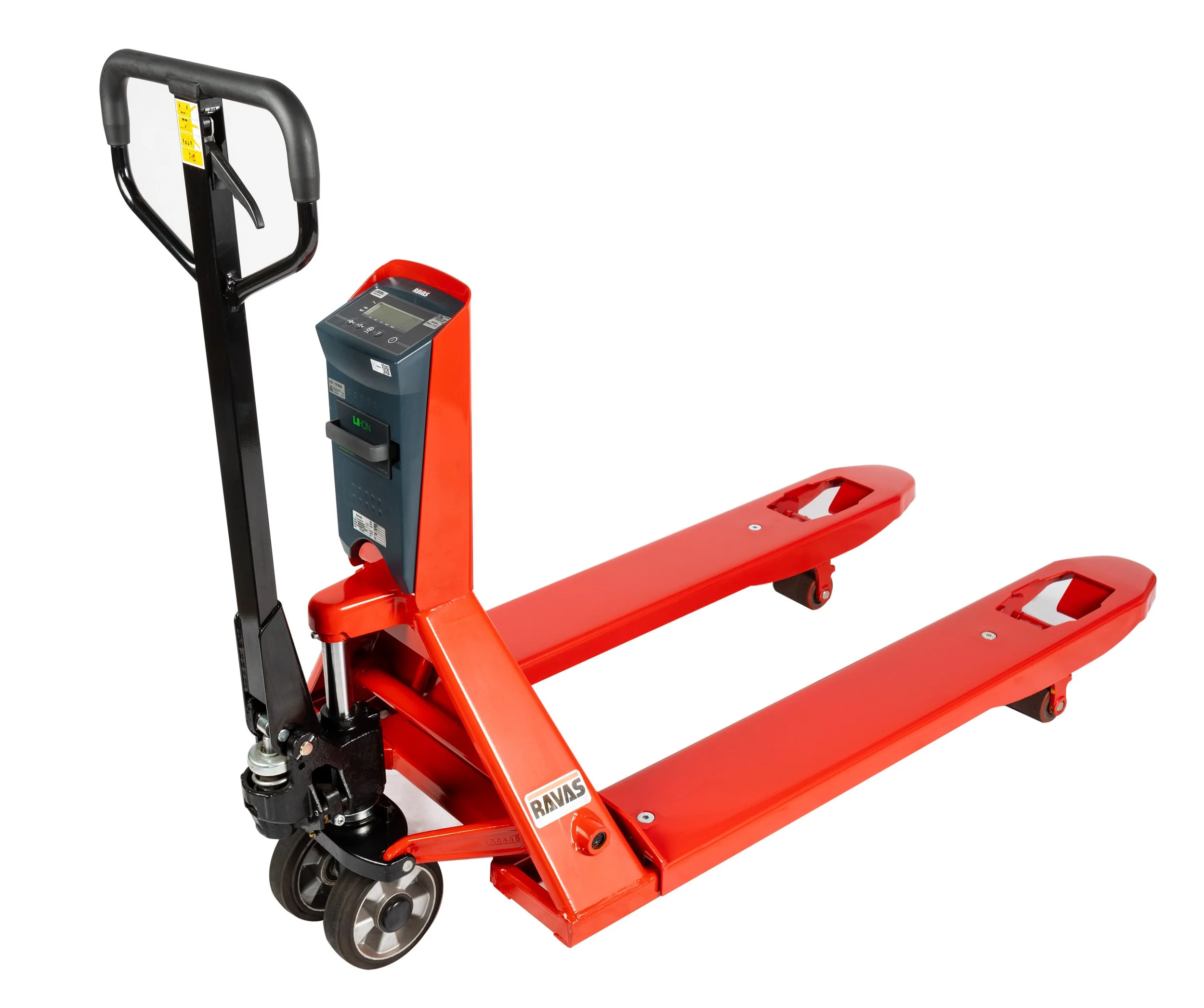

The 320 is a top quality weighing hand pallet truck with additional weighing functions available. Suitable for use in both warehouses and production environments.

Add To Cart

Pricing

320 Pallet Truck - With Scale
Model # Weighing
Capacity
Graduation Maximum
Tolerance
Protection
Class
Fork Dimensions
[L x W x H]
Weight
[lbs]
Price
DS-320 5,000 lbs 2 lbs graduation at 5,000 lbs 0.1% of the load lifted Load cells IP67, indicator IP65 45" X 6.69" X 7.08" 340 $2,738

Features

Standard Features:

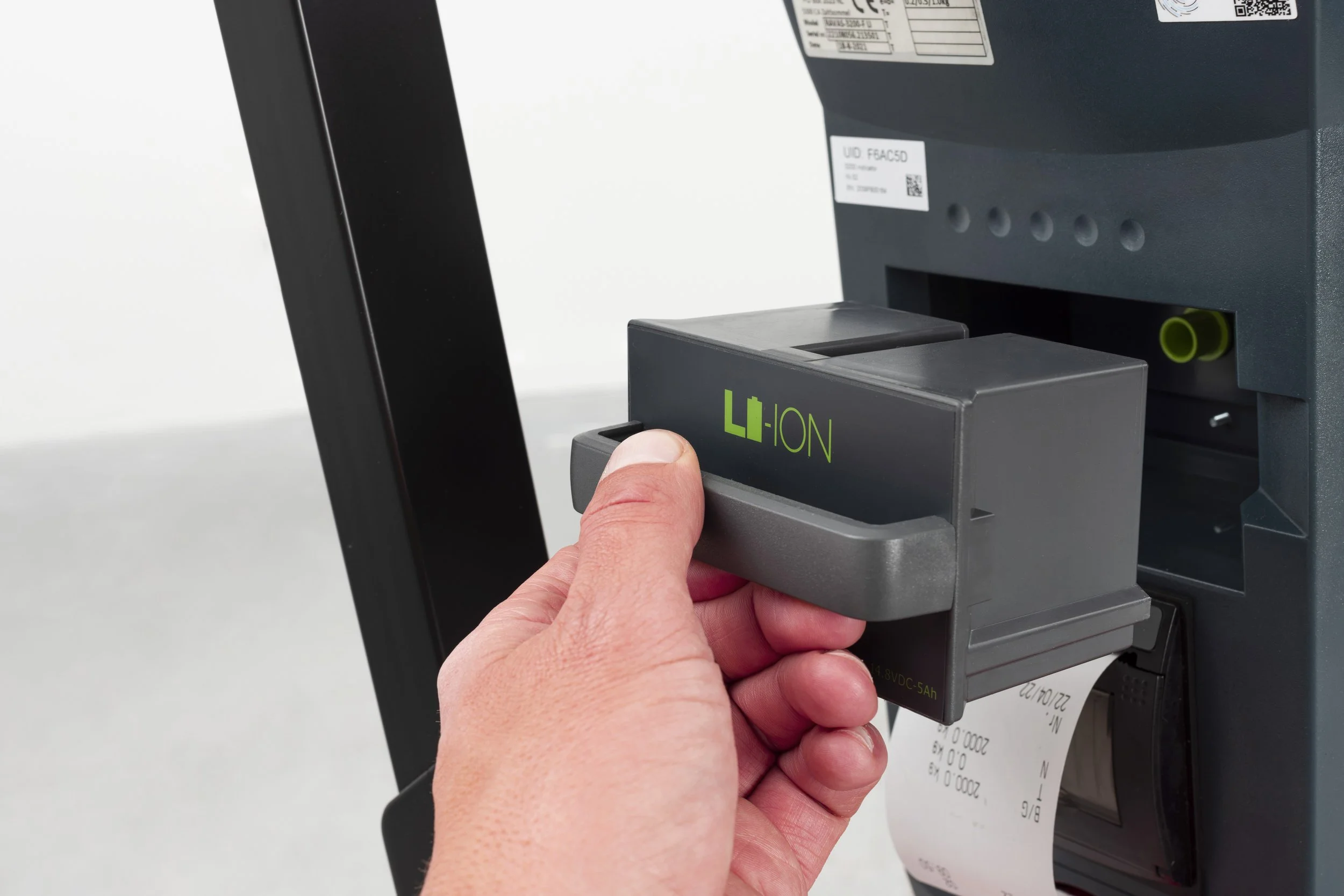

Incl. 12V Li-ion rechargeable battery and NTEP approval

Accurate

With a maximum tolerance of 0.1% of the forks' load, the RAVAS-320 provides accurate weights, making it perfect for use in warehouses and production environments, such as mixing and batching.

Efficient

By combining the tasks of weighing and moving palletized goods, the 320 reduces the labor intensity associated with separate weighing processes. It leads to a more efficient use of labor resources, which helps to save time and reduce costs.

NTEP-Certified

The 320 comes standard with an NTEP-certified legal-for-trade scale for when you invoice by weight. It can also be equipped with a built-in printer that outputs data such as weights, a numerical ID, date/time, and article or order number.

Real-time Data

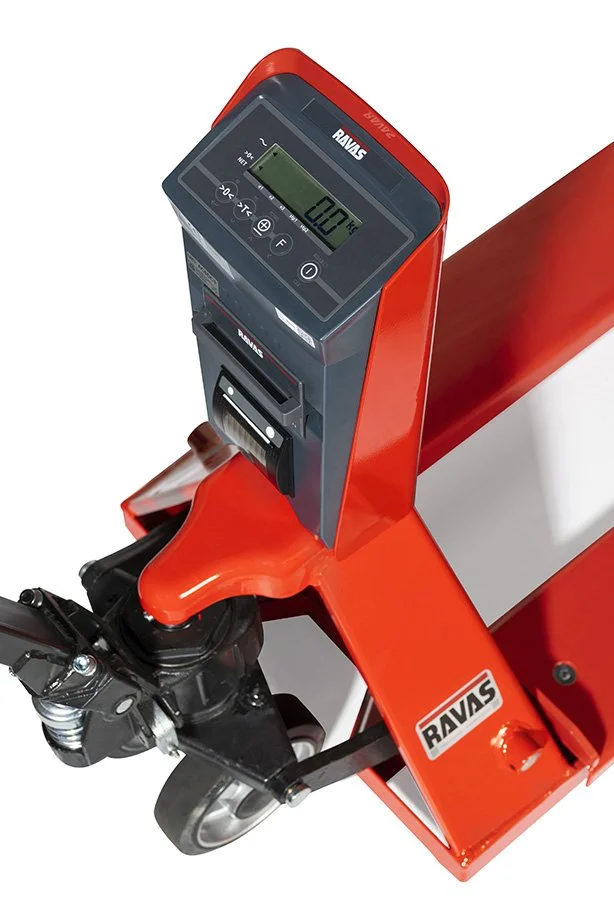

Equipped with a digital display, the 320 provides real-time weight readings. This feature allows operators to monitor and record weights on the spot, contributing to efficient logistics processes, inventory management, and piece counting.

Note:  All products should be inspected frequently to insure safe operation.  Final testing and inspection left to end user after final assembly has been completed.

Options

Options:

  • $582 - 1 lb graduation (Legal for Trade)

  • $205 - Extra Li-ion battery pack

  • $233 - Foot Brake

  • $416 - 12V thermal printer

  • $297 - width over forks 22"

  • $1,099 - fork length 36"

  • $1,574 - fork length 54"

  • $Call - Stainless steel truck

  • $Call - Stainless steel fork shoes

  • $Call - Pivoting indicator; readout from all angles during dosing

  • $Call - Different fork dimensions (with different fork height)

  • $Call - Different steering or loading wheels

  • $Call - Relay setpoint switch for automatic dosing

  • $Call - Data Collector Software

  • $Call - RIS, Integration Software

  • $Call - Bluetooth or WiFi output

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos



Manual:

sometext

DS-300-series-manual



Technical Specs:

sometext

DS-300-series Technical-Specs
