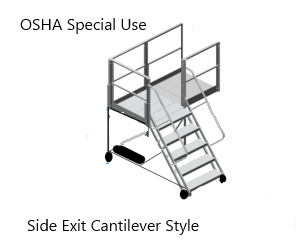

Cantilever Rolling Ladder
Cantilever Rolling Ladder
The design of a Cantilever Rolling Ladder allows workers to go up and over obstacles. Custom ladders available to fit your needs.
The cantilevered portion of this rolling ladder is perfect for accessing hard to reach areas while maintaining a high level of safety. If there are floor obstacles in the way, simply go up and over them to reach the work area in you shop or warehouse.
Pricing
Pricing
| Cantilever Rolling Ladder - 14" Overhang | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | # of Steps | Platform Height | Platform WxD | Overhang | Overall Height | Base WxD | Perforated Tread | Serrated Tread |
| DS-BS8SH30-SP | 8 | 80" | 24"x28" | 14" | 110" | 32"x61" | $2,880 | Call for price |
| DS-BS9SH30-SP | 9 | 90" | 24"x28" | 14" | 120" | 32"x67" | $3,024 | Call for price |
| DS-BS10SH30-SP | 10 | 100" | 24"x28" | 14" | 130" | 32"x74" | $3,240 | Call for price |
| DS-BS11SH30-SP | 11 | 110" | 24"x28" | 14" | 140" | 35"x83" | $3,600 | Call for price |
| DS-BS12SH30-SP | 12 | 120" | 24"x28" | 14" | 162" | 35"x89" | $3,960 | Call for price |
| DS-BS13SH30-SP | 13 | 130" | 24"x28" | 14" | 172" | 37"x95" | $4,320 | Call for price |
| DS-BS14SH30-SP | 14 | 140" | 24"x28" | 14" | 182" | 37"x102" | $4,680 | Call for price |
| DS-BS15SH30-SP | 15 | 150" | 24"x28" | 14" | 192" | 39"x108" | $5,040 | Call for price |
Features
Features
Standard Features
57 degree slope is standard
24" wide steps
Individually locking casters
Counterbalance weight at base
300 lb. load rating
1" square tube construction
30" handrails
Gray industrial enamel finish (shown with optional yellow finish)

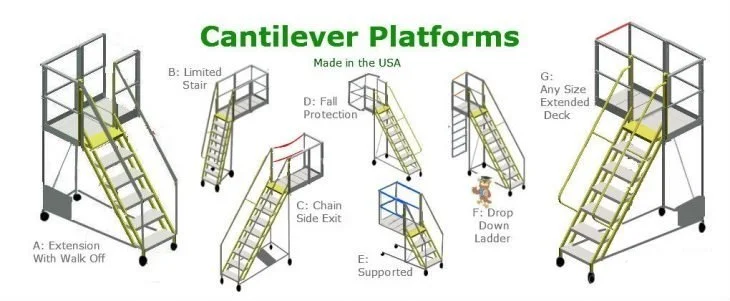

Custom sizes and deeper overhang available upon request
OSHA Special Use Ladder ANSI-14.7
Options
Options
Options
HEAVY DUTY 500 lb. load rating
Deeper top platform
Yellow or other finish
Top walk off access with chain or gate
CAL OSHA compliant design
