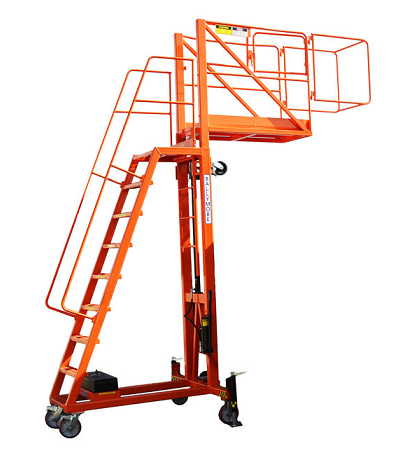

Tank Top Adjustable Height Cantilever Work Platform
Tank Top Adjustable Height Cantilever Work Platform
The Tank Top Lift reaches over the side of tankers to give top access. Great to use when you a situation where you need multiple ladders. This one can replace up to four different rolling ladders.
Adjustable height cantilevered platforms provide safe access to tank truck, railroad cars, conveyor systems, machinery or other applications with limited access.
Pricing
| Tank Top - Lift | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Platform Max Height | Platform Min Height | Platform Length | Platform Width | Platform W x L | Clearance Under Height | Clearance Height Adj. | Weight (lbs.) | Power | Price |
| DS-TT-7-11 | 11'8" | 7'4" | 48" | 16" | 24"x48" | 7' to 11' | Yes | 1450 | Hydraulic | $8,928 |
| DS-TT-913 | 13'8" | 9'4" | 48" | 16" | 24"x48" | 9' to 13' | Yes | 1525 | Hydraulic | $9,149 |
| DS-TT-11-15 | 15'8" | 11'4" | 48" | 16" | 24"x48" | 11' to 15' | Yes | 1625 | Hydraulic | $9,767 |
| DS-TT-913F | 13'8" | 9'4" | 48" | 19" | 24"x48" | 9' to 13' | No | 1450 | NA | $7,533 |
| DS-AJ-1115.5 | 15'5" | 11' | 48" | 24" | 24"x48" | 10' to 14' | Yes | 1800 | Hydraulic | $12,599 |
| All dimensions are in inches | ||||||||||
Features
Standard Features:
Provides easy access to tank trucks, railroad cars or other cantilevered applications
Great for clearing snow and ice off tops of trailers
Manually propelled on hard level surfaces
48" long platform
Hydraulic hand pump raises and lowers the unit
Step and deck tread is open serrated grating
Slip resistant rungs give access to the platform when raised
Base is 28" wide x 60" long; fixed outriggers spread 69”
Fixed outriggers spread 69"
Full rails on both sides with gates at each end of platform
Gates at each end of platform
Two swivel and two rigid 8" casters for use on hard surfaces
Two adjustable stabilizing jacks secure lift to ground
Available with a fixed platform height
300 lb. capacity
Grey enamel paint, powder coat safety orange available at extra cost
OSHA Special Use Ladder ANSI-14.7
How to use the pump: make sure the valve is closed and pump the handle to raise. Open the valve to lower.
Options
Options:
Tool tray +$146
Fluorescent tube holder +$264
Removable 30" extension railing +$483
Powder coat safety orange finish (recommended for outdoor applications) +$739
To change the tread to Perf or matting on the platform $2400
Parts
Parts:
Replacement Ram Part#01500034 $414 [UPS'able]
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-TT-7-11
DS-TT9-13
DS-TT11-15
Cut Sheet Documentation:
Tank-Top-Lift-Documentation
Training Literature:
Tank-Top-Lift-Training-Literature
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
