Create access over pipes and other rooftop obstacles. Feet distribute weight to possibly prevent damage to roofs.

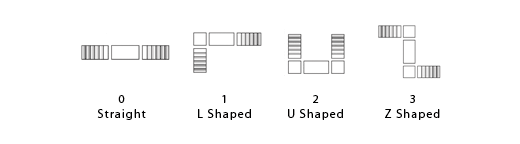

To be OSHA compliant you must have access over pipes and other obstacles that are in the way and could trip the worker. Choose from any of the standard crossovers or create one specifically configured to your application with the U-Design rooftop platform.
Pricing
| . Rooftop Platform Stair - Grip Strut Tread 50 Degrees | |||||
|---|---|---|---|---|---|
| Model Number | # Of Steps | Platform Height | Vertical Clearance | Overall [L x H] | Price |
| DS-URTL502 | 2 | 20 | 17.5" | 46.25" x 62" | $818 |
| DS-URTL503 | 3 | 30 | 27.5" | 52.75" x 72" | $1,243 |
| DS-URTL504 | 4 | 40 | 37.5" | 5.25" x 82" | $1,409 |
| DS-URTL505 | 5 | 50 | 47.5" | 52.75" x 92" | $1,531 |
| DS-URTL506 | 6 | 60 | 57.5" | 52.75" x 102" | $1,651 |
| . Access Platform Ladder - 90 Degrees | |||||
| Model Number | # Of Steps | Platform Height | Vertical Clearance | Overall [L x H] | Price |
| DS-URTL902 | 2 | 20" | 17.5" | 52.25" x 62" | $762 |
| DS-URTL903 | 3 | 30" | 27.5" | 52.25" x 72" | $821 |
| DS-URTL904 | 4 | 40" | 37.5" | 52.25" x 82" | $930 |
| DS-URTL905 | 5 | 50" | 47.5" | 52.25" x 92" | $967 |
| DS-URTL906 | 6 | 60" | 57.5" | 52.25" x 102" | $1,040 |
| . Turn - Platform | |||||
| Model Number | Needed For # Of Steps | Platform Height | Vertical Clearance | Overall [L x H] | Price |
| DS-URTTP20 | 2 | 20" | 17.5" | 36" x 52.75" x 62" | $1,076 |
| DS-URTTP30 | 3 | 30" | 27.5" | 36" x 52.75" x 72" | $1,086 |
| DS-URTTP40 | 4 | 40" | 37.5" | 36" x 52.75" x 82" | $1,089 |
| DS-URTTP50 | 5 | 50" | 47.5" | 36"x 52.75" x 92" | $1,098 |
| DS-URTTP60 | 6 | 60" | 57.5" | 36" x 52.75" x 102" | $1,107 |
| . Access Platform - Support Legs | ||
|---|---|---|
| Model Number | Support Legs For Height | Price |
| DS-URTSL20 | 20" | $314 |
| DS-URSL30 | 30" | $324 |
| DS-URTSL40 | 40" | $332 |
| DS-URTSL50 | 50" | $338 |
| DS-URTSL60 | 60" | $345 |
| Note: Use a Leg Kit when overall bridge length must be greater than 120”. Pick based on number of steps and place between Bridge Spans so that no span exceeds 90” between Ladders, Turn Platforms, or Leg Kits. All dimensions are in inches. | ||

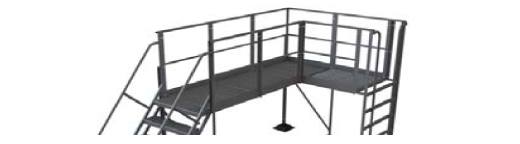

| Bridge Span | ||||
|---|---|---|---|---|
| Model Number | Platform Width | Span Length | Walkway Width | Price |
| DS-URTSB36 | 42" | 40" | 38 | $759 |
| DS-URTSB3612 | 42" | 12" | 10 | $423 |
| When calculating clearance the DS-URTSB36 clears 30" however, the rooftop feet makes the clearance 28". Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs | ||||
| Guard Rail - Enclosure | ||
|---|---|---|
| Model Number | Description | Price |
| DS-URTRK1 | Kit includes guardrail, mid-rail, toeboard and hardware to close any walkway opening. Must be paired with a Leg Kit. | $125 |
Features
Standard Features:
Lightweight aluminum 1" x 2" rectangular tube construction
Serrated grating on platform surfaces and stair treads are 36" wide x 9.5" deep
42" high guardrails
500 lb capacity
Gray powder coating

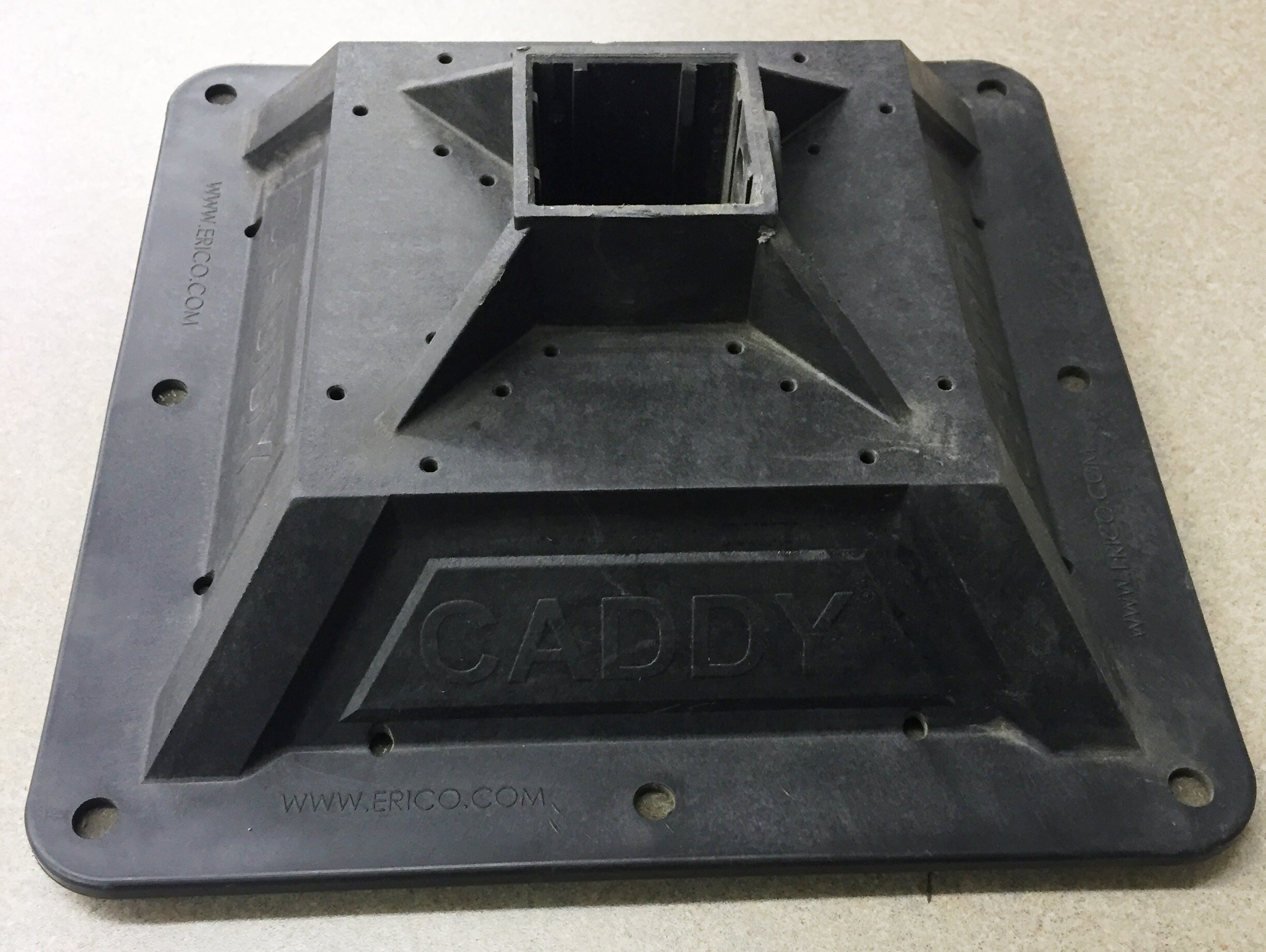

Non-penetrating caddy feet distributes weight evenly to help protect roof surfaces
Use a Leg Kit when overall bridge length must be greater than 120”. Pick based on number of steps and place between Bridge Spans so that no span exceeds 90” between Ladders, Turn Platforms, or Leg Kits
Guardrail Kit includes guardrail, mid-rail, toe board and hardware to close any walkway opening. **Must be paired with a Leg Kit.
Combine up to a total of 120” uninhibited span clearance length. Longer spans require Support Legs
36” x 36” serrated platform with adjustable height from 11” to 14”. Platform is 3” thick aluminum construction, with a capacity of 500 lbs. Platforms may be combined together to create a larger walking surface, but CANNOT be joined to the crossover components above.
12” x 12” foot centered on the leg. Sticks out 5”
Comes with stainless steel fasteners
OSHA and ANSI compliant
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
