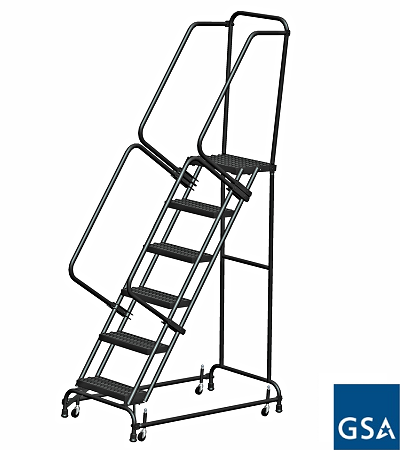

Commercial Spring Loaded Ladder
Commercial Spring Loaded Ladder
Ladder design is an attractive and economical alternative to traditional warehouse rolling ladders. This sleek design also provides maximum safety and convenience.
Commercial users of rolling ladders now have an attractive and economical alternative to the traditional warehouse rolling ladders. This sleek design also provides maximum safety and convenience. The all directional spring-loaded swivel casters feature steel dome protection and include rubber pad bottoms to minimize movement. Climb angle is 58 degrees. The top step is 16" wide by 11" deep while the remainder steps measure 16" wide by 8" deep. The powder coat finish provides a durable attractive appearance. Capacity is 300 pounds.
This safety rolling ladder meets OSHA standards.
Standard Features:
58 degree slope is standard
16" wide x 8” deep steps
21-1/8” over all width
11" deep top platform
300 lb. load rating
[4] 1-1/2” x 3/4” phenolic spring loaded casters
34-34” handrails
Choose from powder coated yellow, blue or white
OHSA 1910.29 and ANSI A14.7 compliant
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A LADDER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.
Model # Perf | Model # Rubber | # Of Steps | Platform Height | Step Width | Base WxDxH |
Weight Lbs. | Perforated | Non Slip Rubber |
---|---|---|---|---|---|---|---|---|
DS-LAD-1-P | DS-LAD-1 | 1 | 9-1/2" | 16 | 16-1/8" X 21-1/8" x 9-1/2" | 19 | $185 | $191 |
DS-LAD-2-P | DS-LAD-2 | 2 | 18-1/2" | 16 | 20-1/4" X 21-1/8" x 18-1/2" | 26 | $258 | $262 |
DS-LAD-3-P | DS-LAD-3 | 3 | 28-11/16" | 16 | 21-1/8" X 25-9/16 x 63-7/16" | 90 | $373 | $382 |
DS-LAD-4-P | DS-LAD-4 | 4 | 38" | 16 | 21-1/8" X 31-13/16 x 73" | 94 | $416 | $425 |
DS-LAD-5-P | DS-LAD-5 | 5 | 47-11/16" | 16 | 21-1/8" X 38" x 82-7/16" | 96 | $478 | $488 |
2 week lead time
