Pricing

. M-2000 Rolling Ladder - 16" Wide x 14" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread

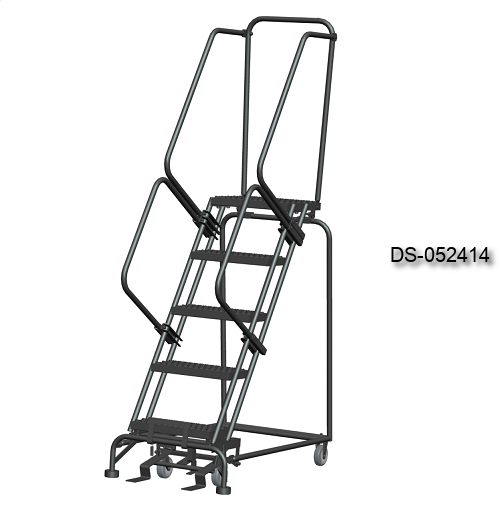

DS-052414	5	50	83	Y	24x43	91	$792	$647	$660	$660

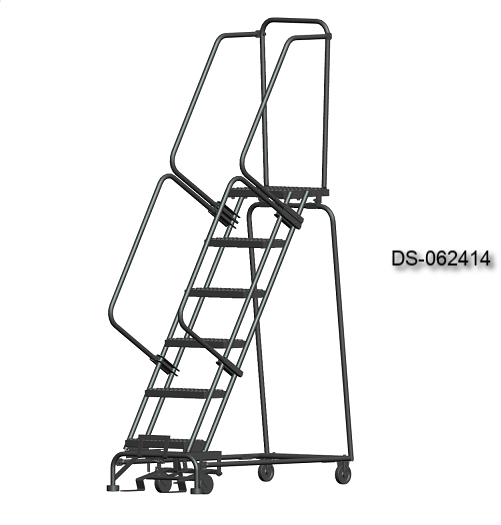

DS-062414	6	60	93	Y	24x49	100	$947	$776	$789	$789
DS-072414	7	70	103	Y	24x55	109	$1,025	$840	$854	$854

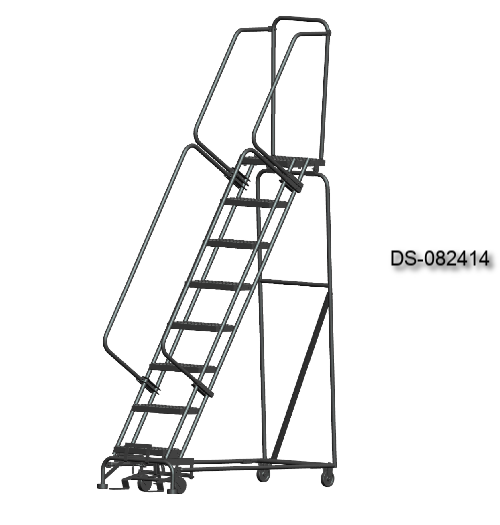

DS-082414	8	80	113	Y	24x61	127	$1,248	$1,022	$1,040	$1,040
. M-2000 Rolling Ladder - 16" Wide x 21" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread

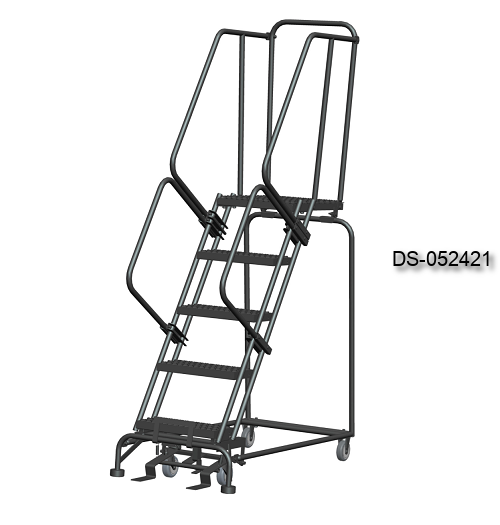

DS-052421	5	50	83	Y	24x50	102	$1,075	$972	$1,038	$1,038

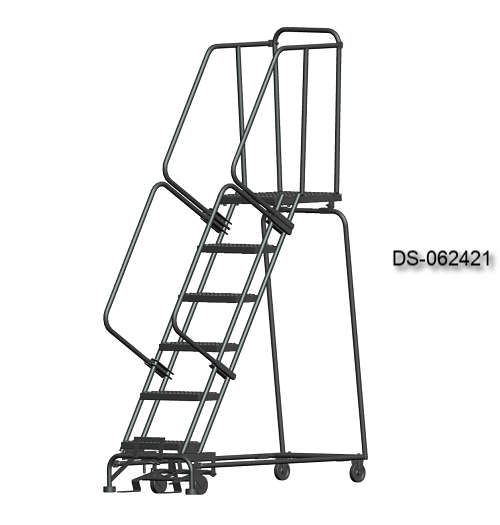

DS-062421	6	60	93	Y	24x56	111	$1,068	$845	$886	$886

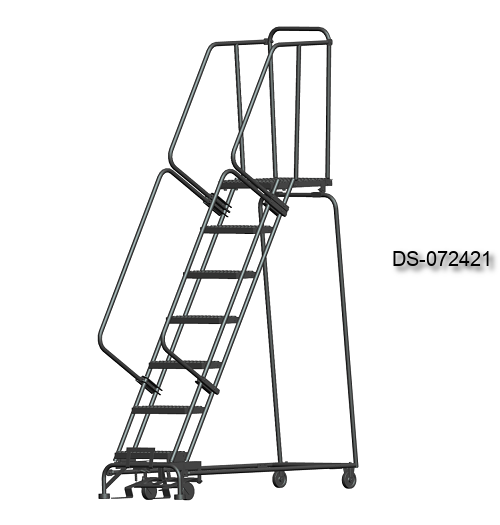

DS-072421	7	70	103	Y	24x62	120	$1,142	$892	$964	$964

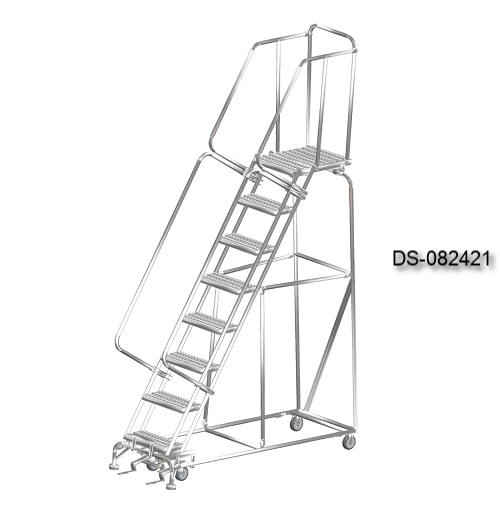

DS-082421	8	80	113	Y	24x68	138	$1,314	$1,163	$1,214	$1,214
. M-2000 Rolling Ladder - 16" Wide x 28" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread
DS-052428	5	50	83	Y	24x57	113	$1,122	$943	$997	$997

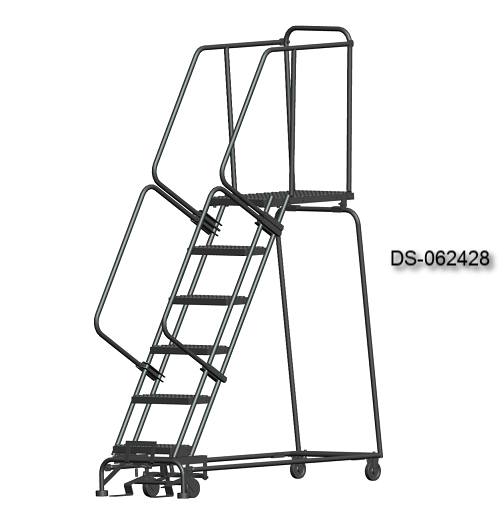

DS-062428	6	60	93	Y	24x63	122	$1,266	$1,052	$1,118	$1,118
DS-072428	7	70	103	Y	24x69	131	$1,359	$1,107	$1,178	$1,178
DS-082428	8	80	113	Y	24x75	149	$1,531	$1,269	$1,430	$1,430
. M-2000 Rolling Ladder - 24" Wide x 14" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread

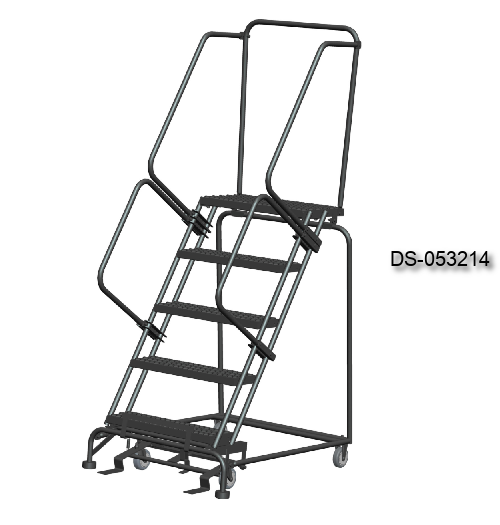

DS-053214	5	50	83	Y	32x43	110	$861	$651	$715	$715

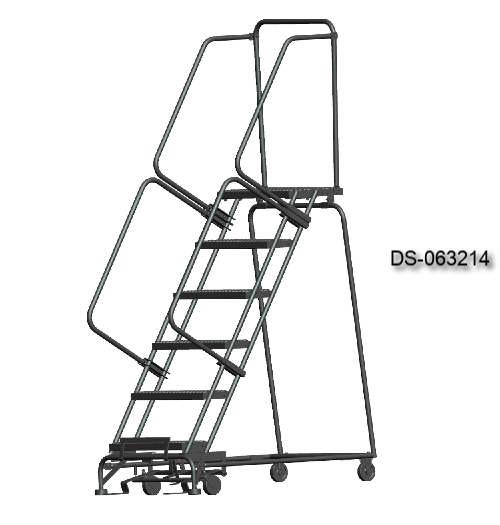

DS-063214	6	60	93	Y	32x49	122	$1,047	$805	$873	$873

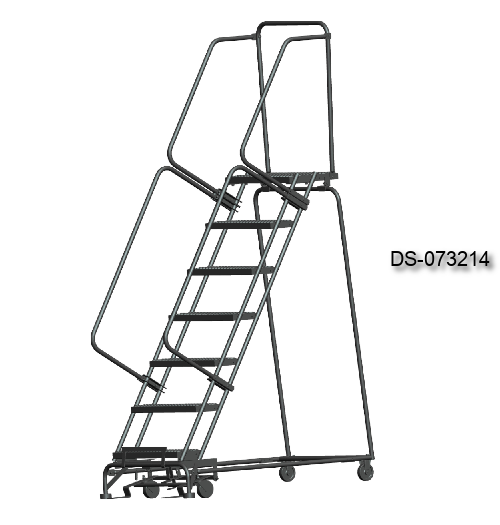

DS-073214	7	70	103	Y	32x55	143	$1,136	$861	$946	$946

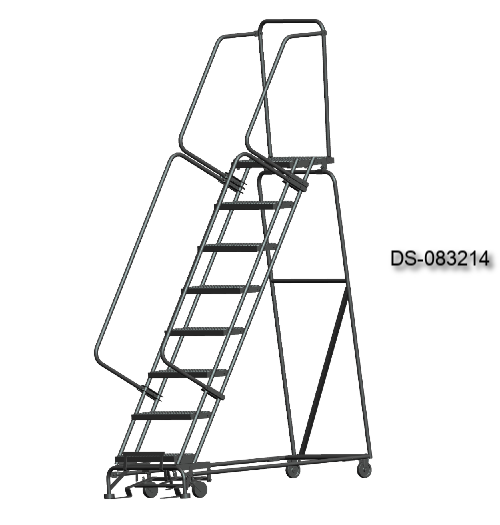

DS-083214	8	80	113	Y	32x61	160	$1,238	$1,007	$1,108	$1,108
DS-093214	9	90	123	Y	32x68	175	$1,359	$1,088	$1,197	$1,197

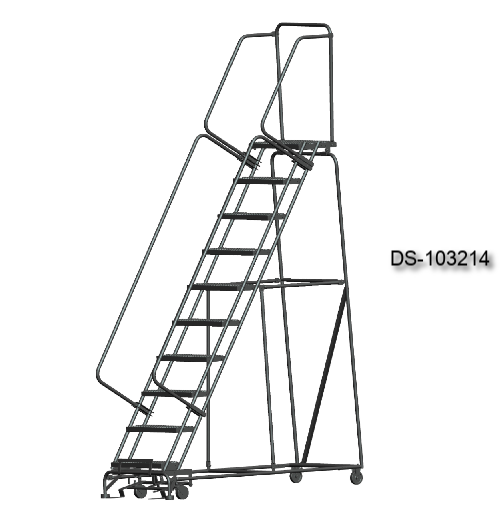

DS-103214	10	100	133	Y	32x74	193	$1,580	$1,197	$1,256	$1,256

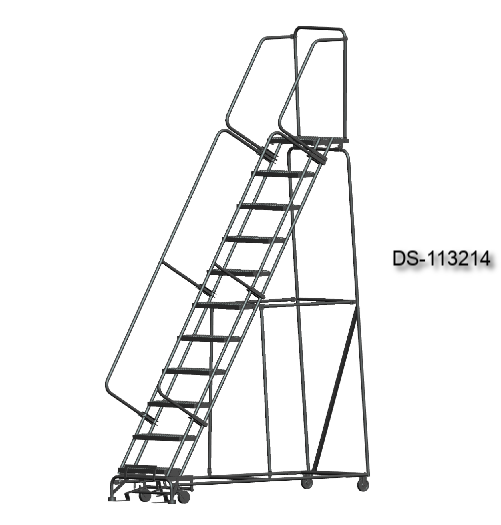

DS-113214	11	110	143	Y	32x80	205	$1,729	$1,315	$1,443	$1,443

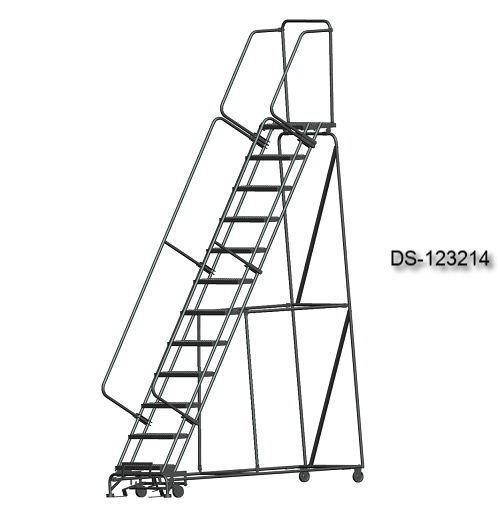

DS-123214	12	120	153	Y	32x87	220	$1,860	$1,408	$1,560	$1,560

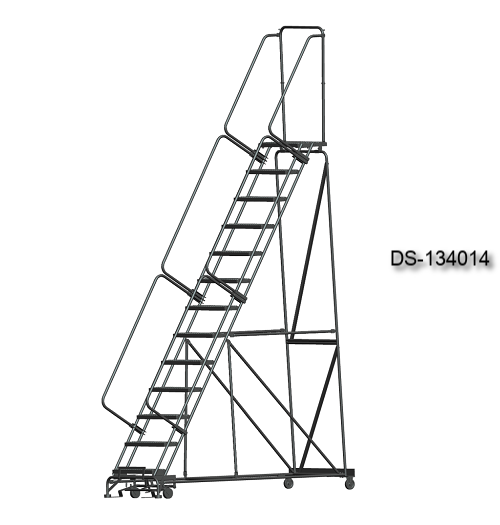

DS-134014	13	130	172	Y	40x94	250	$2,578	$1,953	$2,149	$2,149

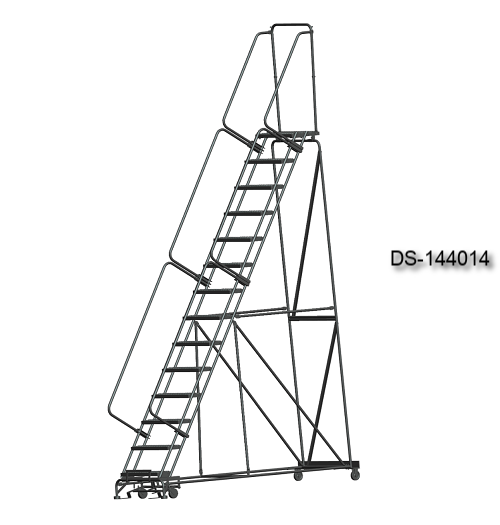

DS-144014	14	140	182	Y	40x100	280	$2,670	$1,981	$2,241	$2,241

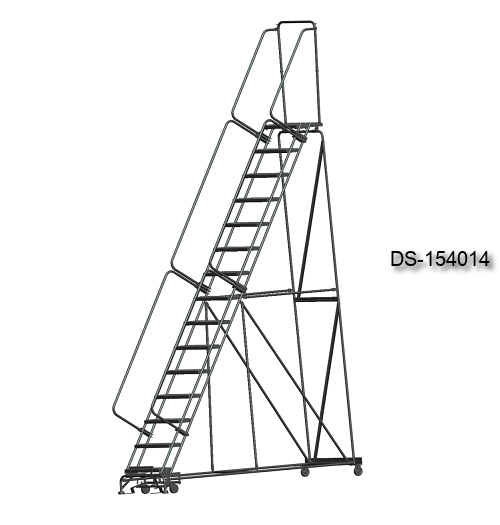

DS-154014	15	150	192	Y	40x106	310	$2,798	$2,064	$2,331	$2,331
. M-2000 Rolling Ladder - 24" Wide x 21" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread

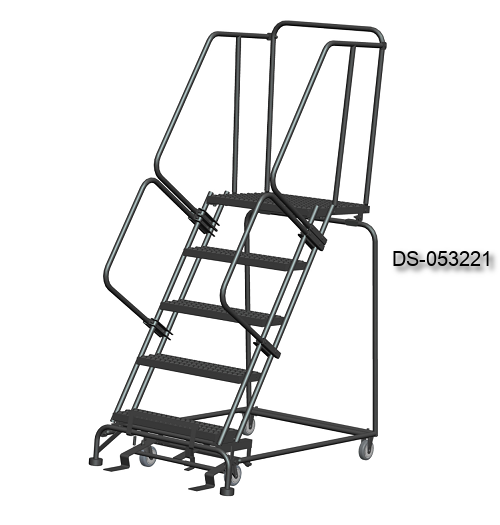

DS-053221	5	50	83	Y	32x50	121	$1,231	$1,028	$1,100	$1,100

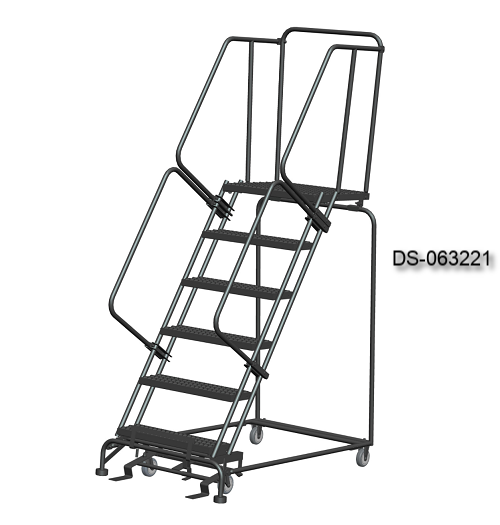

DS-063221	6	60	93	Y	32x56	133	$1,386	$1,152	$1,253	$1,253

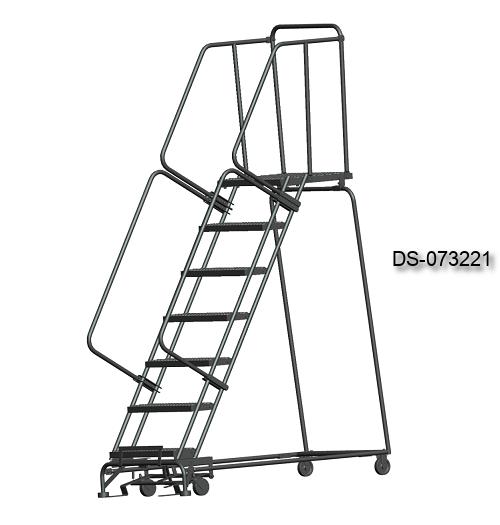

DS-073221	7	70	103	Y	32x62	154	$1,457	$1,218	$1,308	$1,308

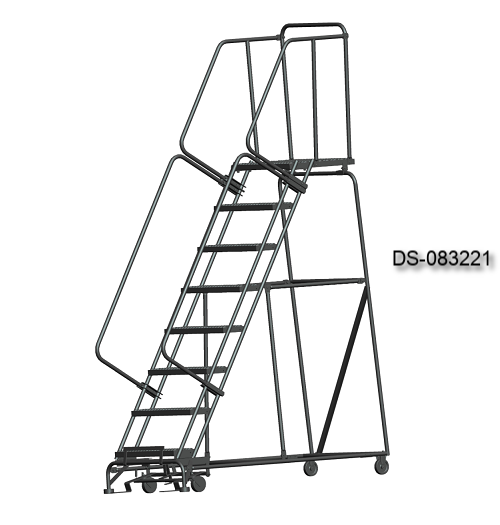

DS-083221	8	80	113	Y	32x68	171	$1,663	$1,308	$1,424	$1,424

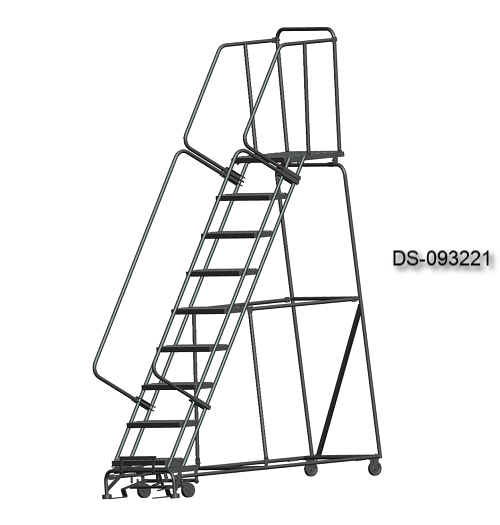

DS-093221	9	90	123	Y	32x75	186	$1,783	$1,411	$1,541	$1,541

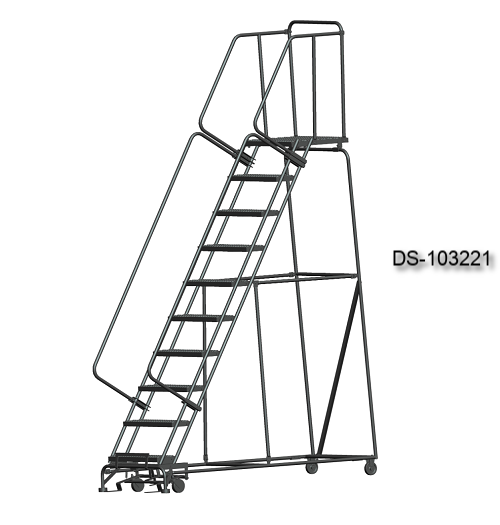

DS-103221	10	100	133	Y	32x81	204	$1,939	$1,522	$1,661	$1,661

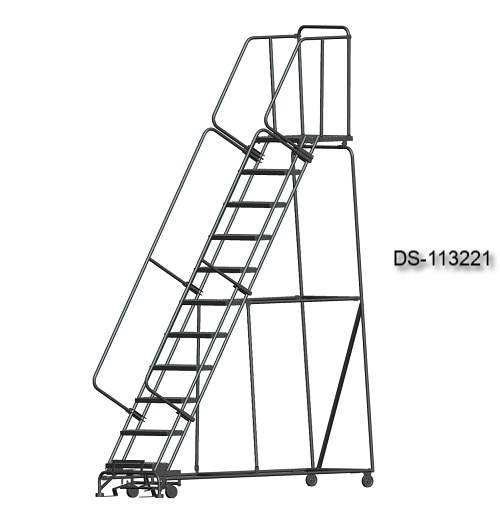

DS-113221	11	110	143	Y	32x87	216	$2,100	$1,643	$1,787	$1,787

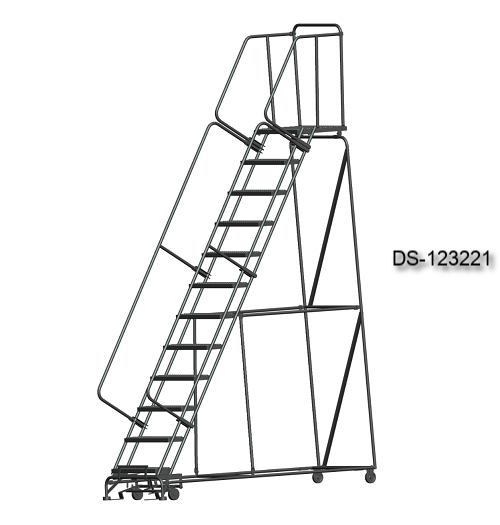

DS-123221	12	120	153	Y	32x94	231	$2,257	$1,776	$2,238	$2,238

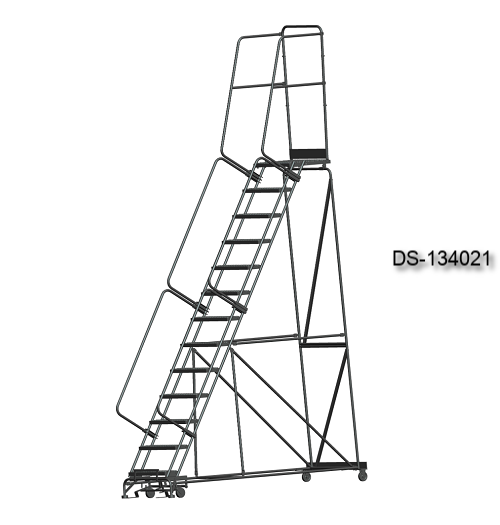

DS-134021	13	130	172	Y	40x101	261	$2,892	$2,335	$2,601	$2,601

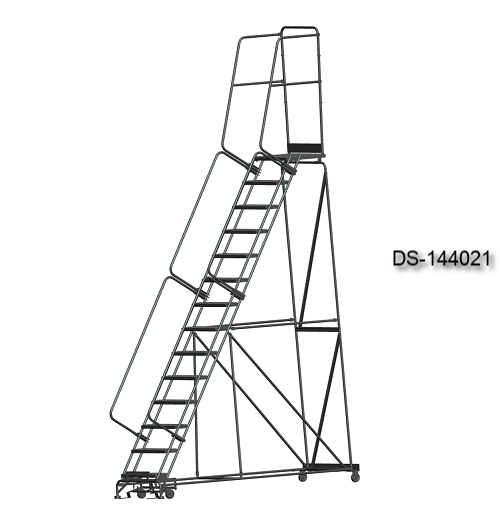

DS-144021	14	140	182	Y	40x107	291	$3,024	$2,430	$2,651	$2,651

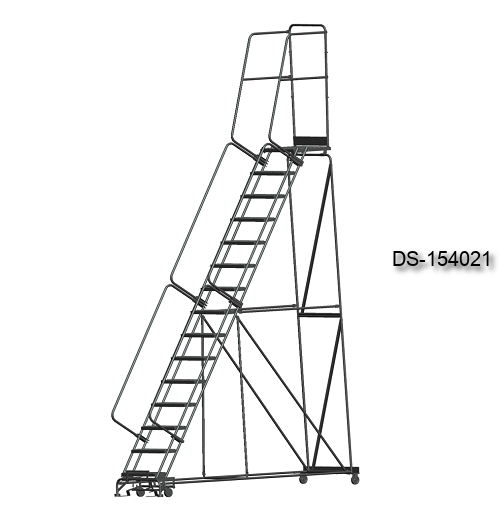

DS-154021	15	150	192	Y	40x113	321	$3,155	$2,617	$2,751	$2,751
. M-2000 Rolling Ladder - 24" Wide x 28" Deep Top Step
Model Number	# Of Steps	Top Step	Overall Height	Hand Rails	Base [W x D]	Weight (lbs.)	G Tread	P Tread	X Tread	R Tread

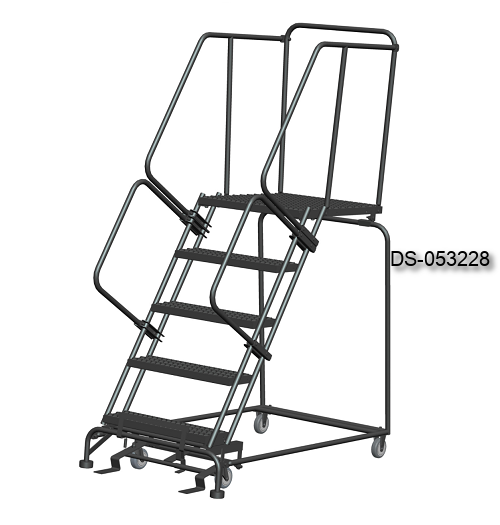

DS-053228	5	50	83	Y	32x57	132	$1,185	$991	$1,068	$1,068

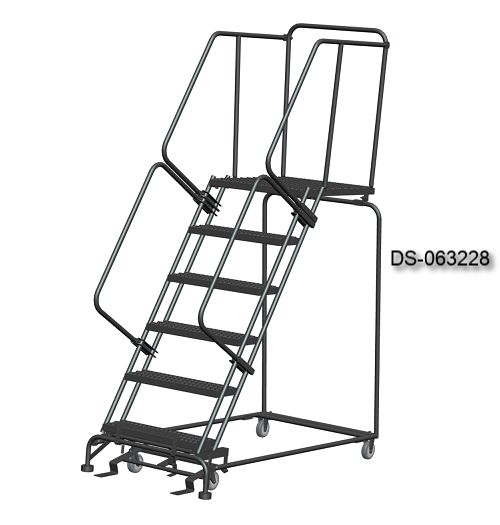

DS-063228	6	60	93	Y	32x63	144	$1,334	$1,146	$1,209	$1,209

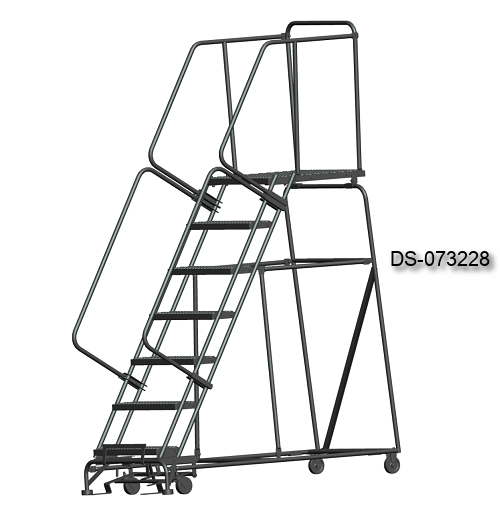

DS-073228	7	70	103	Y	32x69	165	$1,429	$1,153	$1,239	$1,239

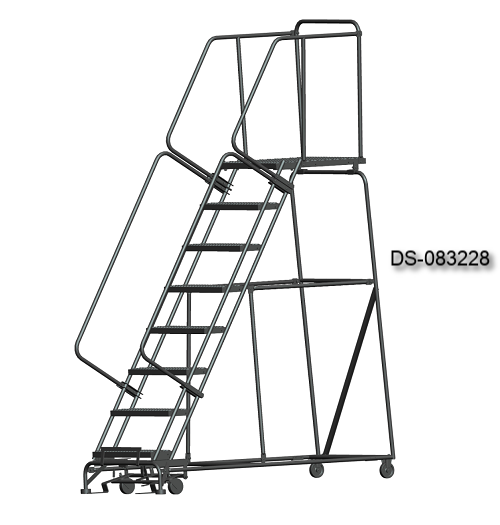

DS-083228	8	80	113	Y	32x75	182	$1,630	$1,300	$1,403	$1,403

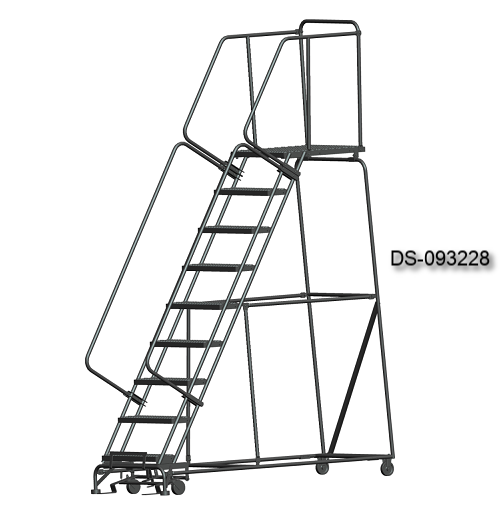

DS-093228	9	90	123	Y	32x82	197	$1,717	$1,419	$1,489	$1,489

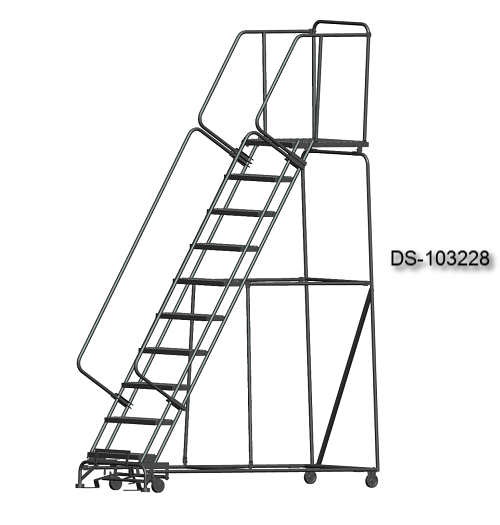

DS-103228	10	100	133	Y	32x88	215	$1,849	$1,498	$1,608	$1,608

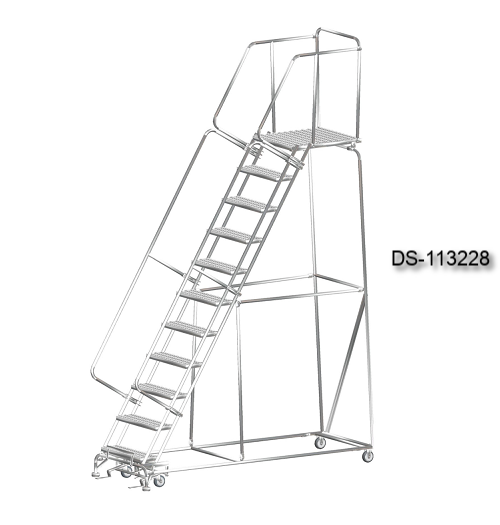

DS-113228	11	110	143	Y	32x94	227	$1,995	$1,606	$1,727	$1,727

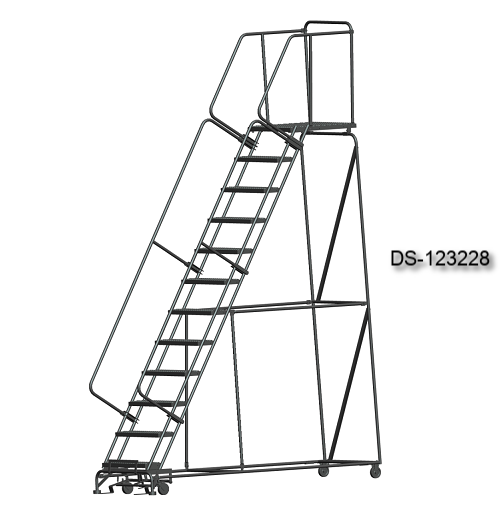

DS-123228	12	120	153	Y	32x101	242	$2,115	$1,696	$1,826	$1,826
DS-134028	13	130	172	Y	40x108	272	$2,781	$2,203	$2,385	$2,385
DS-144028	14	140	182	Y	40x115	302	$2,889	$2,280	$2,469	$2,469
DS-154028	15	150	192	Y	40x121	332	$2,991	$2,465	$2,555	$2,555
All dimensions are in inches

Features

Standard Features:

450 lbs. capacity
Footpedal activated lockstep which is easy to use
Casters with bearing and dust cover
14" deep top step
Freight savings because ladders ships "knocked-down"
Specify (SU) set-up for fully assembled ladders (at additional cost)
Expanded metal tread standard
Rigid 1" OD tubing
30" handrails
21" and 28" deep top step available (specify when ordering)
Available with Rear Guardrail removed - allows easy walk through
Built to OSHA and ANSI standards
CAL OSHA available
Left, Right and Rear exits available
Gray powder coat finish standard Blue [BU] and Black [BL] available NC

Options

Options / Accessories

Wooden skid to protect during shipment	4-7 Step Ladders	$61
Wooden skid to protect during shipment	8-12 Step Ladders (Required on 13-15 Step Models)	$73
Box option	4-7 Steps	$61
Box option	8-12 Steps	$73
Fold down rails	4 Step and above	$240
CAL OSHA	6-9 Steps	$104
CAL OSHA	10+ Steps	$163

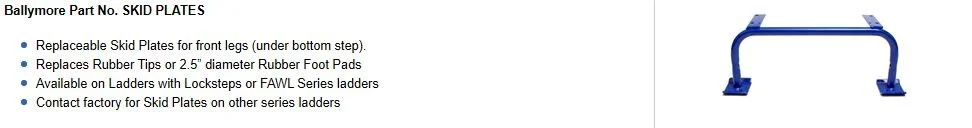

Skid Plate	Replacement	$105
No rear guard rail	Includes wooden skid	$276
Side Exit	Requires 28" deep top step	$276
Sign	Emloyee only sign with chain	$126
Casters	2" Replacement Casters set of 4 [PR-2]	$83
Casters	3" Replacement Casters set of 4 [PR-3]	$93
Casters	4" Replacement Casters set of 4 [SBR-4]	$123
4" Swivel Casters	4" Replacement Swivel Caster [00400005]	$37
Casters	2" SS Replacement Casters set of 4 [SS-PR-2]	$119
Casters	4" SS Replacement Casters set of 4 [SS-SBR-4]	$168
Wheels	10" Replacement Wheels set of 2 [FW-2]	$98
Springs	Replacement Springs set of 4 [PS]	$16
Rubber Tips	Replacement Rubber Tips 1"I.D. set of 4 [PT-HDS]	$16
Rubber Tips	Replacement Rubber Tips 7/8"I.D. set of 4 [PR-3]	$15
Hand Rail Brackets	Replacement handrail brackets[00900024]	$7
Hanging Shelf	Hanging Shelf [HPHS]	$124
Donut	2.5" Replacement Donut Style pads set of 2 [Donut]	$20
Lockstep	Replacement Lockstep 16" wide ladder [90400001]	$151
Lockstep	Replacement Lockstep 24" wide ladder [90400002]	$151
Lockstep	Replacement Weight Actuated Lockstep 16" wide ladder [90400004]	$181
Lockstep	Replacement Weight Actuated Lockstep 24" wide ladder [90400005]	$181
Ladder Instruction Booklet	Replacement Ladder Instruction Booklet [90400005]	$4
Handrails and Braces	All parts can be replaced - call for pricing	CFP

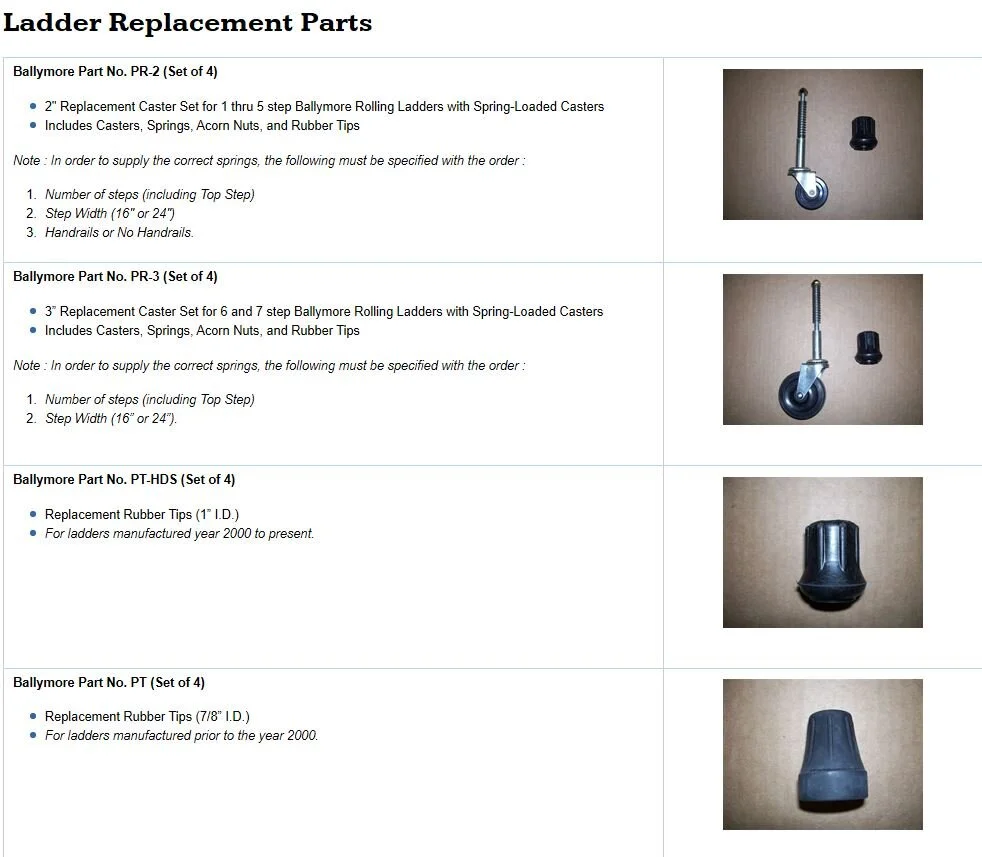

Parts

Note: All parts are replaceable so if you bend or destroy any piece of this platform ladder we can replace the part.

Tread Types

P Tread

G Tread

X Tread

R Tread

What is the Rule of Thumb when Choosing a Tread Type?

P Tread has holes in the metal and offer a non-aggressive, non-slip option to be used inside in a dry, non-dusty environment. This would be a good fit for warehouse, office, storefront and anywhere tennis shoes or street shoes are the norm.

G Tread is the most aggressive tread and will not allow slipping of any kind. Best used inside or outside in wet, oily or very dusty situations. This tread has a lot of grip and will allow snow and rain to fall thru the tread. You will want this type of tread in a work boot type environment.

X Tread is a great alternative tread to perforated. This is a tread that can be used in most any situation. This tread does not provide the grip of the serrated tread, but will allow dirt and water to fall thru the tread easily. Nothing will settle on the stairs. This tread is best suited for all shoe types with the exception high heels. The heels would catch in the tread and cause tripping.

R Tread would be the tread of choice in office or clean retail environments where wearing heels and street shoes are the norm. There is maintenance on this tread because of the wear and tear which will require you to replace the grip tape [which can be easily acquired at most hardware stores]. Depending on usage, it could be years in between replacement of the tape.

Feel free to contact our qualified sales team at (888) 802-3651 and let us answer any questions you may have regarding tread types or any other questions you may have regarding industrial maintenance ladders, platforms or stairways.

Documentation / Videos

Drawings:

DS-103214-P-Tread

DS-123214-P-Tread

DS-144014-G-Tread

M-2000 Safety Rolling Ladder

Model Number:

Customer Name:

First Name

Last Name

Email Address:

Contact Number:

(###)

###

####

Tread Type:

Ship To Zip Code:

Message:

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A LADDER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.

PlatformsandLadders.com is committed to being your source for Rolling Ladders. Our products are designed, manufactured and distributed to a wide variety of businesses such as Aerospace, Aviation, Automotive, Building and Construction, Logistics, Manufacturing, Mining, Safety, Trucking and Utility. Our focus is to provide extreme value to you in your purchase of a Rolling Ladder by providing quality products and service second to none.

Painted Steel Rolling Ladders are manufactured with value for dollar in mind. This line of Rolling Ladder is usually the least cost choice. Aluminum Rolling Ladders are manufactured with ease of use and mobility in mind. This line of Rolling Ladder is our most popular option. Stainless Steel Rolling Ladders are manufactured with durability in mind. This line of Rolling Ladder is Ideal for wash down and corrosive environments.

All of our Rolling Ladders lock in place when one is on the ladder. Some have locking mechanisms, some have spring loaded casters and some are wheelbarrow style Tilt & Roll Ladders.

All of our Rolling Ladders are OSHA and ANSI compliant.

The following Rolling Ladders may be ideal for the following applications:

Safety Rolling Ladders bring elevated areas into reach
Cantilever Rolling Ladders provide access over lower obstructions
Monster Rolling Ladders are for heavy duty users
360 Degree Rolling Ladders will spin on an axis
Multi Directional Rolling Ladders are for tight spaces and will easily move in different directions
50 Degree Slope Rolling Ladders can be descended facing forward
Stock Picking Ladders have shelves for product
Tilt & Roll Ladders are moved like wheelbarrows
Spring Loaded Casters Rolling Ladders unlock when one steps off
Truck and Dock Ladders are designed with trucking in mind
Maintenance Rolling Ladders are handy in repair shops

Rolling Ladder Safety

Rolling ladders can be extremely helpful in an industrial setting, come with sturdy handrails, and are very safe to use as long as you and your employees follow these guidelines:

Perform Regular Inspections. Before climbing on the ladder, test the brakes. They should maintain a locked position behind the casters. Inspect rubber attachments that touch the floor, and make sure they’re intact. Shake the handrail to confirm that screws stay secure.

Stick to the Rules. Only one person at a time should use a rolling ladder unless it’s designed for two. Ensure that the total amount of your body weight plus tools and equipment you carry won’t exceed the maximum load. Follow the manufacturer's instructions.

Rely on a Helper. Don’t carry a full load up the ladder. First, reach the top, then a buddy should hand you things from the floor. When you need to get off the ladder and push it somewhere, your buddy can stand in front to make sure the path is clear.

Maintain a Stable Position. Your body should have three points of contact on a rolling ladder. Keep your two hands on the railings and one foot on the stairs. Or keep one hand on the railing and two feet on the stairs. For stability, wear dry, slip-proof shoes.

Call today and speak with one of our knowledgeable, well trained staff members for answers to your product questions, obtain a freight quote, purchase a Rolling Ladder or get a quote on a custom design Rolling Ladder to fit your application.

OSHA and ANSI Compliant

Platformsandladders.com is committed to safety in every element of our ladders. Because of this, they conform to OSHA and ANSI standards. All of our ladders are equipped with rungs and steps that are flat and evenly spaced, and the steps are all made from or coated with a slip-proof material.

Popular Models of Rolling Ladder

One of our aims is to provide a wide range of options for every use. Each ladder is available with multiple options for the best fit. The M-2000 is a good example of how many variants can be available. This rolling ladder has options for 16” and 24” inch widths, multiple options for 14”, 21”, and 28” deep top steps. Each of these has four different types of tread and between 5 and 15 stairs resulting in almost 50 different variations to choose from.

Many of our rolling ladders have a list of additional options for accessories such as signs, exits for the right, left, or rear, and fold down rails. Each ladder can be customized to fit the exact needs of any customer.

One of the most versatile ladders is the stock-picking rolling ladder. With up to 12 steps, the ladder comes with shelving underneath the ladder to load and transport items. They are easy to transport, but lock in place to ensure safety while using the ladder. The system can have up to 3 shelves and has a total weight capacity of up to 600 pounds.

50-degree ladders are the perfect solution for use in transporting items up and down. This is because the tilt of the steps allows for workers to safely descend the ladder while facing forwards. The lift table ladder makes transporting stock up and down even easier by using a lift table that can carry up to 300 pounds and be operated with the push of a button. This promotes the health and safety of workers while getting the job done faster.

For environments that require workers to access multiple heights with one ladder, we often recommend The G Series which is easily adjustable for height and self-leveling. This ladder is sturdy with a large workspace but is also built on casters that allow it to be moved easily by just one person. The ladder can be used indoors and outdoors with safety with a tread that makes it safe in any weather.

Our rolling ladders are built with the customer in mind. There are many different customizations and options to choose from and they are all built for safety and ease of use. Contact us today to find the option that best fits your company’s needs.
