Crossover Platform 57 Degrees
Crossover Platform 57 Degrees

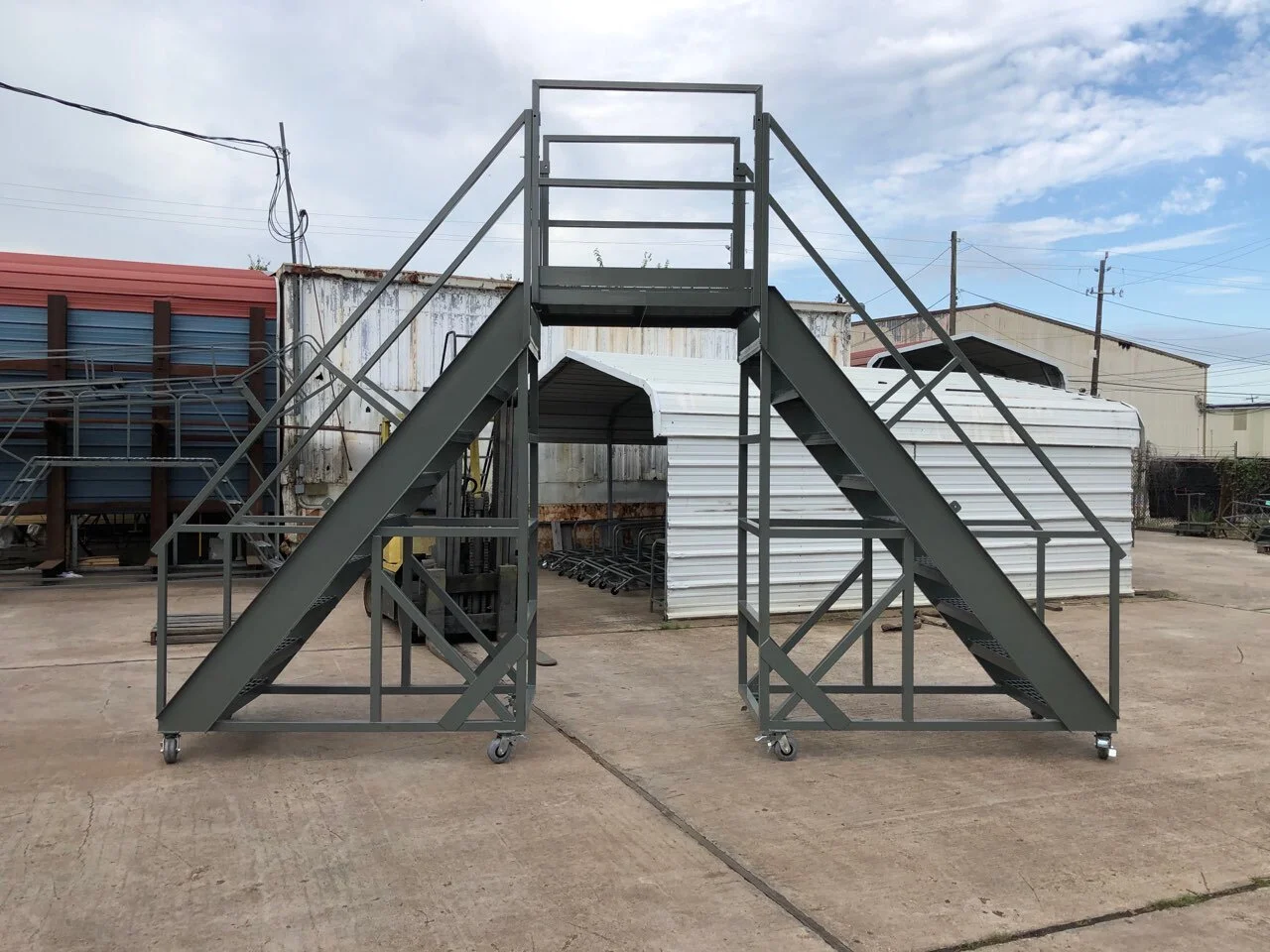

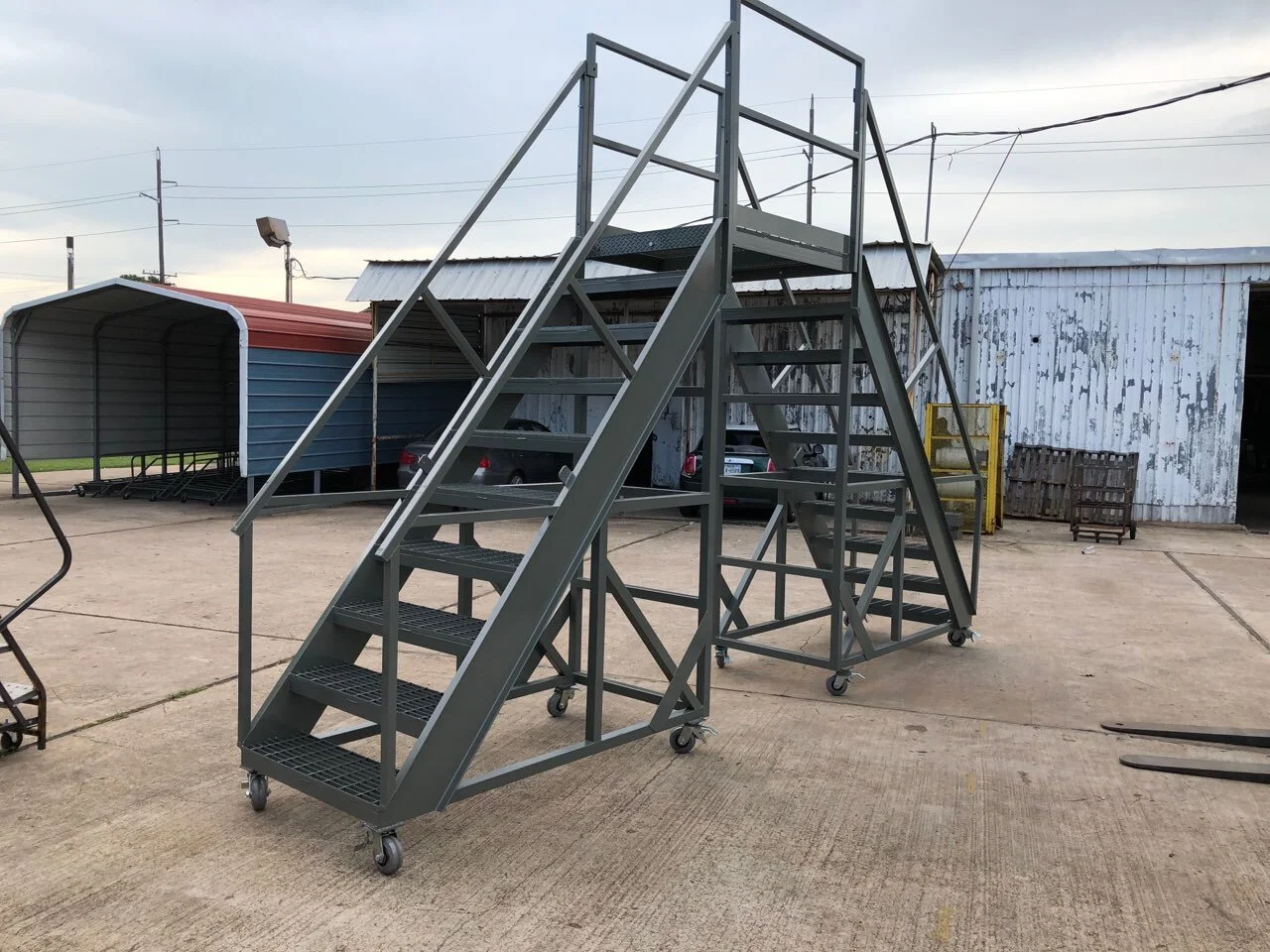

The Crossover Platform 57 Degrees is designed to clear conveyor belts for foot traffic. Use over pipes or any other obstruction. Available in custom sizes.
This crossover is available in many sizes which clear obstacles of different heights and lengths. We also custom design crossovers to function in the customer's unique work area.
Custom Configurations available on this product
Pricing
| Crossover Platform - 57 Degrees | |||||||||
|---|---|---|---|---|---|---|---|---|---|

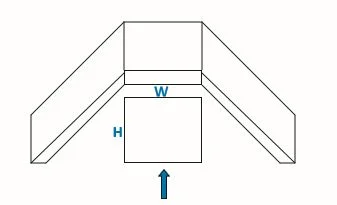

| Model # | # Of Steps | Platform Height | Platform W x D | Clearance H x W | Base W x D | Hand Rails | Weight Lbs. | Perforated | Serrated |
| DS-CO-4035 | 4 | 40" | 24"x35" | 37"x21" | 26"x75" | Yes | 84 | $840 | $1,020 |
| DS-CO-4042 | 4 | 40" | 24"x42" | 37"x28" | 26"x82" | Yes | 89 | $870 | $1,080 |
| DS-CO-4049 | 4 | 40" | 24"x49" | 37"x35" | 26"x89" | Yes | 96 | $900 | $1,110 |
| DS-CO-5035 | 5 | 50" | 24"x35" | 47"x21" | 26"x91" | Yes | 145 | $960 | $1,200 |
| DS-CO-5042 | 5 | 50" | 24"x42" | 47"x28" | 26"x98" | Yes | 151 | $1,020 | $1,320 |
| DS-CO-5049 | 5 | 50" | 24"x49" | 47"x35" | 24"x105" | Yes | 160 | $1,080 | $1,380 |
| DS-CO-6035 | 6 | 60" | 24"x35" | 57"x21" | 24"x103" | Yes | 180 | $1,140 | $1,340 |
| DS-CO-6042 | 6 | 60" | 24"x42" | 57"x28" | 24"x110" | Yes | 186 | $1,200 | $1,560 |
| DS-CO-6049 | 6 | 60" | 24"x49" | 57"x35" | 24"x117" | Yes | 199 | $1,260 | $1,680 |
Features
Standard Features:
57 degree slope
24" wide steps
Mounts at legs for bolting or non-marring rubber legs
500 lb. load rating
1" square tube steel construction
30" handrails
Gray enamel finish

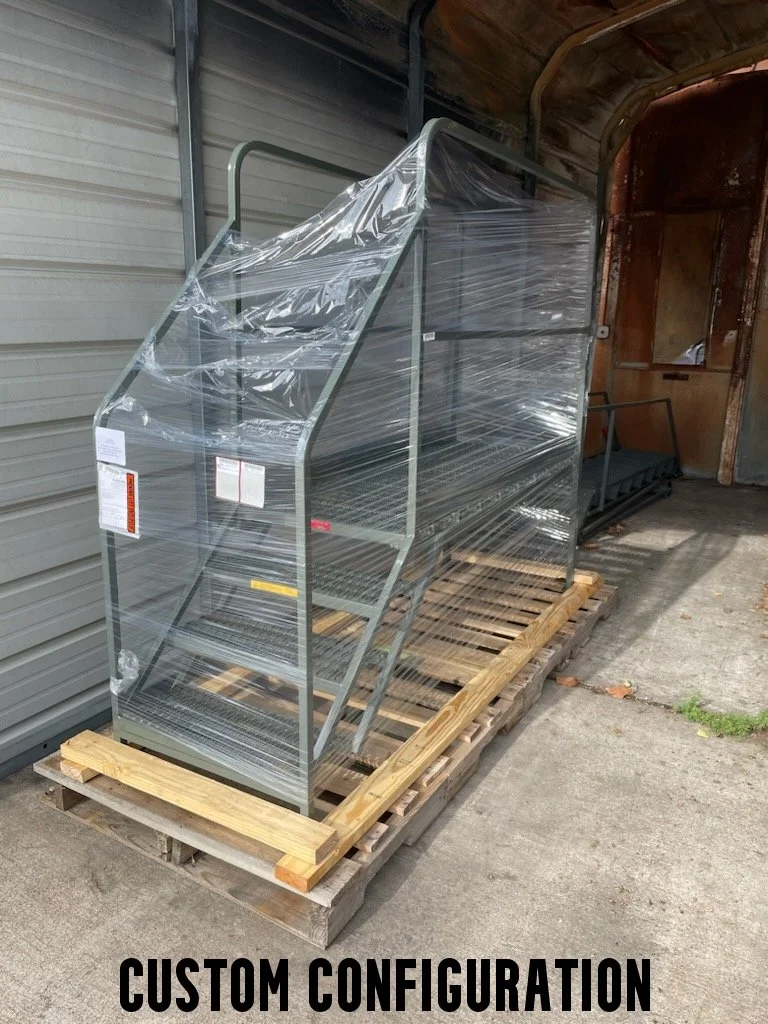

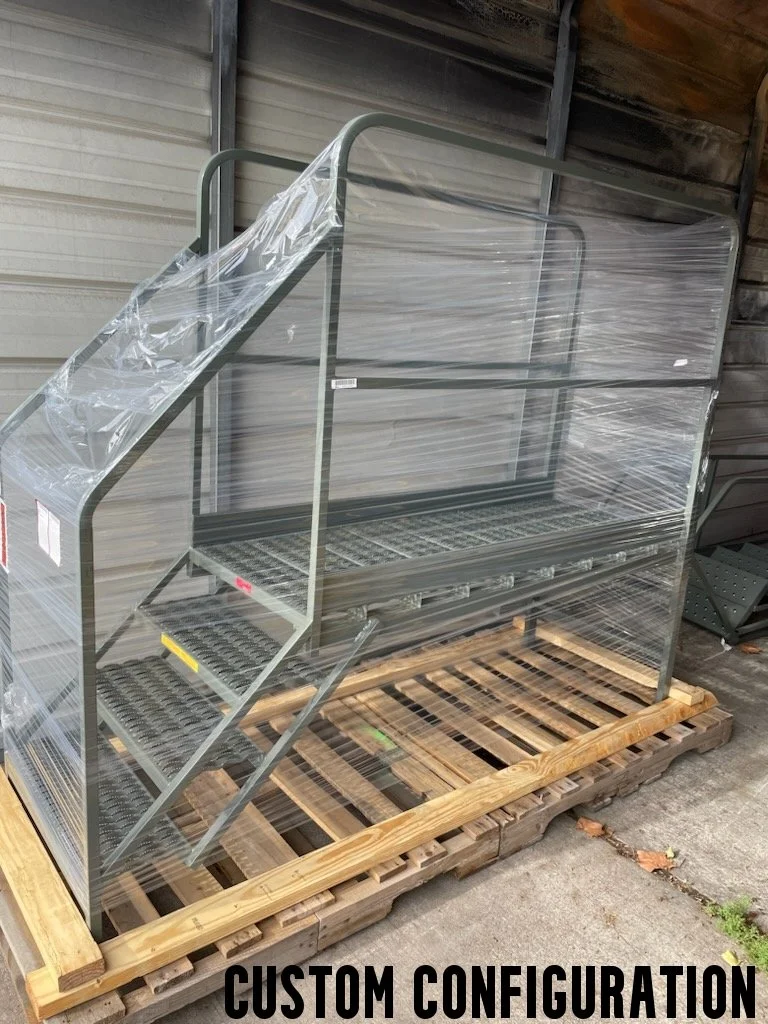

Custom Configurations available on this product
Options
Options:
HEAVY DUTY 500 to 1000 lb. load rating [call for pricing]
Custom clearance height and length [call for pricing]
Cal OSHA compliant design [$180]
Parts
Please call 1-888-802-3651 for replacement parts

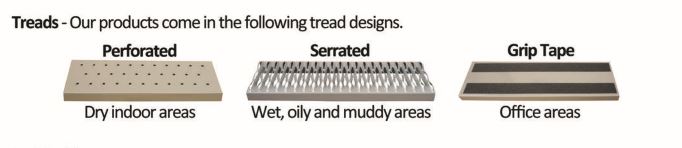

Tread Types
Documentation / Videos
No documentation or videos available for this product.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A CROSSOVER LADDER OR PLATFORM FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CROSSOVER LADDER OR PLATFORM.
