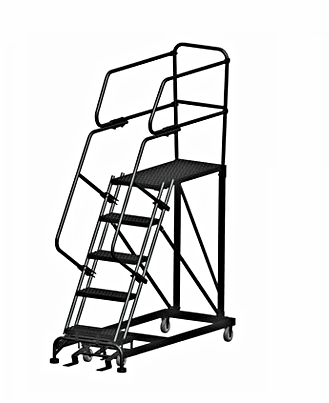

Single Entry Mobile Platform - With Rails
Single Entry Mobile Platform - With Rails
Heavy Duty Mobile Work Platforms may increase productivity by simplifying maintenance operations.
The Heavy Duty Single Entry Mobile Work Platform with handrails is made of powder coated steel and is a mobile work station to keep your employees safe and in compliance with OSHA and ANSI. Made with sturdy 1" tubular steel rails and slip resistant serrated grating tread. Sturdy, secure and able to use in indoor/outdoor , custom projects, military support equipment, manufacturing, industrial, aviation, mechanical or trailer access.
Pricing
| Single Entry Mobile Work Platform - With Rails | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | # Of Steps Including Platform | Platform Height | Platform Width | Platform Length | Hand Rails | Base [W x L] | Weight (lbs.) | Serrated |
| DS-SEP3-2436 | 3 | 30" | 24" | 36" | Yes | 33"x48" | 136 | $960 |
| DS-SEP3-2448 | 3 | 30" | 24" | 48" | Yes | 33"x60" | 151 | $1,085 |
| DS-SEP3-2460 | 3 | 30" | 24" | 60" | Yes | 33"x72" | 172 | $1,185 |
| DS-SEP3-2472 | 3 | 30" | 24" | 72" | Yes | 33"x84" | 193 | $1,353 |
| DS-SEP3-3636 | 3 | 30" | 36" | 36" | Yes | 38"x48" | 153 | $1,119 |
| DS-SEP3-3648 | 3 | 30" | 36" | 48" | Yes | 38"x60" | 178 | $1,385 |
| DS-SEP3-3660 | 3 | 30" | 36" | 60" | Yes | 38"x72" | 202 | $1,558 |
| DS-SEP3-3672 | 3 | 30" | 36" | 72" | Yes | 38"x84" | 226 | $1,785 |
| DS-SEP4-2436 | 4 | 40" | 24" | 36" | Yes | 33"x54" | 151 | $1,097 |
| DS-SEP4-2448 | 4 | 40" | 24" | 48" | Yes | 33"x66" | 165 | $1,207 |
| DS-SEP4-2460 | 4 | 40" | 24" | 60" | Yes | 33"x78" | 186 | $1,349 |
| DS-SEP4-2472 | 4 | 40" | 24" | 72" | Yes | 33"x90" | 207 | $1,489 |
| DS-SEP4-3636 | 4 | 40" | 36" | 36" | Yes | 38"x54" | 167 | $1,264 |
| DS-SEP4-3648 | 4 | 40" | 36" | 48" | Yes | 38"x66" | 193 | $1,600 |
| DS-SEP4-3660 | 4 | 40" | 36" | 60" | Yes | 38"x78" | 217 | $1,767 |
| DS-SEP4-3672 | 4 | 40" | 36" | 72" | Yes | 38"x90" | 240 | $1,870 |
| DS-SEP5-2436 | 5 | 50" | 24" | 36" | Yes | 33"x60" | 165 | $1,117 |
| DS-SEP5-2448 | 5 | 50" | 24" | 48" | Yes | 33"x72" | 178 | $1,302 |
| DS-SEP5-2460 | 5 | 50" | 24" | 60" | Yes | 33"x84" | 199 | $1,532 |
| DS-SEP5-2472 | 5 | 50" | 24" | 72" | Yes | 33"x96" | 220 | $1,705 |
| DS-SEP5-3636 | 5 | 50" | 36" | 36" | Yes | 38"x60" | 182 | $1,362 |
| DS-SEP5-3648 | 5 | 50" | 36" | 48" | Yes | 38"x72" | 206 | $1,744 |
| DS-SEP5-3660 | 5 | 50" | 36" | 60" | Yes | 38"x84" | 230 | $1,900 |
| DS-SEP5-3672 | 5 | 50" | 36" | 72" | Yes | 38"x96" | 253 | $2,101 |
| DS-SEP6-2436 | 6 | 60" | 24" | 36" | Yes | 33"x66" | 178 | $1,341 |
| DS-SEP6-2448 | 6 | 60" | 24" | 48" | Yes | 33"x78" | 193 | $1,660 |
| DS-SEP6-2460 | 6 | 60" | 24" | 60" | Yes | 33"x90" | 215 | $1,758 |
| DS-SEP6-2472 | 6 | 60" | 24" | 72" | Yes | 33"x102" | 237 | $1,891 |
| DS-SEP6-3636 | 6 | 60" | 36" | 36" | Yes | 38"x66" | 198 | $1,693 |
| DS-SEP6-3648 | 6 | 60" | 36" | 48" | Yes | 38"x78" | 220 | $2,124 |
| DS-SEP6-3660 | 6 | 60" | 36" | 60" | Yes | 38"x90" | 245 | $2,320 |
| DS-SEP6-3672 | 6 | 60" | 36" | 72" | Yes | 38"102" | 270 | $2,447 |
| DS-SEP7-2436 | 7 | 70" | 24" | 36" | Yes | 33"x73" | 193 | $1,432 |
| DS-SEP7-2448 | 7 | 70" | 24" | 48" | Yes | 33"x85" | 209 | $1,710 |
| DS-SEP7-2460 | 7 | 70" | 24" | 60" | Yes | 33"x97" | 230 | $1,892 |
| DS-SEP7-2472 | 7 | 70" | 24" | 72" | Yes | 33"x108" | 251 | $2,068 |
| DS-SEP7-3636 | 7 | 70" | 36" | 36" | Yes | 38"x73" | 215 | $1,913 |
| DS-SEP7-3648 | 7 | 70" | 36" | 48" | Yes | 38"x85" | 237 | $2,304 |
| DS-SEP7-3660 | 7 | 70" | 36" | 60" | Yes | 38"x97" | 273 | $2,457 |
| DS-SEP7-3672 | 7 | 70" | 36" | 72" | Yes | 38"x108" | 308 | $2,618 |
| All Dimensions are in inches | ||||||||
Features
Standard Features:
Rugged 2"x1" rectangular tubing base frame and vertical weldment
Easy to use pedal activated lockstep with 4" casters
36" high handrails with midrail
800 pound capacity
Can accommodate 2 workers
Gray powder coat finish
Also available in aluminum or stainless steel
Ships unassembled in a box
OSHA and ANSI compliant
Note: All parts are replaceable so if you bend or destroy any piece of this platform ladder we can replace the part.
Options
| Options / Accessories | ||
|---|---|---|
| Wooden skid to protect during shipment | 4-7 Step Ladders | $110 |
| Wooden skid to protect during shipment | 8-12 Step Ladders (Required on 13-15 Step Models) | $110 |
| Box option | 4-7 Steps | $66 |
| Box option | 8-12 Steps | $79 |
| Fold Down Rails (-FDR) | 4 Steps and Above | $262 |
| CAL OSHA | 6-9 Steps | $113 |
| CAL OSHA | 10+ Steps | $177 |
| Skid Plate (SKD-PLTS) | Replaceable Skid Plate | $112 |
| No Rear Guard Rail (-REEX) | A snap chain is inserted in the opening. | $234 |
| Side Exit (-RTEX or -LTEX) | Requires 28" Deep Top Step at Additional Cost | $234 |
| Employee Only Sign | Includes Chain | $146 |
| Casters | 2" Replacement Casters set of 4 [PR-2] | $90 |
| Casters | 3" Replacement Casters set of 4 [PR-3] | $100 |
| Casters | 4" Replacement Casters set of 4 [SBR-4] | $190 |
| 4" Swivel Casters | 4" Replacement Swivel Caster [00400005] | $40 |
| Casters | 2" SS Replacement Casters set of 4 [SS-PR-2] | $124 |
| Casters | 4" SS Replacement Casters set of 4 [SS-SBR-4] | $190 |
| Wheels | 10" Replacement Wheels set of 2 [FW-2] | $106 |
| Springs | Replacement Springs set of 4 [PS] | $17 |
| Rubber Tips | Replacement Rubber Tips 1"I.D. set of 4 [PT-HDS] | $17 |
| Rubber Tips | Replacement Rubber Tips 7/8"I.D. set of 4 [PR-3] | $16 |
| Hand Rail Brackets | Replacement handrail brackets[00900024] | $8 |
| Hanging Shelf | Hanging Shelf [HPHS] | $134 |
| Donut | 2.5" Replacement Donut Style pads set of 2 [Donut] | $22 |
| Lockstep | Replacement Lockstep 16" wide ladder [90400001] | $163 |
| Lockstep | Replacement Lockstep 24" wide ladder [90400002] | $163 |
| Lockstep | Replacement Weight Actuated Lockstep 16" wide ladder [90400004] | $195 |
| Lockstep | Replacement Weight Actuated Lockstep 24" wide ladder [90400005] | $195 |
| Ladder Instruction Booklet | Replacement Ladder Instruction Booklet [90400005] | $4 |
| Handrails and Braces | All parts can be replaced - call for pricing | CFP |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
Single Entry Platform
DS-SEP3-3696
DS-SEP4-3636
DS-SEP4-3672
DS-SEP6-3648
DS-SEP6-2436
DS-SEP7-3648
